GP1971F
Chartplotter-Ecoscandaglio Articolo : IMD03489000Chartplotter Multitouch 9" con ecoscandaglio chirp
PREZZO : 1 769,00 € IVA inclusa
Descrizione

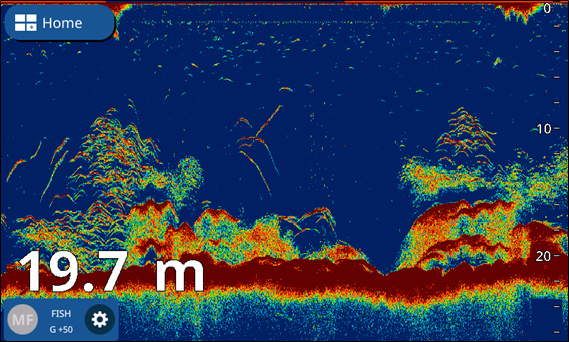

Ecoscandaglio integrato TrueEcho CHIRP

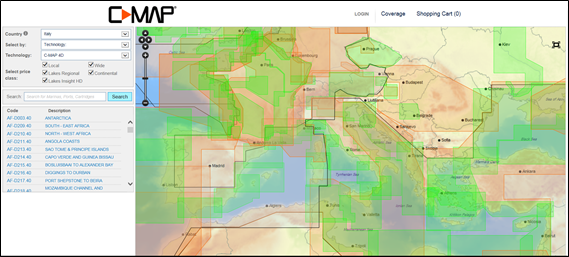

Cartgrafia C-MAP 4D

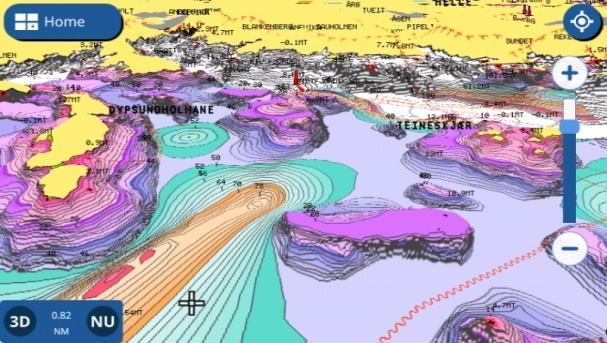

Il plotter GP1971F è compatibile unicamente con cartografia C-MAP 4D su supporto micro SD. Sono disponibili tre tagli di coperture: Local, Wide e Continental. La cartografia da accesso ad una serie di funzioni aggiuntive tra cui: Immagine 3D, foto satellitari, Cartografia Raster e Vettoriale, modalità Easy Routing e scarico dati meteo gratuito C-Weather

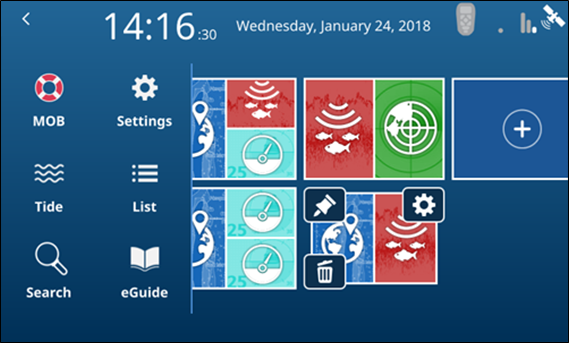

Interfaccia grafica
L’interfaccia grafica utente dei chart plotter GP1871F/1971F è molto semplice e intuitiva ed è basata sulla serie Furuno Navnet TZT2. Le modalità operative sono perfettamente personalizzabili con tre finestre e 5 tipi delle schermate: Plotter cartografico, Ecoscandaglio, Radar, Dati di navigazione e Autopilota. La funzione “Edge-Swipe” garantisce all’utente un facile accesso ai Menù laterali a scomparsa attivabili dai quattro bordi dello schermo.

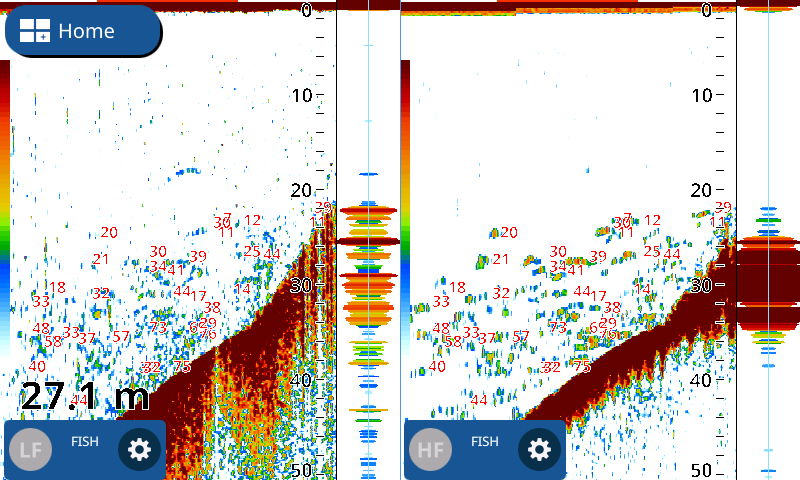

Modalità REZBOOST
La funzione RezBoost è disponibile unicamente con se si utilizza il modulo ecoscandaglio tradizionali a doppia frequenza 50 e 200 kHz di potenza 600W/1 Kw. Questa modalità consente di sfruttare appieno le caratteristiche del trasduttore monotono per una immagine ad alta risoluzione. E' possibile beneficiare inoltre della funzione ACCU-FISH per determinare la dimensione del pesce e la discriminazione del fondale Bottom Discrimination
Caratteristiche tecniche
Alimentazione : 12/24 V
Canalli : 72
Display : LCD COLOR
Ecoscandaglio integrato : 1
Funzione : REZBOOST or CHIRP
GPS integrato : 1
Impermeabilita : 56 IP
Luminosita : 1000 cd/m2
NMEA0183 : 1
NMEA0183 INPUT : 1
NMEA2000 : 1
NMEA2000 INPUT : 1
Risoluzione : WVGA 800 X 480 Pixels
Schermo Dimensione : 9 "
Waypoints : 30 000
Videos
Parti e accessori
| SW-SP2P | SP2P POD NON DECOUPE SURFACE MAX UTILE : 298x177 | NC |
| SW-SP2S | SP2S POD NON DECOUPE SURFACE MAX UTILE : 298x177 | NC |
| 00126602000 | CABLE ASSEMBLY FRU-3P-FF-20M | 170,80 € IVA inclusa |
| SW-SM-18-U | SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM | NC |
| P319 | Transducer 600W True Hull Plastic 50/200kHz, bi-function P & T | NC |
| B60-12 | B60 12 SONDE TRBRONZE 600W 50-200KHZ/P-T/XID/10M | NC |
| B60-20 | B60 20 SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M | NC |
| SS60-12 | SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| B45 | Thru Hull transducer 600W 50/200 kHz Bronze 2 functions (B45) | NC |
| B744V | Transducer True-Hull 600W Bronze 50/200kHz 3 functions | NC |
| B744VL | Tranducer True-Hull 600W Bronze 50/200kHz 3 Functions | NC |
| 520-5PSD | Plastic transducer 600W 50/200kHz (520-5PSD) | 213,50 € IVA inclusa |
| B260 | Transducer True-hull 1kW Bronze 50/200 kHz 2 functions | NC |
| M260 | Transducer In-Hull 1000W 50/200 kHz | NC |
| TM260 | TM260 SONDE TA LAST. 1KW 50-200KHZ/P-T/XID 10M - Sostituito da AI-41-404-1-03 | NC |
| 00003374300 | GC-001 COMMANDE GESTUELLE DEPORTEE | 353,80 € IVA inclusa |
| 00002722600 | MATCHING BOX MB-1100 | 427,00 € IVA inclusa |
| 00001076500 | JUNCTION BOX FI-5002 8PORTS - FI70/FI50/NN3D/PG700 | 236,68 € IVA inclusa |
| TM150M | TM150M DT TRASND PLAST CHIRP 95-155KHZ/300W/12M/10B GP1X71F | 414,80 € IVA inclusa |
| B150M | Chirp transducers operating at a frequency range of 95-155 kHz300W, THRU HULL, Bronze - Sostituito da AI-31-836-1-02 | 567,30 € IVA inclusa |
| B75L | B75L 0 DT SONDE TR BR CHIRP 40-75KHZ/300W/9M/10B GP1X71F - Sostituito da AI-41-549-2-01 | 1 030,90 € IVA inclusa |
| B75M | B75M 0 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/10B GP1X71F - Sostituito da AI-41-551-2-01 | NC |
| B75H | B75H 0DT SONDE TR BRONZE CHIRP 130-210HZ/600W/9M/10B GP1X71F - Sostituito da AI-41-554-2-01 | NC |
| SS75M | SS75M 0 DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/10B GP1X71F - Sostituito da AI-31-793-2-01 | NC |
| SS75H | SS75H DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/10B GP1X71F - Sostituito da AI-31-790-2-01 | NC |
| B175L | B175L DT TRANSD TR BR CHIRP 40-60KHZ/1KW/9M/10B GP1X71F - Sostituito da AI-41-561-2-01 | 1 939,80 € IVA inclusa |
| B175H | B175H 0 DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/10B GP1X71F - Sostituito da AI-41-567-2-01 | NC |
| TM185HW | TM185HW DT SONDE TA PLAS CHIRP 1KW/9M/10B - Sostituito da AI-41-936-1-01 | NC |
| MKT-SUPPORT-GP1971F | PRESENTOIR GP1971F PVC RIGIDE | NC |
| MKT-TOTEM-GP1971F | TOTEM GP1971F PVC RIGIDE | NC |
| MKT-ALIM | ALIMENTATION 220V-12V POUR GP1971F ET GP1871F | NC |
| 50B-6B | TRANSDUCER 50B-6B -15M | NC |
| 520-5MSD | TRANSDUCER 520-5MSD | 353,80 € IVA inclusa |
| 00002368000 | 520-PLD TRANSDUCER | NC |
| 50/200-1T | Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic | 1 159,00 € IVA inclusa |
| 50B-6 | 50B-6 *10M* SONDE 1KW 50KHZ | NC |
| 00002367600 | SS60-SLTD/12 TRANSDUCER | NC |
| 00132193000 | 22S0191-3 INNER HULL MOUNTING KIT | NC |
| 200B-5S | TRANSDUCER 200B-5S - 10M | 328,18 € IVA inclusa |
| 00002689300 | T-04MSB T-04MSB | 451,40 € IVA inclusa |
| 00116416010 | ST-02PSB CAPTEUR TEMP.& VITESS ST-02PSB | 215,94 € IVA inclusa |
| 00116415010 | ST-02MSB SPEED/TEMPERATURE SENSOR | 313,54 € IVA inclusa |
| 00002367700 | SS60-SLTD/20 TRANSDUCER | NC |
| 00001178300 | 525STID-MSD SONDE | NC |
| 00125833000 | 02S4147-2(10-10,6P) CABLE ASSY (FOR ST SENSOR) | 130,54 € IVA inclusa |
| 525-5PWD | TRANSDUCER 525-5PWD TRANSDUCER | 120,78 € IVA inclusa |
| 00001178400 | 525STID-PWD SONDE | NC |
| 00150706000 | TERMINATION RESISTOR(MICRO)(F) TERMINATION MICRO5C F | 36,60 € IVA inclusa |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY | NC |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M | NC |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M | NC |
| 00153306000 | FRU-NMEA-PMMFF-010 NMEA2000 MICRO5C DROITE M/F 1M | NC |
| 00150682000 | FRU-NMEA-PMMFF-010 CABLE ASSEMBLY | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M | NC |
| 00150683000 | FRU-NMEA-PMMFF-020 CABLE ASSEMBLY | NC |
| 00150700000 | FRU-NMEA-PMMFF-060 CABLE ASSEMBLY | NC |
| 00150705000 | FRU-MM1MF1MF1001 MICRO T-CONNECTOR | 68,32 € IVA inclusa |
| 00153308000 | FRU-NMEA-PMMFF-060 NMEA2000 MICRO5C DROITE M/F 6M | NC |
| 00002301900 | 525T-PWD TRANSDUCER | NC |
| 00002302000 | 525T-BSD TRANSDUCER | NC |
| 00002367900 | 525T-LTD/12 TRANSDUCER | NC |
| 00002367800 | 525T-LTD/20 TRANSDUCER | NC |
| 00002689400 | T-04MTB T-04MTB | 152,50 € IVA inclusa |
| 00016716911 | CAP-WBDMSMA1 WATERPROOF CAP | NC |
| 00002302100 | 526TID-HDD TRANSDUCER | NC |
| 00002704700 | ANALOG CONVERTER IF-NMEAFI NMEA DATA | 235,46 € IVA inclusa |
| 00002051000 | IF-NMEA2K2 NMEA2000/NMEA0183 converter | 273,28 € IVA inclusa |
| 00014250300 | C332 10M CABLE EQUIPE | NC |
| 00150707000 | TERMINATION RESISTOR(MICRO)(M) TERMINATION RESISTOR(MICRO) | 36,60 € IVA inclusa |
| OD-STARTER-KIT | KIT DE DEMARRAGE NMEA2000 CERTIFIE | NC |
| CM-SD4D-4DL | CARTE PROGRAM. CMAP LOCALE 4D+ Micro SD | NC |
| CM-SD4D-4DW | CARTE PROGRAMMEE CMAP WIDE 4D+ Micro SD | NC |
| 00003543700 | GP-1971F-E GPS/WAAS CHART PLOTTER | NC |
| DRS4W | ANTENNA RADAR WIFI RADOME 4 kW - Sostituito da IMD03439004 | NC |
| NAVPILOT300 | Autopilota LCD Colori 4.1" con Telecomando - Sostituito da IMD03230003 | 1 927,60 € IVA inclusa |
| FI70 | Strumentazione LCD a colori 4.1" | 536,80 € IVA inclusa |
| 00153340000 | PACKGP-1X71 FUR EXTERNAL BOX | NC |
| 00153337000 | K12CR1010A W/LCD FRONT PANEL ASSY | NC |
| 00153339000 | K12CR1011A W/PCB&PNL LCD ASSY | NC |
| 00153345000 | NEWPEC AND9**.** NEWPEC JAPAN JHA-NP SD CARD | NC |
| 00153341000 | PACK2XGP-KISS MASTER CARTON X2 BOXES | NC |
| 00153342000 | PACKGP-F.TO3 INT ACCESSORY BOX | NC |
| 00153344000 | PACKGP-1971 INT PAD FOR HANGER | NC |
| 00153334000 | CBFFC-050D34040 MB-TO-FF BOARDS FFC | NC |
| 00153335000 | CB66FA0200 MB POWER CABLE | NC |
| 00153319000 | CN CAP-WBDMMSA1 NMEA CONNECTOR CAP | NC |
| 00153333000 | K0G60E0100 MAIN MAIN BOARD GP-1971F ASSY | NC |
| 00153323000 | HPC53AX PROTECTIVECOVER | NC |
| 00153331000 | HGE56AX EXT. GASKET GP-1971F | NC |
| 00153318000 | K12CJ2007A MICRO SD CARD LID KIT | NC |
| 00153321000 | K12CR1007A GP-1971EXTERNAL BRACKET | NC |
| 00153324000 | K12CR1008A FLUSH MOUNT KIT | NC |
| 00153325000 | POWER CABLE FOR GP-1X71F CBC0FS0810 | NC |
| 00153327000 | K12CR1009A BACK COVER | NC |
| 00153328000 | K0G71E0000 FISH FINDER BOARD ASSY | NC |
| 00153329000 | K12CJ2010A SET OF SCREWS | NC |
| 00155046000 | VTATM4.8X22TCCINX SCREW BRACKET MOUNT | NC |
| 00155048000 | HGB15AX GASKET FLUSH MOUNT | NC |
| 00017453210 | 5400TX-T30H-120 TORQUE DRIVER | NC |
| 00019557310 | NO.4600(PZ1X75) POZI SCREWDRIVER | NC |
| 00154667000 | K12CR1014A EXTERNAL BRACKET KIT | NC |
| OMFR-910 | MU GP1871F GP1971F Manuel d'utilisation Francais | NC |
