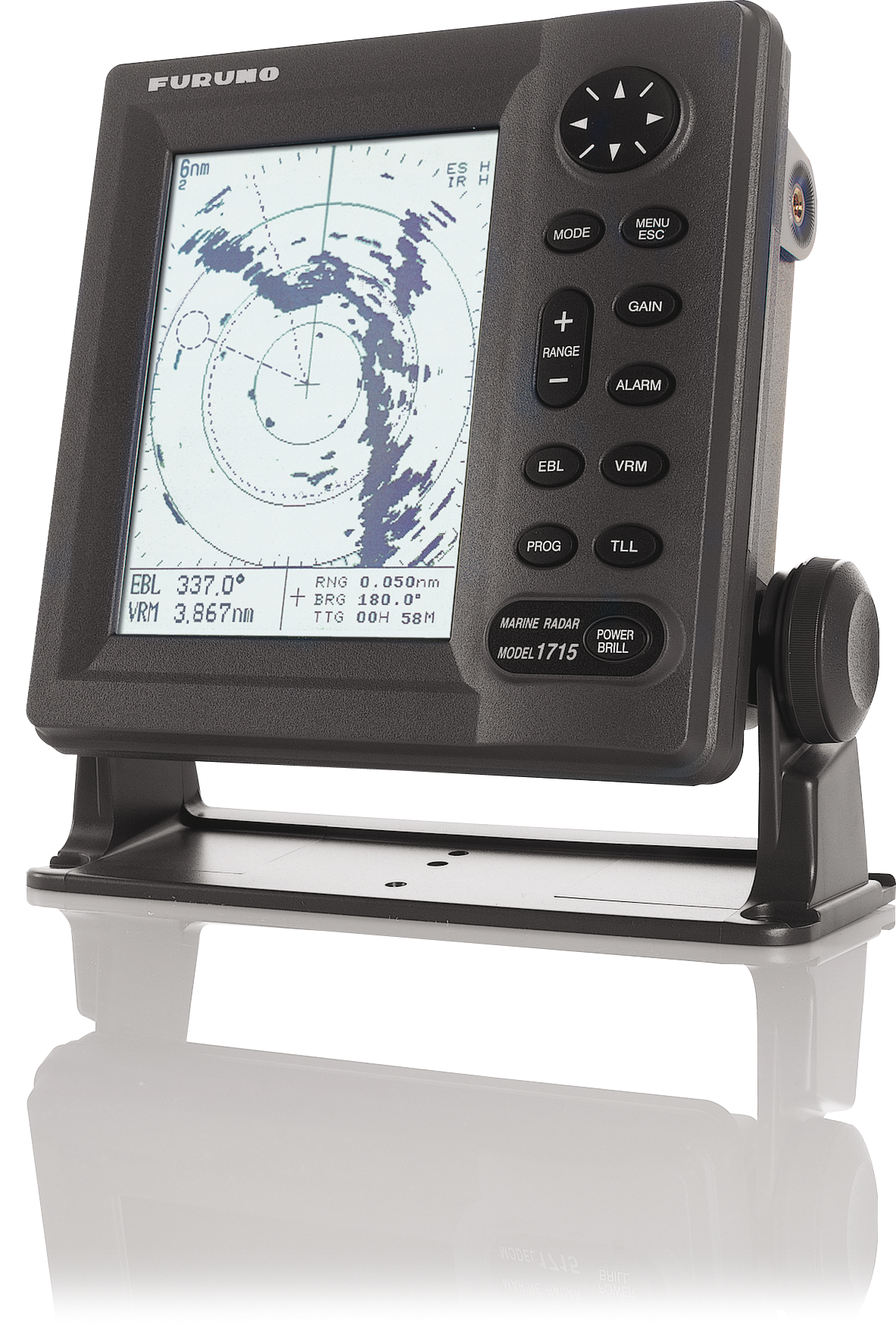

MODEL 1715

Radar serie M Articolo : IMD02376002

1715/15M RADAR7'' M1715 45CM/2.2KW/24MN 15M/12-24V EXPORT

PREZZO : Contattare Furuno Italia

Caratteristiche tecniche

Alimentazione : 12/24 V
Autonomia : 24 h
Diametro : 121 mm
Dimensione : 49 cm
Impermeabilita : X5 IP
Luminosita : 900 cd/m2
NMEA0183 INPUT : 1
NMEA0183 OUTPUT : 1
NMEA2000 INPUT : 1
Peso : 5 Kg
Potenza : 2.2k W
Risoluzione : 320 x 240 Pixels
Scala : 24 NM
Schermo Dimensione : 7
Tipo : Radome


Parti e accessori

00015402810 MJ-A7SPF0007-050C Contattare Furuno Italia
00120334010 XH3-BZ-L970 EXTERNAL ALARM BUZZER 03S9595-0 125,89 € IVA inclusa
MJ-A15A7F0004-005 MJ-A15A7F0004-005 CABLE EQUIPE 12V / LS6100/M1623 83,94 € IVA inclusa
00126069000 MJ-A15A7F0005-020 MJ-A15A7F0005-020 02S4186-0 90,93 € IVA inclusa
RO-CMT2 COMPENSATEUR LIGNE DE FOI ROCMT2 POUR MAT ROTATIF M1715 Contattare Furuno Italia
SC-SC12 SC12 STAFFA MONTAGGIO ALBERO 45CM PER DRS4W C/DRS2D/I2/DR4W 474,58 € IVA inclusa
SW-ADA-R1 ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE Contattare Furuno Italia
SW-AM5-M1 AM5-M1 SUPPORT MODULAIRE " DROIT 5'' BASE RONDE 8"" " "127 MM, BASE RONDE DE 8""" Contattare Furuno Italia
SW-LTB-R LTB-R BRAS 30MM TOUT RADOME 1'' 1/4 - INCLINAISON 90? Contattare Furuno Italia
SW-PM-W2-7 PM-W2-7 CALE DE 2 DEGRES POUR SUPPORT AVEC BASE 7x7 Contattare Furuno Italia
SW-PM-W4-7 PM-W4-7 CALE DE 4? POUR SUPPORT AVEC BASE 7x7 Contattare Furuno Italia
SW-PMA-107-M1 PMA-107-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 254 mm "BASE 7""""X 7""" Contattare Furuno Italia
SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" Contattare Furuno Italia
SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM Contattare Furuno Italia
00008644300 OP03-136 OP03-136 - 122,40 € IVA inclusa
00001348600 PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT 750,30 € IVA inclusa
00008052500 MODEL1715-E-15 RADAR Contattare Furuno Italia
100305820XX 64-024-1502-0 ETRIER M1715 Contattare Furuno Italia
00010004910 BVH-21T-P1.1 CONTACT PIN VH CONTACT 5,38 € IVA inclusa
00014534011 S-RX51F/RU-9458F MIC FOR X-BAND 03S9569-2 757,00 € IVA inclusa
00014745815 EW50300FDWR LCD(6.5) 03S9676-5 485,29 € IVA inclusa
00014756410 MJ-A15A3F0019-035-5A CABLE ASSEMBLY 03S9631-0 94,43 € IVA inclusa
000148240XX 03P9356 PNL PLATINE M1715 Contattare Furuno Italia
00015464111 MJ-A10SRMD+R CONNECTOR 64S4054-1 42,37 € IVA inclusa
00017754410 40 S2M266UG STS BELT - 32,95 € IVA inclusa
00050589310 VHR-9N VH CONNECTOR HOUSING - 5,38 € IVA inclusa
00104706000 03P9320A SPU PRINTED CIRCUIT BOARD MODEL 1715 1 401,55 € IVA inclusa
00104790000 03P9321LF PRINTED CIRCUIT BOARD 03S9629 - Sostituito da 00124337000 714,63 € IVA inclusa
10030844110 03-165-1011-1 ROHS HARD COVER - - Sostituito da 10030844210 44,38 € IVA inclusa
00112373000 03P9520A DU PRINTED CIRCUIT BOARD MODEL1715 SP 1 401,55 € IVA inclusa
10029847210 02-139-1032-2 ROHS KNOB - 18,84 € IVA inclusa
10027503010 03-146-3304-0 ROHS DRIVE GEAR - 37,66 € IVA inclusa
00852581000 RSB-0087/A/94/95/110 RADOME LOWER ASSEMBLY MODEL 1712/22/C 506,01 € IVA inclusa
00850527000 RSB-0087/A/94/95/110 RADOME UPPER ASSEMBLY 414,28 € IVA inclusa
00850263000 RM-9455 STEPPING MOTOR MODEL 1622 222,74 € IVA inclusa
00108782000 E3588 MAGNETRON 03S9457-1 700,50 € IVA inclusa
00112287010 MJ-A10SPF0009-150+ CABLE ASSEMBLY 03S0015 547,98 € IVA inclusa
00124341000 03P9322(LF) INT PRINTED CIRCUIT BOARD CHINA RTR074/76 881,28 € IVA inclusa
00124332000 03P9270A(LF) MD PRINTED CIRCUIT BOARD CHINA 836,08 € IVA inclusa
00112288010 MJ-A10SPF0009-200+ CABLE ASSEMBLY 03S0015 618,59 € IVA inclusa
