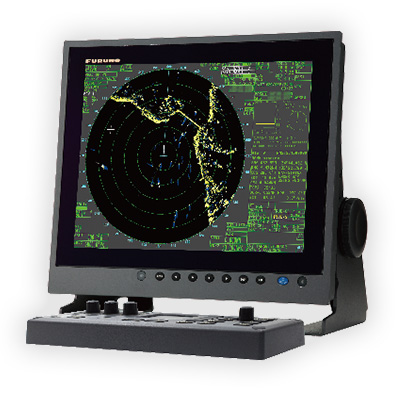

FAR1528BB
Radars maritimes série FR & FARRADAR BLACK BOX IMO 25 kW BANDE X (SANS RADIATEUR NI CABLE)
Echelle
Puissance
Taille
Vitesse de Rotation
Caractéristiques techniques
Alimentation : 24/100-230 V
DVI OUTPUT : 1
Echelle : 96 NM
Puissance : 25k W
Résolution : 1024 x 768 Pixels
RGB OUTPUT : 1
Taille : 4/6.5/8 ft
Vitesse de Rotation : 26/48 RPM
Pièces et accessoires
| 00001363200 | Alimentation PR240 Transforme le 110/220Vca en 24Vcc - 10A MAX (FELCOM18/19) | NC |
| 00002515900 | PR-850A ALIMENTATION AC/DC FS2570-75/FS5070-75 | NC |
| RCU-030 | Commande à distance RCU-030 pour FAR15X3/15X8 | NC |
| 00002785800 | RCU-028 CONTROL UNIT | NC |
| 00002871000 | RSB-120-100-1 AERIEN | 7 907,28 € TTC (22%) |
| 00002871100 | RSB-121-100-1 AERIEN | 9 710,99 € TTC (22%) |
| 00002871200 | RSB-120-101-1 AERIEN | 12 003,76 € TTC (22%) |
| 00002871300 | RSB-121-101-1 SCANNER UNIT FAR-1427/1528BB | NC |
| 00003042000 | RU-1803 700DOT8-6 AC440V-AC110V | 1 355,81 € TTC (22%) |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | Alimentation RU3423 - 220Vca --> 24Vcc - 7A pour radar MODEL_FR_FAR | 1 276,72 € TTC (22%) |
| 00003049700 | RU-3424 ALIMENTATION AC/DC 220VAC--->24V | 2 259,68 € TTC (22%) |
| 00003782000 | Alimentation PR241 Transforme le 110/220Vca en 24Vcc - 10A MAX (FELCOM18/19) - Remplacé par 000037820NM | NC |
| HUB-100 | HUB-100 SWITCH RESEAU LAN FAR-28X7 | NC |
| 00015794310 | MJ-A3SPF0024-035C CABLE ASSEMBLY 08S0358-1 | NC |
| 00017895210 | TS-10-066 CABLE ASSEMBLY 02S100580 | NC |
| 00108085000 | OP26-4 KIT MONTAGGIO A INCASSO FLUSH MOUNT KIT MU-150HD - Remplacé par 00149745000 | NC |
| 00110362010 | RW-4864 *1M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110363010 | RW-4864 *5M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110364010 | RW-4864 *10M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110365010 | RW-4864 *15M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00113296010 | DVI-D/D S-LINK Câble DVI 5m pour écran extérieur | NC |
| 00113398010 | DVI-D/D Câble DVI blindé 10m pour écran extérieur | 912,35 € TTC (22%) |
| 00116788010 | MOD-Z072-020+ Câble réseau RJ45 <-> RJ45 4 paires - 2m | 83,94 € TTC (22%) |
| 00116789010 | MOD-Z072-050+ Câble réseau RJ45 <-> RJ45 4 paires - 5m | 89,06 € TTC (22%) |
| 00116790010 | MOD-Z072-100+ Câble réseau RJ45 <-> RJ45 4 paires - 10m | 151,72 € TTC (22%) |
| 00124051000 | FR-FTPC-CY *10M* CABLE RESEAU LAN 4 PAIRES FEA2107<=>FAR2XX7 | NC |
| 00124052000 | CABLE RESEAU 20M (FSV35/FSV85/VR7000) | NC |
| 00124053000 | CABLE RESEAU 30M (FSV35/FSV85/VR7000) | NC |
| PM32 | PM-32A KIT PERFORMANCE MONITOR RSB-120/121 FAR1518 | NC |
| 00149745000 | OP26-36 FLUSH MOUNT KIT MU-152 | NC |
| 00157811000 | TM000-FDX06_TXRX_30M DVI/USB_REPEATER 86S000050 | NC |
| 00157812000 | TM000-FDX06_RX DVI/USB_REPEATER 86S000050 | NC |
| 00157813000 | TM000-FDX06_TX DVI/USB_REPEATER 86S000050 | NC |
| 00157814000 | WO2511 30M CABLE ASSEMBLY 86S000050 | NC |
| 00157815000 | WO2512 50M CABLE ASSEMBLY 86S000050 | NC |
| 00157816000 | WO2513 100M CABLE ASSEMBLY 86S000050 | NC |
| 00157817000 | TM000-FDX06_TXRX_50M DVI/USB_REPEATER 86S000050 | NC |
| 00157818000 | TM000-FDX06_TXRX100M DVI/USB_REPEATER 86S000050 | NC |
| 00157819000 | TM000-FDX06_TXRX DVI/USB_REPEATER 86S000050 | NC |
| 00158956000 | TS-10-068 CABLE ASSEMBLY 86S000070 | NC |
| 00854246000 | CP03-28901 CONNECTEUR | 60,52 € TTC (22%) |
| 00107722010 | 3COX-2P-6C *10M* CABLE EQUIPE VIDEO ANALOGIQUE RGB 3 COAX | 251,32 € TTC (22%) |
| 00107723010 | 3COX-2P-6C 5M | 178,12 € TTC (22%) |
| 00142344000 | RW-0030 L15M CABLE (29 CORE) | NC |
| 00142345000 | RW-0030 L20M CABLE (29 CORE) 03S000300 FAR1518/FAR1528 | NC |
| 00142346000 | RW-0030 L30M CABLE (29 CORE) 03S000300 FAR1518/FAR1528 | NC |
| XN20AF | RADIATEUR XN20AF 6.5FT (FR1510MK3/FR2115/FAR2117/FAR1518) - Remplacé par 00163361000 | NC |
| XN24AF | RADIATEUR XN24AF 8FT (FAR2127) | NC |
| 00019229910 | RW-0030 L100M 29 CORE CABLE 03S000300 | 6 052,73 € TTC (22%) |
| 00019239110 | RW-0030 L200M 29 CORE CABLE 03S000300 | 12 098,19 € TTC (22%) |
| 00019239210 | RW-0030 L300M 29 CORE CABLE 03S000300 | 18 143,64 € TTC (22%) |
| 00111082000 | RSB-120/121 R-JOINT ROTARY JOINT ASSEMBLY | 587,52 € TTC (22%) |
| 00111083000 | 03-2291(SWITCH-R2P) SWITCH ASSEMBLY RSB-120/121 | 369,89 € TTC (22%) |
| 00111085000 | 03-2295(MOTOR P2P) SCANNER MOTOR W/CONNECTOR RSB-120 | 1 265,42 € TTC (22%) |
| 00111086000 | 03-2296(MOTOR P2P) SCANNER MOTOR W/CONNECTOR RSB-121 | 3 411,72 € TTC (22%) |
| 00111088000 | RTR-101 TRANSCEIVER UNIT | 6 592,62 € TTC (22%) |
| 00111096000 | 03-2302(FAN-2P) BL-XH CONNECTOR ASSEMBLY RTR-100/101 | 517,84 € TTC (22%) |
| 00111134000 | RTR-100/101 AMP ASSY AMP CASE ASSEMBLY | 4 483,85 € TTC (22%) |
| 00113016000 | 03P9347A(LF) BP PLATINE RSB-96/7/103/109 - Remplacé par 00161669000 | 222,74 € TTC (22%) |
| 00113211000 | 03P9507A(LF) MD PLATINE MODULATEUR RTR-101 w/RT-9023 - Remplacé par 00154494000 | 1 549,50 € TTC (22%) |
| 00113221000 | 03P9506D(LF) RFC PRINTED CIRCUIT BOARD RTR-101 - Remplacé par 00161664000 | 1 267,04 € TTC (22%) |
| 00114622000 | 05-106-5611/12/13 DISTRESS SWITCH COVER ASSY FS-2575C | 80,43 € TTC (22%) |
| 00116956000 | MU3955N1 BALL TAS4728N1 SP | 233,76 € TTC (22%) |
| 00116957000 | MU3955N2 RING UNIT TAS4728N1 SP | 227,85 € TTC (22%) |
| 00116958000 | MU3955N3 BALL&RING UNIT TAS4728N1 SP | 455,71 € TTC (22%) |
| 00119462000 | 03-2350(10-10P) PH CONNECTOR ASSEMBLY | 42,37 € TTC (22%) |
| 00128073000 | MU3955N4 BOARD RCU-030 SP | 145,27 € TTC (22%) |
| 00128074000 | MU3955N5 TAPPING SCREWS RCU-030 | 44,38 € TTC (22%) |
| 00128075000 | MU3955N6 SEMS SCREW RCU-030 | 44,38 € TTC (22%) |
| 00141692000 | 24-045(BUZZER-2P) BUZZER ASSEMBLY CHINA | 164,64 € TTC (22%) |
| 00141701000 | 03-177-2034/#6601-P KNOB (W/D SPRING) CHINA | 66,44 € TTC (22%) |
| 00142312000 | 03P9576(LF) FIL *NEW PRINTED CIRCUIT BOARD RPU-023/024 | 782,41 € TTC (22%) |
| 00142315000 | 03P9488 RF TB PLATINE - Remplacé par 00161671000 | 601,64 € TTC (22%) |
| 00142336000 | RSB-120-1/121-1 RB RADIATOR BRACKET WITH BODY W/SCANNER BODY | 5 125,45 € TTC (22%) |
| 00142338000 | RSB-120-1 LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 4 830,08 € TTC (22%) |
| 00142339000 | RSB-121-1 LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 6 166,51 € TTC (22%) |
| 00142508000 | 03P9559(LF)*NEW*X-PM X-PM PCB WITH CASE RSB128/130/120/ | 2 101,51 € TTC (22%) |
| 00142839000 | RSB-120-1IMO LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 5 912,30 € TTC (22%) |
| 00142840000 | RSB-121-1IMO LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 7 173,69 € TTC (22%) |
| 00142841000 | CP03-33402 INSTALLATION MATERIALS RSB-120/121IMO | 154,95 € TTC (22%) |
| 00142842000 | RSB-120/121-1IMO SCANNER COVER WITH PM-ANT | 2 262,38 € TTC (22%) |
| 00142846000 | RPU-024 DC FIL DC FIL ASSEMBLY | 1 189,16 € TTC (22%) |
| 00142847000 | RPU-024 AC FIL AC FIL ASSEMBLY | 1 189,16 € TTC (22%) |
| 00142848000 | 03P9341C(LF) FIL PRINTED CIRCUIT BOARD | 740,05 € TTC (22%) |
| 00142849000 | 03P9547A(LF) SPU PLATINE SPU SEULE RPU-024 - Remplacé par 00161716000 | 4 270,40 € TTC (22%) |
| 00142853000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD RPU-024 - Remplacé par 00161719000 | 1 931,49 € TTC (22%) |
| 00142854000 | SP03-18001 SPARE PARTS RPU-024(DC) | 28,24 € TTC (22%) |
| 00142855000 | SP03-18002 SPARE PARTS RPU-024(AC) | 28,24 € TTC (22%) |
| 00142856000 | 03P9528B(LF) KEY PCB PLATINE RCU-028 - Remplacé par 00161683000 | 635,53 € TTC (22%) |
| 00142857000 | RCU-028 PANEL FACE AVANT | 334,38 € TTC (22%) |
| 00142858000 | CP03-36601 INSTALLATION MATERIALS RCU-028 | 28,24 € TTC (22%) |
| 00142862000 | 03P9497B(LF) PWR(DC) PRINTED CIRCUIT BOARD | 2 471,26 € TTC (22%) |
| 00142865000 | 03P9494B(LF) PWR(AC) PRINTED CIRCUIT BOARD | 2 719,15 € TTC (22%) |
| 00142867000 | 03P9494D(LF) PWR(AC) PRINTED CIRCUIT BOARD | 2 719,15 € TTC (22%) |
| 00142868000 | 03P9547A(LF) SPU ASSY PLATINE SPU ASSEMBLY RPU-024 | 4 318,96 € TTC (22%) |
| 00142870000 | 03P9497B(LF)PWR ASSY PWR ASSEMBLY (DC) RPU-024 | 2 854,60 € TTC (22%) |
| 00142873000 | 03P9494B(LF)PWR ASSY PWR ASSEMBLY (AC) RPU-024 100-115VAC | 2 854,60 € TTC (22%) |
| 00142875000 | 03P9494D(LF)PWR ASSY PWR ASSEMBLY (AC) RPU-024 220-230VAC | 2 854,60 € TTC (22%) |
| 00149916000 | 03-2119(REED SW-2P) SW-XH CONNECTOR ASSEMBLY RSB096/97/103/ | 64,56 € TTC (22%) |
| 00154487000 | 03P9507B(LF) MD PLATINE MODULATEUR RTR-101 w/RT-9023B - Remplacé par 00161678000 | 1 549,50 € TTC (22%) |
| 00154494000 | 03P9507B(LF)/RT9023B MD PCB SET RTR-101 - Remplacé par 00161679000 | 1 955,71 € TTC (22%) |
| 00155364000 | TB5211 50G ADHESIVE | 48,42 € TTC (22%) |
| 00155940000 | 03P9347A(LF) BP PRINTED CIRCUIT BOARD FAR2117/2127 NEW - Remplacé par 00161669000 | 222,74 € TTC (22%) |
| 00160547000 | 03-177-2034 KNOB ASSEMBLY | 66,44 € TTC (22%) |
| 00161431000 | RPU-024/027 DC FIL DC FIL ASSEMBLY CHINA 03P9576 | 1 189,16 € TTC (22%) |
| 00161664000 | 03P9506D(LF) RFC PRINTED CIRCUIT BOARD CHINARTR101/135 | 1 267,04 € TTC (22%) |
| 00161669000 | 03P9347A(LF) BP PRINTED CIRCUIT BOARD CHINA 03E2-7420 | 222,74 € TTC (22%) |
| 00161671000 | 03P9488(LF)RF TB*NEW PRINTED CIRCUIT BOARD CHINA RSB-120/1 | 601,64 € TTC (22%) |
| 00161678000 | 03P9507B(LF) MD PRINTED CIRCUIT BOARD CHINARTR101/135 | 1 549,50 € TTC (22%) |
| 00161679000 | 03P9507B(LF)/RT9023B MD PCB SET CHINARTR101/135 | 1 955,71 € TTC (22%) |
| 00161683000 | 03P9528B(LF) KEY PRINTED CIRCUIT BOARD CHINA RCU-028 | 635,53 € TTC (22%) |
| 00161716000 | 03P9547A(LF) SPU PRINTED CIRCUIT BOARD CHINA RPU-024 | 4 270,40 € TTC (22%) |
| 00161718000 | 03P9341C(LF) FIL PRINTED CIRCUIT BOARD CHINA | 740,05 € TTC (22%) |
| 00161719000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD CHINA RPU-024 | 1 931,49 € TTC (22%) |
| 00848718000 | RSB-0074/75/92/96/97 CAPOT AERIEN 103/109/120/121 | 618,59 € TTC (22%) |
| 00853472000 | 03-2119(REED SW-2P) CONNECTEUR SW-XH RSB-096/97/103 - Remplacé par 00149916000 | 64,56 € TTC (22%) |
