NAUTOPILOT5000
Gyrocompass - WM Autopilot Ref : NAUTOPILOT-5000Anschütz Adaptive Heading Control System NautoPilot 5000
Descriptif

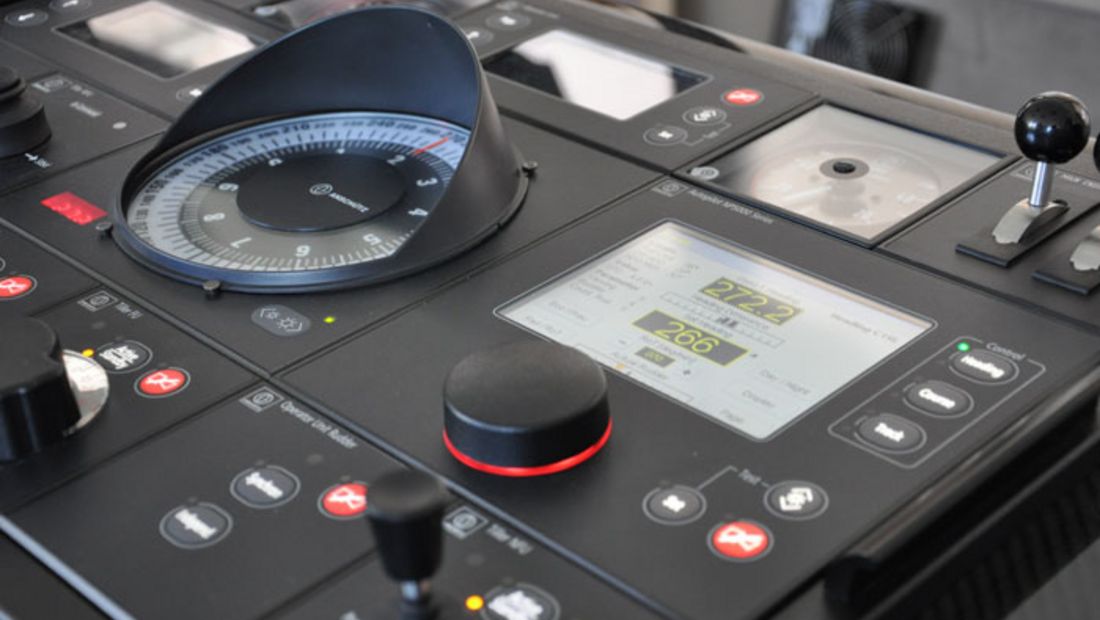

adaptive heading control system
![](/images/BlocsProduits/3981_NP50001.jpg)

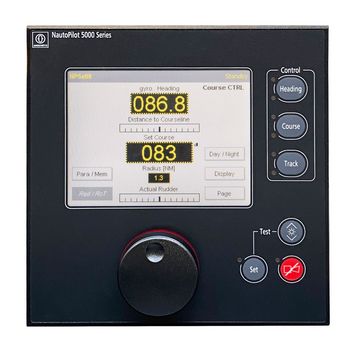

STEERING PERFORMANCE
-
Heading control mode, and in addition course control and track control modes
-
In course control mode the autopilot compensates drift deviations automatically
-
Approved as part of a track control system in combination with several ECDIS
![](/images/BlocsProduits/3982_NP50003.jpg)
ADVANCED FUNCTIONAL RANGE
- Fuel-saving thanks to weather adaptivity (ECO-mode)

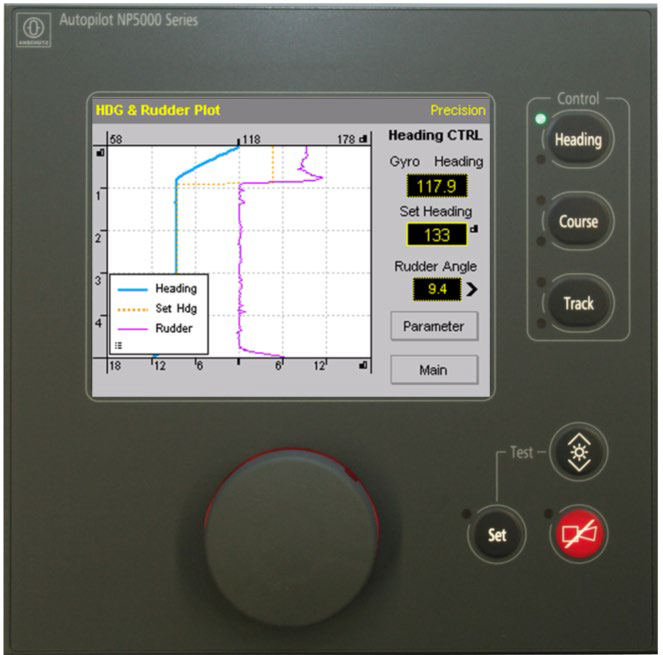

- Simple adjustment of autopilots parameters by use of heading and rudder plotter
- Cross acceleration monitor for identification of dangerous situations
- High precision track controller (e.g. when sailing in archipelagos)
![](/images/BlocsProduits/3983_NP50006.png)

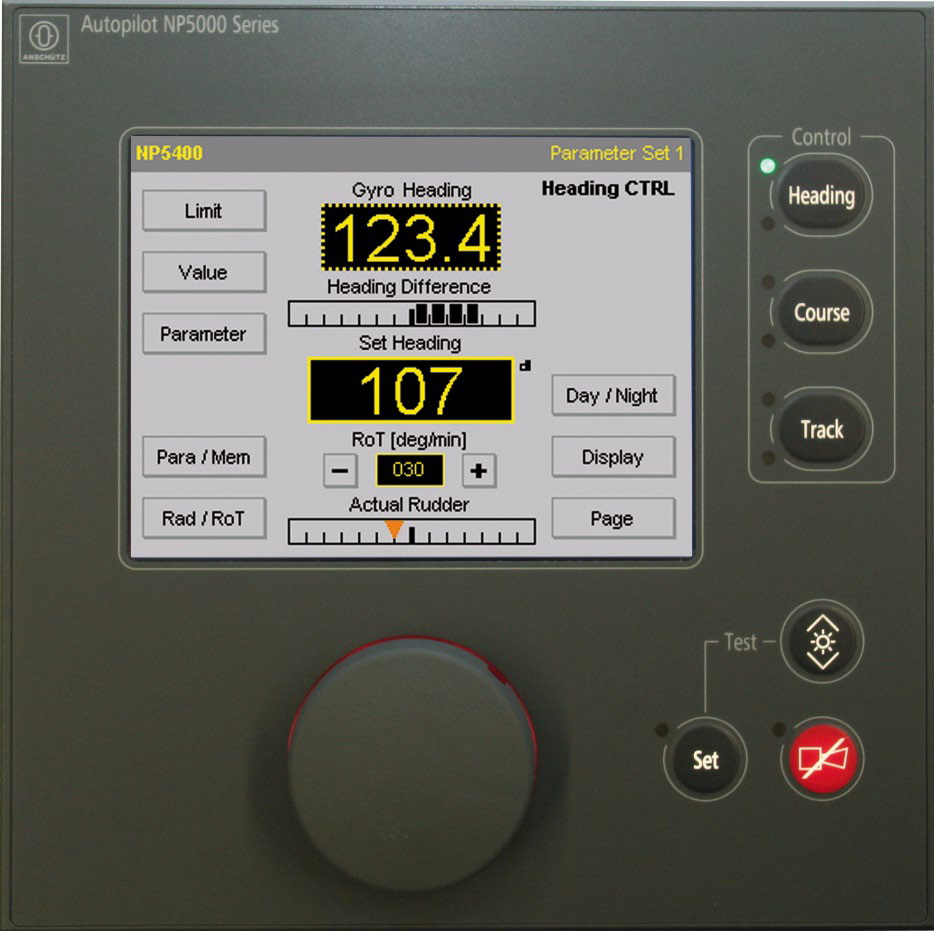

EASY FAMILIARIZATION
-
Main functions are operated via hard keys, e.g. course change by turning and pushing the knob
-
Secondary functions are operated via soft keys on the touch screen
-
Graphical information provided by the display eases operation
![](/images/BlocsProduits/3984_NP50007.png)

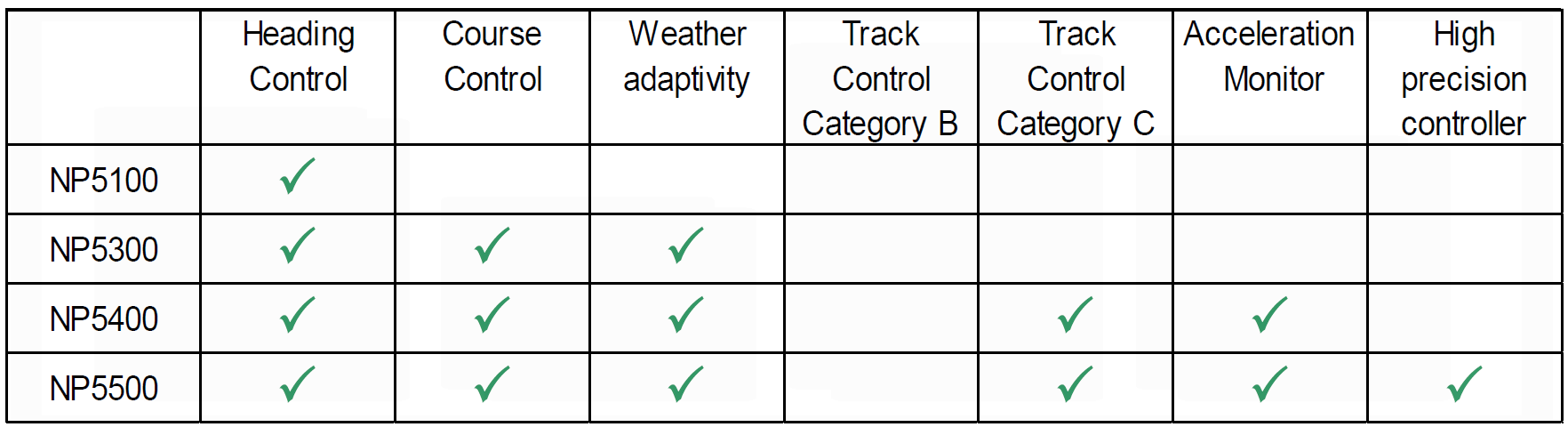

NAUTOPILOT 5000 VARIANTS
![](/images/BlocsProduits/3985_NP50008.png)

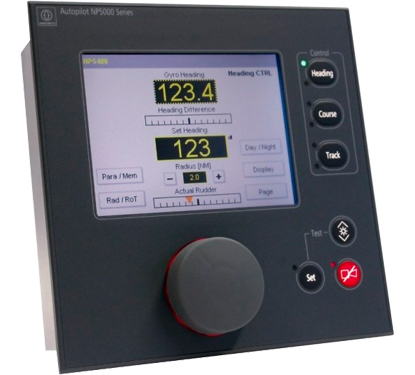

Autopilot handling has never been easier
![](/images/BlocsProduits/3986_NP50004.jpg)

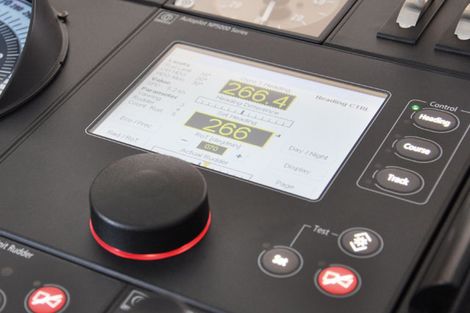

System integration
![](/images/BlocsProduits/3987_NP50002.jpg)
Plus produit
Caractéristiques
- Precise steering thanks to unique Anschütz steering algorithms
- Ease of use and intuitive handling
- Fuel-saving thanks to weather adaptivity
- Simple adjustment of autopilots parameters by use of heading and rudder plotter
- Cross acceleration monitor for identification of dangerous situations
- Course control mode for automatic drift compensation
- Approved as part of a track control system in combination with several ECDIS
- Approved for high speed crafts
Caractéristiques techniques
Alimentation : 24 V
Etanchéité : 56 IP
Taille écran : 5,7
