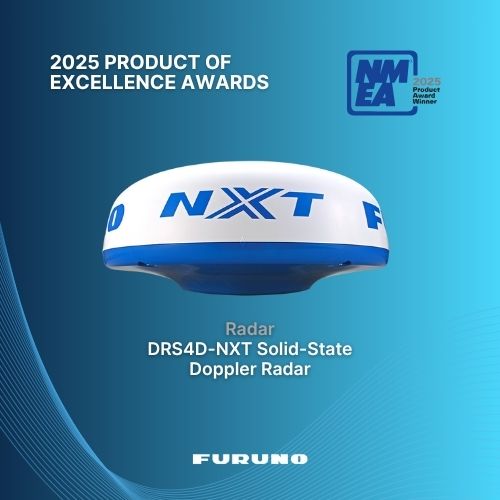

DRS4D-NXT

Antenas de radar serie DRS Ref : IMD03456001

24" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable.

PRECIO : 3 647,80 € Con IVA (22%)


Descripción

Target Analyzer™ function utilizing Doppler technology spots hazardous targets instantly

The NXT are the first Radars in the world to use FURUNO's exclusive Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify potentially dangerous targets. Green echoes are targets that stay stationary, or are moving away from you, while red echoes are hazardous targets that are moving towards your vessel. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ improves situational awareness and can increase safety by showing you which targets to look out for.

Rain mode

When the “Rain mode” is on, rain echoes are shown in blue. This mode is particularly useful as it has the capability to detect targets masked by rain clutters.

Fast Target Tracking and Auto Target Acquire function

With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.

When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm.

Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel's course and speed.

Bird Mode

DRS6A-NXT and DRS4D-NXT feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.

RezBoost beam sharpening

FURUNO's exclusive RezBoost™ technology has been incorporated into our Radar units for enhanced resolution and impressive performance. With RezBoost™ set to MAX, the sharpness offers an incredibly detailed image with more targets and less clutter.


Ventajas del producto

  • Solid-State Technology
  • Target Analyzer
  • Funzione RezBoost
  • Fast Target Tracking (ARPA)
  • Bird mode


Funciones

The NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation. The NXT series features Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost™ technology, the DRS6A-NXT and DRS4D-NXT have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.


Contenido

1 x Radar Sensor RSB-135-115
1 x Installation Materials
Spare Parts

Características técnicas

Alimentación : 12/24 V
Dimensiones : 24''
Estado Sólido : Solid-State
Funciones : Target Analyser + RezBoost + Bird Mode
Haz : 3.9 °
Peso : 7.3 Kg
Potencia : 25 W
Rango : 48 NM
Tipo : Radome
Velocidad de Rotación de Antena : 24/36/48 RPM


Piezas y accesorios

00107834000 OP03-208 RADOME MOUNT 785,24 € Con IVA (22%)
00142625000 REPLACEMNT KIT OP03-239 DRS4D-NXT 68,60 € Con IVA (22%)
00152404000 OP03-259-4 EMC MODIFICATION KIT L=30M 581,87 € Con IVA (22%)
00152403000 OP03-259-3 EMC MODIFICATION KIT L=20M 476,42 € Con IVA (22%)
00152402000 OP03-259-2 EMC MODIFICATION KIT L=15M 411,31 € Con IVA (22%)
00152401000 OP03-259-1 EMC MODIFICATION KIT L=10M 346,21 € Con IVA (22%)
RO-CMT1 COMPENSATEUR LIGNE DE FOI ROCMT1 POUR MAT ROTATIF 12VDC & 24VDC NC
SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" NC
SW-ADA-R1 ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE NC
SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM NC
00151260000 FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET 167,86 € Con IVA (22%)
00151268000 CAVO ANTENNA 30M DRS X E NXT FRU-2P5S-FF-30M-A 30M PWR SUPPLY / LAN CABLE 341,60 € Con IVA (22%)
00163287000 FRU-2P5S-FF-05M-A CABLE ASSEMBLY 145,27 € Con IVA (22%)
00151264000 CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE 219,60 € Con IVA (22%)
00151262000 FRU-2P5S-FF-15M-A CABLE 15M ALIM/ETHERNET 232,42 € Con IVA (22%)
00137646000 FRU-2P5S-FF-10M CABLE EQUIPE 10M 03S002270 - Sustituido por 00151260000 154,95 € Con IVA (22%)
00137648000 FRU-2P5S-FF-15M CABLE ASSEMBLY 03S002270 - Sustituido por 00151262000 222,74 € Con IVA (22%)
00137649000 CABLE ASSEMBLY FRU-2P5S-FF-20M 03S002270 - Sustituido por 00151264000 260,40 € Con IVA (22%)
00137650000 CABLE ASSEMBLY FRU-2P5S-FF-30M 03S002270 - Sustituido por 00151268000 384,69 € Con IVA (22%)
00134182000 CABLE ASSEMBLY MOD-ASW0001-200+ 19S1127-1 517,84 € Con IVA (22%)
00134166000 MOD-ASW0001-100+ MOD-ASW0001-100+ 19S1127-1 346,21 € Con IVA (22%)
00003671600 DRS4D-NXT-E RADAR SENSOR NC
00142611000 03-2479(REED SW-2P) REED SWITCH ASSEMBLY DRS4D-NXT 37,66 € Con IVA (22%)
00143464000 RTR-115 SPU COVER SPU COVER ASSEMBLY DRS4D-NXT 190,45 € Con IVA (22%)
00143456000 03P9603(LF) SPU PRINTED CIRCUIT BOARD DRS4D-NXT - Sustituido por 00161975000 1 993,37 € Con IVA (22%)
00162008000 03P9602(LF) TRX TRX BASE ASSEMBLY CHINA DRS4D-NXT 2 068,69 € Con IVA (22%)
00161975000 03P9603(LF) SPU PRINTED CIRCUIT BOARD CHINA DRS4D-NXT 1 993,37 € Con IVA (22%)
00143457000 03P9602(LF) TRX TRX BASE ASSEMBLY DRS4D-NXT 2 068,69 € Con IVA (22%)
00143458000 DRS4D-NXT DOME-LOWER RADOME LOWER ASSEMBLY CHINA 531,03 € Con IVA (22%)
00143459000 DRS4D-NXT DOME UPPER RADOME UPPER ASSEMBLY CHINA 417,24 € Con IVA (22%)
00143461000 CP03-37001 INSTALLATION MATERIALS DRS4D-NXT 40,36 € Con IVA (22%)
00103114000 RM-9794 DC GEARED MOTOR DRS2D/4D 598,81 € Con IVA (22%)
00143462000 RTR-115 W-GUIDE WAVEGUIDE ASSEMBLY DRS4D-NXT 266,33 € Con IVA (22%)
00143463000 RTR-115 RADIATOR RADIATOR ASSEMBLY WITH BASE DRS4D-NXT 1 565,64 € Con IVA (22%)
