NAVPILOT-300
Pilotos automáticos NavPilot Ref : IMD03230003Adaptive Autopilot with 4.1" Color LCD and Gesture Controller
PRECIO : 2 257,00 € Con IVA (22%)Descripción

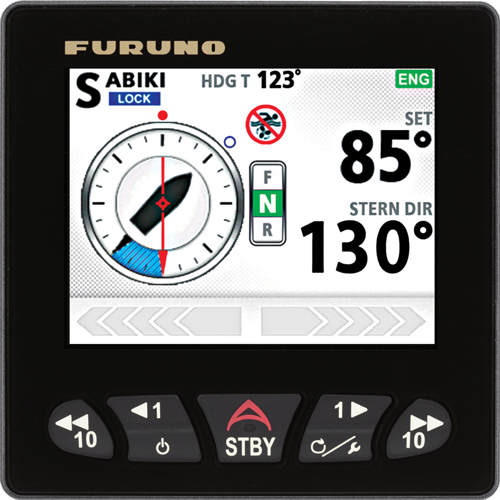

SABIKI mode
The SABIKI mode on NavPilot300 lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish you need to bring in your big catch!
Gesture Control - "Just Push, Point and Shoot!”
The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat and it will immediately follow up with no time delay!
Fantum Feedback on NavPilot300
Navigation modes
Auto mode: Maintains the desired heading
Advanced Auto mode: Compensates for tide and wind effects while maintaining heading.
SABIKI™ mode: Maintains the heading astern, while compensating for tide and wind effects
Nav mode/Route tracking mode: To navigate toward a waypoint, while compensating for tide and wind effects. It can also follow a path composed of successive waypoints.

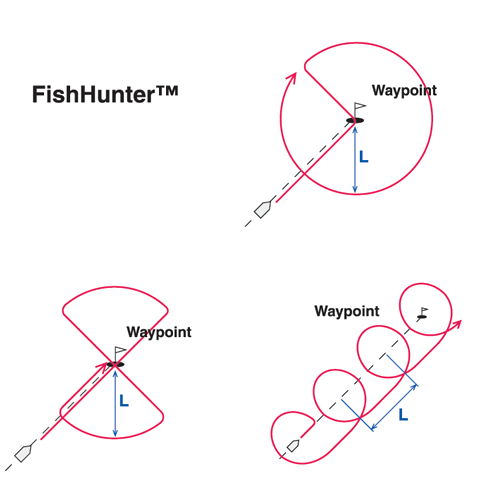

FishHunter: With the FishHunter function, 4 specific maneuvers can be used around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).
Put more fish in the boat with high-precision FishHunter™ Drive
Ventajas del producto
The NavPilot300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.
Funciones
CONTROL UNIT
Display 4.1" Color LCD
Effective Display Area 85.2 (W) x 85.2 (H) mm
Pixel Number QVGA (320 x 240)
Backlight 700 cd/m2 typical
PROCESSOR UNIT
Steering modes STBY, Auto, Dodge, NFU (Non-follow up), Turn, Advanced auto*, Navigation*, FishHunterTM*, Override
*external data required
Sea Condition Adjustment Auto/Manual-Calm/Moderate/Rough
Alarm Deviation alarm, Watch alarm
INTERFACE
Ports NMEA2000 x1, CAN bus x1 (DBW control)
Control signal x3, Bluetooth
Input 059392/904, 060160/416/928, 061184, 065240,126208/464/720/992/996, 127237/250/258, 128259,129025/026/029/283/284/285/538, 130577/818/821/827/841
Output 059392/904, 060928, 126208/464/720/993/996/998, 127237/245, 130816/821/822/823/827/841
WATERPROOFING
Processor Unit IP55
Control Unit IP56
Gesture Controller IP65/67
OTHERS
Power Supply Processor Unit 12-24 VDC 0.22 A max.
Control Unit 15 VDC 0.29 A max.
Gesture Controller 3 VDC, Dry cell battery (AAA, 2 pcs)
Contenido
1 X FAP-3011 (Indicateur 4,1")
1 X FAP-3012 (Calculateur)
1 X GC-001 (Commande déportée sans fil)
1 X Matériel d'installation et pièces détachées
Características técnicas
Alimentación : 12/24 V
Brillo : 700 cd/m2
Estanqueidad : 56 IP
Función : Stby, Auto, Dodge, Turn, Nav, FishHunter
Modo : Fantum Feedback + SABIKI
NMEA2000 : 1
Potencia del grupo electrógeno : 10 A continuous, 20 A for 5 s
Resolución : 320x240 Pixels
Tamaño de pantalla : 4,1
Videos
Piezas y accesorios
| 00110577010 | CABLE ASSEMBLY M12-05BM+05BF-0 19S1162 NMEA2000 MICRO5C STRGHT M/F 6M - Sustituido por 00153308000 | 115,40 € Con IVA (22%) |
| 00016797010 | CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-0 | 213,06 € Con IVA (22%) |
| 00016797011 | CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 | 225,97 € Con IVA (22%) |
| 00016797110 | CB-05BFFM-010 CB-05BFFM-010 19S1165-0 | 80,43 € Con IVA (22%) |
| 00016797111 | CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 | 83,94 € Con IVA (22%) |
| 00016797210 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-0 | 111,91 € Con IVA (22%) |
| 00016797211 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 | 111,91 € Con IVA (22%) |
| 00016797310 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-0 | 193,69 € Con IVA (22%) |
| 00016797311 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 | 193,69 € Con IVA (22%) |
| 00016860310 | MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Sustituido por 00150705000 | 115,40 € Con IVA (22%) |
| 00016860410 | TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Sustituido por 00150707000 | 42,37 € Con IVA (22%) |
| 00016860510 | TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Sustituido por 00150706000 | 42,37 € Con IVA (22%) |
| 00110575010 | CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Sustituido por 00153306000 | 66,44 € Con IVA (22%) |
| 00110576010 | M12-05BM+05BF-020 M12-05BM+05BF-020 19S1162 - Sustituido por 00153307000 | 76,93 € Con IVA (22%) |
| 00016796911 | CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 | 135,58 € Con IVA (22%) |
| 00110578010 | M12-05BFFM-010 M12-05BFFM-010 19S1163 | 64,56 € Con IVA (22%) |
| 00110579010 | M12-05BFFM-020 M12-05BFFM-020 19S1163 - Sustituido por 00150703000 | 72,64 € Con IVA (22%) |
| 00110580010 | M12-05BFFM-060 M12-05BFFM-060 19S1163 - Sustituido por 00150704000 | 94,43 € Con IVA (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € Con IVA (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € Con IVA (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € Con IVA (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00016796910 | CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-0 - Sustituido por 00016796911 | 135,58 € Con IVA (22%) |
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € Con IVA (22%) |
| 00002716200 | YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 - Sustituido por 00003802500 | 1 799,68 € Con IVA (22%) |
| 00002716300 | VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 - Sustituido por 00003802400 | 2 813,71 € Con IVA (22%) |
| FAP-3011 | FAP-3011 UNITE DE CONTROLE - Sustituido por 00003553300 | 980,14 € Con IVA (22%) |
| 00003333700 | OP64-13 ETRIER | 275,20 € Con IVA (22%) |
| 00003374300 | GC-001 COMMANDE GESTUELLE DEPORTEE - Sustituido por 00003553400 | 443,87 € Con IVA (22%) |
| 00003553300 | FAP-3011 UNITE DE CONTROLE CHINA | 817,40 € Con IVA (22%) |
| 00003553400 | GC-001 COMMANDE GESTUELLE DEPORTEE | 434,32 € Con IVA (22%) |
| 00003767800 | FAP-6112 SENSORE ANGOLO BARRA SENSORE RIFERIMENTO TIMONE CON CAVO DA 20M PER NAVPILOT | 549,00 € Con IVA (22%) |
| 00003802500 | YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 | 1 556,72 € Con IVA (22%) |
| 00009052700 | RUDDER REFERENCE UNIT FAP-6112-200 NAVPILOT-500 - Sustituido por 00003767800 | 692,03 € Con IVA (22%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 135,58 € Con IVA (22%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 60,52 € Con IVA (22%) |
| 00016050910 | LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 | 44,38 € Con IVA (22%) |
| 00016796810 | CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-0 - Sustituido por 00016796811 | 115,40 € Con IVA (22%) |
| 00016796811 | CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 | 122,40 € Con IVA (22%) |
| 00003802400 | VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 R2A = 1 to 6 drives | 2 854,80 € Con IVA (22%) |
| RO-00593 | Teleflex Linear Outboard Rudder Reference Unit, 8 Inch Stroke | NC |
| PG700 | PG700 HEADING SENSOR FURUNO | 719,80 € Con IVA (22%) |
| RV1 12V | RV1 12V GROUPE REVERSIBLE 12V POUR BARRE HYDRAULIQUE | NC |
| 00003552900 | NAVPILOT-300-E-A AUTO PILOT CHINA | NC |
