DFF1-UHD
Módulos de sonda black box NavNet y WASSP Ref : IMD03356002Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch
PRECIO : 2 427,80 € Con IVA (22%)Descripción

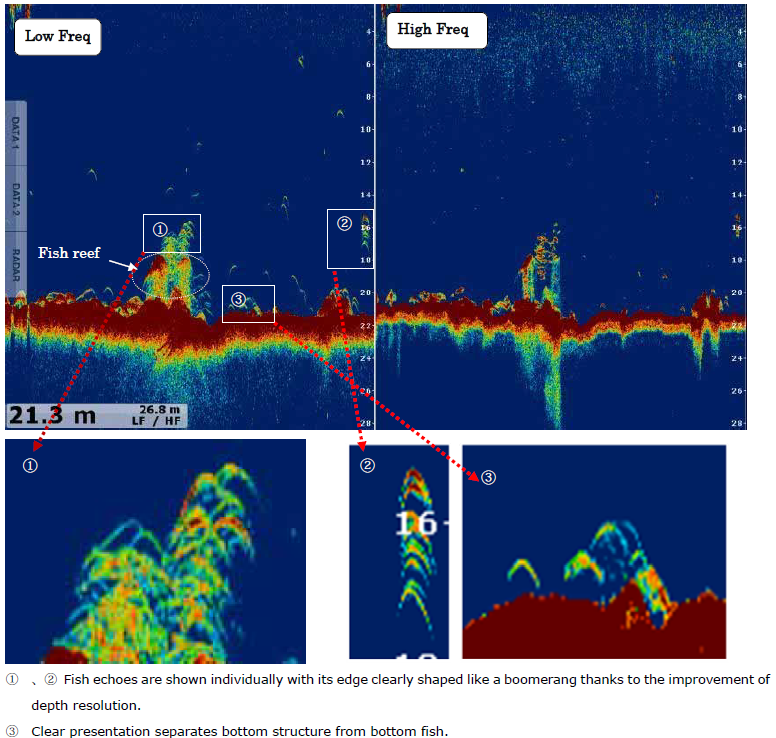

Clear Echo presentation
The TruEcho CHIRP™ technology delivers significant advancements in signal clarity and target definition. In general, the depth resolution of conventional fish finder is better with the shallower range than the deeper range. The depth resolution of the DFF1-UHD is stable at any depth range and the resolution performance is equivalent to that of the 5m range of the conventional models (DFF1/DFF3/BBDS1). Furthermore, the TruEcho CHIRP™ technology gives clear presentation by reducing unwanted noise, which enhances detection performance of small target.
Improved ACCU-FISH function
1) Stable depth resolution gives better peformance of the ACCU-FISH? to separate individual fish at any depth range.
2) Measurement range of the ACCU-FISH? is extended up to 200m, which is twice that of the conventional models (DFF1/DFF3/BBDS1). This will contribute to analyze size of fish close to sea bed.
Improved Bottom Discrimination function
Measurement range of the Bottom Discrimination is extended up to 200m, which is twice that of the BBDS1.
In combination with the ACCU-FISH?, you may be able to find a suitable point of target fish, guess a type of fish down below and anchor at an appropriate place.
Ventajas del producto
- Clear Echo presentation
- Improved ACCU-FISH function
- Improved Bottom Discrimination function
Funciones
An advanced technology for professional or enthusiastic fisherman. Designed to operate over a broadband range of frequencies utilizing a broadband transducer, the TruEcho CHIRP? network sounder DFF1-UHD delivers significant advancements in signal clarity and target definition. The clear presentation of the sounder marks individual game fish and bait fish, even when tightly schooled together.
Contenido
1 x Processor Unit DFF1-UHD
1 x Power Cable Assembly 3.5 m
1 x LAN Cable Assembly 5 m
1 x Installation Materials
Características técnicas
Alimentación : 12/24 V
Estanqueidad : 55 IP
Ethernet : 1
Frecuencia : 50 ± 20 & 200 ± 25 kHz
Función : CHIRP + BD + AF
Potencia : 1k W
Soporte : Fixed Mount
Tipo : Network sounder
universo : Fishing
Piezas y accesorios
| OP02-86 | OP02-86 KIT CONNECTEUR POUR SYNC TX DFF1-UHD / DFF3D | 225,97 € Con IVA (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € Con IVA (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € Con IVA (22%) |
| ST-02PSB | ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN | 229,36 € Con IVA (22%) |
| ST-02MSB | ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN | 352,58 € Con IVA (22%) |
| 00004002700 | T-03MSB T-03MSB - | 1 420,37 € Con IVA (22%) |
| 00002689400 | T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA | 161,04 € Con IVA (22%) |
| 00002689300 | T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE | 479,46 € Con IVA (22%) |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 750,30 € Con IVA (22%) |
| B265LH | TRASDUTTORE B265LH CHIRP TZT3 1kW 42-65/130-210kHz BROADBAND BRONZO FAIRING & TEMP | 2 671,80 € Con IVA (22%) |
| CM265LH | TRASDUTTORE CM265LH CHIRP TZT3 1kW 42-65/130-210kHz BROADBAND URETANO CON TEMP | 2 427,80 € Con IVA (22%) |
| B275LH-W | B275LH-W SONDE TR BR 1KW CHIRP/P-T/XID/12M/12PLOTS WIDE BEAM | 3 525,80 € Con IVA (22%) |
| TM275LH-W | TM275LH-W SONDE TA PLAST. 1KW CHIRP/P-T/XID 12M/12PLOTS | 2 989,00 € Con IVA (22%) |
| 00001348400 | PR-62 (CHINA) AC100V ALIMENTATION AC/DC | 991,43 € Con IVA (22%) |
| B265LH | B265LH SONDE CHIRP - Sustituido por AI-41-433-2-06 | NC |
| CM265LHG | CM265LHG TRASDUTTORE CHIRP 1kW 42-65/130-210kHz BROADBAND URETANO CAVO 12M CON TEMPERAT | NC |
| 00002253200 | TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE | 1 024,80 € Con IVA (22%) |
| 00004002600 | T-02MTB TEMPERATURE SENSOR - Sustituido por 00002689400 | 833,26 € Con IVA (22%) |
| 00004004000 | T-02MSB CAPTEUR DE TEMPERATURE - Sustituido por 00002689300 | 1 101,60 € Con IVA (22%) |
| 00002683300 | DFF1-UHD-E SONDEUR CHIRP BLACKBOX | NC |
| 00104444000 | 02P6360(LF) CON PRINTED CIRCUIT BOARD DFF3/DFF1-UHD | 455,71 € Con IVA (22%) |
| 00134338000 | 02P6385(LF) PWRTX PRINTED CIRCUIT BOARD DFF1-UHD IP55 | 1 256,28 € Con IVA (22%) |
| 00123414000 | 02P6384(LF) MAIN PLATINE DFF1-UHD - Sustituido por 00155829000 | 1 412,31 € Con IVA (22%) |
| 00120594000 | 02-1091(5-5P) XH CONNECTOR ASSEMBLY | 28,24 € Con IVA (22%) |
| 00120595000 | 02-1092(7-7P) XH CONNECTOR ASSEMBLY | 32,95 € Con IVA (22%) |
| 00120596000 | 02-1093(3-3P) VH CONNECTOR ASSEMBLY | 48,42 € Con IVA (22%) |
| 00120597000 | 02-1094(12-12P) PH CONNECTOR ASSEMBLY | 42,37 € Con IVA (22%) |
| 00120598000 | 02-1095(11-11P) PH CONNECTOR ASSEMBLY | 42,37 € Con IVA (22%) |
| 00120599000 | 02-1096(10-10P) XH CONNECTOR ASSEMBLY | 40,36 € Con IVA (22%) |
| 00123418000 | DFF1-UHD COVER XL COVER XL ASSEMBLY | 254,48 € Con IVA (22%) |
| 00123420000 | DFF1-UHD P-COVER PROTECTION COVER ASSEMBLY | 230,81 € Con IVA (22%) |
| 00155829000 | 02P6384(LF) MAIN PRINTED CIRCUIT BOARD DFF1-UHD | 1 412,31 € Con IVA (22%) |
