SFD1012
Unidad de presentación FLEX Ref : IMD040220AASingle-function touch display 12,1" for multi-beam sonar, fish finder or radar
PRECIO : 2 427,80 € Con IVA (22%)Descripción
Compatibility with our most popular sensors : Including Multibeam Sonar, Radar and Fish Finder.
Multibeam Sonar

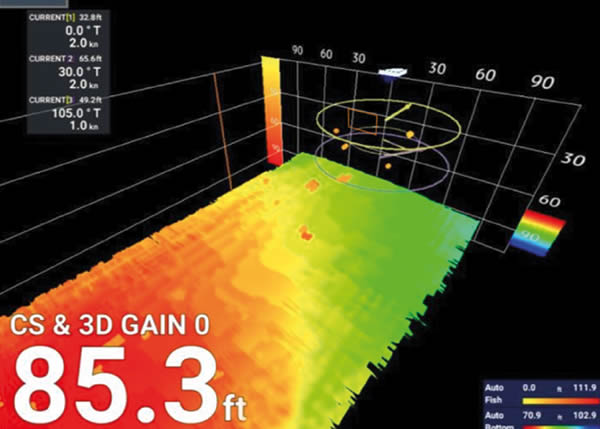

NEW? DFF-3D/SFD Combo features sea current overlay & virtual net mark
Thanks to a virtual fishing net, you will be able to determine the position of the net's mouth in relation to the targeted school of fish and thus increase the efficiency of your catch. In addition, you can overlay sea current information as shown in the picture.

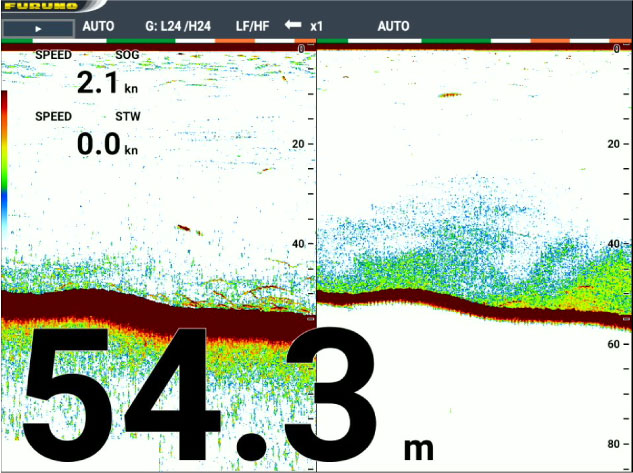

Fish Finder
Choose your best Fish Finder Among BBDS1, DFF1, DFF1-UHD, DFF3 depending on your needs.
High Resolution Fish Finders provide better bottom contours & clearer presentation that separates bottom structure from bottom fish.

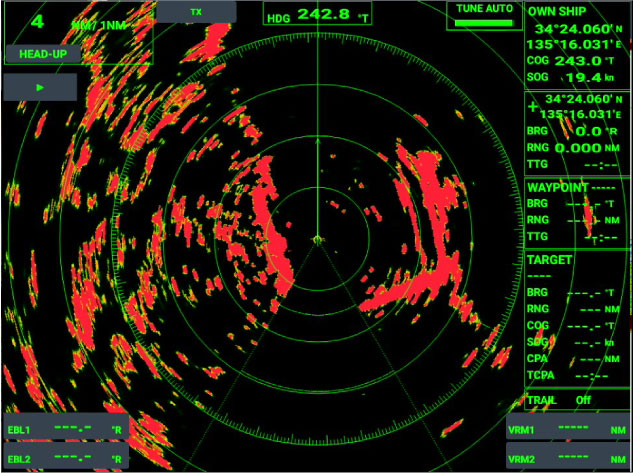

Radar
Connect our Plug-and-Play Radar to ensure your safety at sea with the extremely compact Radome 19" DRS4DL+ which features Fast Target Tracking™ and requires only one LAN cable and one Power Supply cable for its installation.
The Multi-station feature allows you to connect two SFD displays to one Radar. We recommend the vertical orientation when using Off-center. it is perfect for Workboats
Flexible orientation for your favorite display mode
Freely adjust the orientation of your display in a short time and without the need for any tool to do it!

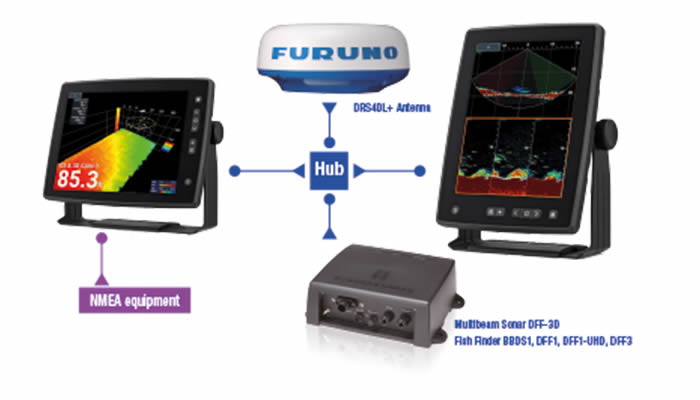

Flexible configuration with the Multi-Station
Connect two SFD-1010/1012 display units with two sensors at the same time or two display units with one sensor through the Hub unit to be able to view your desired modes at the same time with only one setup.
Available configurations:
2 Sensors with 2 Displays
1 Sensor with 2 Displays
1 Sensor with 1 Display
*2 Display units max
*1 Radar unit max for each configuration
Ventajas del producto
Funciones
Display unit:
SFD-1010 10.4'' TFT color LCD
SFD-1012 12.1'' TFT color LCD
Screen Resolution:
SFD-1010 1024x768 (XGA)
SFD-1012 1024x768 (XGA)
Viewing Angle:
80°(minimum)
Screen Brightness:
800 cd/m²
Interface:
-Serial: 2 ports, NMEA0183
-LAN: 1 port, Ethernet 100Base-TX, RJ45
-USB: 1 port, USB2.0 (Type A), For maintenance
-NMEA2000: 1 port
-HDMI output: 1 port, 1280x768 (HD)
Data sentence:
-Input: GGA, GNS, HDG, HDT, MDA. MWV, RMA, RMB, RMC, THS, TLL, VHW, VTG, WPT, ZDA
-Output:TLL
Temperature:
-15°C~+55°C
Waterproofing:
IP25
Power Supply:
12-24 VDC: 3.0-1.5 A
Weight:
SFD-1010 2.4 kg 5.3 lbs
SFD-1012 2.6 kg 5.7 lbs
Características técnicas
Tamaño de pantalla : 12.1
Piezas y accesorios
| RCU-030 | RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR - | NC |
| 00008644300 | OP03-136 OP03-136 - | 122,40 € Con IVA (22%) |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | 317,20 € Con IVA (22%) |
| 00001176200 | HUB-101 12-24V/TZT/TZT2/TZT3 - | 963,80 € Con IVA (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00016797211 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 | 111,91 € Con IVA (22%) |
| 00016797311 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 | 193,69 € Con IVA (22%) |
| 00107783010 | FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - | 36,60 € Con IVA (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € Con IVA (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € Con IVA (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € Con IVA (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € Con IVA (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € Con IVA (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € Con IVA (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00016796911 | CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 | 135,58 € Con IVA (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00158889000 | MOD-Z073-030+ CABLE EQUIPE RESEAU PC/HUB POE 19S1146-0 | 58,56 € Con IVA (22%) |
| 00016797011 | CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 | 225,97 € Con IVA (22%) |
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € Con IVA (22%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 135,58 € Con IVA (22%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 60,52 € Con IVA (22%) |
| 00016050910 | LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 | 44,38 € Con IVA (22%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 37,66 € Con IVA (22%) |
| 00016796811 | CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 | 122,40 € Con IVA (22%) |
| 00016797111 | CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 | 83,94 € Con IVA (22%) |
| 00003808100 | SFD-1012-E DISPLAY UNIT 26S101230 | NC |
| DFF3D | Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch | 2 671,80 € Con IVA (22%) |
| DFF1-UHD | Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch | 2 427,80 € Con IVA (22%) |
| BBDS1 | BBDS1 BOTTOM DISCRIMINATOR Dual Freq 50/200KHZ-0,6/1KW | 1 207,80 € Con IVA (22%) |
| DRS4DL+ | 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. | 2 379,00 € Con IVA (22%) |
| SCX20 | Unprecedented stability with Quad antenna Satellite compass NMEA2000 - Sustituido por IMD031520AB | NC |
| SCX21 | SCX21/POLE POLE - Sustituido por IMD036670AB | NC |
