TZT19F
Pantallas multifunción NavNet TZtouch Ref : IMD040020AANavNet TZtouch3 Chart Plotter/Fish Finder, 19" Touch Screen Display
PRECIO : 10 370,00 € Con IVA (22%)Descripción
Go on a power trip with the most powerful MFD series available
Experience navigation like never before with this stunning and powerful 19'' Multi Function Display. Imagine having one or multiple units on your helm, giving you a conning station that makes it look like you're the captain of a sci-fi spaceship! Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder.
Quad-core processor for lightning-fast response
NavNet TZtouch3 offers three display options. The 12" Hybrid Control TZT12F is an IPS multi touch display with an integrated control panel, including FURUNO's intuitive RotoKey™ and dedicated physical buttons to complement NavNet TZtouch3's multi-touch controls. The 16" TZT16F and 19" TZT19F are sleek, all-glass, multi-touch IPS displays that deliver stunning presentations from virtually any angle. All models incorporate a powerful quad-core processor that takes NavNet's TimeZero technology to the next level, offering 4-way split-screen displays and lightning-fast response time.
EASY to use; because finding your happy place shouldn't be difficult!
We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

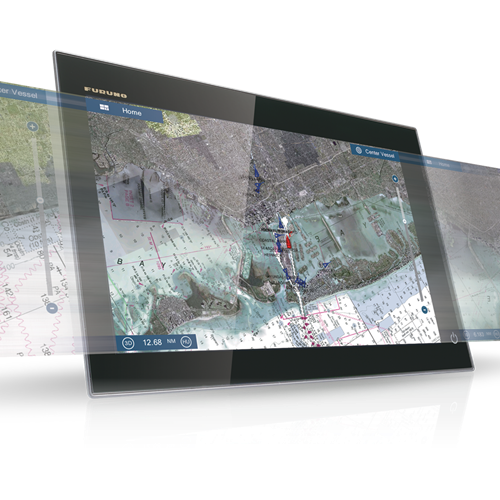

TimeZero™ Technology is faster than ever before
TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth & seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

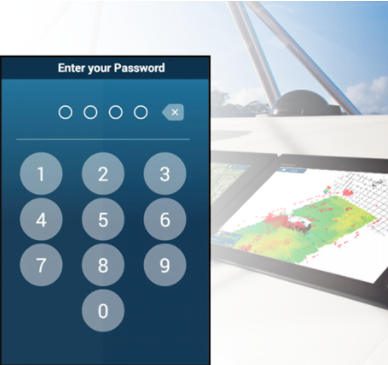

Pin Code Lock - require a password to access your TZtouch3 upon startup
The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

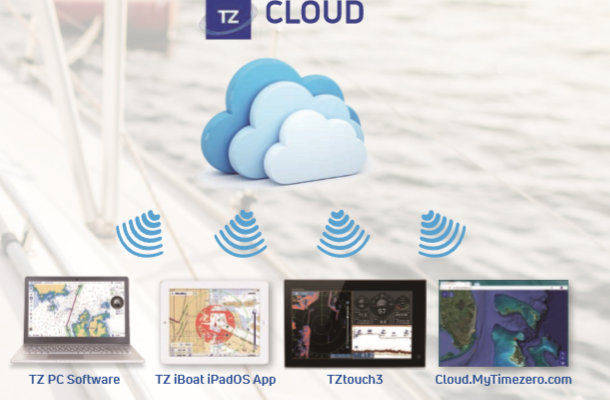

NEVER LOSE WAYPOINTS, ROUTES OR SETTINGS AGAIN WITH TZ CLOUD
Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)

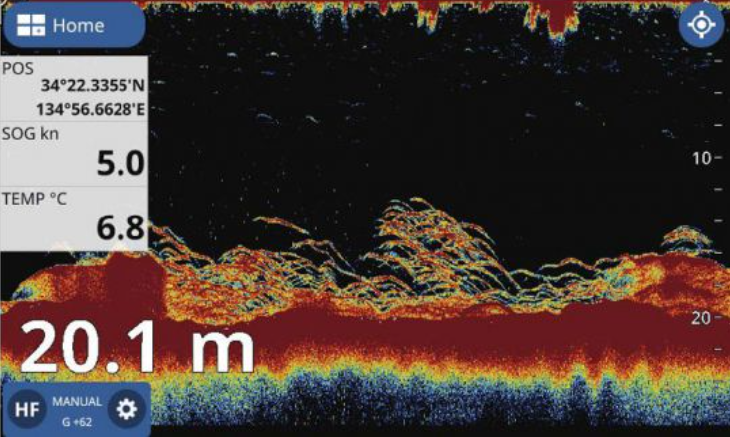

Built-in Dual Channel 1 kW TruEcho CHIRPTM & CW Fish Finder
Every TZtouch3 MFD includes a built-in 1kW, dual-channel TruEcho CHIRPTM Fish Finder. TruEcho CHIRPTM, designed to operate across a wide range of frequencies utilizing a broadband transducer, delivers significant advantages in signal clarity & target definition. Due to the constant sweeping of frequencies, TruEcho CHIRPTM is capable of gathering more & higher-quality data than traditional Fish Finders. For those looking for a higher-power CHIRP Fish Finder, FURUNO has made it possible to pump up the power of TruEcho CHIRPTM by interfacing the Deep Impact DI-FFAMP to the internal Fish Finder. Deep Impact boosts your power to a 2 kW or 3 kW CHIRP Fish Finder, ensuring that fish and bottom echoes come back sharp & clear at greater depths. Alternatively, the built-in Fish Finder is capable of outputting a traditional CW signal for those who prefer the industry-standard 50/200 kHz.
We gave you something to CHIRP about!
You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

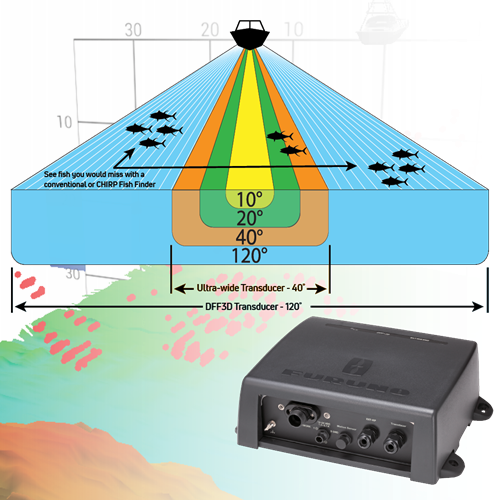

More power to see 120 degrees port-to-starboard; giving you an edge over the competition
Normal down-sounding Fish Finders have a beam angle of 40° or less. But with the DFF3D Multi Beam Sonar, you see 120° port-starboard for 200m (650+ ft). Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP™, you’ll have the ultimate fishing machine!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

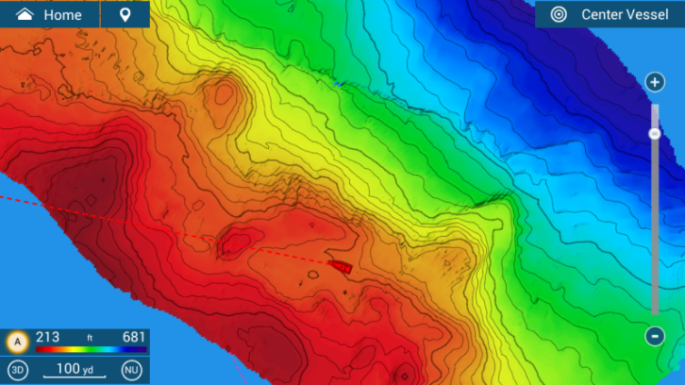

Create stunning shaded relief charts on your NavNet TZtouch3 MFD with PBG
Using the DFF3D Multi-Beam Sonar, NavNet TZtouch3's PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. The area each ping covers is approximately twice the depth at the time of recording, so at a depth of 100 meters, a 200 meter-wide area is displayed and recorded to your NavNet TZtouch3 MFD.

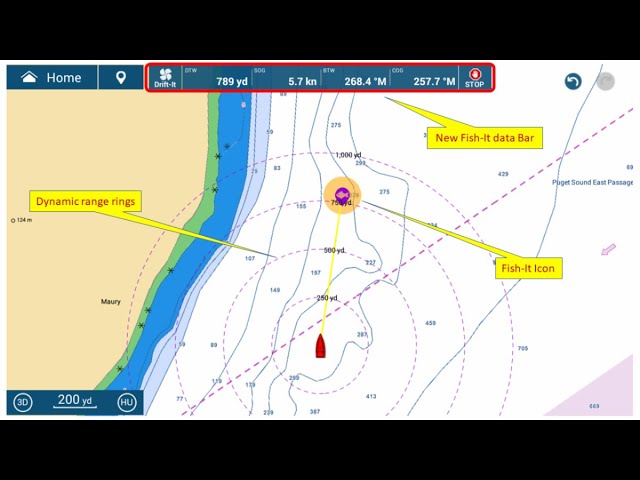

Revolutionary New Features for Fishermen - Fish-It & Drift-It!
The Fish-It & Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you'll pass right over your fishing point. Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary "fishing go-to point" with dynamic range rings, a course line between the point and the boat, and a temporary track line. Now activate Drift-It, an exciting new feature that automatically creates a starting point for the vessel to drift directly over your Fish-it spot. Select a 3-minute, 5-minute, or even a 20-minute drift, navigate to the starting point, and drift to the Fish-it location in the time selected. This is a game-changer for fishermen!

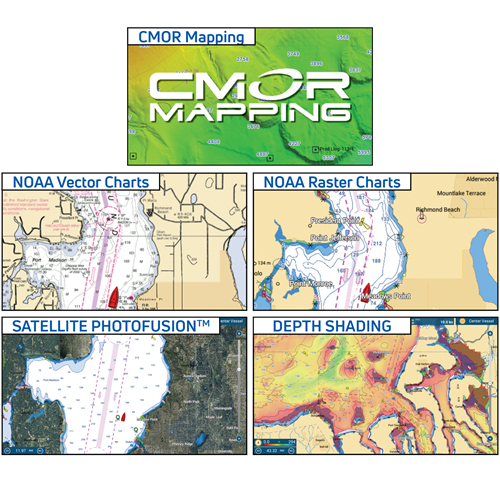

MapMedia Raster and Vector Chart Library
Freely choose the charts that fit your individual needs. Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be easily unlocked. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.
Click here to view MapMedia chart options for your MFD.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.
Click here to view MapMedia chart options for your MFD.

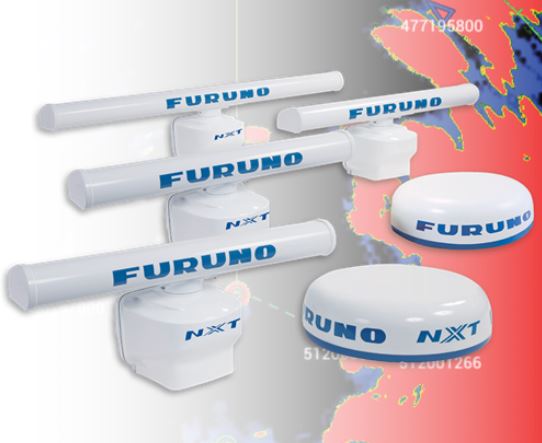

More power means better detection of all the targets around you
Are you ready to go on a Radar power trip™ Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno's NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.

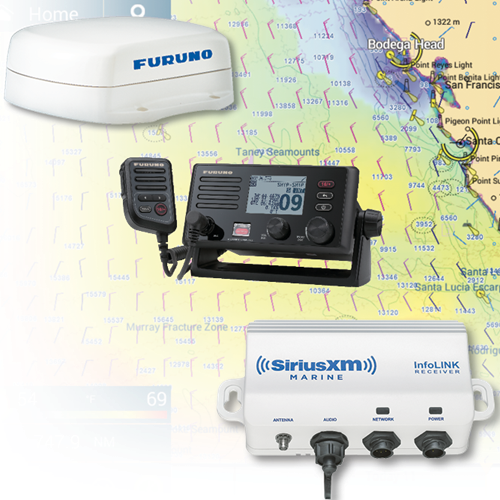

Build the ultimate Navigation Suite
The beauty of NavNet TZtouch3 is its scalability - systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.
Ventajas del producto
It has all THE POWER you've wanted... and more.
• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRPTM & CW Fish Finder
• High-power 2/3/5kW* TruEcho CHIRPTM Fish Finder network amp
• Power-packed 100W & 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan
• Large 19" and 16" multi-touch IPS display for maximum brightness
• Hybrid 12" display with RotoKeyTM and buttons for added accessibility
• Pin Code Lock - require a password to access your TZtouch3 upon startup
*Connect a 5kW or 10kW transducer using BT-5, power output is 3kW
Funciones
DISPLAY UNITDISPLAY UNIT
Type: Color TFT multi touch In-Plane Switching (IPS) LCDScreen Size 18.5" Wide
Screen Resolution: FHD 1920 x 1080
Screen Brightness: 900 cd/m2 (typical)
Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language : Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
RADAR
Display Modes: Head-up*, North-up* (*Heading input required).
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
FISH FINDER
Transmit Frequency: CW: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Transducer: 300/600 W or 1 kW* (*Matching box MB1100 required for some FURUNO transducers).
Display Range: 2-1, 200 m, shift: 0-1200 m
Extension Mode: ACCU-FISHTM, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM
Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option): School of fish, School of fish for bottom lock
INTERFACE
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Serial Output Port
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0) for touch monitor and control unit
Video I/O
- Input: 2 Ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)
- Output: 1 Port (HDMI 1 080p)
SD Card Slot: 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer: 1 Port
ENVIRONMENT
Temperature (IEC60945): -15°C to +55°C
Relative Humidity: 93% or less at +40° C
Waterproofing: IP56
POWER
12-24 VDC
4.7 - 2.3 A
Contenido
TZT19F-E MULTI FUNCTION DISPLAY 1 SET
INCLUDING:
- POWER CABLE FRU-3P-FF-A002M-001 (2 M) 1 PC
- 12-10 PIN ADAPTER CABLE FRU-CCB12-MJ-01 (0.5 M) 1 PC
- INSTALLATION MATERIALS
- ACCESSORY
NOTE:
- FOR FLUSH MOUNT ONLY
- NO BRACKET MOUNT SUPPORTED
Características técnicas
Brillo : 900 cd/m2
Consumo : 56.4 W
Estanqueidad : 56 IP
NMEA0183 : OUTPUT
NMEA2000 : 1
Resolución : 1920 x 1080 Pixels
Sonda CHIRP de 1KW integrada : 1
Sonda integrada : 1
Tamaño de pantalla : 18.5
Wifi integrado : 1
