GP1871F

Sonda GPS Plotter Ref : IMD03488000

7" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder

PRECIO : 1 329,80 € Con IVA (22%)


Descripción

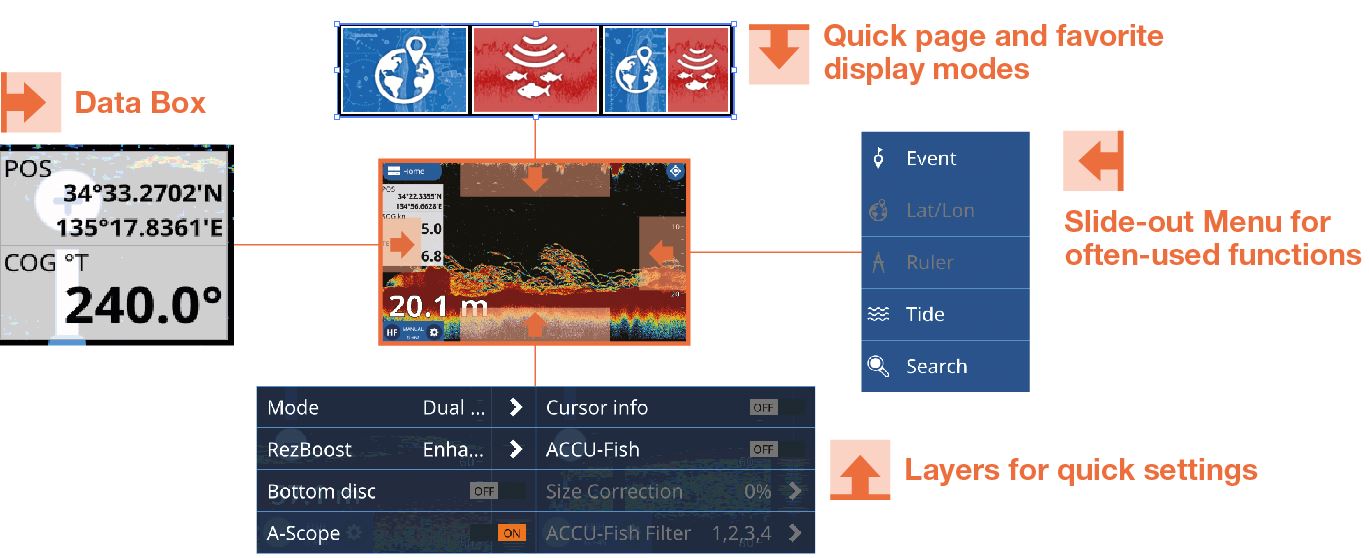

Multi Touch interface

Convenient and intuitive slide-out menus: The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2, features slide-out menus containing all the tools and data you need to be in total control.
Display modes customization: Customize your display modes and create the perfect combination to fit your individual needs.
Easy screenshot: Tap the display with 2 fingers to capture a screenshot that will be saved directly to your micro SD card.

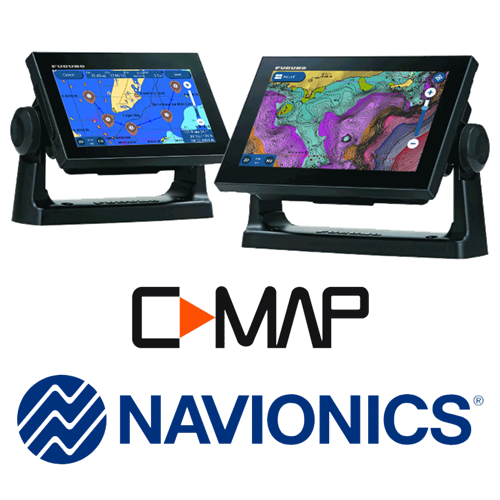

Chart plotter (with internal gps antenna)

The Chart Plotter utilizes full-featured Navionics or C-Map 4D charts.
C-Map 4D empowers you with plenty of useful data that you can overlay onto a rich vector chart, such as relief vectors, tidal streams and marine plans, significantly boosting situational awareness. Creating routes and waypoints is as simple as touch-and-go. When connected to an AIS receiver, you can see valuable AIS data on the display.
With the new Version 4.0 software, Navionics charts with features such as refined depth contouring and relief shading, and enhanced viewing angles, including 3D and Panoramic modes, can be utilized. Plus, users can quickly and easily update the chart content using the Navionics Chart Installer app for PC!

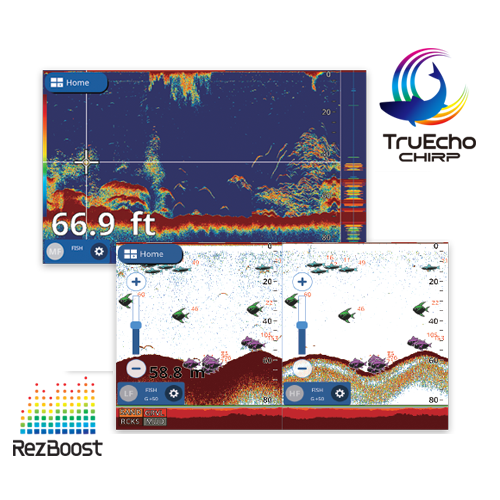

Built-In CHIRP and Conventional Fish Finders

The unit includes a built-in TruEcho CHIRP, as well as a conventional Fish Finder, transmitting at 300W, 600W or 1kW. Simply tell the unit what transducer you are using and it will select the type of Fish Finder to use. The TruEcho CHIRP transmits across a spectrum of frequencies, delivering an incredible amount of detail and clearly marking individual game fish and bait fish. The conventional Fish Finder includes RezBoost data processing for an ultra-crisp, high-resolution picture. Other features include ACCU-FISH fish size assessment, and the highly useful Bottom Discrimination function to help you find the most productive fishing grounds.

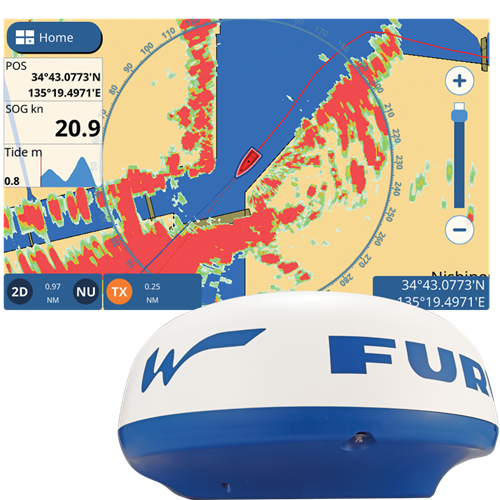

Wireless Radar Connectivity

The radar can be overlayed onto the Chart Plotter display via a wireless connection to the Furuno DRS4W 1st Watch Wireless Radar. The DRS4W’s wireless configuration makes it a breeze to add the compact 19" Radar dome to any vessel. The DRS4W can also display the Radar presentation on a connected smartphone or tablet, offering a major upgrade in safety and versatility.

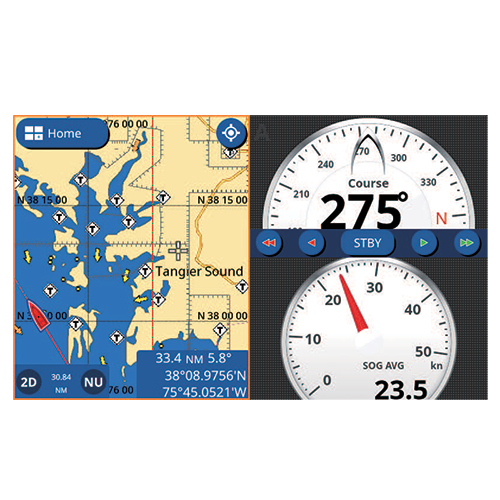

Autopilot Control

Via the CAN bus network interface, The NAVpilot 300 and NAVpilot 711C can be connected to the GP1871F and GP1971F and controlled directly from the Chart Plotter.

Funciones

GPS/WAAS
Receive Type: GPS 72 channels / WAAS 1 channel
Receiving Frequency L1(1575.42 MHz)
Time to First FIX 100 s approx. (cold start)
Tracking Velocity 999 kn
SBAS(Satellite-based Augmentation System) WAAS, EGNOS, MSAS
Electronic Chart C-MAP 4D and Navionics

ACCURACY
Internal Antenna: GPS:10 m Max, WAAS: 5m Max,
MSAS: 7.5 m Max

DISPLAY
Type GP-1871F: 7" Wide Color TFT LCD
Screen Size GP-1871F: 154 x 85 mm
Screen Resolution WVGA 800 x 480 pixels
Screen Brightness 1000 cd/m2 (typical)
Display Modes: Chart Plotter, Fish Finder, Radar*1, AIS*2, Instruments*3 (Nav Data, Engine, Wind, Fuel tank, Autopilot*4, etc.), GPS status
*1: Connection to the 1st Watch Wireless Radar DRS4W required
*2: Connection to AIS sensor required
*3: Connection to external sensors required
*4: Connection to the FURUNO NAVpilot-300 or 700 series required
Memory Capacity: 30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints

FISH FINDER
Frequency CW: 50/200 kHz, CHIRP: 40 to 225 kHz
Transducer 300 W or 600 W or 1 kW (Transducer dependent)
Range 5-1,200 m, shift: 0-500 m
Modes: TrueEcho CHIRP*, RezBoostTM**, ACCU-FISH**, Bottom Discrimination**, Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock
* CHIRP dedicated transducer required.
** Dual frequency compatible transducer required.
Picture Advance: 8 steps: x4, x2, 1/1, 1/2, 1/4, 1/8, 1/16, stop

Contenido

1 X Plotter
1 X Power cable
1 X Fastener Kit
1 X Stirrup
1 X Wheels
1 X Protective cover
1 X User Manual
1 X Cutting template for embedding

Características técnicas

Alimentación : 12/24 V
Brillo : 1000 cd/m2
Canales : 72
Display : LCD COLOR
ENTRADA NMEA0183 : 1
ENTRADA NMEA2000 : 1
Estanqueidad : 56 IP
Función : REZBOOST or CHIRP
GPS integrado : 1
NMEA0183 : 1
NMEA2000 : 1
Resolución : WVGA 800 X 480 Pixels
Sonda integrada : 1
Tamaño de pantalla : 7
Waypoints : 30 000

Piezas y accesorios

SW-SP2P SP2P POD NON DECOUPE SURFACE MAX UTILE : 298x177 NC
SW-SP2S SP2S POD NON DECOUPE SURFACE MAX UTILE : 298x177 NC
SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM NC
P319DT P319 SONDE TR PLAST. 600W 50-200KHZ/P-T/10M/10B P319D / 520-PLD / 00002368000 NC
B60-12 B60 12 SONDE TRBRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/12 00002367900 AF/BD NC
B60-20 B60-20ø SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/20 / 00002367800 NC
SS60-12 SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M NC
B45 B45 SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M AF/BD/ 525T-BSD / 00002302000 NC
B744V B744V SONDE TR BRONZE 600W 50-200KHZ/P-T-V/10M 525STID-MSD 0000117800 NC
B744VL B744VL SONDE BRONZE 600W 50-200KHZ/P-T-V/10M +SABOT B744VL/FCV628/588/TZT2/GP/BBDS NC
00001520400 520-5PSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN PLASTICA PASSA-SCAFO 225,70 € Con IVA (22%)
B260 B260 SONDE TR BRONZE AVEC DUPL 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT 00002302100 NC
M260 M260 SONDE INT FIBRE 1KW 50-200KHZ/PROF/XID/10M/10B NC
TM260 TM260 SONDE TA LAST. 1KW 50-200KHZ/P-T/XID 10M TM260 - Sustituido por AI-41-404-1-03 NC
00003374300 GC-001 COMMANDE GESTUELLE DEPORTEE - Sustituido por 00003553400 443,87 € Con IVA (22%)
00002722600 MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE - 451,40 € Con IVA (22%)
00001076500 FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - 250,10 € Con IVA (22%)
MKT-SUPPORT-GP1871F PRESENTOIR GP1871F PVC RIGIDE GP1871F NC
00001178300 525STID-MSD SONDE 600W SONDE B744 796,54 € Con IVA (22%)
00001178400 525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB) 411,31 € Con IVA (22%)
200B-5S 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800 452,74 € Con IVA (22%)
50B-6 50B-6 *10M* SONDE 1KW 50KHZ - Sustituido por 00003835100 411,31 € Con IVA (22%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800 396,52 € Con IVA (22%)
00001517000 50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000 1 355,81 € Con IVA (22%)
00001521200 520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE 524,60 € Con IVA (22%)
00002051000 IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Sustituido por 00003767000 369,89 € Con IVA (22%)
00002301900 525T-PWD TRANSDUCER AF/BD/ (RB) 213,06 € Con IVA (22%)
00002302000 525T-BSD TRANSDUCER AF/BD/ (RB) 384,69 € Con IVA (22%)
00002302100 526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB) 2 328,15 € Con IVA (22%)
00002367600 SS60-SLTD/12 TRANSDUCER 02H100540 858,68 € Con IVA (22%)
00002367700 SS60-SLTD/20 TRANSDUCER 02H100550 858,68 € Con IVA (22%)
00002367800 525T-LTD/20 TRANSDUCER AF/BD/ (RB) 598,81 € Con IVA (22%)
00002367900 525T-LTD/12 TRANSDUCER AF/BD/ (RB) 598,81 € Con IVA (22%)
00002368000 520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD 254,48 € Con IVA (22%)
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 479,46 € Con IVA (22%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 161,04 € Con IVA (22%)
00002704700 IF-NMEAFI CONVERTITORE ANALOG ANALOGICO - NMEA2000 PER DATI FUEL/TANK/VENTO 280,60 € Con IVA (22%)
525-5PWD 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Sustituido por 00003827700 NC
00003767000 IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA 317,20 € Con IVA (22%)
00003827700 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA 190,45 € Con IVA (22%)
200B-5S 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 348,92 € Con IVA (22%)
50/200-1T (RUBBER) 50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552 1 232,20 € Con IVA (22%)
50B-6 50B-6 *10M* TRANSDUCER 411,31 € Con IVA (22%)
50B-6B 50B-6B *15M* TRANSDUCER NC
00016716911 CAP-WBDMSMA1 WATERPROOF CAP 19S1212-0 18,84 € Con IVA (22%)
ST-02MSB ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN 352,58 € Con IVA (22%)
ST-02PSB ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN 229,36 € Con IVA (22%)
00125833000 02S4147-2(10-10 6P) 02S4147-2(10-10,6P) 02S4147-2 137,86 € Con IVA (22%)
00132193000 22S0191-3 INNER HULL MOUNTING KIT 22S0191-3 - Sustituido por 00159544000 224,89 € Con IVA (22%)
00014250300 C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100 396,52 € Con IVA (22%)
00150682000 FRU-NMEA-PMMFF-010 CABLE ASSEMBLY 20S10510 - Sustituido por 00153306000 94,43 € Con IVA (22%)
00150683000 FRU-NMEA-PMMFF-020 CABLE ASSEMBLY 20S10510 - Sustituido por 00153307000 167,86 € Con IVA (22%)
00150700000 FRU-NMEA-PMMFF-060 CABLE ASSEMBLY 20S10510 - Sustituido por 00153308000 203,37 € Con IVA (22%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 80,43 € Con IVA (22%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 72,64 € Con IVA (22%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 101,42 € Con IVA (22%)
00150705000 CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA 79,30 € Con IVA (22%)
00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 36,60 € Con IVA (22%)
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 36,60 € Con IVA (22%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI NC
00159544000 22S0191-4 INNER HULL MOUNTING KIT 22S0191-4 224,89 € Con IVA (22%)
OD-NAD-MM1MF1000G01M CABLE NMEA2000 M/F 1M CERTIFIE NC
OD-NAD-MM1MF1000G02M CABLE NMEA2000 M/F 2M CERTIFIE NC
OD-STARTER-KIT KIT DE DEMARRAGE NMEA2000 CERTIFIE NC
OD-NAD-MM1MF1000G06M CABLE NMEA2000 M/F 6M CERTIFIE NC
OD-NAD-MM1MF1000G10M CABLE NMEA2000 M/F 10M CERTIFIE NC
OD-NAD-MM1MF1000G20M CABLE NMEA2000 M/F 20M CERTIFIE NC
B75L TRASDUTTORE B75L 40-75kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI 1 213,90 € Con IVA (22%)
OD-CPMPCFCSN71 BOUCHON M POUR CONNECTEUR F - NC
B75L B75L 12 DT SONDE TR BR CHIRP 40-75KHZ/300W/9M/M&M AI-33-1423-01 NECESSAIRE NC
OD-CPMPPMCSN71 BOUCHON F POUR CONNECTEUR M - NC
TM150M TRASDUTTOR TM150M DT 95-155kHz 300W CHIRP DA POPPA PLASTICA PER GP1X71F TZT3 9F 573,40 € Con IVA (22%)
ODSAS1205MFG01M2E90N CABLE NMEA2000 COUDE M/F 1M CERTIFIE NC
B150M TRASDUTTORE B150M 95-155kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI 677,10 € Con IVA (22%)
ODNAMBM05MCCSLC7G01M CABLE NMEA2000 M/NU 1M CERTIFIE NC
B75M TRASDUTTOR B75M 80-130kHz 600W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI 1 354,20 € Con IVA (22%)
ODNADMM1MF1000G06M CABLE NMEA2000 F/NU 6M CERTIFIE NC
B75M B75M 12 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
OD-NAT-MM1MF1MF1001 CONNECTEUR T NMEA2000 M/F/F CERTIFIE NC
B75M B75M 20 DT SONDE TR BR. CHIRP 80-130KHZ/600W/12M/10B NC
OD-NAR-MF1000000001 TERMINAISON F NMEA2000 CERTIFIE NC
B785M B785M DT SONDE TR BRONZE CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
OD-NAR-MM1000000001 TERMINAISON M NMEA2000 CERTIFIE NC
SS75M TRASDUTTORE SS75M 80-130kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI 1 294,42 € Con IVA (22%)
OD-NAW-MM1MF1MF4001 ADAPTATEUR NMEA2000 MFFFFF CERTIFIE NC
SS75M SS75M 12DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
OD-NAW-MM1MF1MF2001 ADAPTATEUR NMEA2000 MFFF CERTIFIE NC
SS75M SS75M 20DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
NAVIONICS NAVIONICS NAVIONICS NC
B75H B75H 0DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
B75H B75H 12DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
B75H B75H 20 DT SONDE TR BR CHIRP 130-210HZ/600W/12M/10B GP1X71F NC
SS75H TRASDUTTORE SS75H 130-210kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI 1 294,42 € Con IVA (22%)
SS75H SS75H 12DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
SS75H SS75H 20DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
TM165HW TM165HW DT SONDE TA PLAS CHIRP 150-250khz/600W/9M/MM AI-33-1424-01 NECESSAIRE NC
B175L B175L 0 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE 2 379,00 € Con IVA (22%)
AI-41-562-2-01 B175L DT TRANSD BR 12° CHIRP 40-60KHZ/1KW/9M/10B NC
B175L B175L 20 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE NC
TM185M TM185M DT SONDE TA PLAS CHIRP 85-135khz/1kW/12M/10B NC
B285M B285M DT TRASD. BRONZO CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
B175M B175M 0 DT SONDE TR BR CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
B175M B175M 12 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
B175M B175M 20 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM NEED AI-33-1424-01 NECESSAIRE NC
B175H B175H 0 DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE 1 748,26 € Con IVA (22%)
B175H B175H 20DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
TM185HW TM185HW DT SONDE TA PLAS CHIRP 150-250 khz /12M/10B - Sustituido por AI-41-915-1-01 NC
B285HW TRASDUTT B285HW 150-250kHz 1kW CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI CON FAIRING 2 350,94 € Con IVA (22%)
B175HW B175HW 0 DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
B175HW B175HW 12DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE NC
B175HW/20 B175HW 20 DT SONDE TR BR CHIRP 150-250KHZ/1KW/12M/10B GP1X71F NC
AI-33-1423-01 CABLE M&M CHIRP FREQUENCE L 1 M 12MM 10F 128,10 € Con IVA (22%)
AI-33-1424-01 CABLE M&M CHIRP FREQUENCE M/H 1 M 12MM 10F 1M 12M&M 10F 128,10 € Con IVA (22%)
C-MAP 4D CMAP CMAP * NC
CM-SD4D-4DL CARTE PROGRAM. CMAP LOCALE 4D+ Micro SD NC
CM-SD4D-4DW CARTE PROGRAMMEE CMAP WIDE 4D+ Micro SD NC
00003543500 GP-1871F-E GPS/WAAS CHART PLOTTER NC
DRS4W RADAR SENSOR DRS4W/A/MIC FURUNO SANS CABLE ALIM - Sustituido por IMD03439004 NC
NAVPILOT300 NAVPILOT300 AUTOPILOT LESS RRU WITH GCU-001 - Sustituido por IMD03230003 NC
FI70 FI-70 INSTRUMENT FURUNO NNEA2000 6M cable 597,80 € Con IVA (22%)
00153325000 CBC0FS0810 CABLE ALIMENTATION GP1871F_GP1971F GP-1X71F/SMD7/9 164,64 € Con IVA (22%)
00154666000 K12CJ2015A ETRIER POUR GP1871F EXTERNAL BRACKET KIT 122,40 € Con IVA (22%)
00017453210 5400TX-T30H-120 TORQUE DRIVER 76,93 € Con IVA (22%)
00019557310 NO.4600(PZ1X75) POZI SCREWDRIVER 68,60 € Con IVA (22%)
00019654010 5400TX-T6-80 TORQUE DRIVER 68,60 € Con IVA (22%)
00019654210 U.FL-LP-N-2 CONTACT EXTRACTION 164,64 € Con IVA (22%)
00153318000 K12CJ2007A MICRO SD CARD LID KIT GP-1X71F/SMD7/9 80,43 € Con IVA (22%)
00153319000 CN CAP-WBDMMSA1 NMEA CONNECTOR CAP GP-1X71F/SMD7/9 76,93 € Con IVA (22%)
00153320000 K12CJ2008A GP-1871EXTERNAL BRACKET KIT GP-1871F SP - Sustituido por 00154666000 122,40 € Con IVA (22%)
00153322000 HPC54AX PROTECTIVECOVER GP-1871F SP 138,81 € Con IVA (22%)
00153324000 K12CR1008A FLUSH MOUNT KIT GP-1X71F SP 148,50 € Con IVA (22%)
00153326000 K12CJ2009A BACK COVER GP-1871F/SMD7 111,91 € Con IVA (22%)
00153328000 K0G71E0000 FISH FINDER BOARD ASSY GP-1X71F/SMD7/9 595,99 € Con IVA (22%)
00153329000 K12CJ2010A SET OF SCREWS GP-1X71F/SMD7/9 80,43 € Con IVA (22%)
00153330000 HGE57AX EXT. GASKET GP-1871F GP-1871F/SMD7 80,43 € Con IVA (22%)
00153332000 K0G60E0000 MAIN MAIN BOARD GP-1871F ASSY GP-1871F SP 1 022,51 € Con IVA (22%)
00153334000 CBFFC-050D34040 MB-TO-FF BOARDS FFC GP-1X71F/SMD7/9 101,42 € Con IVA (22%)
00153335000 CB66FA0200 MB POWER CABLE GP-1X71F/SMD7/9 83,94 € Con IVA (22%)
00153336000 K12CJ2011A W/LCD FRONT PANEL ASSY GP-1871F SP 836,08 € Con IVA (22%)
00153338000 K12CJ2012A W/PCB&PNL LCD ASSY GP-1871F SP 1 519,91 € Con IVA (22%)
00153340000 PACKGP-1X71 FUR EXTERNAL BOX GP-1X71 SP 83,94 € Con IVA (22%)
00153341000 PACK2XGP-KISS MASTER CARTON X2 BOXES GP-1X71F/SMD7/9 118,90 € Con IVA (22%)
00153342000 PACKGP-F.TO3 INT ACCESSORY BOX GP-1X71F/SMD7/9 64,56 € Con IVA (22%)
00153343000 PACKGP-1871 INT PAD FOR HANGER GP-1871F/SMD7 68,60 € Con IVA (22%)
00153345000 NEWPEC AND9**.** NEWPEC JAPAN JHA-NP SD CARD GP-1X71F/SMD7/9 206,59 € Con IVA (22%)
00155045000 HGB16AX GASKET FLUSH MOUNT SMD7/GP1871F SP 64,56 € Con IVA (22%)
00155046000 VTATM4.8X22TCCINX SCREW BRACKET MOUNT SMD7/9GP1X71FSP 44,38 € Con IVA (22%)
OMFR-910 MU GP1871F GP1971F Manuel d'utilisation Francais NC

Descargas

Acciones recomendadas

DRS4W

DRS4W

NC

ANTENNA RADAR WIFI RADOME 4 kW
Datos
FM4800

FM4800

NC

FM4800/A VHF FIXE CLASSE D
Datos
NAVIONICS

NAVIONICS

NC

NAVIONICS NAVIONICS
Datos
NAVPILOT300

NAVPILOT300

NC

Adaptive Autopilot with 4.1" Color LCD and Gesture Controller
Datos
