FCV295
BI-Frequence Ligne Blanche FCV295
Réglage Fréquence FCV295

FCV295

Sondas de pesca Ref : IMD02956001

10.4" color LCD sounder - 640x480 pixels - 1000 to 3000 W

PRECIO : 4 257,80 € Con IVA (22%)


Descripción

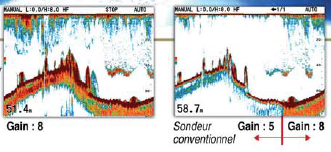

Quick gain control

Until now, a gain change only occurred on the echoes that appear after the adjustment. The FCV295 has a fast gain adjustment function that allows the new setting to be applied to new echoes as well as those already on the screen. This function allows a much more efficient and faster adjustment.

White outline

On the FCV295, the upper part of the background is displayed in white in order to discern the background of echoes close to it. Whereas with the traditional white line function, the darkest color is replaced by white, the white outline function uses background discrimination to display the white color.

Faster transmission train for more detailed detection

On the FCV295 echo sounder, the repetition rate is increased by 30% compared to a conventional sounder. The result is a finer and more detailed image under the same conditions. The speed of transmission is greater than the shallow bottom and is adjusted according to the depth and not the selected scale.

Adjustable frequency of use

Regarding the FCV295, if a Furuno probe is used, simply program it in the menu and the sounder adapts its power and frequency. The user can change this frequency at any time to refine the detection. This function is particularly interesting for boats practicing different types of fishing or in very busy areas where the interferences of the sounders of other boats can become troublesome.

Ventajas del producto

The FCV295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.

Funciones

This color digital soundeur FCV295 is :
  • 10.4"bonded color LCD provides clear view in any weather conditions
  • Post-processing gain control applies to all existing returns on the display
  • FURUNO Digital Filter delivers crystal clear target presentation

Contenido

1 X Screen
1 X Protective cover
1 X Stirrup
2 X Knobs
4 X Fuses
1 X Installation joint
1 X Cutting template for embedding
1 X Installation kit
2 X Pods
1 X Cleaning cloth
1 X Installation Manual
1 X User Manual
1 X Simplified User Guide Laminated (Multilingual)

Características técnicas

Alimentación : 12/24 V
Brillo : 450 cd/m2
Estanqueidad : X5 IP
Frecuencia : 25-52, 66-110, 140-170, 184-220 kHz
NMEA0183 : 1
Potencia : 1k-3k W
Resolución : 640x480 Pixels
Tamaño de pantalla : 10.4"

Piezas y accesorios

00001509400 50BL-24HR SONDE 3KW 50KHz 15M 3KW 50 KHz NC
28F-8 28F-8 *15M* SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Sustituido por 00003834900 1 530,67 € Con IVA (22%)
88B-8 88B-8 TRASDUTTORE 88kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 908,90 € Con IVA (22%)
88B-10 88B-10 TRASDUTTORE 88kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 1 182,18 € Con IVA (22%)
200B-5S 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800 452,74 € Con IVA (22%)
200B-8B 200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA NC
50BL-24H 50BL-24H SONDE 3KW 50KHZ 3kW 50kHZ NC
50B-6 50B-6 *10M* SONDE 1KW 50KHZ - Sustituido por 00003835100 411,31 € Con IVA (22%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800 396,52 € Con IVA (22%)
00001506500 50B-9B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835400 646,83 € Con IVA (22%)
200B-12H 200B-12H *15M* SONDE 5KW 200KHz 15M 5KW 200KHz NC
28BL-6HR 28BL-6HR TRASDUTTORE 28kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
28BL-12HR 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
38BL-9HR 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
82B-35R 82B-35R SONDE 2KW 65<->110 KHz 15M 4 288,29 € Con IVA (22%)
50BL-12HR 50BL-12HR TRASDUTTOR 50kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 3 037,80 € Con IVA (22%)
00001517000 50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000 1 355,81 € Con IVA (22%)
50/200-12M TRANSDUCER 50/200-12M (BRONZE) DUAL FREQ. non ROHS BRONZE 50/200KHz 1KW 12M 1 355,81 € Con IVA (22%)
00001520600 TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE NC
00001520700 TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - 1 135,49 € Con IVA (22%)
00001520900 TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE 1 024,80 € Con IVA (22%)
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 479,46 € Con IVA (22%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 161,04 € Con IVA (22%)
00004002700 T-03MSB T-03MSB - 1 420,37 € Con IVA (22%)
00015403610 MJ-A6SPF0009-100C MJ-A6SPF0009-100C 22S0269-1 129,12 € Con IVA (22%)
00015405410 CABLE MJ-A6SPF0003-050C 6PF PLASTIC 5M NMEA183 20S0093-1 48,80 € Con IVA (22%)
ST-02MSB ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN 352,58 € Con IVA (22%)
ST-02PSB ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN 229,36 € Con IVA (22%)
R399 R399 SONDE INT FIBRE 2-3KW MOD. FREQ./P/XID 15M R399 NC
00001348600 PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT 750,30 € Con IVA (22%)
B260 B260 DT TRANSDUCER 50/200Khz 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT NC
00124047000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *15M* 14S4231-0 298,88 € Con IVA (22%)
00124046000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *10M* 14S4231-0 222,74 € Con IVA (22%)
00124044000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *5M* 14S4231-0 122,40 € Con IVA (22%)
00004004000 T-02MSB CAPTEUR DE TEMPERATURE - Sustituido por 00002689300 1 101,60 € Con IVA (22%)
00001509200 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 4 623,80 € Con IVA (22%)
00001506800 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 3 750,28 € Con IVA (22%)
00001507300 68F-30H TRANSDUCER 2 785,60 € Con IVA (22%)
00001503000 200B-8 *10M* TRANSDUCER 635,53 € Con IVA (22%)
00001348400 PR-62 (CHINA) AC100V ALIMENTATION AC/DC 991,43 € Con IVA (22%)
50B-9B 50B-9B *15M* SONDE 1KW 50KHz RICOPERTO IN GOMMA 561,20 € Con IVA (22%)
00004002600 T-02MTB TEMPERATURE SENSOR - Sustituido por 00002689400 833,26 € Con IVA (22%)
00003908800 88F-126H TRANSDUCER 02S3024-2 4 221,85 € Con IVA (22%)
50B-6B 50B-6B *15M* TRANSDUCER NC
00003835500 68F-30H TRANSDUCER 2 785,60 € Con IVA (22%)
50B-6 50B-6 *10M* TRANSDUCER 411,31 € Con IVA (22%)
50/200-1T (RUBBER) 50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552 1 232,20 € Con IVA (22%)
28F-8 28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc NC
200B-5S 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 348,92 € Con IVA (22%)
00001520500 TFB-4000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.4 THRU-HULL PIPE 180,56 € Con IVA (22%)
00001521800 TRB-1100(2) THRU-HULL PIPE 2 378,05 € Con IVA (22%)
00001183400 FCV-295-E LCD SONDEUR COULEUR NC
00104723000 02P6351 PNL PRINTED CIRCUIT BOARD FCV-1150 SP 470,49 € Con IVA (22%)
10034171110 02-157-1002-1 PANEL LID - 23,53 € Con IVA (22%)
00014051310 RK117111400X POTENTIOMETER 02S4978-0 37,66 € Con IVA (22%)
00111884000 02-157-1008/#6601-P KNOB C CV-1150 48,42 € Con IVA (22%)
00111881000 02P6351A PNL PRINTED CIRCUIT BOARD FCV-1150 SP 470,49 € Con IVA (22%)
00107541000 02P6349 MAIN PRINTED CIRCUIT BOARD FCV-295 SP - Sustituido por 00151947000 1 320,85 € Con IVA (22%)
00104724000 02P6350 PWR PRINTED CIRCUIT BOARD FCV-1150 SP - Sustituido por 00148196000 1 923,43 € Con IVA (22%)
00103422000 NL6448BC33-64F W/FIL LCD WITH GLASS FILTER FCV-295 - Sustituido por 00137891000 2 422,70 € Con IVA (22%)
00103346000 02-157-1004/#6601-P KNOB A CV-1150 37,66 € Con IVA (22%)
00102645000 KNOB(N2.5) KNOB MFDBB 44,38 € Con IVA (22%)
00017342610 SRBV170501 ROTARY SWITCH 02S3963-0 28,24 € Con IVA (22%)
00016727410 734206-1JP-#18-L50 CONNECTOR ASSY 02S6044-0 66,44 € Con IVA (22%)
00016496710 734-210 CONNECTOR - 42,37 € Con IVA (22%)
00015773610 FS50UM-3 B00 MOS FET - 37,66 € Con IVA (22%)
00014888412 231-303/026-FUR CONNECTOR 20S0380-2 23,53 € Con IVA (22%)
