DFF3D
Módulos de sonda black box NavNet y WASSP Ref : IMD03357000Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch
PRECIO : 2 671,80 € Con IVA (22%)Descripción

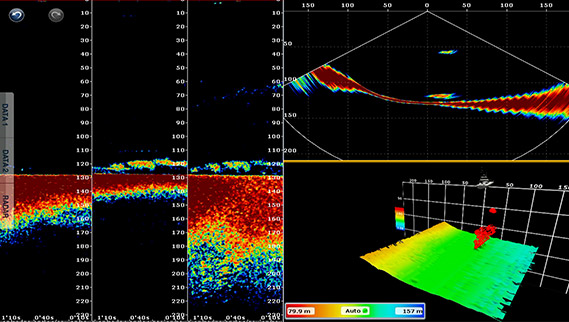

Visibly see the landscape and fish schools at great depths in amazing detail
Turn your NavNet TZtouch or TZtouch2 MFD into a multi beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time.
Sidebar detection range is up to 200 m in a 120 degree swath.
Deep water, main beam penetration directly under the boat is approx. 300 m.

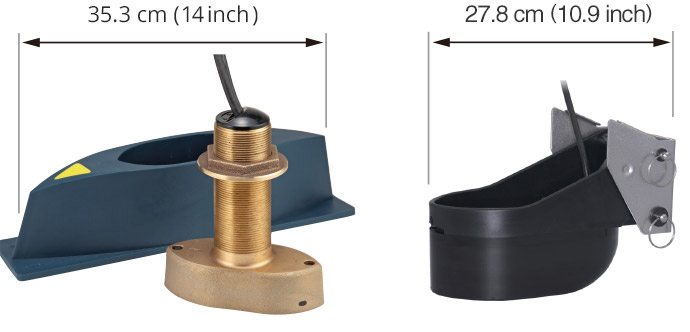

The compact and fully featured transducer
The compact transducer allows easy installation. The built-in motion sensor stabilizes the display to give clear and stable images even under rough sea conditions.

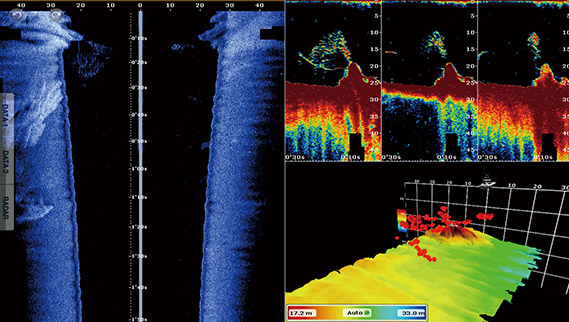

Customize the display according to your needs
Depending on the situation and preference, a combination of screen modes can be displayed.
Ventajas del producto
- Visibly see the landscape and fish schools at great depths in amazing detail
- The compact and fully featured transducer
- Customize the display according to your needs
Funciones
The DFF-3D is an innovative tool for efficient fish location and seabed profile surveying, utilizing new multi beam technology. Highly detailed images are derived from the combination of an advanced signal processing system and an amazingly compact multi beam transducer.
Contenido
1 x Processor Unit DFF-3D
1 x Power Cable Assembly 3.5 m
1 x LAN Cable Assembly 5 m
1 x Installation Materials
Características técnicas
Alimentación : 12/24 V
Estanqueidad : 55 IP
Ethernet : 1
Frecuencia : 165 kHz
Función : Multibeam
Potencia : 800 W
Soporte : Fixed Mount
Tipo : Network sounder
universo : Fishing
Piezas y accesorios
| OP02-86 | OP02-86 KIT CONNECTEUR POUR SYNC TX DFF1-UHD / DFF3D | 225,97 € Con IVA (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € Con IVA (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € Con IVA (22%) |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 750,30 € Con IVA (22%) |
| B54 | B54 TRASDUTTORE 165kHz DFF-3D 800W CON TEMP & MOTION SENSOR BRONZO PASSANTE CON FAIRING | 2 671,80 € Con IVA (22%) |
| TM54 | TM54 TRASDUTTORE 165kHz DFF-3D 800W CON TEMP E MOTION SENSOR DA POPPA | 2 415,60 € Con IVA (22%) |
| SS54 | SS54 TRASDUTTORE 165kHz DFF-3D 800W CON TEMP MOTION SENSOR ACCIAIO CON FAIRING | 2 769,40 € Con IVA (22%) |
| 165T/265LH-PM488 | TRASDUTTORE 1kW COMBO DFF-3D 165kHz & B265LH CHIRP EXACTLY SAME AS CM548 - Sustituido por AI-165T265LHPM48812P | NC |
| 00001348500 | PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V | 991,43 € Con IVA (22%) |
| 00001348400 | PR-62 (CHINA) AC100V ALIMENTATION AC/DC | 991,43 € Con IVA (22%) |
| 00001348700 | PR-62 (CHINA) AC230V ALIMENTATION AC/DC AC230V | 991,43 € Con IVA (22%) |
| 00002999000 | DFF-3D-E SONAR BLACKBOX MULTIFAISCEAUX | NC |
| 00145713000 | 33-719-01 FAIRING BLOCK B54 SP | 399,48 € Con IVA (22%) |
| 00145701000 | 02-1125(7-8P) MJ-PA CONNECTOR ASSEMBLY DFF-3D | 76,93 € Con IVA (22%) |
| 00145700000 | 02-1124(3-3P) MJ-VH CONNECTOR ASSEMBLY DFF-3D | 64,56 € Con IVA (22%) |
| 00144469000 | DFF-3D FIXING PLATE DIGI FIXING PLATE ASSEMBLY | 135,58 € Con IVA (22%) |
| 00144467000 | 02P6388(LF) PWRTRX PRINTED CIRCUIT BOARD DFF-3D | 1 307,39 € Con IVA (22%) |
| 00144465000 | 02P6387(LF) DIGI PLATINE DIGI DFF-3D | 980,14 € Con IVA (22%) |
| 00144182000 | 02-1123(10-10P) PA CONNECTOR ASSEMBLY | 42,37 € Con IVA (22%) |
