GP1971F
Sonda GPS Plotter Ref : IMD034890AB9" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder
PRECIO : 1 647,00 € Con IVA (22%)Descripción

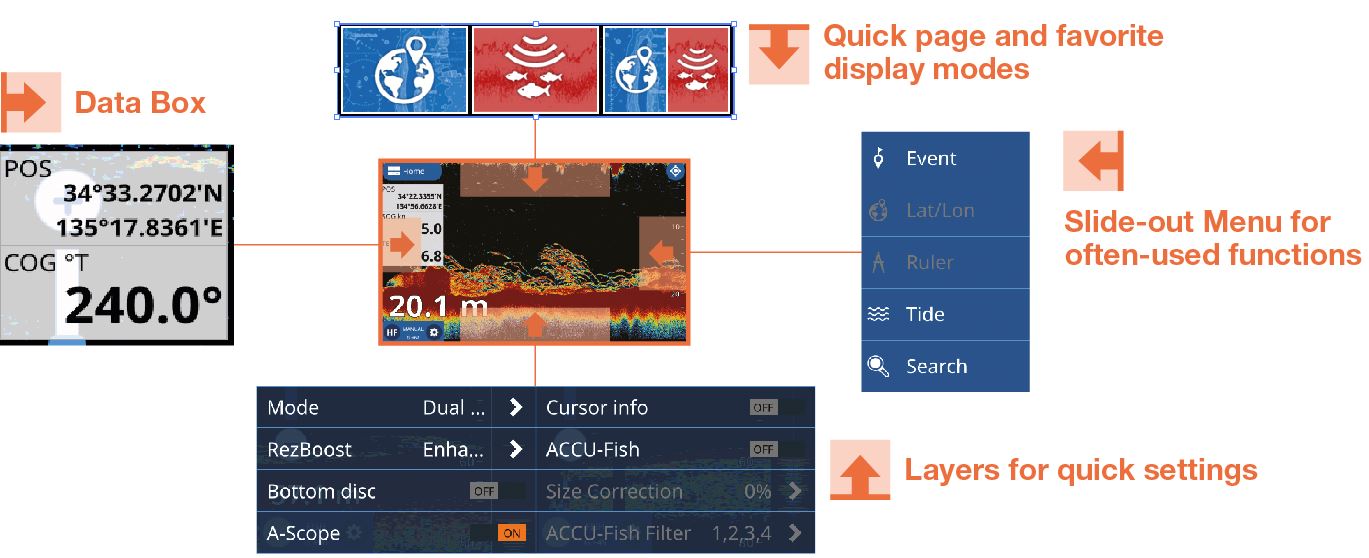

Multi Touch interface
Convenient and intuitive slide-out menus: The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2, features slide-out menus containing all the tools and data you need to be in total control.
Display modes customization: Customize your display modes and create the perfect combination to fit your individual needs.
Easy screenshot: Tap the display with 2 fingers to capture a screenshot that will be saved directly to your micro SD card.

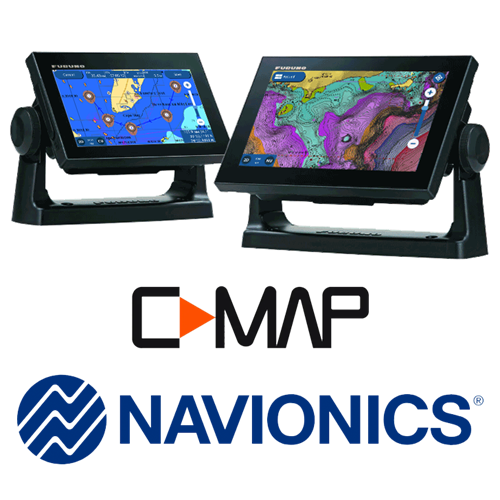

Chart plotter (with internal gps antenna)
The Chart Plotter utilizes full-featured Navionics or C-Map 4D charts.
C-Map 4D empowers you with plenty of useful data that you can overlay onto a rich vector chart, such as relief vectors, tidal streams and marine plans, significantly boosting situational awareness. Creating routes and waypoints is as simple as touch-and-go. When connected to an AIS receiver, you can see valuable AIS data on the display.
With the new Version 4.0 software, Navionics charts with features such as refined depth contouring and relief shading, and enhanced viewing angles, including 3D and Panoramic modes, can be utilized. Plus, users can quickly and easily update the chart content using the Navionics Chart Installer app for PC!

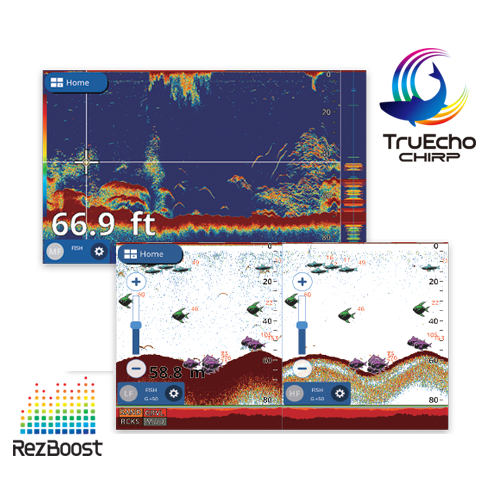

Built-In CHIRP and Conventional Fish Finders
The unit includes a built-in TruEcho CHIRP, as well as a conventional Fish Finder, transmitting at 300W, 600W or 1kW. Simply tell the unit what transducer you are using and it will select the type of Fish Finder to use. The TruEcho CHIRP transmits across a spectrum of frequencies, delivering an incredible amount of detail and clearly marking individual game fish and bait fish. The conventional Fish Finder includes RezBoost data processing for an ultra-crisp, high-resolution picture. Other features include ACCU-FISH fish size assessment, and the highly useful Bottom Discrimination function to help you find the most productive fishing grounds.

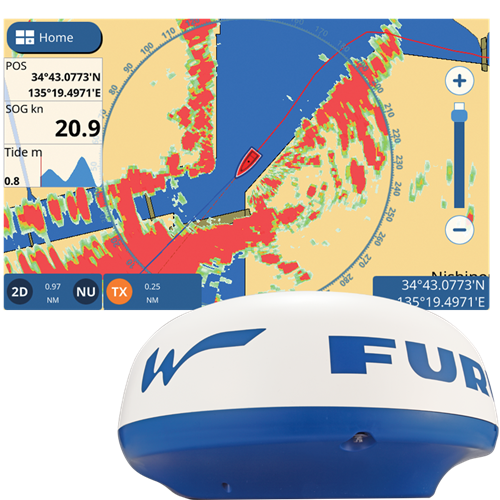

Wireless Radar Connectivity
The radar can be overlayed onto the Chart Plotter display via a wireless connection to the Furuno DRS4W 1st Watch Wireless Radar. The DRS4W’s wireless configuration makes it a breeze to add the compact 19" Radar dome to any vessel. The DRS4W can also display the Radar presentation on a connected smartphone or tablet, offering a major upgrade in safety and versatility.

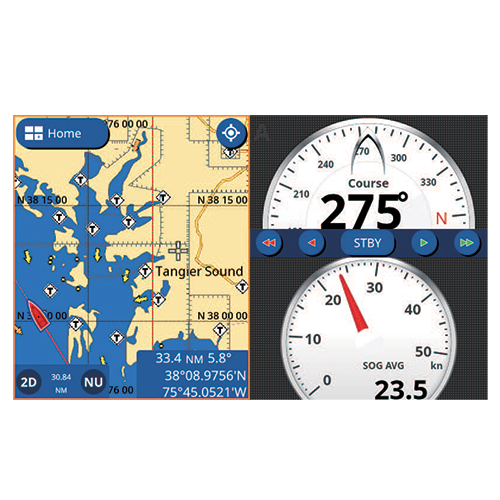

Autopilot Control
Via the CAN bus network interface, The NAVpilot 300 and NAVpilot 711C can be connected to the GP1871F and GP1971F and controlled directly from the Chart Plotter.
Funciones
GPS/WAAS
Receive Type: GPS 72 channels / WAAS 1 channel
Receiving Frequency L1(1575.42 MHz)
Time to First FIX 100 s approx. (cold start)
Tracking Velocity 999 kn
SBAS(Satellite-based Augmentation System) WAAS, EGNOS, MSAS
Electronic Chart C-MAP 4D and Navionics
ACCURACY
Internal Antenna: GPS:10 m Max, WAAS: 5m Max,
MSAS: 7.5 m Max
DISPLAY
Type GP1971F: 9" Wide Color TFT LCD
Screen Size GP1971F: 154 x 85 mm
Screen Resolution WVGA 800 x 480 pixels
Screen Brightness 1000 cd/m2 (typical)
Display Modes: Chart Plotter, Fish Finder, Radar*1, AIS*2, Instruments*3 (Nav Data, Engine, Wind, Fuel tank, Autopilot*4, etc.), GPS status
*1: Connection to the 1st Watch Wireless Radar DRS4W required
*2: Connection to AIS sensor required
*3: Connection to external sensors required
*4: Connection to the FURUNO NAVpilot-300 or 700 series required
Memory Capacity: 30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints
FISH FINDER
Frequency CW: 50/200 kHz, CHIRP: 40 to 225 kHz
Transducer 300 W or 600 W or 1 kW (Transducer dependent)
Range 5-1,200 m, shift: 0-500 m
Modes: TrueEcho CHIRP*, RezBoostTM**, ACCU-FISH**, Bottom Discrimination**, Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock
* CHIRP dedicated transducer required.
** Dual frequency compatible transducer required.
Picture Advance: 8 steps: x4, x2, 1/1, 1/2, 1/4, 1/8, 1/16, stop
Contenido
1 X Plotter
1 X Power cable
1 X Fastener Kit
1 X Stirrup
1 X Wheels
1 X Protective cover
1 X User Manual
1 X Cutting template for embedding
Piezas y accesorios
| SW-SP2P | SP2P POD NON DECOUPE SURFACE MAX UTILE : 298x177 | NC |
| SW-SP2S | SP2S POD NON DECOUPE SURFACE MAX UTILE : 298x177 | NC |
| DRS4W | ANTENNA RADAR WIFI RADOME 4 kW | 2 061,80 € Con IVA (22%) |
| 00126602000 | FRU-3P-FF CAVO ANT 20M DRS4W FRU-3P-FF-20M 03S00207-0 | 193,98 € Con IVA (22%) |
| SW-SM-18-U | SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM | NC |
| P319DT | P319 SONDE TR PLAST. 600W 50-200KHZ/P-T/10M/10B P319D / 520-PLD / 00002368000 | NC |
| B60-12 | B60 12 SONDE TRBRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/12 00002367900 AF/BD | NC |
| B60-20 | B60-20ø SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/20 / 00002367800 | NC |
| SS60-12 | SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| B45 | B45 SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M AF/BD/ 525T-BSD / 00002302000 | NC |
| B744V | B744V SONDE TR BRONZE 600W 50-200KHZ/P-T-V/10M 525STID-MSD 0000117800 | NC |
| B744VL | B744VL SONDE BRONZE 600W 50-200KHZ/P-T-V/10M +SABOT B744VL/FCV628/588/TZT2/GP/BBDS | NC |
| 00001520400 | 520-5PSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN PLASTICA PASSA-SCAFO | 225,70 € Con IVA (22%) |
| B260 | B260 SONDE TR BRONZE AVEC DUPL 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT 00002302100 | NC |
| M260 | M260 SONDE INT FIBRE 1KW 50-200KHZ/PROF/XID/10M/10B | NC |
| TM260 | TM260 SONDE TA LAST. 1KW 50-200KHZ/P-T/XID 10M TM260 - Sustituido por AI-41-404-1-03 | NC |
| NAVPILOT-300 | Adaptive Autopilot with 4.1" Color LCD and Gesture Controller | 2 257,00 € Con IVA (22%) |
| 00003374300 | GC-001 COMMANDE GESTUELLE DEPORTEE - Sustituido por 00003553400 | 443,87 € Con IVA (22%) |
| 00002722600 | MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE - | 451,40 € Con IVA (22%) |
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € Con IVA (22%) |
| MKT-SUPPORT-GP1971F | PRESENTOIR GP1971F PVC RIGIDE GP1971F | NC |
| MKT-TOTEM-GP1971F | TOTEM GP1971F PVC RIGIDE GP1971F | NC |
| 00001178300 | 525STID-MSD SONDE 600W SONDE B744 | 796,54 € Con IVA (22%) |
| 00001178400 | 525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB) | 411,31 € Con IVA (22%) |
| 200B-5S | 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800 | 452,74 € Con IVA (22%) |
| 50B-6 | 50B-6 *10M* SONDE 1KW 50KHZ - Sustituido por 00003835100 | 411,31 € Con IVA (22%) |
| 50B-6B | 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800 | 396,52 € Con IVA (22%) |
| 00001517000 | 50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000 | 1 355,81 € Con IVA (22%) |
| 00001521200 | 520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE | 524,60 € Con IVA (22%) |
| 00002051000 | IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Sustituido por 00003767000 | 369,89 € Con IVA (22%) |
| 00002301900 | 525T-PWD TRANSDUCER AF/BD/ (RB) | 213,06 € Con IVA (22%) |
| 00002302000 | 525T-BSD TRANSDUCER AF/BD/ (RB) | 384,69 € Con IVA (22%) |
| 00002302100 | 526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB) | 2 328,15 € Con IVA (22%) |
| 00002367600 | SS60-SLTD/12 TRANSDUCER 02H100540 | 858,68 € Con IVA (22%) |
| 00002367700 | SS60-SLTD/20 TRANSDUCER 02H100550 | 858,68 € Con IVA (22%) |
| 00002367800 | 525T-LTD/20 TRANSDUCER AF/BD/ (RB) | 598,81 € Con IVA (22%) |
| 00002367900 | 525T-LTD/12 TRANSDUCER AF/BD/ (RB) | 598,81 € Con IVA (22%) |
| 00002368000 | 520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD | 254,48 € Con IVA (22%) |
| 00002689300 | T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE | 479,46 € Con IVA (22%) |
| 00002689400 | T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA | 161,04 € Con IVA (22%) |
| 00002704700 | IF-NMEAFI CONVERTITORE ANALOG ANALOGICO - NMEA2000 PER DATI FUEL/TANK/VENTO | 280,60 € Con IVA (22%) |
| 525-5PWD | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Sustituido por 00003827700 | NC |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | 317,20 € Con IVA (22%) |
| 00003827700 | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA | 190,45 € Con IVA (22%) |
| 200B-5S | 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 | 348,92 € Con IVA (22%) |
| 50/200-1T (RUBBER) | 50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552 | 1 232,20 € Con IVA (22%) |
| 50B-6 | 50B-6 *10M* TRANSDUCER | 411,31 € Con IVA (22%) |
| 50B-6B | 50B-6B *15M* TRANSDUCER | NC |
| 00016716911 | CAP-WBDMSMA1 WATERPROOF CAP 19S1212-0 | 18,84 € Con IVA (22%) |
| ST-02MSB | ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN | 352,58 € Con IVA (22%) |
| ST-02PSB | ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN | 229,36 € Con IVA (22%) |
| 00125833000 | 02S4147-2(10-10 6P) 02S4147-2(10-10,6P) 02S4147-2 | 137,86 € Con IVA (22%) |
| 00132193000 | 22S0191-3 INNER HULL MOUNTING KIT 22S0191-3 - Sustituido por 00159544000 | 224,89 € Con IVA (22%) |
| 00014250300 | C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100 | 396,52 € Con IVA (22%) |
| 00150682000 | FRU-NMEA-PMMFF-010 CABLE ASSEMBLY 20S10510 - Sustituido por 00153306000 | 94,43 € Con IVA (22%) |
| 00150683000 | FRU-NMEA-PMMFF-020 CABLE ASSEMBLY 20S10510 - Sustituido por 00153307000 | 167,86 € Con IVA (22%) |
| 00150700000 | FRU-NMEA-PMMFF-060 CABLE ASSEMBLY 20S10510 - Sustituido por 00153308000 | 203,37 € Con IVA (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € Con IVA (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € Con IVA (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € Con IVA (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00159544000 | 22S0191-4 INNER HULL MOUNTING KIT 22S0191-4 | 224,89 € Con IVA (22%) |
| OD-CPMPCFCSN71 | BOUCHON M POUR CONNECTEUR F - | NC |
| OD-CPMPPMCSN71 | BOUCHON F POUR CONNECTEUR M - | NC |
| OD-STARTER-KIT | KIT DE DEMARRAGE NMEA2000 CERTIFIE | NC |
| OD-NAD-MM1MF1000G01M | CABLE NMEA2000 M/F 1M CERTIFIE | NC |
| B75L | TRASDUTTORE B75L 40-75kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 1 213,90 € Con IVA (22%) |
| OD-NAD-MM1MF1000G02M | CABLE NMEA2000 M/F 2M CERTIFIE | NC |
| B75L | B75L 12 DT SONDE TR BR CHIRP 40-75KHZ/300W/9M/M&M AI-33-1423-01 NECESSAIRE | NC |
| OD-NAD-MM1MF1000G06M | CABLE NMEA2000 M/F 6M CERTIFIE | NC |
| TM150M | TRASDUTTOR TM150M DT 95-155kHz 300W CHIRP DA POPPA PLASTICA PER GP1X71F TZT3 9F | 573,40 € Con IVA (22%) |
| OD-NAD-MM1MF1000G10M | CABLE NMEA2000 M/F 10M CERTIFIE | NC |
| B150M | TRASDUTTORE B150M 95-155kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 677,10 € Con IVA (22%) |
| OD-NAD-MM1MF1000G20M | CABLE NMEA2000 M/F 20M CERTIFIE | NC |
| B75M | B75M 12 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| ODSAS1205MFG01M2E90N | CABLE NMEA2000 COUDE M/F 1M CERTIFIE | NC |
| B75M | B75M 20 DT SONDE TR BR. CHIRP 80-130KHZ/600W/12M/10B | NC |
| ODNAMBM05MCCSLC7G01M | CABLE NMEA2000 M/NU 1M CERTIFIE | NC |
| B785M | B785M DT SONDE TR BRONZE CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| ODNADMM1MF1000G06M | CABLE NMEA2000 F/NU 6M CERTIFIE | NC |
| SS75M | TRASDUTTORE SS75M 80-130kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI | 1 294,42 € Con IVA (22%) |
| OD-NAT-MM1MF1MF1001 | CONNECTEUR T NMEA2000 M/F/F CERTIFIE | NC |
| SS75M | SS75M 12DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| OD-NAR-MF1000000001 | TERMINAISON F NMEA2000 CERTIFIE | NC |
| SS75M | SS75M 20DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| OD-NAR-MM1000000001 | TERMINAISON M NMEA2000 CERTIFIE | NC |
| B75H | B75H 0DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| OD-NAW-MM1MF1MF4001 | ADAPTATEUR NMEA2000 MFFFFF CERTIFIE | NC |
| B75H | B75H 12DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| OD-NAW-MM1MF1MF2001 | ADAPTATEUR NMEA2000 MFFF CERTIFIE | NC |
| B75H | B75H 20 DT SONDE TR BR CHIRP 130-210HZ/600W/12M/10B GP1X71F | NC |
| NAVIONICS | NAVIONICS NAVIONICS | NC |
| SS75H | TRASDUTTORE SS75H 130-210kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI | 1 294,42 € Con IVA (22%) |
| SS75H | SS75H 12DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75H | SS75H 20DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| TM165HW | TM165HW DT SONDE TA PLAS CHIRP 150-250khz/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175L | B175L 0 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE | 2 379,00 € Con IVA (22%) |
| AI-41-562-2-01 | B175L DT TRANSD BR 12° CHIRP 40-60KHZ/1KW/9M/10B | NC |
| B175L | B175L 20 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE | NC |
| TM185M | TM185M DT SONDE TA PLAS CHIRP 85-135khz/1kW/12M/10B | NC |
| B285M | B285M DT TRASD. BRONZO CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 0 DT SONDE TR BR CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 12 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 20 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM NEED AI-33-1424-01 NECESSAIRE | NC |
| B175H | B175H 0 DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | 1 748,26 € Con IVA (22%) |
| TM185HW | TM185HW DT SONDE TA PLAS CHIRP 150-250 khz /12M/10B - Sustituido por AI-41-915-1-01 | NC |
| B285HW | TRASDUTT B285HW 150-250kHz 1kW CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI CON FAIRING | 2 350,94 € Con IVA (22%) |
| B175HW | B175HW 0 DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW | B175HW 12DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW/20 | B175HW 20 DT SONDE TR BR CHIRP 150-250KHZ/1KW/12M/10B GP1X71F | NC |
| AI-33-1423-01 | CABLE M&M CHIRP FREQUENCE L 1 M 12MM 10F | 128,10 € Con IVA (22%) |
| AI-33-1424-01 | CABLE M&M CHIRP FREQUENCE M/H 1 M 12MM 10F 1M 12M&M 10F | 128,10 € Con IVA (22%) |
| B75M | TRASDUTTOR B75M 80-130kHz 600W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 1 354,20 € Con IVA (22%) |
| B175H | B175H 20DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| 00003988300 | GP-1971F-E GPS/WAAS CHART PLOTTER | NC |
| FI70 | FI-70 INSTRUMENT FURUNO NNEA2000 6M cable | 597,80 € Con IVA (22%) |
| 00017453210 | 5400TX-T30H-120 TORQUE DRIVER | 76,93 € Con IVA (22%) |
| 00019557310 | NO.4600(PZ1X75) POZI SCREWDRIVER | 68,60 € Con IVA (22%) |
| 00019654010 | 5400TX-T6-80 TORQUE DRIVER | 68,60 € Con IVA (22%) |
| 00019654210 | U.FL-LP-N-2 CONTACT EXTRACTION | 164,64 € Con IVA (22%) |
| 00153318000 | K12CJ2007A MICRO SD CARD LID KIT GP-1X71F/SMD7/9 | 80,43 € Con IVA (22%) |
| 00153319000 | CN CAP-WBDMMSA1 NMEA CONNECTOR CAP GP-1X71F/SMD7/9 | 76,93 € Con IVA (22%) |
| 00153321000 | K12CR1007A GP-1971EXTERNAL BRACKET GP-1971F SP - Sustituido por 00154667000 | 122,40 € Con IVA (22%) |
| 00153323000 | HPC53AX PROTECTIVECOVER GP-1971F SP | 138,81 € Con IVA (22%) |
| 00153324000 | K12CR1008A FLUSH MOUNT KIT GP-1X71F SP | 148,50 € Con IVA (22%) |
| 00153325000 | CBC0FS0810 CABLE ALIMENTATION GP1871F_GP1971F GP-1X71F/SMD7/9 | 164,64 € Con IVA (22%) |
| 00153327000 | K12CR1009A BACK COVER GP-1971F/SMD9 | 135,58 € Con IVA (22%) |
| 00153328000 | K0G71E0000 FISH FINDER BOARD ASSY GP-1X71F/SMD7/9 | 595,99 € Con IVA (22%) |
| 00153329000 | K12CJ2010A SET OF SCREWS GP-1X71F/SMD7/9 | 80,43 € Con IVA (22%) |
| 00153331000 | HGE56AX EXT. GASKET GP-1971F GP-1971F/SMD9 | 80,43 € Con IVA (22%) |
| 00153333000 | K0G60E0100 MAIN MAIN BOARD GP-1971F ASSY GP-1971F SP | 1 251,31 € Con IVA (22%) |
| 00153334000 | CBFFC-050D34040 MB-TO-FF BOARDS FFC GP-1X71F/SMD7/9 | 101,42 € Con IVA (22%) |
| 00153335000 | CB66FA0200 MB POWER CABLE GP-1X71F/SMD7/9 | 83,94 € Con IVA (22%) |
| 00153337000 | K12CR1010A W/LCD FRONT PANEL ASSY GP-1971F SP | 1 115,71 € Con IVA (22%) |
| 00153339000 | K12CR1011A W/PCB&PNL LCD ASSY GP-1971F SP | 2 195,12 € Con IVA (22%) |
| 00153340000 | PACKGP-1X71 FUR EXTERNAL BOX GP-1X71 SP | 83,94 € Con IVA (22%) |
| 00153341000 | PACK2XGP-KISS MASTER CARTON X2 BOXES GP-1X71F/SMD7/9 | 118,90 € Con IVA (22%) |
| 00153342000 | PACKGP-F.TO3 INT ACCESSORY BOX GP-1X71F/SMD7/9 | 64,56 € Con IVA (22%) |
| 00153344000 | PACKGP-1971 INT PAD FOR HANGER GP-1971F/SMD9 | 64,56 € Con IVA (22%) |
| 00153345000 | NEWPEC AND9**.** NEWPEC JAPAN JHA-NP SD CARD GP-1X71F/SMD7/9 | 206,59 € Con IVA (22%) |
| 00154667000 | BRACKET KIT FOR GP1971 EXTERNAL BRACKET KIT GP-1971F/SMD9 | 122,40 € Con IVA (22%) |
| 00155046000 | VTATM4.8X22TCCINX SCREW BRACKET MOUNT SMD7/9GP1X71FSP | 44,38 € Con IVA (22%) |
| 00155048000 | HGB15AX GASKET FLUSH MOUNT SMD9/GP1971F SP | 68,60 € Con IVA (22%) |
| 00164080000 | K0J40B0000 MAIN MAIN BOARD GP-1971FMK2 ASSY GP-1971F SP | 1 251,31 € Con IVA (22%) |
| 00164083000 | K12CR3005A W/LCD FRONT PANEL ASSY(MK2) GP-1971F SP | 1 115,71 € Con IVA (22%) |
| 00164084000 | K12CR3006A W/PCB&PNL LCD ASSY GP-1971F SP | 2 195,12 € Con IVA (22%) |
| OMFR-910 | MU GP1871F GP1971F Manuel d'utilisation Francais | NC |
