FR10
Radares marinos Serie FR y FAR Ref : IMD040240BA10.4 Radar displays with key panels used for DRS series Radar sensors.
PRECIO : 2 501,00 € Con IVA (22%)Descripción
NAVIGATE SAFELY BY IDENTIFYING RISKS
The FR-10 and the FR-12 10.4"/12.1" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™ and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.

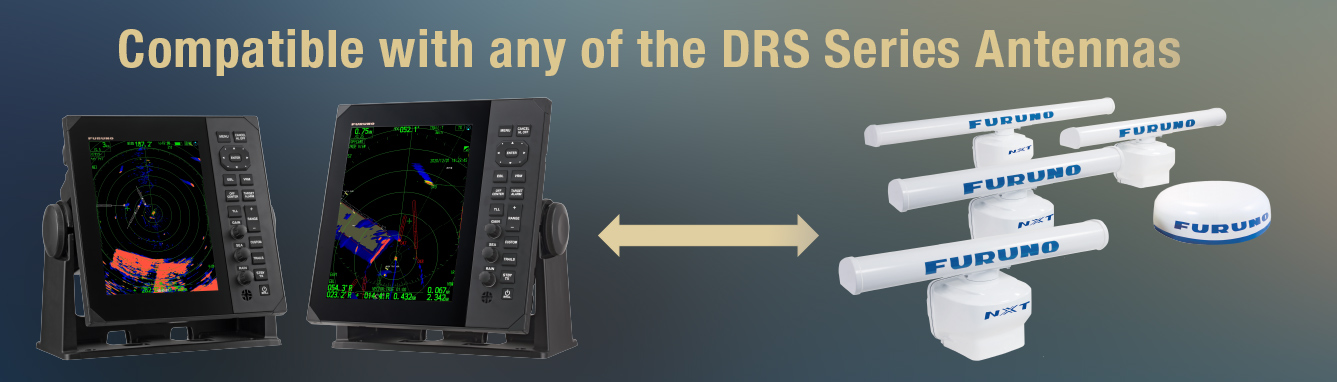

Compatible with Furuno’s powerful DRS series antennas
The FR-10 and FR-12 are compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size and antenna type & size based on what you want to accomplish, you can build the Radar that best meets your needs.
Compatible DRS antennas:
Radome type:
Model DRS2D-NXT
Model DRS4D-NXT
Model DRS4DL+
Open Array type:
Model DRS6A-NXT
Model DRS12A-NXT
Model DRS25A-NXT
Model DRS6A X-Class
Model DRS12A X-Class
Model DRS25A X-Class

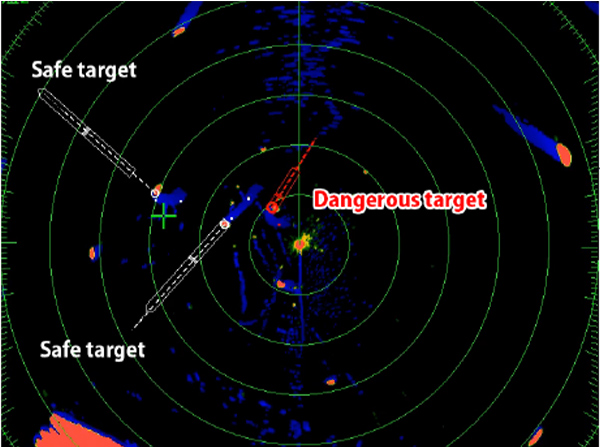

RISK VISUALIZERTM
Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Aditionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.

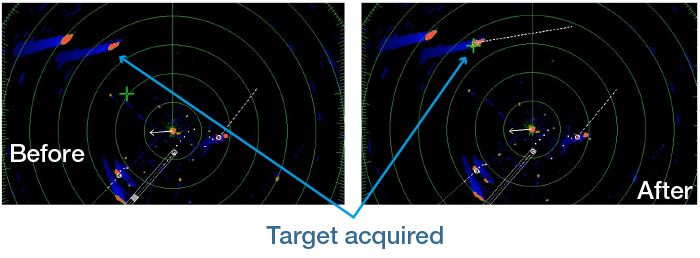

FAST TARGET TRACKINGTM
Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector.
The maximum number of TT (Target Tracking) is 100 targets when connected to DRS-NXT or DRS-X_CLASS series.

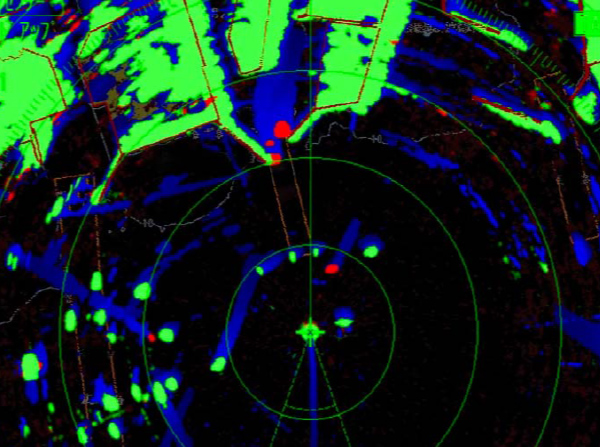

TARGET ANALYZERTM
Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.

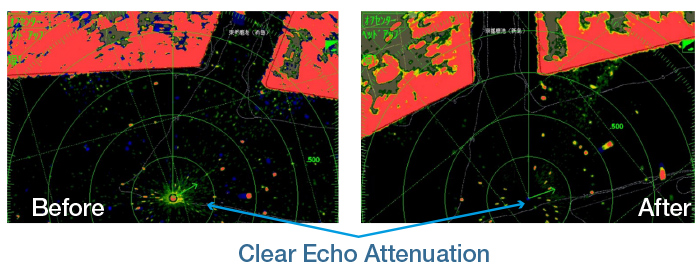

ECHO AVERAGE
Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation or dense fog.

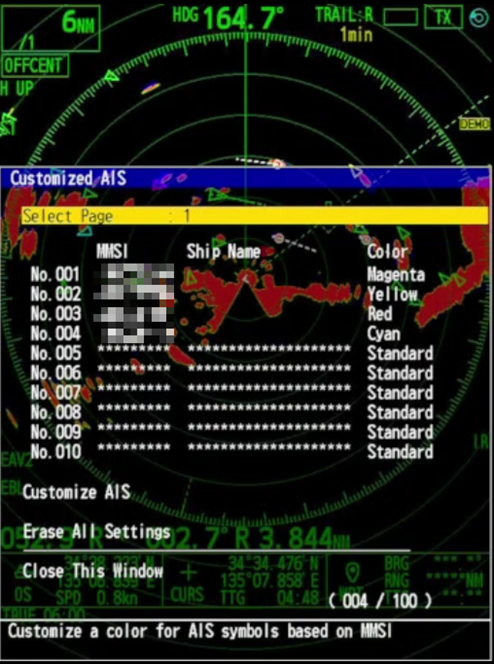

CUSTOM AIS
The color of AIS symbols (maximum: 100 sets) can be customized with 9 different colours: 4 extra color options of Red, Yellow, Cyan and Magenta, in addition to the Standard color options of Green, Red, Blue, White, and Black. The color option is saved on the FR-10/12, so when AIS targets with the same MMSI are received again, they will be shown in the registered colors. This is useful when tracking the position of important vessels such as consorts, competitors, patrol boats.
Ventajas del producto
FR-10 and FR-12 offers various amazing features like:
- Risk Visualizer™
- Target Analyzer™
- Target Tracking™
- True Echo Trail
- Echo Average
- Sub Display Unit
- AIS Display
- Radar overlay on charts (FR-12 only, option kit OP03-266 is required)
Funciones
FR-10 and FR-12 are new 10.4 inch and 12.1 inch Radar displays with key panels used for DRS series Radar sensors. They are the replacement for the MODEL1835, MODEL1935, MODEL1945, MODEL1937, FR-8065, FR-8125, and FR-8225. The new configuration of Radar display with Radar sensors offers superior performance and new features, as well as fitting on wider ranges of vessels in various markets. Thanks to an expanded selection of radar antenna types, from compact domes to a variety of open arrays and Solid-State to magnetron, there are a total of 20 possible combinations. The most inexpensive combination is the FR-10 + DRS4DL+ while the FR-12 + DRS25A-NXT is most luxury one.
Contenido
-1x DISPLAY UNIT RDP-161-E
-1x POWER CABLE MJ-A3SPF0024-035C (3.5 M)
-1x INSTALLATION MATERIALS
-1x ACCESSORIES
-1x SPARE PARTS
Características técnicas
Alimentación : 12-24 V
Dimensiones : 3.5/4/6 ft
Estado Sólido : Yes (depending on the antenna type)
Potencia : 25W-25k W
Rango : 96 NM
Resolución : 800 x 600 Pixels
Velocidad de Rotación de Antena : 24/48 RPM
Piezas y accesorios
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € Con IVA (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € Con IVA (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € Con IVA (22%) |
| 00118467000 | OP03-221 CONNECTOR ASSEMBLY 6P | 80,43 € Con IVA (22%) |
| 00118469000 | OP03-222 CONNECTOR ASSEMBLY 7P | 80,43 € Con IVA (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € Con IVA (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € Con IVA (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € Con IVA (22%) |
| 00003009700 | OP03-21 BUZZER ALLARME RADAR CICALINO ALLARME ESTERNO OP03-21 | NC |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00159607000 | MJ-A6SPF0012-100C CABLE ASSEMBLY 64S4071-2 | NC |
| 00159608000 | MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 | 138,81 € Con IVA (22%) |
| 00163042000 | OP03-269 FRONT FIXING PANEL KIT FR-10 | 257,44 € Con IVA (22%) |
| 00016892410 | MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1 | NC |
| 00001176200 | HUB-101 12-24V/TZT/TZT2/TZT3 - | 963,80 € Con IVA (22%) |
| 00107783010 | FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - | 36,60 € Con IVA (22%) |
| 00015402910 | MJ-A6SPF0003-020C CABLE EQUIPE | 66,44 € Con IVA (22%) |
| 00015405310 | MJ-A6SPF0012-050C MJ-A6SPF0012-050C 64S4071-2 | 125,89 € Con IVA (22%) |
| 00015405410 | CABLE MJ-A6SPF0003-050C 6PF PLASTIC 5M NMEA183 20S0093-1 | 48,80 € Con IVA (22%) |
| 00015968811 | MJ-A7SPF0003-050C CAVO NMEA183 DA 5M CONNETTORE 7-PIN 20S0241-3 | 103,70 € Con IVA (22%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 135,58 € Con IVA (22%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 60,52 € Con IVA (22%) |
| 00016151310 | MJ-A6SPF0012-150C SIGNAL CABLE ASSEMBLY 64S4071-2 | NC |
| 00016796811 | CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 | 122,40 € Con IVA (22%) |
| 00016796911 | CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 | 135,58 € Con IVA (22%) |
| 00016797011 | CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 | 225,97 € Con IVA (22%) |
| 00016797111 | CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 | 83,94 € Con IVA (22%) |
| 00016797211 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 | 111,91 € Con IVA (22%) |
| 00016797311 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 | 193,69 € Con IVA (22%) |
| 00016050910 | LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 | 44,38 € Con IVA (22%) |
| DRS4DL+ | 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. | 2 379,00 € Con IVA (22%) |
| DRS2D-NXT | 19" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable. | 3 233,00 € Con IVA (22%) |
| DRS4D-NXT | 24" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable. | 3 647,80 € Con IVA (22%) |
| DRS6A-NXT | 25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. | 7 307,80 € Con IVA (22%) |
| DRS12A-NXT | 100 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna, and cable. | 8 113,00 € Con IVA (22%) |
| DRS25A-NXT | 200 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. | 9 455,00 € Con IVA (22%) |
| DRS6A-XCLASS | 6kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5, 4 or 6 antenna and, cable. - Sustituido por IMD034550BA | NC |
| DRS12A-XCLASS | 12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4 or 6 antenna and, cable. | 7 185,80 € Con IVA (22%) |
| DRS25A-XCLASS | 25kW, 96 n.m., UHD Digital Radar for NavNet TZtouch , TZtouch2, and TZtouch3, less 3.5', 4 or 6 antenna and, cable. | 7 869,00 € Con IVA (22%) |
| 00151260000 | FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET | 167,86 € Con IVA (22%) |
| 00151262000 | FRU-2P5S-FF-15M-A CABLE 15M ALIM/ETHERNET | 232,42 € Con IVA (22%) |
| 00151264000 | CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE | 219,60 € Con IVA (22%) |
| 00003845600 | RDP-160-E DISPLAY UNIT CHINA | NC |
| 00163065000 | 03-176-1002/#6601-P KNOB ASSEMBLY | 40,36 € Con IVA (22%) |
| 00162963000 | 03P9699(LF) MAIN PRINTED CIRCUIT BOARD CHINA RDP-160/1 | 1 261,66 € Con IVA (22%) |
| 00162948000 | 03P9700(LF) PNL_ PRINTED CIRCUIT BOARD CHINA RDP-160/1 | 233,76 € Con IVA (22%) |
