SCX20
Sensores de rumbo y compases satelitales Ref : IMD031520ABSCX20/ROOF SATELLITE COMPASS Compas Satellitaire NMEA2000
PRECIO : 1 464,00 € Con IVA (22%)Descripción

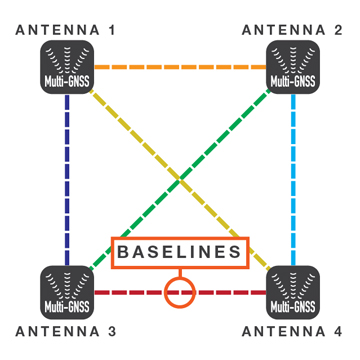

Quad-antenna design for extreme accuracy
Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas.
The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.
The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.

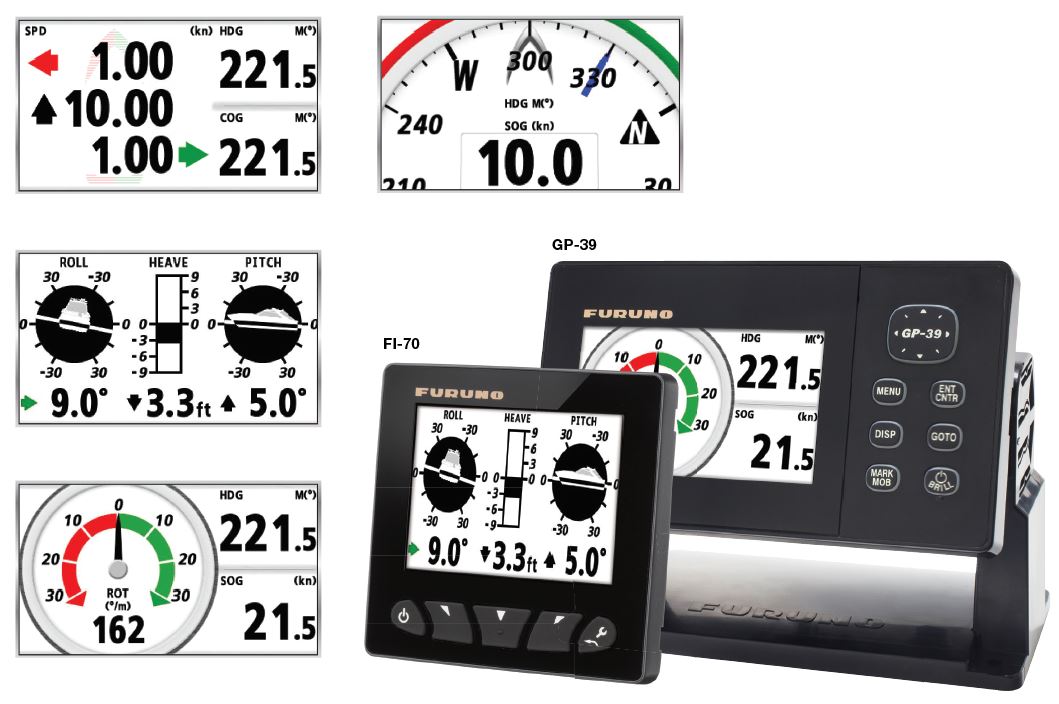

Relay Critical Data
Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFD’s, NAVpilot-300, FI-70, and GP-39! Initial setup can be done from NavNet series MFD, NAVpilot-300 and GP-39.
• 3-Axis Speed
• Pitch, Roll, Heave
• Rate of Turn (RoT)
• Heading (HDG)

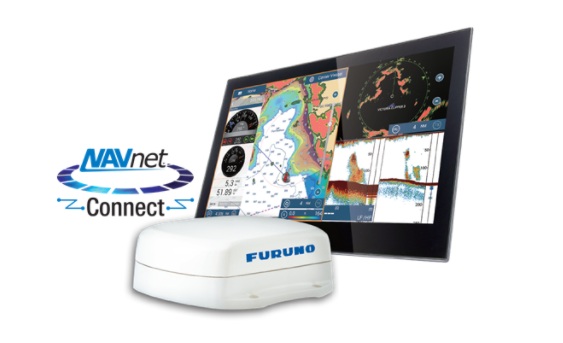

Superior accuracy for all your sensors
The SCX-20 enhances the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.

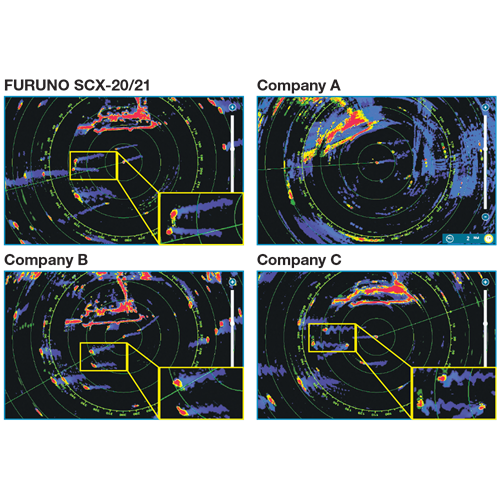

Radar echo trail zig-zag domination!
When connected to Furuno SCX20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX20/21’s amazing accuracy. Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible. Company B’s heading accuracy fluctuates by +/- 3? with a slower update, causing an echo trail that has a wide zig-zag pattern. Company C’s heading accuracy fluctuates by +/- 5? with a faster update, causing an echo trail that is indistinguishable and confusing.
Ventajas del producto
- Quad-antenna design for extreme accuracy
- Superior accuracy for all your sensors
- Relay Critical Data
- Perfect for NavNet TZtouch MFD, NAVpilot-300, and WASSP installations
- Outputs accurate Time, Position, Heading, COG/SOG, ROT, Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data
- Unprecedented heading accuracy for Radars, Sonars, and Navigation
- Utilizes four Multi GNSS (GPS, QZSS, GLONASS, Galileo) antennas
- 1.0 degree heading accuracy, 0.02 knot speed accuracy
- Lightweight antenna - only 1.0kg!
Funciones
Frequency :
• 1575.42 MHz (GPS/Galileo/QZSS/SBAS)
• 1602.5625 MHz (GLONASS)
Tracking code : C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)
Heading Accuracy: Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
Follow-up:45°/secSettling time : 60 seconds approx.
Position Accuracy:
• GPS: 5m approx. (2 drms, HDOP < 4)
• MSAS: 4m approx. (2 drms, HDOP < 4)
• WAAS: 3m approx. (2 drms, HDOP < 4)
Interface:1 Port NMEA2000
Temperature:25°C to +55°C (storage: -30°C to 70°C)
Waterproofing: IP56
Power Supply: 12 VDC: 0.2-0.1 A
Contenido
1 X Antennas
1 X FRU-NMEA-PMMFF cable (6m)
1 X Roof or Pole Mount
Piezas y accesorios
| 00155491000 | CP20-04602 ROOF MOUNT KIT CHINA | 225,97 € Con IVA (22%) |
| 00155628000 | OP20-54 BIRD-REPELLENT FIXTURE | 64,56 € Con IVA (22%) |
| 00155626000 | OP20-52 HOSE CLAMP(LARGE) | 111,91 € Con IVA (22%) |
| 00155624000 | KIT MONTAGG SU ALBERO SCX20/21 CP20-04605 MAST MOUNTING KIT SCX-20/21 | 317,20 € Con IVA (22%) |
| 00155620000 | CP20-04603 POLE MOUNT KIT Kit montage sur matereau EN STANDARD AVEC SCX21 - Sustituido por 00155492000 | NC |
| 00155617000 | CP20-04602 ROOF MOUNT KIT SCX-20 - Sustituido por | NC |
| 00155557000 | CAVO INTERF 30M SC-33/GS-100 FRU-CF-F30M PER SC-33 E GS-100 | 225,70 € Con IVA (22%) |
| 00155556000 | FRU-CF-F15M CABLE ASSEMBLY 20S105090 | 120,78 € Con IVA (22%) |
| 00155492000 | CP20-04603 POLE MOUNT KIT Kit montage sur matereau EN STANDARD AVEC SCX21 | 257,44 € Con IVA (22%) |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00111191010 | NO.13-QA330 RIGHT ANGLE MOUNTING BASE 22S0286 | NC |
| 00155632000 | OP20-53 SNOW COVER KIT | 830,43 € Con IVA (22%) |
| 00003675200 | SCX-20-R SATELLITE COMPASS CHINA | NC |
| 00157588000 | 20P8235A(LF) MAIN PRINTED CIRCUIT BOARD SCX-20 - Sustituido por 00162396000 | 827,61 € Con IVA (22%) |
| 00157629000 | SCX-20/21 ANTENNA ANTENNA ASSEMBLY - Sustituido por 00162398000 | 129,12 € Con IVA (22%) |
| 00157630000 | SCX-20/21 ANT CASE ANTENNA CASE ASSEMBLY | 142,03 € Con IVA (22%) |
| 00162396000 | 20P8235A(LF) MAIN PRINTED CIRCUIT BOARD CHINA SCX-20 | 827,61 € Con IVA (22%) |
| 00162398000 | SCX-20/21 ANTENNA ANTENNA ASSEMBLY CHINA | 129,12 € Con IVA (22%) |
