FCV-1900
FCV1900-B-G-BlackBox
FCV1900-Left-Reflection
Display up to four different frequencies
Fish reef
Individual fish
Simultaneous gain setting for increased visibility
Zero Line Rejection

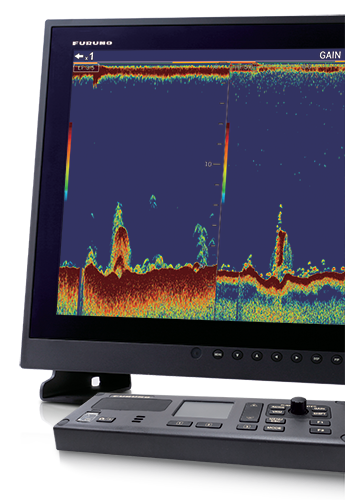

FCV1900

Sondas de pesca Ref : IMD02200000

Black Box Sounder 1-3 kW 28-200 kHz

PRECIO : NC

Descripción

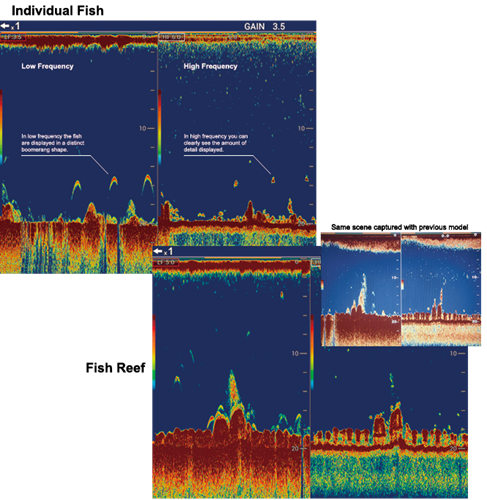

See underwater with incredible high definition echoes

The FCV1900 is a powerful, dual-frequency Fish Finder designed for both commercial and sport fishing boats. It comes with an easily set 1kW, 2kW or 3kW transmitter. It features the Furuno Free Synthesizer (FFS) transceiver, which allows easy selection of a broad range of operating frequencies (15 kHz to 200 kHz).
Retrofitting is made easy with FFS technology. You can easily replace an older FCV1200 processor unit while utilizing the same transducer for convenient installation. Plus we've made the operation of the FCV1900 simple and intuitive with the improved control unit. The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

More vivid details due to our increased transmission rate

With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV1900 series ensures excellent target separation and clarity. You will be seeing individual targets and fish reefs like never before.

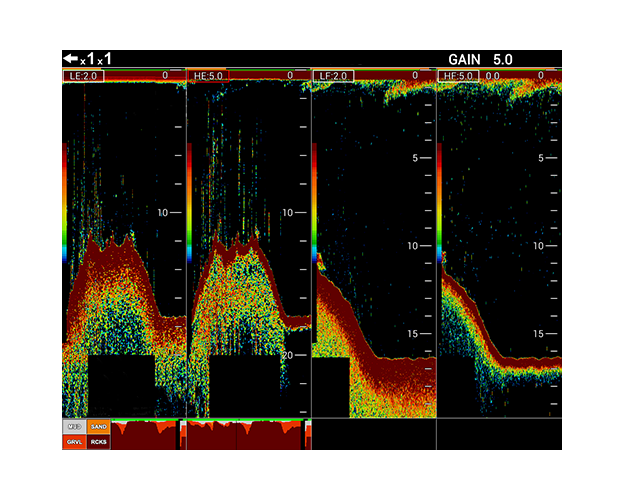

Display up to four different frequencies

Display up to four different frequencies together in a compact and easy way by connecting a required network Fish Finder. Since there is no need to install additional displays, this system is especially useful for small vessels. When connected to the BBDS1 you gain the bottom discrimination function, which indicates whether the bottom is composed mainly of rocks, gravel, sand or mud. This information aids in identifying fish species and minimizing bycatch, which can increase efficiency.

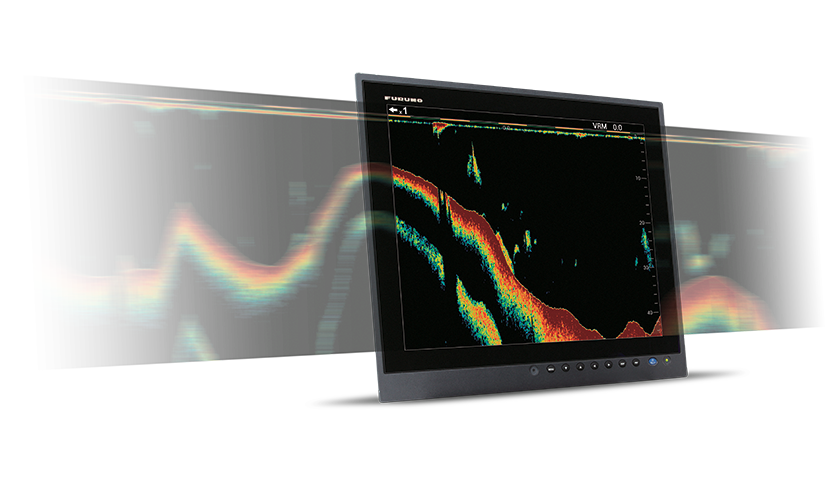

Did you see that? now you can with the scroll back function

With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

Instantly see what you've been missing

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

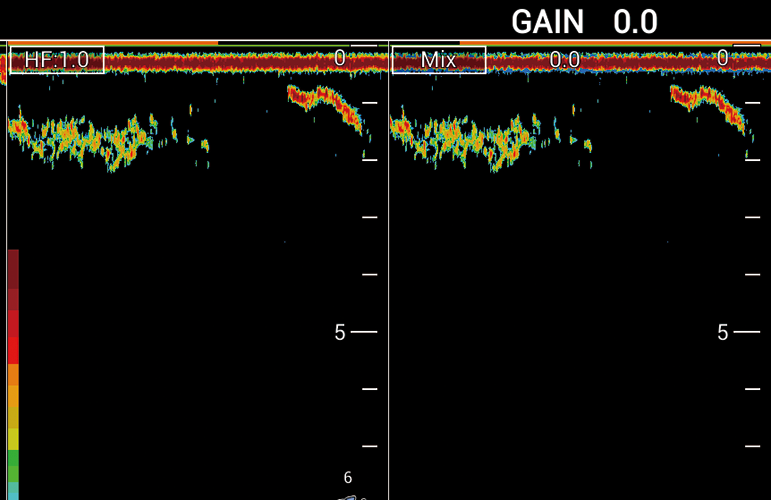

Enjoy outstanding shallow water performance

Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.

Ventajas del producto

  • Increased transmission rate
  • Display up to four frequencies
  • Simultanous gain settings
  • Zero Line Rejection
  • Scroll back function

Funciones

See underwater clearly and accurately with incredible high definition echoes. With a transmission rate that has been increased by up to 1.4 times (200m range), FCV-1900 ensures excellent target separation and clarity.

Contenido

1 x Processor Unit FCV-1901
1 x Control Unit FCV-1902
1 x HDMI Adapter Cable 1 m
1 x Installation Materials

Características técnicas

Alimentación : 12/24 V
Estanqueidad : 22 IP
Frecuencia : 15-200 kHz
NMEA0183 : 1
Potencia : 1k-3k W
Resolución : 1024 x 768/1280 x 1024/1920 x 1080 Pixels
Tamaño de pantalla : Black box
Ethernet : 1
SALIDA HDMI : 1

Piezas y accesorios

00001024600 FP05-05700 ACCESSORIES - 503,05 € Con IVA (22%)
00001252000 BT-5-1 BOOSTER BOX 10KW/MONOFREQUENCE - 1 024,80 € Con IVA (22%)
00001252100 BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA - NC
00001363200 PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT NC
28F-8 28F-8 *15M* SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Sustituido por 00003834900 1 530,67 € Con IVA (22%)
28F-38M 28F-38M *30M* SONDE 5KW 28KHZ 30M 5KW 28KHz 30M 4 620,52 € Con IVA (22%)
28F-72 28F-72 *15M* SONDE 10KW 28KHZ 15M 10KW 28KHz 15M 5 921,99 € Con IVA (22%)
50F-38 50F-38 *15M* SONDE 5KW 50KHZ 15M 5KW 50KHz 15M FCV1200+BT5 4 247,39 € Con IVA (22%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835200 788,06 € Con IVA (22%)
88B-8 88B-8 TRASDUTTORE 88kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 908,90 € Con IVA (22%)
88B-10 88B-10 TRASDUTTORE 88kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 1 182,18 € Con IVA (22%)
200B-5S 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800 452,74 € Con IVA (22%)
200B-8B 200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA NC
200B-8B 200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA 689,30 € Con IVA (22%)
200B-8B 200B-8B *50M* SONDE 2kW 200kHz 200kHz/ 2kW 1 163,73 € Con IVA (22%)
50BL-24H 50BL-24H SONDE 3KW 50KHZ 3kW 50kHZ NC
50B-6 50B-6 *10M* SONDE 1KW 50KHZ - Sustituido por 00003835100 411,31 € Con IVA (22%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800 396,52 € Con IVA (22%)
00001506500 50B-9B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835400 646,83 € Con IVA (22%)
200B-12H 200B-12H *15M* SONDE 5KW 200KHz 15M 5KW 200KHz NC
28BL-6HR 28BL-6HR TRASDUTTORE 28kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
28BL-12HR 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
38BL-9HR 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
82B-35R 82B-35R SONDE 2KW 65<->110 KHz 15M 4 288,29 € Con IVA (22%)
50BL-12HR 50BL-12HR TRASDUTTOR 50kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 3 037,80 € Con IVA (22%)
00001509400 50BL-24HR SONDE 3KW 50KHz 15M 3KW 50 KHz NC
00001517000 50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000 1 355,81 € Con IVA (22%)
00001520600 TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE NC
00001520700 TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - 1 135,49 € Con IVA (22%)
00001520900 TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE 1 024,80 € Con IVA (22%)
00001521300 TPB-9000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.9 THRU-HULL PIPE 152,50 € Con IVA (22%)
CM265LHG CM265LHG TRASDUTTORE CHIRP 1kW 42-65/130-210kHz BROADBAND URETANO CAVO 12M CON TEMPERAT NC
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 479,46 € Con IVA (22%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 161,04 € Con IVA (22%)
00003043900 RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP NC
00015402810 MJ-A7SPF0007-050C CAVO NMEA183 DA 5M CONNETTORE 7-PIN 19S1016-1 NC
00015402910 MJ-A6SPF0003-020C CABLE EQUIPE 66,44 € Con IVA (22%)
00015405410 CABLE MJ-A6SPF0003-050C 6PF PLASTIC 5M NMEA183 20S0093-1 48,80 € Con IVA (22%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 83,94 € Con IVA (22%)
00116789010 MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB 89,06 € Con IVA (22%)
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 151,72 € Con IVA (22%)
00124051000 FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124052000 FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124053000 FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00140716000 CABLE ASSEMBLY A-TO-D-ADAPTER 02S10091 NC
00140718000 HDMI-TO-DVI-L=5.3M CABLE EQUIPE - - Sustituido por 00147145000 NC
EXU00001000 UPGRADE KEY FCV1900/FCV1900B MOD. CHIRP FURUNO NC
EXU00001001 UPGRADE KEY FCV1900/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO NC
EXU00001002 UPGRADE KEY FCV1900B/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO NC
CM265LH CM265LH SONDE EXT COQUE PLAST 1KW/CHIRP/P-T/XID 20M CM265LH CABLE 20M NC
CM599LH CM599LH SONDE EXT COQUE PLAST 2-3KW/CHIRP/P-T/XID 15M NC
00001176200 HUB-101 12-24V/TZT/TZT2/TZT3 - 963,80 € Con IVA (22%)
00001500500 28F-38M *15M* SONDE 5 kW ; 28 kHz 4 336,84 € Con IVA (22%)
00001500800 28F-72 *30M* TRANSDUCER 6 195,57 € Con IVA (22%)
00001501100 50F-70 15M SONDE 10 kW ; 50 kHz 5 185,98 € Con IVA (22%)
00001503000 200B-8 *10M* TRANSDUCER 635,53 € Con IVA (22%)
00001506700 68F-8H TRANSDUCER 1 135,49 € Con IVA (22%)
00001506800 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 3 750,28 € Con IVA (22%)
00001507300 68F-30H TRANSDUCER 2 785,60 € Con IVA (22%)
00001507400 150B-12H 15M TRANSDUCER 4 421,18 € Con IVA (22%)
00001509200 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 4 623,80 € Con IVA (22%)
00001521500 TRB-1000(1) THRU-HULL PIPE NC
00001521800 TRB-1100(2) THRU-HULL PIPE 2 378,05 € Con IVA (22%)
00002036700 RJB-002 JUNCTION BOX NC
00002253200 TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE 1 024,80 € Con IVA (22%)
00002740300 CM265LM 12M SONDE EXT COQUE CHIRP/PLAST. 1KW/P-T/XID/NU NC
00002740400 PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA NC
00002740500 PM111LM TRANSDUCER NC
CM599LHG CM599LHG TRANSDUCER URETANO CON SENS TEMP NC
CM599LM CM599LM TRANSDUCER 28-60 kHz et 80-130 kHz NC
00002740800 CM275LHW TRANSDUCER NC
00002740900 TRB-1100(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE NC
00002743800 100B-10R TRANSDUCER NC
00003782000 PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Sustituido por 000037820NM NC
200B-5S 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 348,92 € Con IVA (22%)
28F-8 28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc NC
50/200-1T (RUBBER) 50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552 1 232,20 € Con IVA (22%)
50B-6 50B-6 *10M* TRANSDUCER 411,31 € Con IVA (22%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW SONDE 1KW 50 KHz 30M RICOPERTO IN GOMMA 719,80 € Con IVA (22%)
50B-9B 50B-9B *15M* SONDE 1KW 50KHz RICOPERTO IN GOMMA 561,20 € Con IVA (22%)
00003835500 68F-30H TRANSDUCER 2 785,60 € Con IVA (22%)
00003835600 68F-8H TRANSDUCER NC
50B-6B 50B-6B *15M* TRANSDUCER NC
00003908800 88F-126H TRANSDUCER 02S3024-2 4 221,85 € Con IVA (22%)
00015964310 MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 - Sustituido por 00159608000 NC
00016892410 MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1 NC
00110754010 RNS-08-132 CABLE ASSEMBLY 03S0020 NC
00124766000 NCS-2RNCTSB *20M* CABLE ASSEMBLY 02S4191-1 NC
00124767000 NCS-2RNCTSB *50M* CABLE ASSEMBLY 02S4191-1 NC
00124768000 NCS-2RNCTSB *100M* CABLE ASSEMBLY 02S4191-1 NC
00137458000 C44-02 50M EXTENSION CABLE NC
00137462000 C44-02 30M CABLE RALLONGE 1 022,51 € Con IVA (22%)
00137464000 C334 30M EXTENSION CABLE NC
00140717000 HDMI-TO-DVI-L=10.3M CABLE ASSEMBLY 02S10090 NC
00147144000 HDMI-TO-DVI-A-L10.3M CABLE POUR ECRAN DEPORTE CH-500/600 - Sustituido por 00159466000 NC
00147145000 HDMI-TO-DVI CAVO HDMI/DVI 5M PER DISPLAY ESTERNO SONAR CH-500/600 - Sustituido por 00159467000 NC
00149891000 CP013638-07-A(550MM) CABLE ASSEMBLY(USB) 02S101150 NC
00159466000 HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540 NC
00159467000 HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540 NC
00159608000 MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 138,81 € Con IVA (22%)
00002738500 FCV-1901-E PROCESSEUR NC
00002739700 FCV-1902-E UNITE DE CONTROLE NC
MU150HD MU150HD/A ECRAN 15'' XGA/12-24V/320CD ENCASTRABLE - Sustituido por IMD040540BA NC
MU190HD MU190HD/A ECRAN 19 SXGA/12-24V/1000CD - Sustituido por IMD040530BA NC
MU190 MU190/B DISPLAY 19 FURUNO 19 inch monitor IMO - Sustituido por IMD033080BC NC
MU231 MU231/B DISPLAY 23 FURUNO IMO/UXGA - Sustituido por IMD033100AC NC
00141878000 19P1084A(LF) MAIN PRINTED CIRCUIT BOARD FCV-1901 - Sustituido por 00153637000 3 792,50 € Con IVA (22%)
00141880000 02P6392(LF) CTRL PLATINE FCV-1901 - Sustituido por 00155831000 3 368,27 € Con IVA (22%)
