Display up to four different frequencies

Simultaneous gain setting for increased visibility

FCV1900G

Sondas de pesca Ref : IMD02200000G

Black Box, TruEcho CHIRP Fish Finder with Fish Size Indicator, 1 kW or 2 kW or 3 kW.

PRECIO : NC

Busque un distribuidor

Descripción

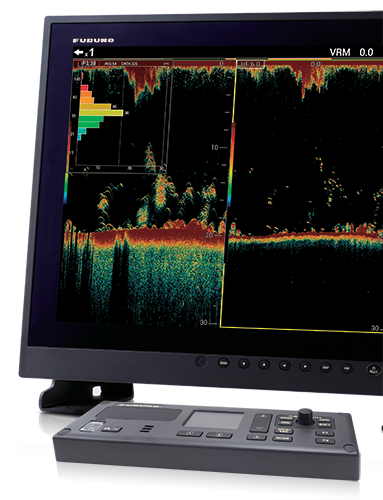

TruEchoTM CHIRP with unique fish size indicator

Enjoy efficient and sustainable fishing with the FCV1900G's unique fish size graph functionality that utilizes TruEcho CHIRP™ technology for precise estimations of fish size and size distribution within schools of fish. You can accurately analyze schools of fish all the way from shallow to deep waters.

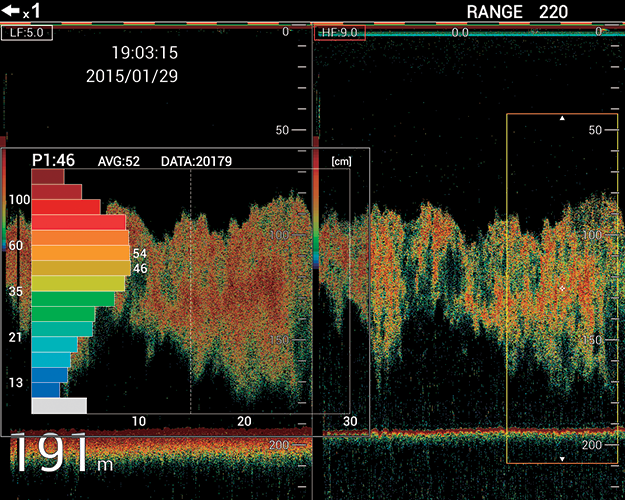

Identify size and distribution with the fish size graph

With a quick glance at the simple and efficient graph, you can get all the information you need to identify fish size and distribution. Once you know the fish size and its distribution, you can use this information to estimate the species and whether it's a viable target or not. Together with the TruEcho CHIRP™ technology, the FCV1900G allows you to choose the best position to throw your net. Then, based on the fish size graph, you can choose the right mesh size for efficient operation.

(Recommended transducers: CM265LH or CM599LH)

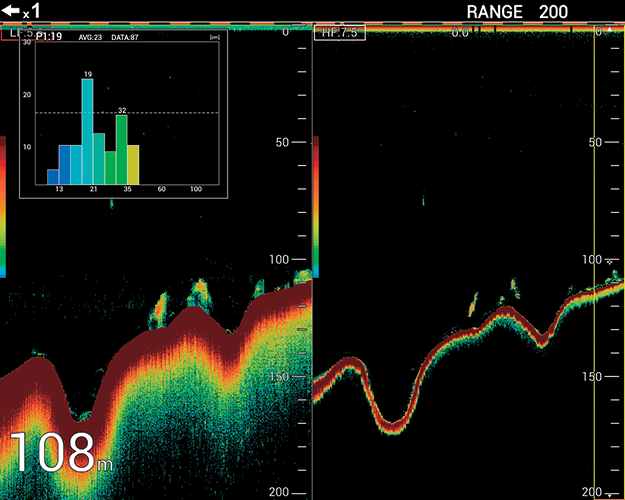

Accurately determine which target to go after

Experience incredibly accurate echoes, even in deep waters thanks to our TruEcho CHIRP™ technology. The FCV1900G is well suited for trawlers where accurate and reliable information about the sea bottom is necessary. Utilizing the fish size graph, choosing the right target is simple, allowing you to maximize your time at sea, while avoiding unnecessary bycatch.

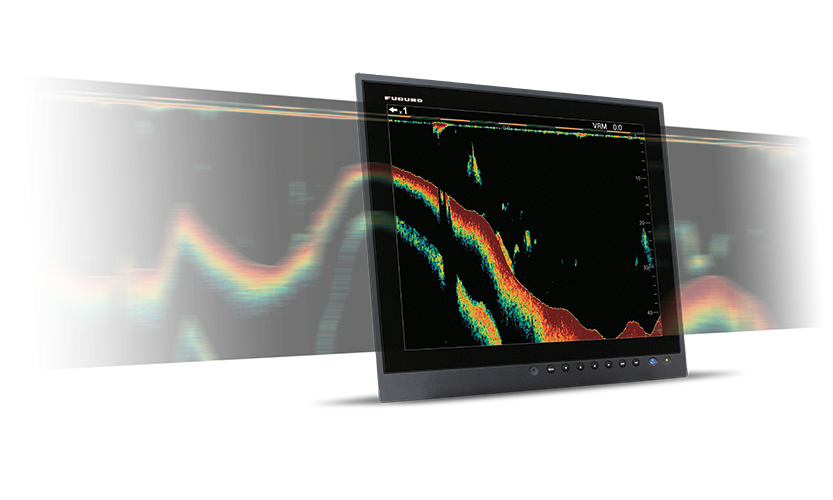

Did you see that? now you can with the scroll back function

With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

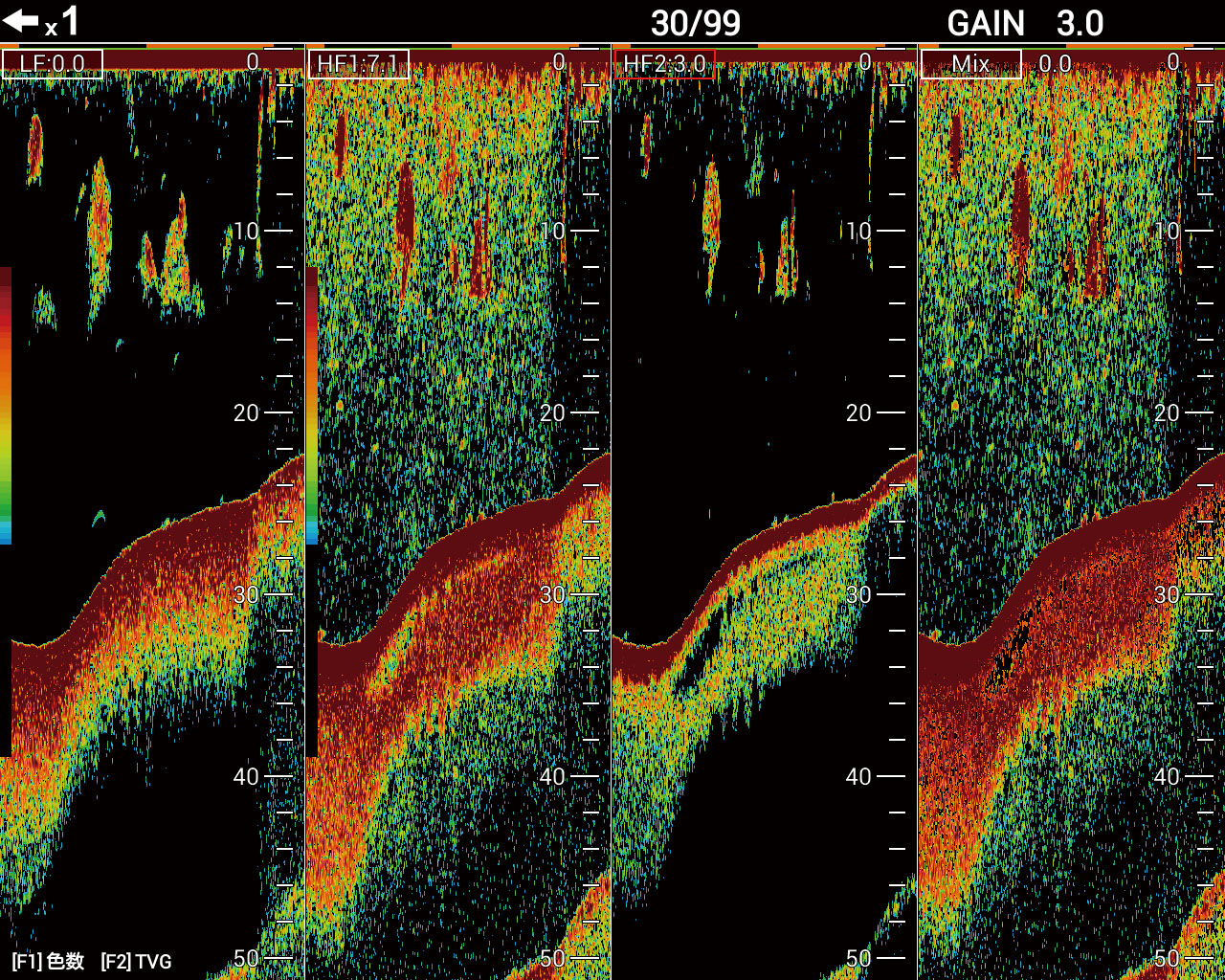

Instantly see what you've been missing

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

Ventajas del producto

High resolution echo with TrueEcho Chirp
Increased transmission rate
Display up to four frequencies
Simultanous gain settings
Zero Line Rejection
Scroll back function

Funciones

FCV-1900G features a unique fish size indicator that utilizes TruEcho CHIRP™ technology for precise estimations of fish size and size distribution in schools of fish. You can accurately analyze schools of fish all the way from shallow to deep waters.

Contenido

1 x Processor Unit FCV-1901
1 x Control Unit FCV-1902
1 x HDMI Adapter Cable 1 m
1 x Insltallation Materials

Características técnicas

Alimentación : 12/24 V
CHIRP : TruEcho CHIRP
Estanqueidad : 22 IP
Frecuencia : 15-200 kHz
Función : Fish size indicator
NMEA0183 : 1
Potencia : 1k-3k W
Resolución : 1024 x 768/1280 x 1024/1920 x 1080 Pixels
Tamaño de pantalla : Black box
Ethernet : 1
SALIDA HDMI : 1
Sonda integrada : 1

00001176200	HUB-101 12-24V/TZT/TZT2/TZT3 -	963,80 € Con IVA (22%)
00001252000	BT-5-1 BOOSTER BOX 10KW/MONOFREQUENCE -	1 024,80 € Con IVA (22%)
00001252100	BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA -	NC
00001363200	PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT	NC
00002689300	T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE	479,46 € Con IVA (22%)
00002689400	T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA	161,04 € Con IVA (22%)
00003043900	RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP	NC
00015402810	MJ-A7SPF0007-050C CAVO NMEA183 DA 5M CONNETTORE 7-PIN 19S1016-1	NC
00015405410	CABLE MJ-A6SPF0003-050C 6PF PLASTIC 5M NMEA183 20S0093-1	48,80 € Con IVA (22%)
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	83,94 € Con IVA (22%)
00116789010	MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB	89,06 € Con IVA (22%)
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	151,72 € Con IVA (22%)
00140716000	CABLE ASSEMBLY A-TO-D-ADAPTER 02S10091	NC
00140718000	HDMI-TO-DVI-L=5.3M CABLE EQUIPE - - Sustituido por 00147145000	NC
CM265LH	CM265LH SONDE EXT COQUE PLAST 1KW/CHIRP/P-T/XID 12M - Sustituido por AI-CM265LH-001	NC
CM599LH	CM599LH SONDE EXT COQUE PLAST 2-3KW/CHIRP/P-T/XID 15M	NC
CM265LH	CM265LH SONDE EXT COQUE PLAST 1KW/CHIRP/P-T/XID 20M CM265LH CABLE 20M	NC
28F-8	28F-8 15M SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Sustituido por 00003834900	1 530,67 € Con IVA (22%)
00001500500	28F-38M 15M SONDE 5 kW ; 28 kHz	4 336,84 € Con IVA (22%)
28F-38M	28F-38M 30M SONDE 5KW 28KHZ 30M 5KW 28KHz 30M	4 620,52 € Con IVA (22%)
28F-72	28F-72 15M SONDE 10KW 28KHZ 15M 10KW 28KHz 15M	5 921,99 € Con IVA (22%)
00001500800	28F-72 30M TRANSDUCER	6 195,57 € Con IVA (22%)
50F-38	50F-38 15M SONDE 5KW 50KHZ 15M 5KW 50KHz 15M FCV1200+BT5	4 247,39 € Con IVA (22%)
00001501100	50F-70 15M SONDE 10 kW ; 50 kHz	5 185,98 € Con IVA (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835200	788,06 € Con IVA (22%)
88B-8	88B-8 TRASDUTTORE 88kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA	908,90 € Con IVA (22%)
88B-10	88B-10 TRASDUTTORE 88kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA	1 182,18 € Con IVA (22%)
200B-5S	200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800	452,74 € Con IVA (22%)
00001503000	200B-8 10M TRANSDUCER	635,53 € Con IVA (22%)
200B-8B	200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA	NC
200B-8B	200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA	689,30 € Con IVA (22%)
50B-6	50B-6 10M SONDE 1KW 50KHZ - Sustituido por 00003835100	411,31 € Con IVA (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800	396,52 € Con IVA (22%)
00001506500	50B-9B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835400	646,83 € Con IVA (22%)
00001506700	68F-8H TRANSDUCER	1 135,49 € Con IVA (22%)
00001506800	88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA	3 750,28 € Con IVA (22%)
200B-12H	200B-12H 15M SONDE 5KW 200KHz 15M 5KW 200KHz	NC
00001507300	68F-30H TRANSDUCER	2 785,60 € Con IVA (22%)
00001507400	150B-12H 15M TRANSDUCER	4 421,18 € Con IVA (22%)
28BL-6HR	28BL-6HR TRASDUTTORE 28kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
28BL-12HR	28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
38BL-9HR	38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
82B-35R	82B-35R SONDE 2KW 65<->110 KHz 15M	4 288,29 € Con IVA (22%)
00001509200	38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	4 623,80 € Con IVA (22%)
50BL-12HR	50BL-12HR TRASDUTTOR 50kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	3 037,80 € Con IVA (22%)
00001509400	50BL-24HR SONDE 3KW 50KHz 15M 3KW 50 KHz	NC
00001517000	50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000	1 355,81 € Con IVA (22%)
00001520600	TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE	NC
00001520700	TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) -	1 135,49 € Con IVA (22%)
00001520900	TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE	1 024,80 € Con IVA (22%)
00001521500	TRB-1000(1) THRU-HULL PIPE	NC
00001521800	TRB-1100(2) THRU-HULL PIPE	2 378,05 € Con IVA (22%)
00002036700	RJB-002 JUNCTION BOX	NC
CM265LHG	CM265LHG TRASDUTTORE CHIRP 1kW 42-65/130-210kHz BROADBAND URETANO CAVO 12M CON TEMPERAT	NC
00002253200	TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE	1 024,80 € Con IVA (22%)
00002740300	CM265LM 12M SONDE EXT COQUE CHIRP/PLAST. 1KW/P-T/XID/NU	NC
00002740400	PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA	NC
00002740500	PM111LM TRANSDUCER	NC
CM599LHG	CM599LHG TRANSDUCER URETANO CON SENS TEMP	NC
CM599LM	CM599LM TRANSDUCER 28-60 kHz et 80-130 kHz	NC
00002740800	CM275LHW TRANSDUCER	NC
00002740900	TRB-1100(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE	NC
00002743800	100B-10R TRANSDUCER	NC
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Sustituido por 000037820NM	NC
200B-5S	200B-5S 10M SONDE 1KW 200KHz 10M 02S3110-2	348,92 € Con IVA (22%)
28F-8	28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc	NC
50/200-1T (RUBBER)	50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552	1 232,20 € Con IVA (22%)
50B-6	50B-6 10M TRANSDUCER	411,31 € Con IVA (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW SONDE 1KW 50 KHz 30M RICOPERTO IN GOMMA	719,80 € Con IVA (22%)
50B-9B	50B-9B 15M SONDE 1KW 50KHz RICOPERTO IN GOMMA	561,20 € Con IVA (22%)
00003835500	68F-30H TRANSDUCER	2 785,60 € Con IVA (22%)
00003835600	68F-8H TRANSDUCER	NC
50B-6B	50B-6B 15M TRANSDUCER	NC
00003908800	88F-126H TRANSDUCER 02S3024-2	4 221,85 € Con IVA (22%)
00015402910	MJ-A6SPF0003-020C CABLE EQUIPE	66,44 € Con IVA (22%)
00015964310	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 - Sustituido por 00159608000	NC
00016892410	MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1	NC
00110754010	RNS-08-132 CABLE ASSEMBLY 03S0020	NC
00124051000	FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124052000	FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124053000	FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124766000	NCS-2RNCTSB 20M CABLE ASSEMBLY 02S4191-1	NC
00124767000	NCS-2RNCTSB 50M CABLE ASSEMBLY 02S4191-1	NC
00124768000	NCS-2RNCTSB 100M CABLE ASSEMBLY 02S4191-1	NC
00137458000	C44-02 50M EXTENSION CABLE	NC
00137462000	C44-02 30M CABLE RALLONGE	1 022,51 € Con IVA (22%)
00137464000	C334 30M EXTENSION CABLE	NC
00140717000	HDMI-TO-DVI-L=10.3M CABLE ASSEMBLY 02S10090	NC
00147144000	HDMI-TO-DVI-A-L10.3M CABLE POUR ECRAN DEPORTE CH-500/600 - Sustituido por 00159466000	NC
00147145000	HDMI-TO-DVI CAVO HDMI/DVI 5M PER DISPLAY ESTERNO SONAR CH-500/600 - Sustituido por 00159467000	NC
00149891000	CP013638-07-A(550MM) CABLE ASSEMBLY(USB) 02S101150	NC
00159466000	HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540	NC
00159467000	HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540	NC
00159608000	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1	138,81 € Con IVA (22%)
EXU00001000	UPGRADE KEY FCV1900/FCV1900B MOD. CHIRP FURUNO	NC
EXU00001001	UPGRADE KEY FCV1900/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO	NC
EXU00001002	UPGRADE KEY FCV1900B/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO	NC

MU150HD	MU150HD/A ECRAN 15'' XGA/12-24V/320CD ENCASTRABLE - Sustituido por IMD040540BA	NC
MU190HD	MU190HD/A ECRAN 19 SXGA/12-24V/1000CD - Sustituido por IMD040530BA	NC
MU190	MU190/B DISPLAY 19 FURUNO 19 inch monitor IMO - Sustituido por IMD033080BC	NC
MU231	MU231/B DISPLAY 23 FURUNO IMO/UXGA - Sustituido por IMD033100AC	NC

Descargas

FCV-1900 EN (9.4 Mo)
