IDST810
Boat transducers & sensors Ref : AI-IDST810-FF40-1Smart Multisensor, Depth, Speed-Through-Water, Water Temperature, Boat Attitude.
PRICE : NCDescription
Depth, Speed-Through-Water, Water Temperature, Boat Attitude

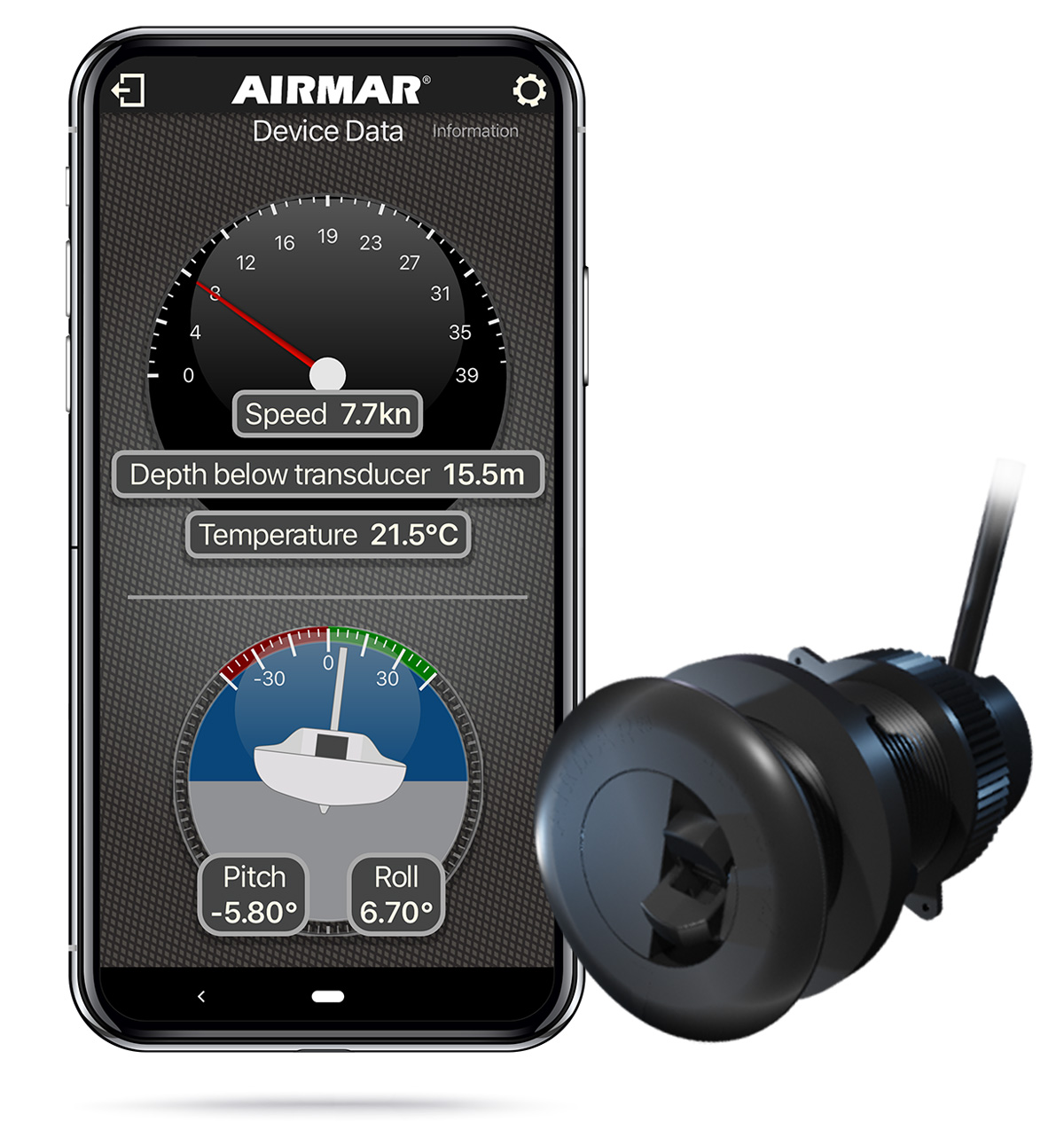

The DST810 and CAST app provide a simple, consistent way to calibrate speed-through-water. The free CAST app delivers calibration options that, until now, were only available through expensive PC-based software. In addition to water temperature, depth and newly upgraded 5.7 Hz (5X per second) speed-through-water output with improved speed resolution, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST app, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
AirmarCAST™ - The App That Maximizes Your AIRMAR Products
When used with Airmar’s DX900+ or DST810 multisensors, the CAST app provides a simple and consistent way of calibrating speed and depth and configuring NMEA 2000® data. Calibrations and configuration changes are stored in the Airmar Multisensor and delivered to the onboard network. The CAST app displays real time, speed-through-water, depth and water temperature data in a digital or graphic format. Simple offsets can be applied to compensate for the depth below keel or depth from surface.
Product advantages
Integrated Attitude Sensor ? for heel and trim and used in advanced speed calibration.
- Calibrate the DST810 in a simple, intuitive way from your mobile device.
- Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range.
- Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software.
Introducing the Paddlewheel That Sets the Standard for Performance
Airmar's new, next-generation paddlewheel design delivers industry-leading performance for start-up responsiveness and linearity throughout the speed range. Gen2 paddlewheel maintains the top speed performance Airmar is known for and adds start-up speed performance that beats all other available paddlewheels. The Gen2 paddlewheel is the most sensitive and accurate paddlewheel available for sailing and power boats.
Key benefits of the new Gen2 Paddlewheel include:
Ultra-responsive speed begins as low as 0.3 knots and becomes linear at 0.6 knots.
Speed-through-water readings stay accurate and smooth through 45 knots.
Features
Weight:
- 0.9 kg (2.0 lb) Plastic
- 1.6 kg (3.5 lb) Bronze
- 1.9 kg (4.2 lb) Stainless Steel
Acoustic Window: Urethane
Hull Deadrise: Up to 22°
Data Update Rate:
- Depth: 1X/second
- Speed: 5X/second
- Heel/Trim: 10X/second
Attitude Accuracy: +/? 1° nominal after sensor calibration
Depth Frequency: 235 kHz
Minimum Depth Range: 0.5 m (1.6')
Maximum Depth Range: Up to 100 m (330')?NMEA 2000®
Speed Range: 0.3 knots to 45 knots
Pressure Rating: 3 m (10')
Supply Voltage: 9 VDC to 16 VDC?per NMEA 2000®
Supply Current: <200 mA?per NMEA 2000®
</200> Wireless Protocol: Bluetooth Low Energy (BLE)
Wireless Range: Up to 30 feet depending on mount location
Standard Cable Length: 6 m (20') DeviceNet?NMEA 2000®
Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
NMEA 2000® Load Equivalency Number (LEN): 3
CE Regulation: Complies to IERC60945
Technical characteristics
Ceramic : 0 °
Fairing : No
For TZT12F_TZT16F_TZT19F : Yes
For TZT9F : Yes
Material : Plastic
Smart sensor : Yes
Speed : Yes
Temperature : Yes
Type : Thru Hull
XID : No
