NAVPILOT300

Autopilots Ref : IMD03230003

Adaptive Autopilot with 4.1" Color LCD and Gesture Controller

PRICE : 2 257,00 € With VAT (22%)


Description

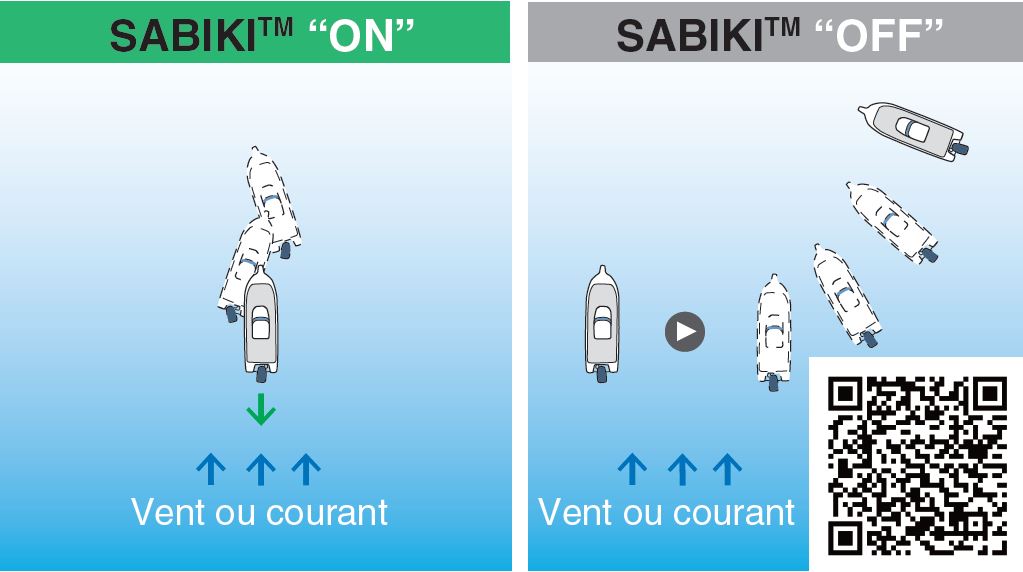

SABIKI mode

The SABIKI mode on NavPilot300 lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish you need to bring in your big catch!

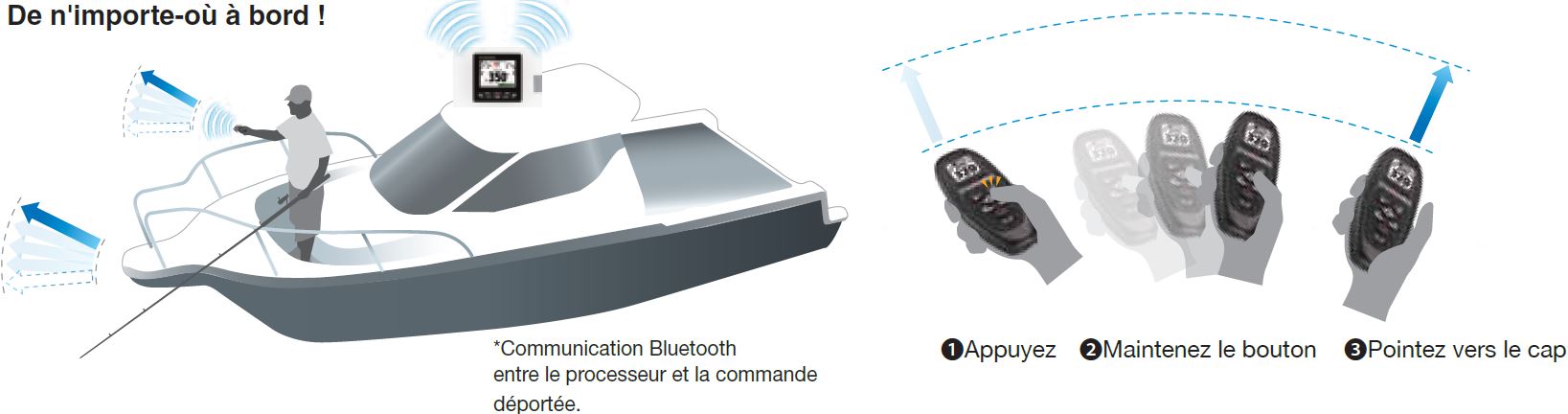

Gesture Control - "Just Push, Point and Shoot!”

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat and it will immediately follow up with no time delay!

Fantum Feedback on NavPilot300

Clears the path to a simplified installation (no need for physical rudder feedback unit) while delivering enhanced steering control.

Navigation modes

Auto mode: Maintains the desired heading
Advanced Auto mode: Compensates for tide and wind effects while maintaining heading.
SABIKI™ mode: Maintains the heading astern, while compensating for tide and wind effects
Nav mode/Route tracking mode: To navigate toward a waypoint, while compensating for tide and wind effects. It can also follow a path composed of successive waypoints.

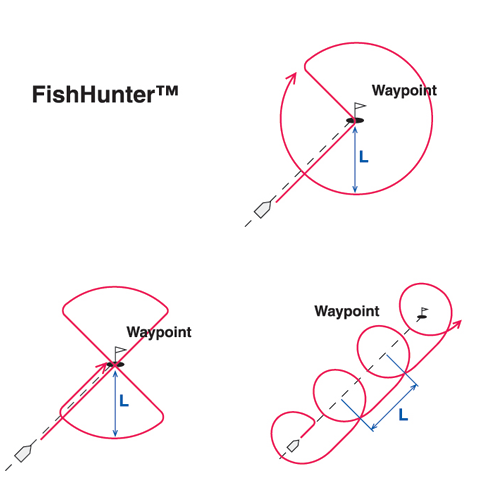

FishHunter: With the FishHunter function, 4 specific maneuvers can be used around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Put more fish in the boat with high-precision FishHunter™ Drive

A Furuno and Suzuki partnership delivers new FishHunter™ Drive features leveraging Suzuki's Precision Control, which automatically adjusts tilt and trim at designated engine RPM. FishHunter™ Drive features are available on the NavPilot 300 with a range of Suzuki outboards outfitted with both hydraulic steering and Dometic Optimus Electronics steering systems, including the DF140BG, DF115BG, DF150AP, DF175AP, DF200AP, DF250AP, DF300AP, DF300B, DF325A, and DF350A.
With Speed Control, the boat will run at a preset speed, adjusting engine RPM as needed to account for changes in wind and tide to maintain a constant speed.
Route Smoothing™ decreases the speed of turns as the boat approaches waypoints while navigating an active route. If the boat speed is too fast when approaching a turn, the boat can overshoot the waypoint, resulting in an undesirable deviation
Point Lock™ maintains a fixed boat position by controlling the rudder and throttle, countering the effects of wind and current which are constantly working to move the boat. Point Lock™ is an invaluable tool for fishing a wreck or reef, and is also for boaters who occasionally have to wait for a bridge to open so they can pass.

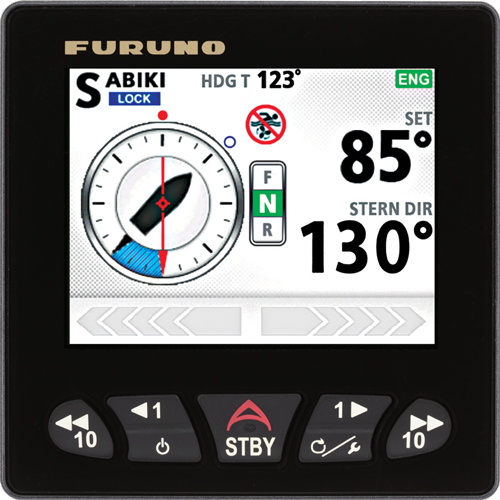

SABIKI™ Lock is designed for fishermen and takes advantage of the SABIKI™ fishing mode available with the NavPilot 300 Autopilot. With Furuno’s SABIKI™ mode, the helm is steered automatically by the NavPilot to maintain vessel position while the angler needs only to adjust the throttle to maintain a fixed position. FishHunter™ Drive's new SABIKI™ Lock expands upon this functionality by controlling both the rudder and throttle to maintain vessel heading, freeing the angler to focus 100% on jigging and other vertical fishing.


Product advantages

The NavPilot300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.


Features

CONTROL UNIT
Display 4.1" Color LCD
Effective Display Area 85.2 (W) x 85.2 (H) mm
Pixel Number QVGA (320 x 240)
Backlight 700 cd/m2 typical

PROCESSOR UNIT
Steering modes STBY, Auto, Dodge, NFU (Non-follow up), Turn, Advanced auto*, Navigation*, FishHunterTM*, Override
*external data required
Sea Condition Adjustment Auto/Manual-Calm/Moderate/Rough
Alarm Deviation alarm, Watch alarm

INTERFACE
Ports NMEA2000 x1, CAN bus x1 (DBW control)
Control signal x3, Bluetooth
Input 059392/904, 060160/416/928, 061184, 065240,126208/464/720/992/996, 127237/250/258, 128259,129025/026/029/283/284/285/538, 130577/818/821/827/841
Output 059392/904, 060928, 126208/464/720/993/996/998, 127237/245, 130816/821/822/823/827/841

WATERPROOFING
Processor Unit IP55
Control Unit IP56
Gesture Controller IP65/67

OTHERS
Power Supply Processor Unit 12-24 VDC 0.22 A max.
Control Unit 15 VDC 0.29 A max.
Gesture Controller 3 VDC, Dry cell battery (AAA, 2 pcs)




In the box

1 X FAP-3011 (Indicateur 4,1")
1 X FAP-3012 (Calculateur)
1 X GC-001 (Commande déportée sans fil)
1 X Matériel d'installation et pièces détachées

Technical characteristics

Brightness : 700 cd/m2
Function : Stby, Auto, Dodge, Turn, Nav, FishHunter
Mode : Fantum Feedback + SABIKI
NMEA2000 : 1
Power input : 12/24 V
Puissance groupe : 10 A continuous, 20 A for 5 s
Resolution : 320x240 Pixels
Screan size : 4,1
Waterproof : 56 IP


Videos

FURUNO Your adventure begins!
FishHunter Drive for NavPilot 300 and Suzuki Outboard Engines.

Parts and accessories

00110577010 CABLE ASSEMBLY M12-05BM+05BF-0 19S1162 NMEA2000 MICRO5C STRGHT M/F 6M - Replaced by 00153308000 115,40 € With VAT (22%)
00016797010 CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-0 213,06 € With VAT (22%)
00016797011 CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 225,97 € With VAT (22%)
00016797110 CB-05BFFM-010 CB-05BFFM-010 19S1165-0 80,43 € With VAT (22%)
00016797111 CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 83,94 € With VAT (22%)
00016797210 CB-05BFFM-020 CABLE ASSEMBLY 19S1165-0 111,91 € With VAT (22%)
00016797211 CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 111,91 € With VAT (22%)
00016797310 CB-05BFFM-060 CABLE ASSEMBLY 19S1165-0 193,69 € With VAT (22%)
00016797311 CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 193,69 € With VAT (22%)
00016860310 MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Replaced by 00150705000 115,40 € With VAT (22%)
00016860410 TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Replaced by 00150707000 42,37 € With VAT (22%)
00016860510 TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Replaced by 00150706000 42,37 € With VAT (22%)
00110575010 CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Replaced by 00153306000 66,44 € With VAT (22%)
00110576010 M12-05BM+05BF-020 M12-05BM+05BF-020 19S1162 - Replaced by 00153307000 76,93 € With VAT (22%)
00016796911 CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 135,58 € With VAT (22%)
00110578010 M12-05BFFM-010 M12-05BFFM-010 19S1163 64,56 € With VAT (22%)
00110579010 M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000 72,64 € With VAT (22%)
00110580010 M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000 94,43 € With VAT (22%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 80,43 € With VAT (22%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 72,64 € With VAT (22%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 101,42 € With VAT (22%)
00150705000 FRU-MM1MF1MF1001 MICRO T-CONNECTOR MASCHIO/FEMMINA/FEMMINA 79,30 € With VAT (22%)
00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 36,60 € With VAT (22%)
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 36,60 € With VAT (22%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 NMEA2000 MICRO5C DROITE M/F 6M CON CONNETTORI M/F DRITTI NC
00016796910 CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796911 135,58 € With VAT (22%)
00001076500 FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - 250,10 € With VAT (22%)
00002716200 YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 - Replaced by 00003802500 1 799,68 € With VAT (22%)
00002716300 VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 - Replaced by 00003802400 2 813,71 € With VAT (22%)
FAP-3011 FAP-3011 UNITE DE CONTROLE - Replaced by 00003553300 980,14 € With VAT (22%)
00003333700 OP64-13 ETRIER 275,20 € With VAT (22%)
00003374300 Gesture Controller for NAVpilot300 and NAVpilot711C - Replaced by 00003553400 443,87 € With VAT (22%)
00003553300 FAP-3011 UNITE DE CONTROLE CHINA 817,40 € With VAT (22%)
00003553400 Gesture Controller for NAVpilot300 434,32 € With VAT (22%)
00003767800 FAP-6112 SENSORE ANGOLO BARRA SENSORE RIFERIMENTO TIMONE CON CAVO DA 20M PER NAVPILOT 549,00 € With VAT (22%)
00003802500 YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 1 556,72 € With VAT (22%)
00009052700 RUDDER REFERENCE UNIT FAP-6112-200 NAVPILOT-500 - Replaced by 00003767800 692,03 € With VAT (22%)
00016050710 NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 135,58 € With VAT (22%)
00016050810 LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 60,52 € With VAT (22%)
00016050910 LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 44,38 € With VAT (22%)
00016796810 CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796811 115,40 € With VAT (22%)
00016796811 CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 122,40 € With VAT (22%)
00003802400 VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 R2A = 1 to 6 drives 2 854,80 € With VAT (22%)
RO-00593 Teleflex Linear Outboard Rudder Reference Unit, 8 Inch Stroke NC
PG700 NMEA2000 Rate Compensated Heading Sensor w/ 6M NMEA2000 Cable 719,80 € With VAT (22%)
RV112V Reversible Power Packs with Adjustable Flow - 12V, 0,1 to 1L/min NC
00003552900 NAVPILOT-300-E-A AUTO PILOT CHINA NC
