Wind and weather sensors Ref : LC-CV3F-BARO

Ultrasound anemometer 12V with barometer for workboats.

PRICE : NC


Description

The CV3F-BARO is an wind sensor CV3F with barometer sensor

The CV3F-BARO is an wind sensor with barometer sensor, its a new generation wind measurement sensor providing, on a standardised series electric line, the values from the wind module in knots or metres per second, relative wind direction and its temperature in degrees C. The sensor can be used directly with a PC type computer or read by modern repeaters with a standard NMEA 183 input.

Product advantages

CV3F-BARO is an wind sensor with barometer sensor. Since its introduction to the market in 2001, thousands of crews sailing everywhere in the world are using wind data provided by this sensor.It is a must have piece of equipment for coast guards, life-boats, professional fishermen, cargo ships, passengers boats and many other boats where wind data is constantly required.
This CV3F 12V wind sensor can be plugged in to any navigation equipment or software application featuring an NMEA® input port.
All product are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.

Features

The CV3F-BARO is an wind sensor with barometer sensor :

Wiring:
RG58 coaxial cable between the sensor and the junction box.
Terminal block with screw connectors in the junction box
- +12Vdc (9 to 16Vdc, 24mA)
- 0V
- output NMEA0183 +
- output NMEA0183 -
- coaxial core
- coaxial braid

Measurement range:
Wind speed: 0.5 to 99 knots
Wind angle: 0 to 359°
Temperature: -10°C to +50°C

Measurement sensitivity:
Wind speed: 0.50 knots
Wind angle: +/-1.5°
Temperature: +/- 0.5°C

Resolution:
Wind speed: 000.00
Wind angle: 000.0
Temperature: +/-00.0

Operational temperature: 10°C (off ice) to +50°C

In the box

1 X CV3F-BARO wind sensor with barometer sensor with vertical arm 31 cm
2 X stainless steel mounting brackets
1 X 25m RG58 C/U coaxial cable
1 X Installation and operation manual
2 years guaranty parts and labour at our premises

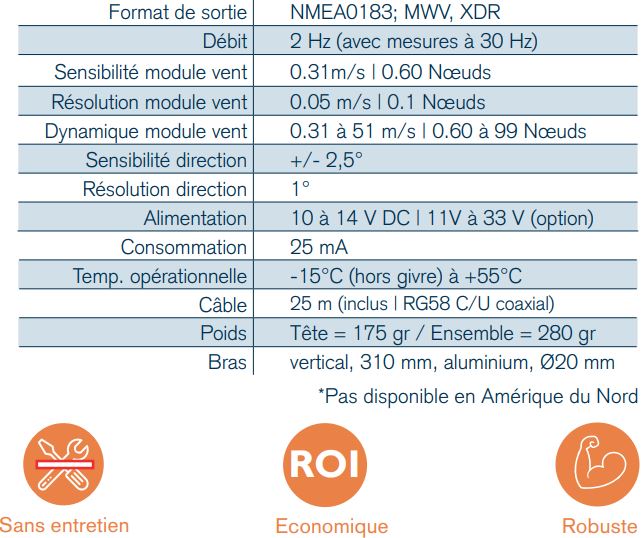

Technical characteristics

Applications : Motorboats
Barometer : YES
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.5-99 Nds
NMEA0183 : 1
Sensitivity of direction : ±2 °
Type : Ultrasonic
Weight : 0.275 Kg
Power input : 12 V
Wind module sensitivity : 0.5 Nd

Parts and accessories

LC-ADAPT-1 SUPPORT FIXATION DIAM20MM POUR ADAPT. CV3F SUR ROTULE NC
BAROPLUG BAROMETER NMEA2000 - PLUG AND PLAY NC
WINDYPLUG WindyPlug NMEA2000 interface for Wind Sensors, smaller, cheaper with embedded barometer. NC
