I9W

TV antennas Ref : IT-B4-919W2

Satellite TV antenna 85 cm 2 axes LNB wordwide - 4 output

PRICE : 24 278,00 € With VAT (22%)


Description

Professional Grade

Renowned for its professional grade build and extensive coverage capability, the i9W is the ideal choice for commercial vessels venturing far offshore. Improve crew morale with the comforts of home wherever you go

WorldView Capable

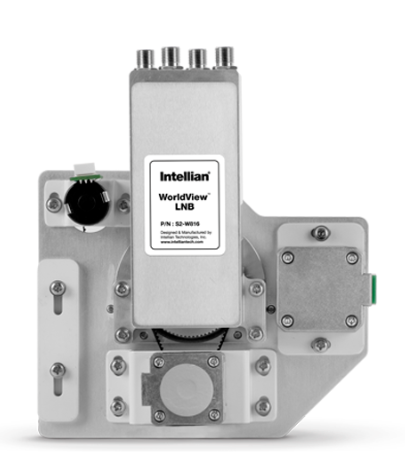

The i9W comes standard with WorldView LNB, one of the most significant advances in TVRO antenna technology in the last decade. This ground-breaking, proprietary device receives multi-band and multi-polarization Ku-band satellite TV services around the globe. Vessel operators are no longer required to manually switch out the LNB inside the antenna dome or re-wire the system when the vessel travels from region to region.


Product advantages

The i9 offers extended coverage satellite TV reception, perfect for larger recreational or commercial vessels. With integrated GPS and Auto Skew Control, the I9W allows for fastest and reliable satellite tracking in the roughest sea conditions


Features

The antenna I9W :

  • The I9W version is equipped with Automatic Skew Control, which allows for better satellite tracking across a wider area of operation
  • The i9W version is equipped with WorldView LNB, providing global operation
  • Auto satellite switching function for multiple satellites from your remote control
  • Compatible with leading satellite TV service providers around the world
  • 30° per second turn rate ensures signal tracking at high speeds and in rough seas
  • Simplicity of design, no external compass or rate sensors required

Fully Automated System

  • Automatic Satellite Search and Identification Function
  • 2-axis high speed tracking system

High Performance Antenna

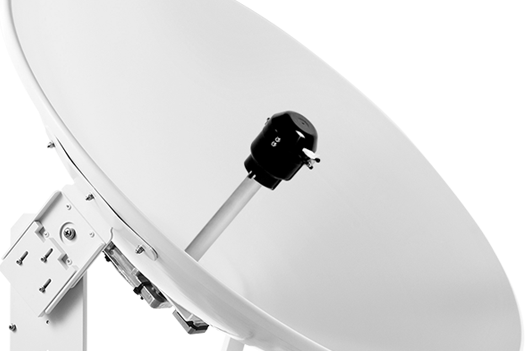

  • 85 cm (34 inch) diameter parabolic antenna for receiving the Ku-Band satellite signals
  • Built-in HD module for Ku-band HD TV reception

iQ²: Quick&Quiet Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Simple to view satellite information and controls
  • Easy antenna status check and automatic diagnostics
  • Monitor and update, using the Aptus PC software via the serial connection

Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a multiswitch or the MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected, to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching

Built-in GPS and NMEA 0183 Interface

  • The i9W includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

Stylish Radome

  • 113 cm (44.5 inch) antenna radome diameter
  • Antenna weighs less than 55 kg (212lbs)


In the box

1 X Antenna i9W
1 X ACU control unit
1 X Bracket for ACU control unit
1 X RG6 antenna cable, 30m (ACU <-> Antenna)
1 X RG6 cable, 3m (ACU <-> Decoder)
1 X Data cable, 30m (ACU <-> Antenna)
1 X Power cable, 10m (ACU <-> 12 / 24Vdc power supply)
1 X Serial cable, 1,80m
1 X NMEA connector
1 X Power connector
1 X Lot of screws
1 X CD installation
1 X User Manual
1 X Quick Installation Guide

Technical characteristics

Decoder output : 4
Parabola diameter : 85 cm
PIRE : 44 dBw
Type : 2 axes
LNB : 4


Videos

Intellian APTUS Mobile App
TUTO - Comment changer la fréquence de tracking d'un satellite ? INTELLIAN SERIE I
