CV7

Wind and weather sensors Ref : LC-CV7

Ultrasound anemometer 12V, NMEA0183, for sailboats.

PRICE : NC


Description

Wind sensor for sailboats !

The slanted arm of this ultrasonic wind sensor fits perfectly on a masthead that already carries antennas and navigation lights.

The CV7 is an ultrasound anemometer weather vane

The CV7 is an ultrasound anemometer weather vane with different strengths such as :
• Robust
• No ageing
• Insensible to the gyroscopic effect
• Sensibility stability to light winds
• Minimum of resistance
• Compensation of inclination due to wind


Product advantages

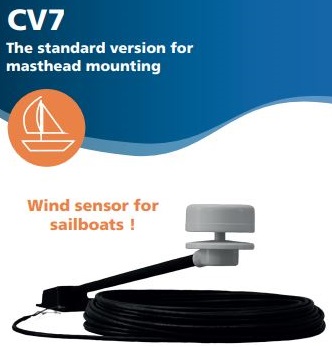

The CV7 is an ultrasound anemometer weather vane, its an evolution of the well known CV3F ultrasonic wind sensor
Lighter, more compact and less energy consumption, this model is configurable and particularly well suited to sailboats.
This sensor can be used connected to a PC and any system featuring an NMEA® input port and specific pieces of equipment using conventional formats.
In PC mode, this bidirectional sensor can be set up for angle correction, damping, units of measure and interface formats.
All product are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.


Features


In the box

1 X CV7 sensor with oblic mast
1 X Mounting bracket
1 X 25 m cable 4X 0,22mm²
1 X Installation and operation manual
1 X 2 years guaranty parts and labour at our premises

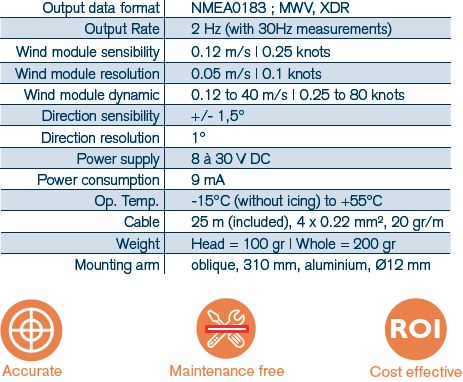

Technical characteristics

Applications : Sailboats
Barometer : NO
Bracket : Oblique
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 9/33 V
Wind module sensitivity : 0.25 Nd


Parts and accessories

STBG Universal interface to replace a masthead unit with a CV7 range ultrasonic solution. This interface communicates between a CV7 aerial unit and your display from different brand. NC
BAROPLUG BAROMETER NMEA2000 - PLUG AND PLAY NC
WINDYPLUG WindyPlug NMEA2000 interface for Wind Sensors, smaller, cheaper with embedded barometer. NC
