DFF3D

Sounder Black box Ref : IMD03357000

Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch

PRICE : 2 671,80 € With VAT (22%)


Description

Visibly see the landscape and fish schools at great depths in amazing detail

Turn your NavNet TZtouch or TZtouch2 MFD into a multi beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time.
Sidebar detection range is up to 200 m in a 120 degree swath.
Deep water, main beam penetration directly under the boat is approx. 300 m.

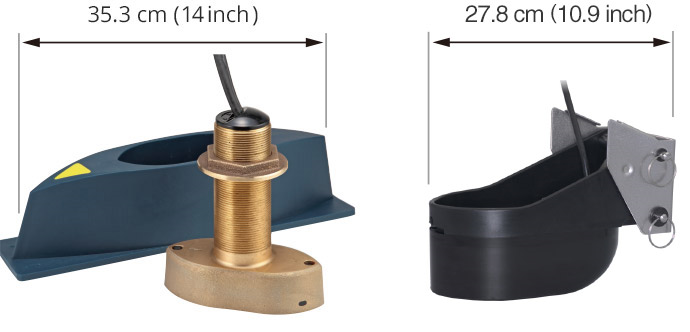

The compact and fully featured transducer

The compact transducer allows easy installation. The built-in motion sensor stabilizes the display to give clear and stable images even under rough sea conditions.

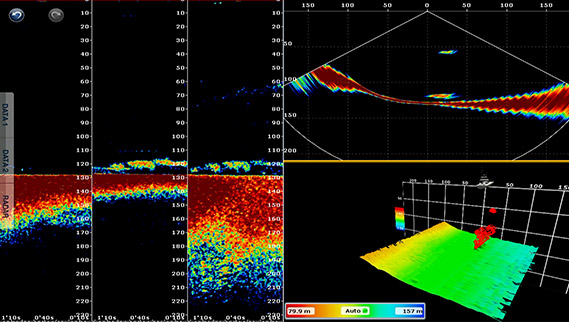

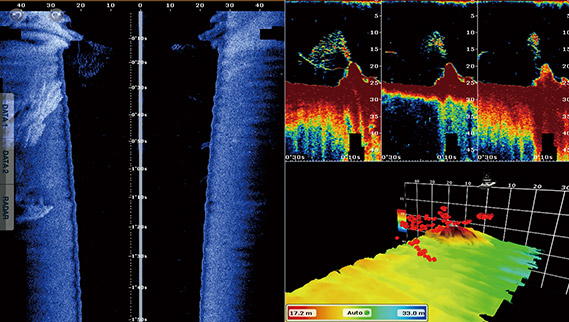

Customize the display according to your needs

Depending on the situation and preference, a combination of screen modes can be displayed.


Product advantages

  • Visibly see the landscape and fish schools at great depths in amazing detail
  • The compact and fully featured transducer
  • Customize the display according to your needs


Features

The DFF-3D is an innovative tool for efficient fish location and seabed profile surveying, utilizing new multi beam technology. Highly detailed images are derived from the combination of an advanced signal processing system and an amazingly compact multi beam transducer.


In the box

1 x Processor Unit DFF-3D
1 x Power Cable Assembly 3.5 m
1 x LAN Cable Assembly 5 m
1 x Installation Materials

Technical characteristics

Bracket : Fixed Mount
Frequency : 165 kHz
Function : Multibeam
LAN : 1
Power : 800 W
Power input : 12/24 V
Type : Network sounder
universe : Fishing
Waterproof : 55 IP


Parts and accessories

OP02-86 OP02-86 KIT CONNECTEUR POUR SYNC TX DFF1-UHD / DFF3D 225,97 € With VAT (22%)
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 151,72 € With VAT (22%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 83,94 € With VAT (22%)
00001348600 PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT 750,30 € With VAT (22%)
B54 DFF3D TH XDCR W/MOTION SENSOR 165T-B54 2 671,80 € With VAT (22%)
TM54 DFF3D TM XDCR W/MOTION SENSOR 165T-TM54 2 415,60 € With VAT (22%)
SS54 DFF3D TH SS XDCR W/MOTION SNSR 165T-SS54 2 769,40 € With VAT (22%)
165T/265LH-PM488 DFF3D/CHIRP COMBO POCKET MOUNT 165T/265LH-PM488 - Replaced by AI-165T265LHPM48812P NC
00001348500 PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V 991,43 € With VAT (22%)
00001348400 PR-62 (CHINA) AC100V ALIMENTATION AC/DC 991,43 € With VAT (22%)
00001348700 PR-62 (CHINA) AC230V ALIMENTATION AC/DC AC230V 991,43 € With VAT (22%)
00002999000 DFF-3D-E SONAR BLACKBOX MULTIFAISCEAUX NC
00145713000 33-719-01 FAIRING BLOCK B54 SP 399,48 € With VAT (22%)
00145701000 02-1125(7-8P) MJ-PA CONNECTOR ASSEMBLY DFF-3D 76,93 € With VAT (22%)
00145700000 02-1124(3-3P) MJ-VH CONNECTOR ASSEMBLY DFF-3D 64,56 € With VAT (22%)
00144469000 DFF-3D FIXING PLATE DIGI FIXING PLATE ASSEMBLY 135,58 € With VAT (22%)
00144467000 02P6388(LF) PWRTRX PRINTED CIRCUIT BOARD DFF-3D 1 307,39 € With VAT (22%)
00144465000 02P6387(LF) DIGI PLATINE DIGI DFF-3D 980,14 € With VAT (22%)
00144182000 02-1123(10-10P) PA CONNECTOR ASSEMBLY 42,37 € With VAT (22%)
