C700

IRIDIUM COMMUNICATION SYSTEM Ref : IT-C1-70-A00S

The Most Powerful Iridium Certus Terminal Available

PRICE : 11 287,44 € With VAT (22%)


Description

THE MOST POWERFUL IRIDIUM CERTUS TERMINAL

The Intellian C700 maritime satellite terminal utilizes the Iridium Certus network of 66 Low-Earth Orbit (LEO) satellites, providing pole-to-pole communication.
With its best-in-class RF performance, the C700 can deliver out-of-the-box uplink speeds of 352Kbps and downlink speeds of 704Kbps, with equally impressive low-elevation-angle RF efficiency thanks to its unique 12-patch phased array antenna design

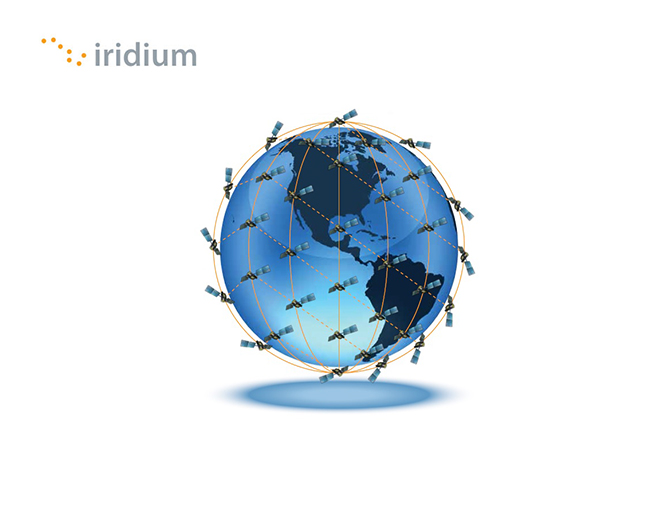

TRUE GLOBAL COVERAGE

Iridium LEO network of 66 satellites
Pole to Pole coverage
Low-Earth Orbit, stronger signals
Low latency, high speed and always-on
GMDSS Ready

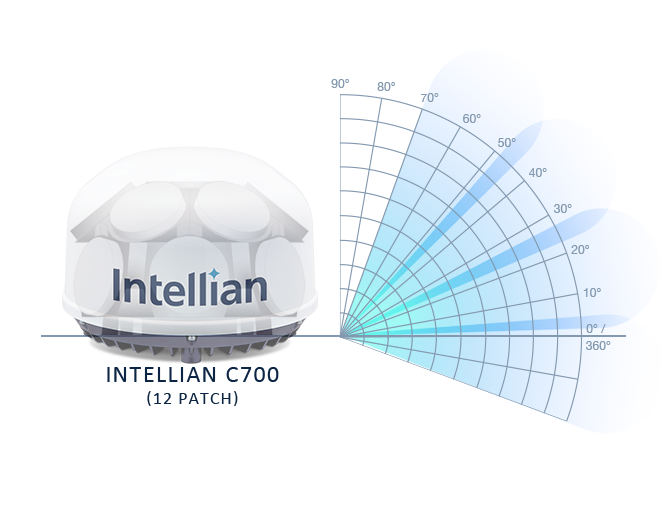

BEST IN CLASS PERFORMANCE

-Using a 12 element patch phased-array antenna for maximum coverage
-High power H2 antenna amplifier for 352 Kbps uplink speed
-Excellent performance during any ship motion and low satellite elevation angles
-VSAT companion for out of band management, supporting multiple users
-Optimal satellite and beam handover ensuring seamless voice and data connectivity
-19" Rack mount version available

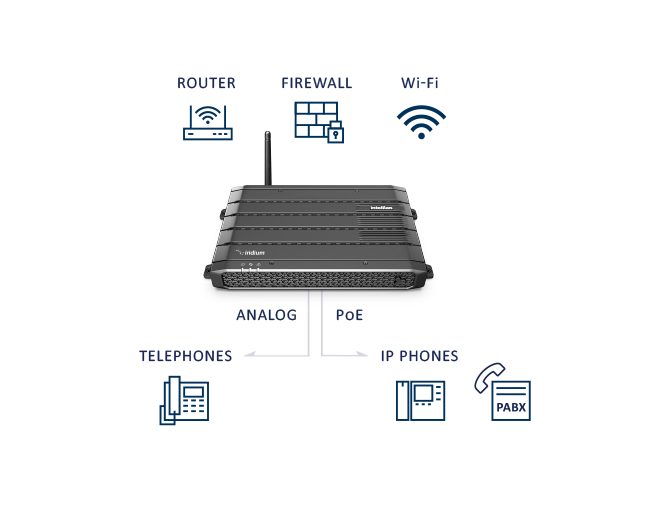

ALL-IN-ONE TERMINAL

  • Built-in Analog Terminal Adapter (ATA) for connecting analog phones and onboard PABX
  • Built-in Power-over-Ethernet (PoE) for powering IP devices, SIP phones, wireless access points
  • Built-in private automatic branch exchange (PABX) telephone switching system
  • Built-in Router supporting multiple users of the terminal
  • Built-in Firewall for cyber secure connections
  • Built-in WAN for least-cost routing of data traffic via 3G/4G or similar services
  • Built-in Wi-Fi

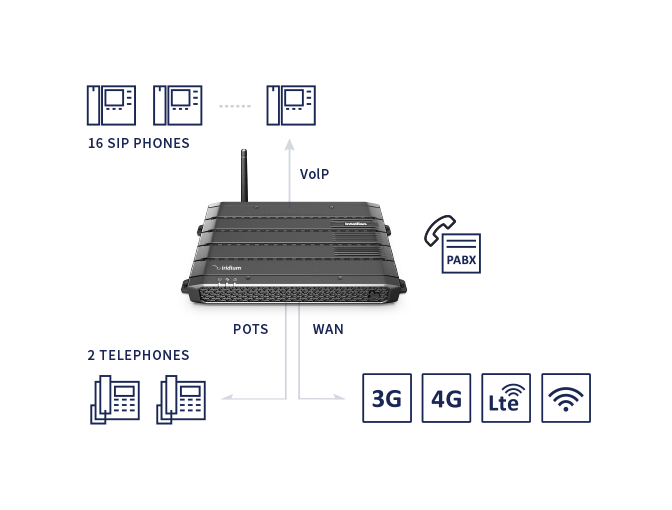

ADVANCED VOICE SOLUTION

-Soft PABX & LTE interface capability
-3 HD Quality voice lines
-Up to 16 SIP Phones
-Up to 2 analog telephones
-3G/4G/LTE WAN Port


Product advantages

Intellian C700 Certus Terminal is the best solution to suit all customer demands in the Maritime industry where vessel sizes and communication needs are varied thanks to his pole-to-pole coverage.
Users will gain both scalability and advanced performance provided by the Iridium Certus network, keeping you connected  whenever and wherever needed.

-Highest performance especially at low angles of elevation
-powerful 12 patch phased-array antenna
-IP data speeds of up to 704 Kbps downlink and 352 Kbps uplink
-Enhanced cyber security
-19" Rack mount version available
-3 years global warranty
-GMDSS ready
-Connection up to 16 SIP phones


Features

Radome Dimension : 370 x 270mm (14.5 x 11.0 inch)
Reflector Diameter : NA
Antenna Weight : 7.3kg / 16 lb
TX Frequency : 1616 ~ 1626 MHz
RX Frequency : 1616 ~ 1626.5 MHz
TX Gain : NA
RX Gain : NA
G/T : NA


In the box

1 x ADU antenna unit
1 x BDU processor unit
1 x Installation material


Videos

Intellian C700 Certus Maritime Terminal Overview

Parts and accessories

MC-0001 AC/DC Power Adapter with US and EU Power Cables 224,48 € With VAT (22%)
MC-0002 19” Rack Mount bracket with Cable Support 667,34 € With VAT (22%)
MC-0003 Antenna Pole Mount Kit 448,96 € With VAT (22%)
