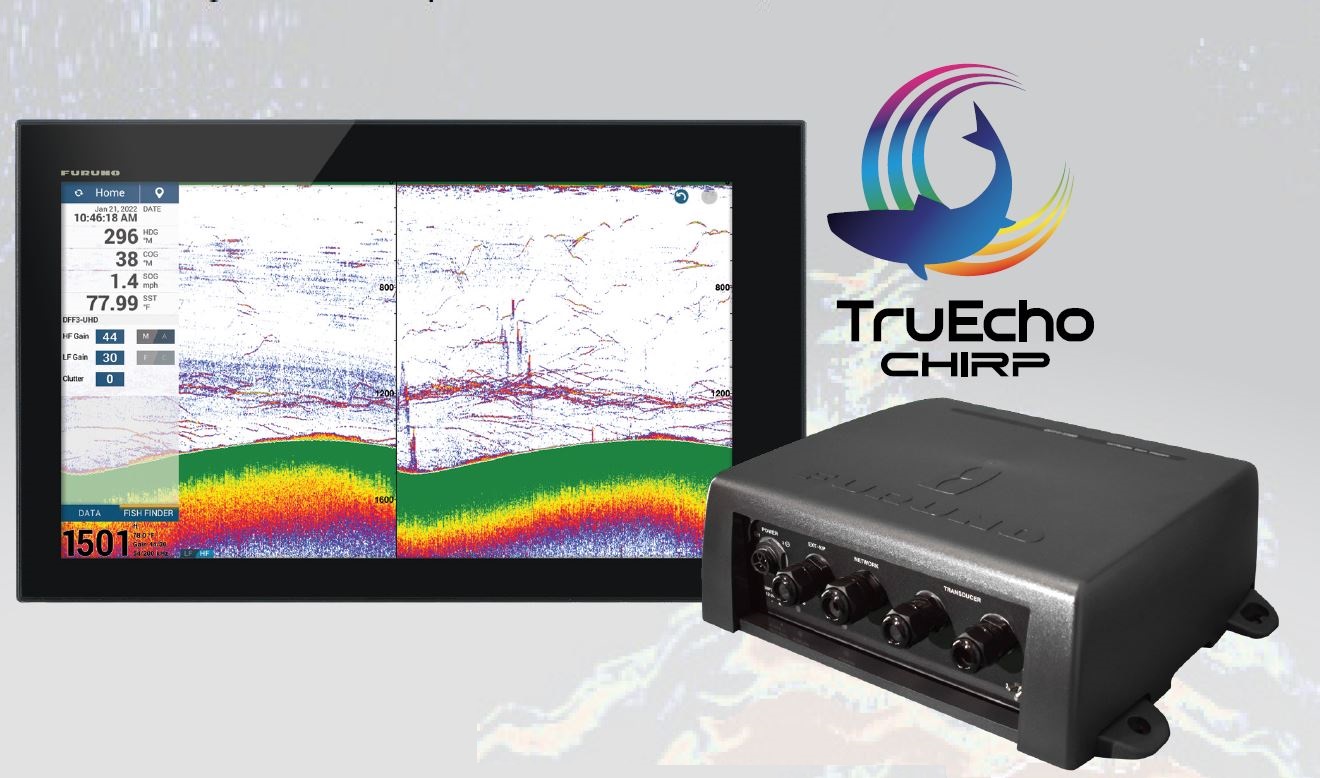

DFF3-UHD

Sounder Black box Ref : IMD03481DAA

Powerful Network Fish Finder compatible with 3 kW TruEcho CHIRP and CW.

PRICE : 2 793,80 € With VAT (22%)

Find a dealer

Description

UNLEASHED: HIGH POWER 2kW/3kW TruEcho CHIRP™ NETWORK FISH FINDER

The DFF3-UHD High Power TruEcho CHIRP™ Fish Finder for NavNet TZtouch3 delivers the ability to see fish and bottom structures deeper and clearer than ever before. Furuno’s superior digital signal processing interprets echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution, at unprecedented depths - we’re talking maximum depth scales down to 15,000 feet!

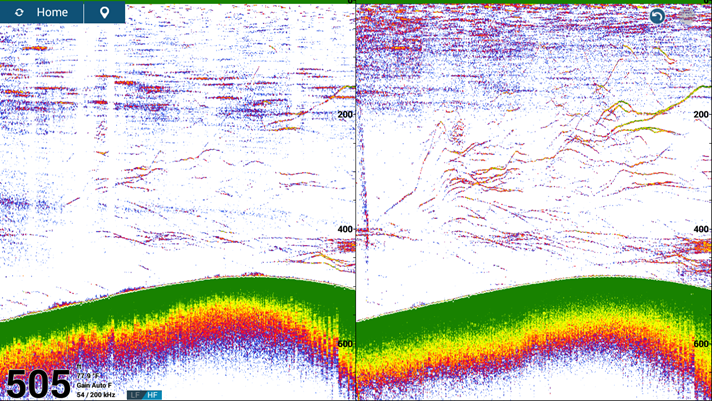

Screenshot taken at Key WKey West, Florida, USest, Florida, US

Targets detected here are bluefin tunas and amberjacks. The photo with catches in the previous page was taken in this area. Transducer : R109LHW - CHIRP 2 kW, 38-75 kHz et 150-250 kHz

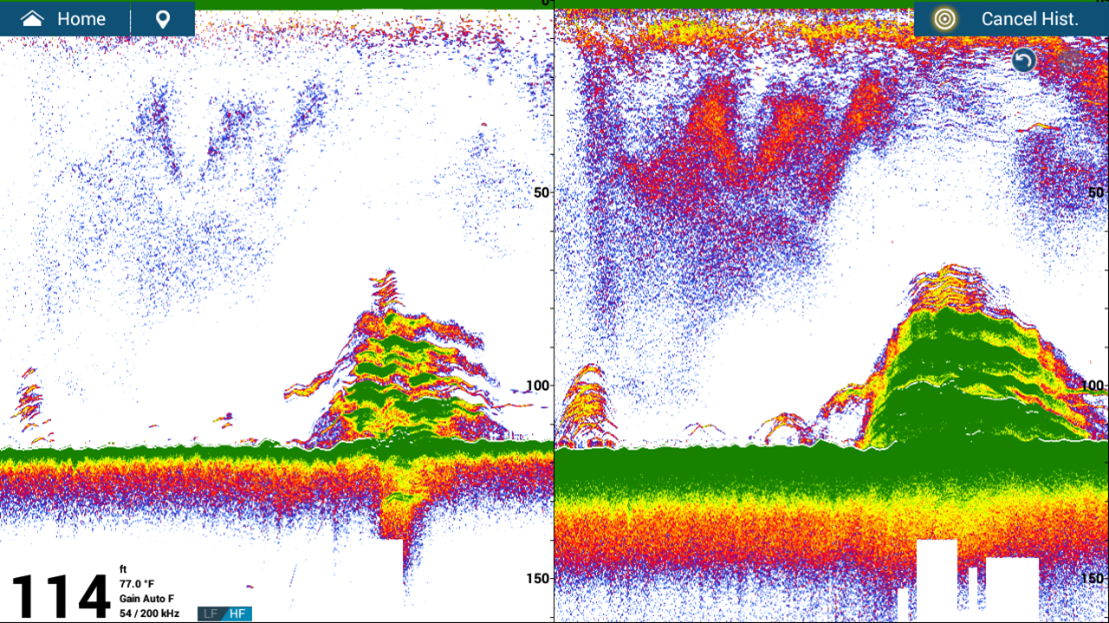

Screanshoot with Color Mode: Sunlight (NEW)

Echos de poissons autour d'une structure et dans la couche intermédiaire. Le mode de présentation sélectionné est le nouveau mode de couleur « Sunlight » disponible avec les TZT9F/12F/16F/19F v3.01 et TZT2BB v9.01.

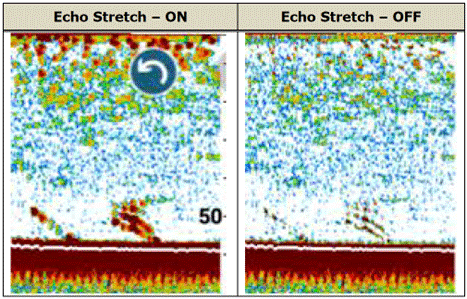

ECHO STRETCH

While CHIRP signal processing enables to show echoes in high difinition, there are some cases where small targets are not well visible due to too sharp echoes. The new Echo Stretch feature helps show targets in thicker echoes, which is useful when seeing the screen from a remote place or observing targets at deep water.

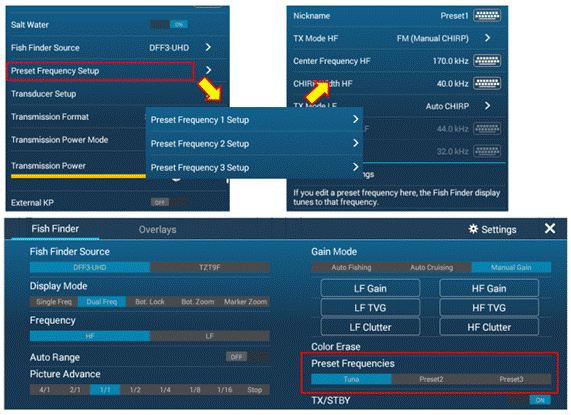

Transmission at Preset Frequency

A total of three (3) patterns of frequencies can be preset, similar to the built-in Fish Finder of TZT12F/16F/19F and DI-FFAMP. While suitable frequencies may change depending on fish targets or fishing grounds, the Preset Frequency function can be utilized when fishing on a variety of depths, from shallow to deep, and searching a variety of targets, from bait to predator fish, as well as avoiding interference from other boats.

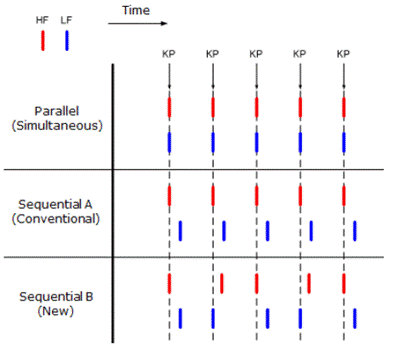

Sequential Transmission

While the DFF3-UHD can transmit dual frequencies simultaneously, a new option of sequential transmission is added (Sequential A / Sequential B), which helps to suppress the side lobe around the bottom.

Product advantages

2 kW or 3 kW Power Output
Transmits across Low, Medium, and High CHIRP frequency ranges
High Power = greater resolution and depth capability at all ranges
Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
Find and catch more of your target species, game fish, and baitfish even when they're tightly schooled or near the seafloor
A-Scope feature and programmable Fish, Depth, or Temp Alarms
Enhanced automatic cruising or fishing modes to suit your style of boating

Features

TX Type: Dual Band CHIRP and CW
Output Power CHIRP: Max. 3 kW
CW: 2/3 kW
Max. Range Scale: 3 000 m
Frequency 25 to 242 kHz
BT-5 for 5/10 kHz CW Transducer Compatible
Interconnection Connect to MFD Network via Ethernet
Networked MFDs : NavNet TZtouch3 (v3+ software) and NavNet TZT2BB (v9+ software)
Power Supply: 12-24 VDC
Power Consumption: 3.0-1.6 A
Protection Level: IP55
Dimensions: 380 x 120 x 299 mm / 15 x 4.72 x 11.78 in
Weight: 3.6 kg. / 7.94 lbs.

In the box

1 X Power cable FRU-3P-FF-A002M-001 2m, the same type as TZT16F power cable

1 X LAN cable MOD-Z072-050+ 5m

1 X Installation material, documents Fuse, etc.

Technical characteristics

Bracket : Fixed Mount
Frequency : 25-242 kHz
Function : CHIRP + CW
LAN : 1
Power : 2k-3k W
Power input : 12/24 V
Type : Network sounder
universe : Fishing
Waterproof : 55 IP

Parts and accessories

00002740400	PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA	NC
00002253200	TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE	1 024,80 € With VAT (22%)
00137464000	C334 30M EXTENSION CABLE	NC
00137462000	C44-02 30M CABLE RALLONGE	1 022,51 € With VAT (22%)
00137458000	C44-02 50M EXTENSION CABLE	NC
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	151,72 € With VAT (22%)
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	83,94 € With VAT (22%)
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC
CM599LHG	CM599LHG TRASDUTTORE CHIRP 3kW 28-60/130-210kHz BROADBAND URETANO CON SENS TEMP	NC
CM599LH	Transducer CHIRP, P & T, XID 28-60/130-210 kHz 2-3kW	NC
R509LH-W	R509LHW Wide-beam Chirp-ready External Mount	7 564,00 € With VAT (22%)
28BL-6HR	Transducer 28BL-6HR - 28kHz - Plastic - cable 15m	NC
50BL-12HR	Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug	3 037,80 € With VAT (22%)
88B-10	Sonde 88B10 - 88kHz - Rubber - câble 15m	1 182,18 € With VAT (22%)
200B-8B	Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m	NC
82B-35R	Transducer 82B35R 65 to 110kHz - Rubber - cable 15m	4 288,29 € With VAT (22%)
38BL-9HR	38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
00001252100	BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA -	NC
