FAR2268DSBB
Radars FR & FAR series Ref : IMD0347200BBLACK BOX 60 KW X-BAND RADAR 96NM ARPA 220VAC
PRICE : NCDescription

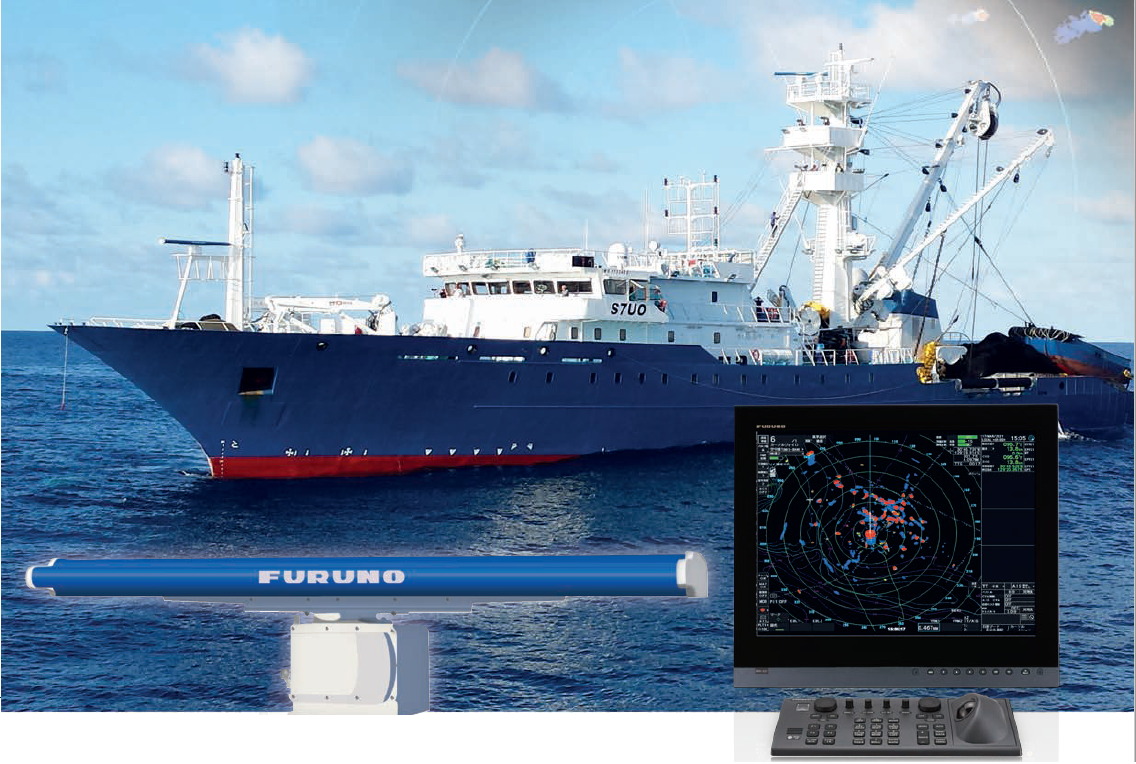

RELIABLE S-BAND FISHING & BIRD RADAR
New High power, High resolution Radar, Reliable in any kind of weather. Perfect to find birds.

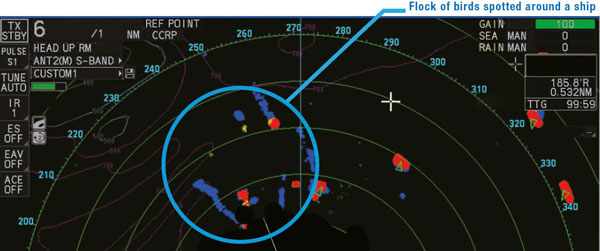

GAIN IN SEARCHING POWER WITH S-BAND ANTENNAS
The benefit of S-band antennas lie not only in their signal strength of 60 kW, but also in their capability to detect objects other than ships without being disturbed by weather or sea swell. With the FAR-2268DS, the user will be able to find birds and therefore determine the location of promising fishing grounds

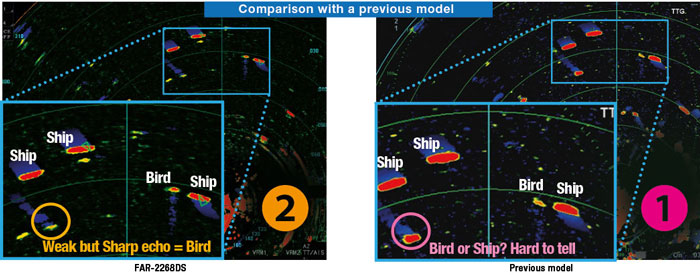

Improved detection performance and accuracy at long range compared to previous models
While echoes can sometimes appear too faint or too large and be mistaken for a ship (1), the new FAR-2268DS really makes a difference and uses its accuracy to distinguish echoes while making the whole presentation much sharper and clearer. (2)

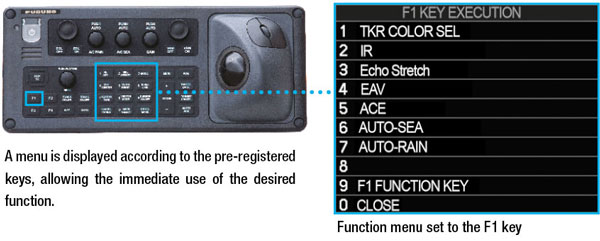

Function keys support up to 32 customizable features & settings
Each key can be assigned a single function or multiple functions. When [multiple functions] is selected, up to eight functions can be assigned to one key, which can be utilized by pressing the function key and then the numeric keypad. It is possible to assign up to 32 functions.

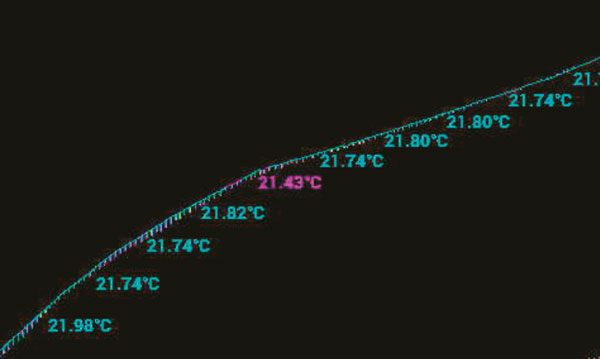

Easily identify fishing grounds with colored track lines
The water temperature is automatically displayed in the vessel track line, with the color changing according to water temperature. This allows the user to intuitively understand changes in water temperature and easily identify fishing grounds.

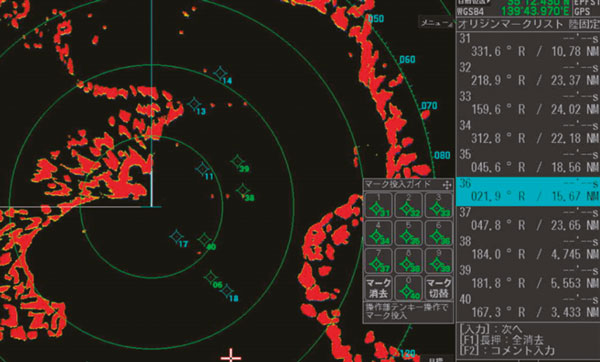

A total of 40 origin marks can be entered
The number of origin marks that can be entered has been increased from 20 (previous model) to a maximum of 40. By displaying a list of origin marks, the distance and direction from the registered position to the cursor can be determined at a glance.
Additionnally, users can choose between “sea fixed” (blue) and “land fixed” (green), plus, land fixed origin marks are backed up even after the power is turned off.

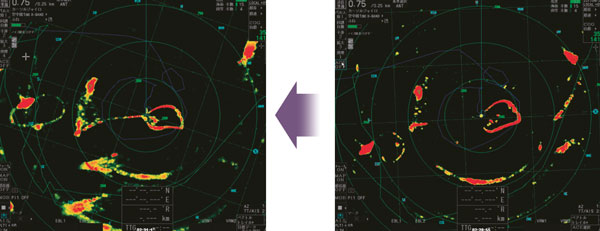

Fishing gear echoes are easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range
The new wide dynamic range signal EAV function allows the display of both weak and strong echoes in a richly colored image as shown on the right.
The new wider dynamic range EAV removes unwanted echoes and clearly shows the shape of the net

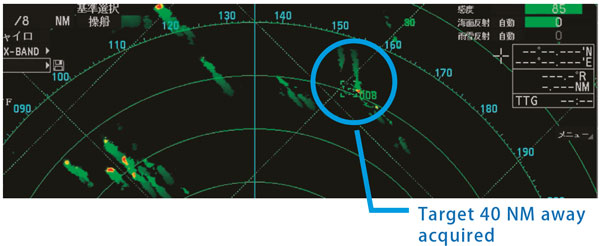

TT target acquisition up to a distance of 48 NM
With Target Tracking (TT), the FAR-2268DS is capable of capturing targets within a range of 48 NM, whereas the previous model was limited to a distance of 32 NM. This allows users to keep a close eye on more distant targets.

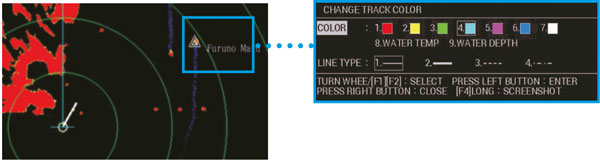

AIS customization helps you keep an eye on other vessels
Users can register a color and a ship track color for each AIS target, so that you can identify other ships at a glance. (Maximum number of entries is 100).
TT custom settings make it easier to distinguish other ships!
Users can set the name, color, shape and track color of the acquired TT target. Custom TT settings can be pre-registered (up to 10) and these can be quickly assigned to targets.
Product advantages
High power, High resolution Radar, Reliable in any kind of weather. Perfect to find birds
Features
- Improved detection range
- Expanded maximum Target Tracking range
- New EAV
- Plotter function available as standard
- Advanced mark function
- Customizable AIS/TT
- Target Analyzer and Fast Target Tracking
- RCU-031 specialized for chart function
- New 3 m antenna XN30AF for the FAR-2258
- New high gain antenna SN30DF for the FAR-2268DS
- Easier installation of sub monitor & control unit on upper deck
In the box
1x PROCESSOR UNIT RPU025-BEC2S
1x CONTROL UNIT RCU-031-E
1x POWER SUPPLY UNIT PSU-019A (Please specify 100VAC or 220VAC)
1x ANTENNA UNIT RSB-144-129
1x STANDARD SPARE PARTS AND INSTALLATION MATERIALS
Parts and accessories
| 00003658700 | RCU-031-E CONTROL UNIT | NC |
| 00003821500 | PSU-019A *AC220V* POWER SUPPLY UNIT | NC |
| 00003850400 | RPU025-BEC2S-G PROCESSOR UNIT | NC |
