IT110W

TV antennas Ref : IT-T3-111AW2

Satellite TV antenna T110W 110cm 3 axes

PRICE : NC

Description

Outstanding Performance Anywhere

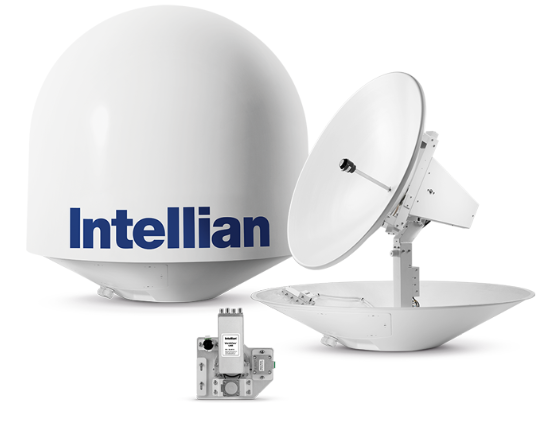

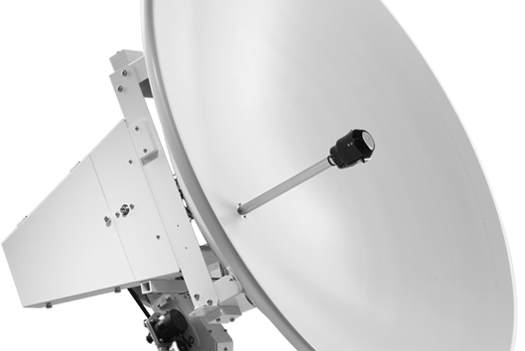

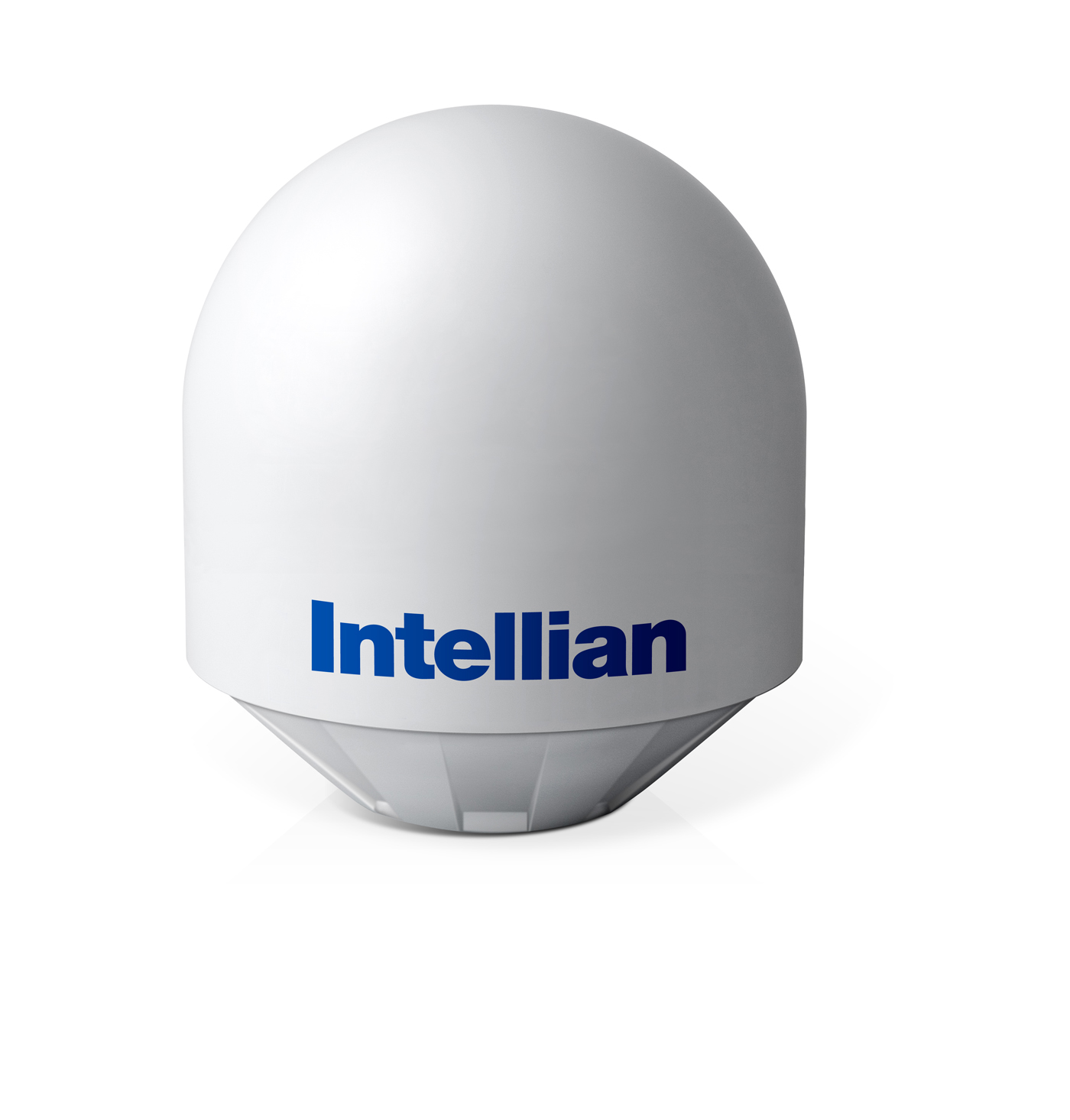

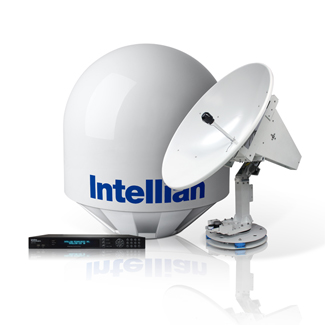

The t110W provides outstanding performance in an 125cm (49.2in) reflector with the added benefits of Intellian's proprietary WorldView Technology. This system receives SD or HD programming from any Ku-band satellite TV service around the globe without requiring LNB changes or re-wiring of the system when the vessel travels from one region to another.

Fully Integrated Solution

For those managing larger fleets, the t110W / t130Q can be networked with any onboard, built satellite communications system (VSAT or FleetBroadband) to allow remote access and management via Aptus Web no matter where the vessel is located around the globe.

With its Wi-Fi capable ACU, users can connect wirelessly to the t110W / t110Q using Aptus PC or Aptus Mobile, an iOS Mobile Application available for free download through the App Store. Aptus offers users instant diagnostics, performance logging functions, and one touch updates to the antenna’s firmware and the Global Satellite Library, ensuring the antenna delivers peak performance at all times.


Product advantages

Global Reception

  • The WorldView LNB offers the clearest, most reliable global TV reception for guests or crew to tune in any channels on any satellite seamlessly throughout the voyage
  • Receives circular polarized programming from the Americas or linear polarization for the rest of the world
  • Universal Quad LNB models receives linear polarization for Europe, Middle East, Africa and some Asia countries

Remote Management & Control

  • Remotely accessible via the Aptus platform
  • Perform firmware upgrades, monitor tracking parameters, log performance data and run system diagnostics from anywhere in the world

Wi-Fi Enabled Antenna Control Unit

  • Wireless updates and diagnostics via the Aptus PC
  • Intuitive controls and digital satellite information display on the ACU
  • Simple antenna status quick reference

 Digital Video Broadcasting Signal Identification

  • High Speed Identification employing a DVB-S2 decoder
  • QPSK Demodulator Lock for DSS signal

 Multiple Receiver connections

  • Supports multiple receivers through a Multi-Switch or using the Intellian MIM
  • Using the Intellian MIM a master receiver can be selected to control the target satellite

iQ²: Quick&Quiet Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Quattro Switching Module Pre-installed

  • Embedded Quattro Switching Module, which intelligently distributes different tone signals to the correct ports on any legacy multi switches installed throughout the ship
  • No need for reconfiguringanything below deck apart from the ACU

 Built-in GPS, NMEA Interface, Heading Interface

  • The t110W / t130Q includes a built-in GPS inside of the antenna unit for faster signal acquisition and can interface with onboard heading sensors
  • The ship's GPS can also be connected through the NMEA 0183/2000 ports on the rear panel of the ACU

Fully Automated System

  • Automatic satellite search and identification
  • 3-axis stabilized antenna remains locked on in all sea conditions

 Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
  • The new warranty policy (3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017


In the box

1 X Antenna of 165x169 cm
1 X ACU control unit
1 X RG6 Cable, 30m (ACU <-> Antenna)
1 X RG6 cable, 3m (ACU <-> Decoder)
1 X Power cable, 1.50m (ACU <-> 220Vac power supply)
1 X Serial cable, 1,80m
1 X USB cable, 1,80m
1 X Kit of screws
1 X Installation CD
1 X User Manual
1 X Installation Template

Technical characteristics

Decoder output : 4
Integrated GPS : 1
Parabola diameter : 105 cm
PIRE : 42 dBw
Type : 3 axes
LNB : 4


Parts and accessories

IT-S2-11118 DOME VUOTO T110W - NC
IT-BP-TA31 UNITE CONTROLE ANTENNE ACU 220V T80W/T110W/T130W NC
IT-S3-00501_A MAIN CONTROL BOARD T80W/T100W/T110W/T130W IT110W NC
