FM4800

VHF Ref : IMD034960AC

Marine VHF Radiotelephone with Class D DSC, GPS Receiver, AIS Receiver, and Simplified Loud Hailer

PRICE : 939,40 € With VAT (22%)


Description

The Ultimate 5-in-1 Tool of VHF Radios

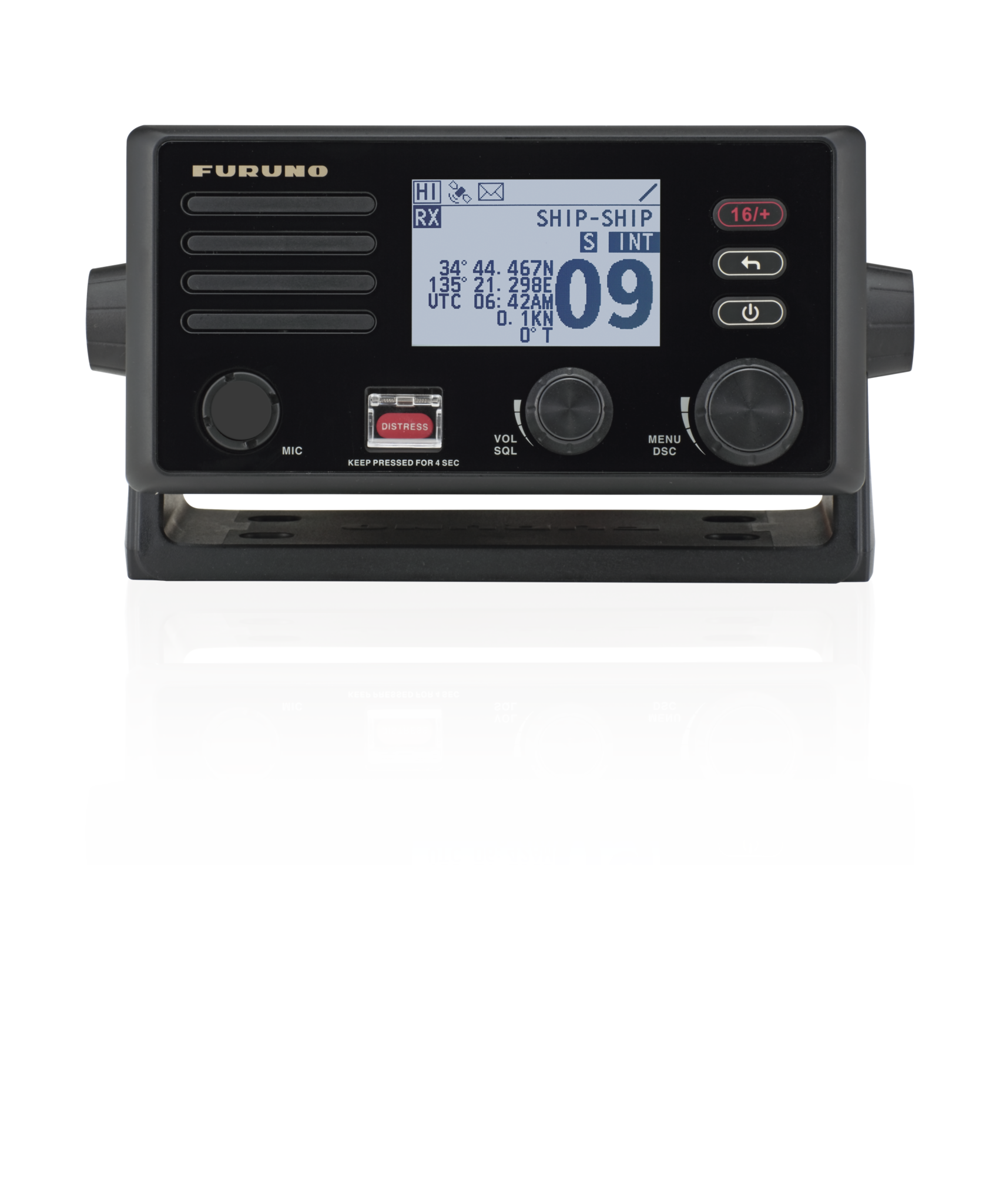

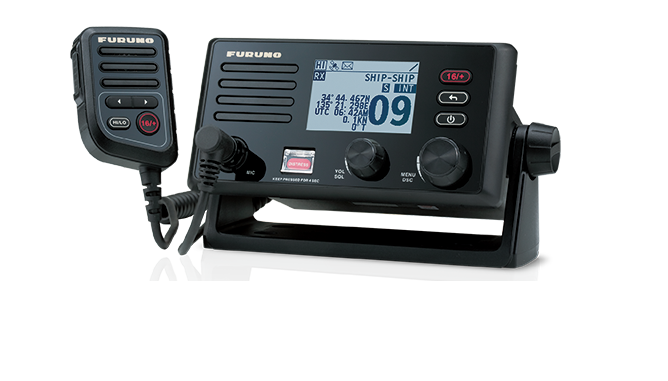

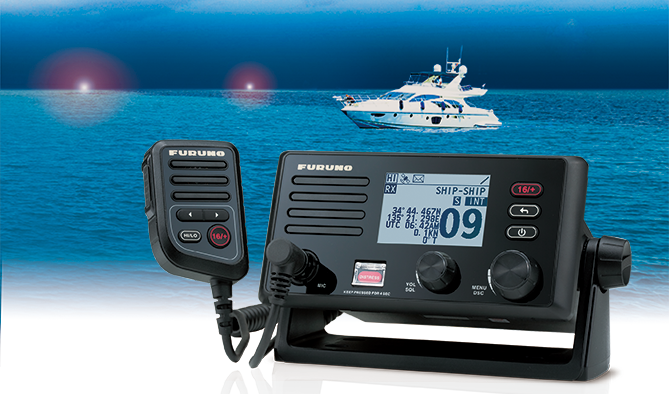

The FM4800 is a new marine VHF radiotelephone with built-in Class D DSC, GPS Receiver, AIS Receiver, and Simplified Loud Hailer with intercom. Its compact housing enables it to be installed in a variety of craft, even vessels where space is limited, such as center-console boats. The unit can be mounted on its lightweight bracket, either desktop or overhead, or it can be flush mounted. The FM4800 shares a common appearance with other Furuno equipment, such as NavNet TZtouch2, NavPilot 711C, and the FI70 Instrument series, offering an integrated appearance to any helm.

With its built-in GPS receiver, the FM4800 does not require an external GPS source to enable its DSC functionality. The unit can be used as a backup source of GPS positioning for other onboard electronics. Its built-in AIS Receiver can be used to overlay AIS targets with networked GPS Plotters or MFD's, such as NavNet TZtouch, NavNet TZtouch2, or GP1871F/GP1971F combo units.

Built-In GPS, DSC and AIS

An existing GPS source can be connected to the FM4800, and it can share its own GPS, DSC and AIS information via NMEA0183 or NMEA2000. When connected via NMEA2000 to any NavNet TZtouch2 MFD, DSC calling can be initiated directly from the TZtouch2 MFD by simply tapping on the AIS/DSC target

Loud Hailer, Intercom, and Listen Back Features

The FM4800 can operate as a simplified Loud Hailer with intercom, featuring 8 patterns of alert sounds. Loud Hailer, Fog Horn and Warning Signal features are all available, enhancing onboard safety and communications while navigating in the dark or fog. When connected with the second-station handset, intercom communications are available, allowing communications between the two devices. Additionally, the horn speaker can be used to collect external sounds and transmit them through the built-in speaker with a function called Listen Back. In this way, a person on the deck can easily communicate with the bridge, a particularly useful feature for a variety of fishing vessels and workboats. The Listen Back function can also be an effective tool on sport fishing vessels, allowing the horn speaker to collect the sound from fishing rods and lines when you get a strike.


Features

General
Channels International, USA and Canada
Frequency Stability Within ± 1.5 kHz
Communication System Simplex / Semi-duplex
Antenna Impedance 50 ohms
Display Monochrome, 192 x 128 dot (FM-4800, HS-4800)

Transmitter
Frequency Range 156.025 MHz to 162.000 MHz
Output Power 25 W max., 1 W at power reduction
Frequency Deviation ± 5 kHz max
Spurious Emission Standby : less than 2nW
Transmit: less than 0.25 ?W
16K0G3E (F3E9) Voice, 16K0G2B (F2B) DSC

Receiver
Frequency Range 155.500 MHz to 163.275 MHz
Sensitivity ± 6 dB?V e.m.f. or less (SINAD 20 dB)
Channel Selectivity 70 dB or more
Spurious Response 70 dB or more

DSC
Protocol Class D DSC
Sensitivity 0 dB?V e.m.f. or less (BER < 1%)
Channel Selectivity 70 dB or more
Spurious Response 70 dB or more

AIS RECEIVER
Receiver Frequency (CH) 161.975 MHz (AIS1), 163.025 MHz (AIS2)
Sensitivity -107 dBm or less (PER < 20%)
Channel Selectivity 70 dB or more
Spurious Response 70 dB or more

GPS RECEIVER
Receiving Frequency 1575.42 MHz
Number of channel 72 channels

Accuracy 10 m
Position Fixing Time (cold start) 120 sec typical
Position Update Interval 1 sec
LOUD HAILER/ FOG HORN
Output Power 30 W max. (4 ohm)

INTERFACE
Number of port NMEA0183 2 port (IN: 1, OUT: 1), NMEA2000 (3LEN) 1 port
NMEA0183 Sentence Input: TM, GGA, GGL, GNS, RMA, RMC
Output: DSC, DSE, GLL, RMC, VDM
NMEA2000 PGN Input: 059392/904,060160/416/928,
065240,126208,127258,129026,029,044
Output : 059392,060928,126208/464/993/996/998,
129025/026/029/038/039/040/041/540/793/794,
129795/797/798/801/802/808/809/810

POWER SUPPLY
Power Voltage 12.0 VDC (-10%, +30%) 5.0 A Max

ENVIRONMENT
Ambient Temperature -15°C to +55°C
Relative Humidity 93 or less a +40°C
Degree of Protection IP67 (FM-4800, HS-4800, SP-4800)


In the box

1 X Transceiver Unit FM-4800
1 X Microphone MIC-4800
1 X Installation materials

Technical characteristics

Brand : FURUNO
Functions : ASN - AIS - Mégaphone/Corne de brume - ATIS - GPS
NMEA0183 : 1
NMEA2000 : 1
Power : 25 W
Power input : 12 V
Type : VHF FIXE
Waterproof : X7 IP
WheelMarked : NO


Parts and accessories

00146858000 SP-4800 ALTOPARLANTE FM4800 SPEAKER PER FM-4800/4850 EXTERNAL LOUDSPEAKER - Replaced by 00159352000 125,89 € With VAT (22%)
00146860000 HS-4800 5M EXT CBL FM4800 / SP4800 103,70 € With VAT (22%)
00146861000 HS-4800 10M EXT CBL FM4800 / SP4800 128,10 € With VAT (22%)
00152326000 HS-4800-A CORNETTA FM4800/4850 HANDSET HS-4800 COMPATIBLE FM4800 - Replaced by 00159353000 402,60 € With VAT (22%)
00150700000 FRU-NMEA-PMMFF-060 CABLE ASSEMBLY 20S10510 - Replaced by 00153308000 203,37 € With VAT (22%)
00016050810 LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 60,52 € With VAT (22%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 80,43 € With VAT (22%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 72,64 € With VAT (22%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 101,42 € With VAT (22%)
00150705000 FRU-MM1MF1MF1001 MICRO T-CONNECTOR MASCHIO/FEMMINA/FEMMINA 79,30 € With VAT (22%)
00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 36,60 € With VAT (22%)
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 36,60 € With VAT (22%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 NMEA2000 MICRO5C DROITE M/F 6M CON CONNETTORI M/F DRITTI NC
00159352000 SP-4800 ALTOPARLANTE FM4800 SPEAKER PER FM-4800/4850 05S097086 103,70 € With VAT (22%)
00159353000 HS-4800-A HANDSET 05S097087 473,46 € With VAT (22%)
00150682000 FRU-NMEA-PMMFF-010 CABLE ASSEMBLY 20S10510 - Replaced by 00153306000 94,43 € With VAT (22%)
00016050710 NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 135,58 € With VAT (22%)
00016050910 LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 44,38 € With VAT (22%)
00016796810 CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796811 115,40 € With VAT (22%)
00016796811 CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 122,40 € With VAT (22%)
00016796910 CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796911 135,58 € With VAT (22%)
00016796911 CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 135,58 € With VAT (22%)
00016797011 CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 225,97 € With VAT (22%)
00016797111 CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 83,94 € With VAT (22%)
00016797211 CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 111,91 € With VAT (22%)
00016797311 CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 193,69 € With VAT (22%)
00107783010 FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - 36,60 € With VAT (22%)
00146856000 HS-4800 COMBINE POUR FM4800 387,64 € With VAT (22%)
00150683000 FRU-NMEA-PMMFF-020 CABLE ASSEMBLY 20S10510 - Replaced by 00153307000 167,86 € With VAT (22%)
OMFR-912 MU FM4800 Manuel d'utilisation Francais NC
00003769700 FM-4800-B MARINE VHF RADIOTELEPHONE 05S097087 NC
