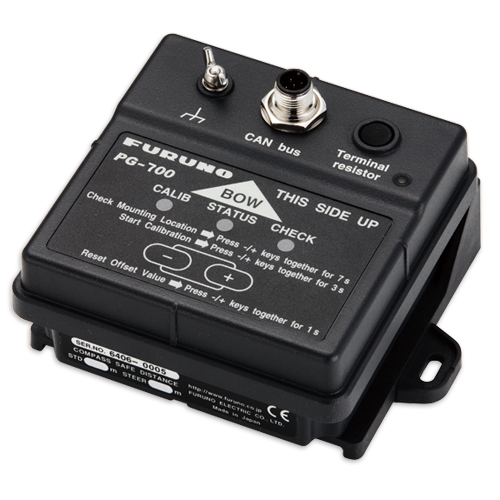

PG700

Compass Ref : IMD03221001

NMEA2000 Rate Compensated Heading Sensor w/ 6M NMEA2000 Cable

PRICE : 719,80 € With VAT (22%)


Description

Stable and accurate heading for your CAN bus devices

Furuno's PG700 is a fluxgate magnetic sensor with the enhanced stability of a solid-state rate gyroscope. Automatic magnetic field distortion correction provides highly accurate and stable readouts of your ship's heading. The sensor detects terrestrial magnetism and produces compass data in NMEA2000 format to Furuno CAN bus devices. Typical applications include true radar echo trail and true motion, auto pilots, video plotters, scanning sonars and more. These sophisticated components are contained within a rugged, compact case. The supplied L-Bracket allows for flexible installation. Unique design elements make the PG700 virtually maintenance-free and easy to install.


Product advantages

The PG700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG700 virtually maintenance-free and easy to install. The PG700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.


Features

The PG700

  • A fluxgate magnetic sensor in conjunction with a solid-state angular rate heading
  • Offers a high level of accuracy and stability : 0.5°RMS
  • Compact unit with L-bracket allows flexible installation
  • Automatic magnetic field distortion correction
  • Provides precision heading data to FURUNO CAN bus devices
  • Heading Accuracy: ±1.0° (horizontal)
  • Heading Resolution: 0.1°
  • Follow-up: 45°/s rate-of turn
  • Interface: CAN bus: 1
  • Temperature: -15°C to 55°C
  • Waterproofing: IP55
  • Power Supply: 9-16 VDC (LEN=3)
  • Weight:
    • floor mounting: 0.31 kg
    • bulkhead mounting: 0.35 kg


In the box

1 X Sensor
1 X NMEA2000 cable, 6m
1 X Installation kit
1 X User Manual

Technical characteristics

Brand : FURUNO
NMEA2000 : 1
Power input : 12 V
Type : Compass
NMEA0183 INPUT : En option
NMEA2000 INPUT : OUI


Parts and accessories

00001076500 FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - 250,10 € With VAT (22%)
00110581010 M12-05BFFM-010 FI-50-DROP-6M 26S0001 76,93 € With VAT (22%)
00016694511 FI-50-DROP CABLE ASSEMBLY 26S0001-1 - Replaced by 00110581010 73,44 € With VAT (22%)
00001598700 PG-700-E INTEGRATED HEADING SENSOR NC
00109085000 PG-700 M-BASE MOUNTING BASE 64,56 € With VAT (22%)
