PLB3

Beacon & SART & Distress Light & Searchlight Ref : OS-732S-03668

rescueME PLB3 Personal Locator Beacon (including 72 channel GNSS receiver, RLS and AIS )

PRICE : 718,58 € With VAT (22%)

Find a dealer

Description

rescueME PLB3 ! Personal Locator Beacon with AIS, RLS, and NFC.

With the introduction of Automatic Identification System (AIS) functionality, Return Link Service (RLS) technology, and Near Field Communication (NFC) capabilities in one 406 MHz Personal Locator Beacon (PLB), the rescueME PLB3 represents a significant step forward in the evolution of PLB's. The merging of 406 MHz and AIS distress messaging effectively pairs both global and local rescue, thereby maximizing access to the most effective rescue resources available. In addition, NFC capability provides users with the world's first smartphone connected PLB and the all-new Return Link Service feature provides users with the comfort in knowing that their distress message has been received and their location detected by worldwide Search and Rescue personnel.

As a leading innovator in life-saving products for both professional and recreational use, Ocean Signal is proud to offer the PLB3. As the world's FIRST Personal Locator Beacon to include AIS and the world's FIRST PLB to include NFC, there's no need to justify why the PLB3 should be your FIRST choice.

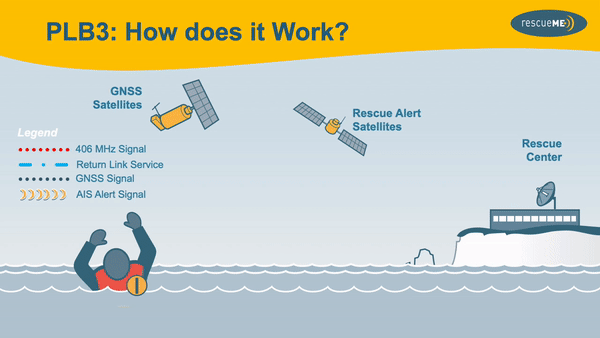

Pairing Global and Local Rescue

The Worldwide Cospas Sarsat satellite system includes 3 different constellations to ensure your 406 MHz distress signal immediately reaches the global network of Search and Rescue forces with your location accurate to within 100 meters. With multiple levels of integrated signaling technology including 406 MHz and GNSS (GPS, Galileo, Glonass) positioning, the PLB3 also transmits a 121.5 MHz homing signal which guides Search and Rescue services to the beacon's current location when they arrive on the scene, as the beacon may have drifted from the originally transmitted position. The addition of AIS (Automatic Identification System) transmissions means the PLB3 simultaneously alerts all vessels equipped with AIS transponders within the VHF radio range of the PLB's distress position. This greatly increases both the likelihood and speed of rescue since nearby vessels receive the alerts. Immediately upon deployment of the beacon an AIS Safety Message or MOB Alarm with the beacon's MMSI and location is presented on any AIS screen within range. This makes it easy for nearby vessels to home in on the beacon since it is an active AIS target on their screens.
The PLB3 will light the way as rescuer arrive on scene with both a white visible strobe and infrared strobe providing rescuers with the visual reference they need during nighttime or other low visibility rescue operations.

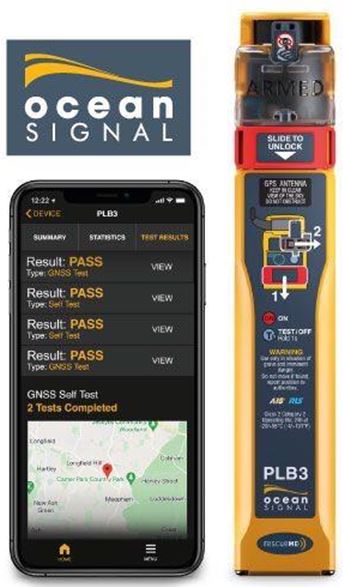

Smartphone Connectivity utilizing Near Field Communication (NFC)

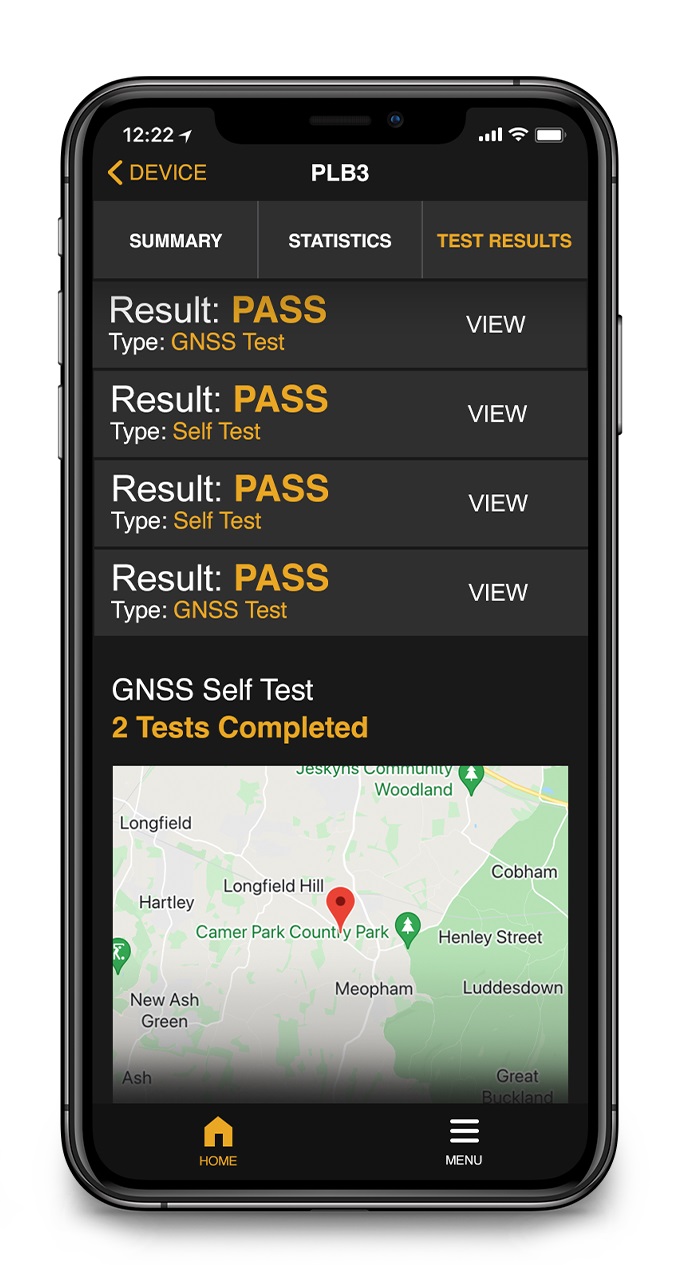

The integration of NFC technology provides users with the ability to conveniently access beacon data from their mobile phone. The simple act of placing a phone near the beacon automatically opens the Ocean Signal Product App and provides access to a wealth of usage data including current battery life, number of self-tests completed, number of GNSS tests completed, and if applicable, the amount of time the beacon has been activated. Detailed information on each self-test and GNSS test performed by the beacon is also available if desired. For each successful GNSS test, users can view a map showing exactly where the test was performed, the date and time of the test, the time it took the beacon to get a fix on your GNSS coordinates, the number of satellites the beacon used to obtain that fix, and the accuracy of the location.

Return Link Service

Return Link Service or RLS functionality works when Search and Rescue send a signal back through the Galileo satellite network to confirm to the beacon user that their distress message has been received and their location detected. User confirmation is distinctly indicated by a flashing blue light on the PLB3. In addition to including a comprehensive feature set, the PLB3 is built for comfort. Enjoy the peace of mind in knowing that your distress message has been successfully delivered and that help is on the way.

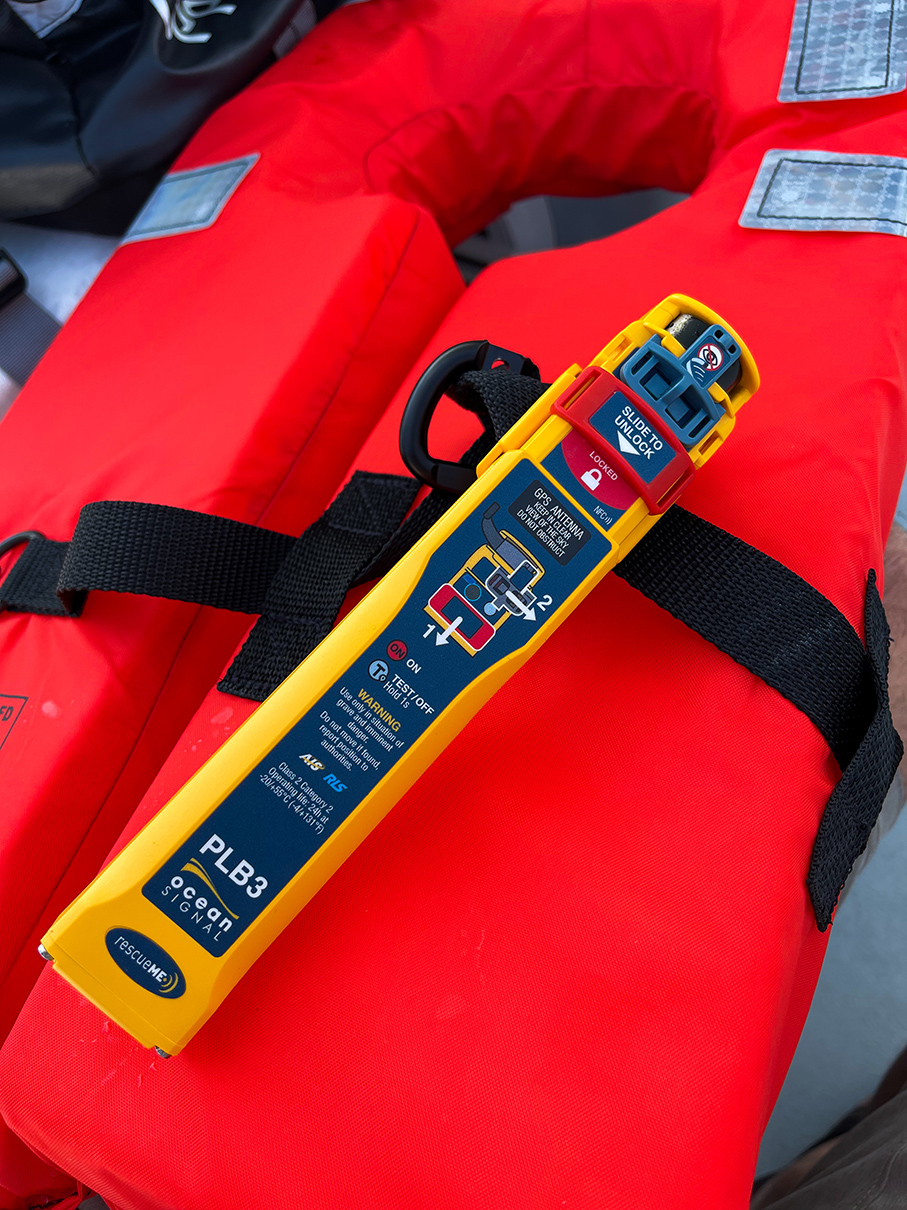

Life Jacket Integration

The PLB3 is designed to install within a life jacket and activate upon inflation of the jacket (semi-automatic). Installation is made simple using the included oral inflation tube clip to attach the PLB3 to the life jacket with a ribbon connected around the bladder of the life jacket. Once correctly installed, the action of the life jacket inflating triggers deployment of the antenna and activation of the beacon.

Users not wishing to install the PLB3 within a life jacket have the option to utilize the included webbing clip to attach the beacon to an appropriately sized belt or the webbing of an inherently buoyant life jacket.

Product advantages

No Subscription Required
406 MHz Cospas Sarsat Distress Signal (MEOSAR Compatible)
121.5 MHz Local Homing Signal
AIS (Automatic Identification System) Locating Signal
Smartphone connectivity via NFC (Near Field Communication)
Free Ocean Signal Beacon Mobile App (IOS and Android)
Return Link Service (RLS) Functionality
GNSS via GPS and Galileo Satellites
Strobe and Infrared Strobe Light
Global Coverage
Simple PFD attachment
Designed to Integrate with common Inflatable PFDs
Multifunction Clip System Included
Small and lightweight
5-year battery life
Over 24 hours Operational Life

Features

406MHz Transmitter:

Transmit Power 5W Typical
Frequency 406.031 MHz ±1KHz
Modulation Phase ±1.1 Radians (16K0G1D)
Encoding Biphase L
Rate 400 bps

AIS Transmitter:

Transmit Power (EIRP) 1Watt ±3dB
Frequency 161.975/162.025MHz ±500Hz
Baud rate 9600baud
Synchronisation UTC
Messages Message 1 (Position), Message 14 (Status)
Repetition interval 8 messages/minute
Message 14 sent twice every 4 minutes

121.5MHz Transmitter:

Transmit Power (PERP) 25-100mW
Frequency 121.5 MHz
Modulation Swept Tone AM (3K20A3X)
Modulation Factor 0.85-1.0
Modulation Duty Cycle >35%
Frequency Stability ±50ppm
Duty Cycle 98%

Visible Light Strobe:

Light Type High Intensity LED
Light Colour White
Intensity >1 candela
Flash Rate 20-30 per minute
Infra Red Strobe
Light Type IR LED
Light Colour 850nm
Intensity 7.5mW/sr
Flash Rate 20-30 per minute

Battery:

Type Lithium/Iron Disulfide (Li/FeS2)
Operating lifetime >24hours @ -20ºC (-4ºF)
Lithium Metal Weight (for air transport) <2g per battery
Replacement Interval 6 years from date of manufacture
or 5 years from being placed into service

GNSS Receiver:

Satellite Channels 72 acquisition
Sensitivity -167dBm
Cold Start Re-acquisition -148dBm
GPS Antenna Microstrip Patch

Environmental:

Temperature range (operational) Class 2 -20°C (-4ºF) to +55°C (+131ºF)
Temperature range (storage) Class 2 -30°C (-22ºF) to+70°C (+158ºF)
Damp Heat (humidity) 40°C (104ºF) at 93%
Drop (hard surface) 1m : 6 sides]
Water immersion >10m (1.0bar) : >60minutes
Thermal Shock 45° into 100mm of water : >1hour

General:

Category / Class (Ref RTCM 11010) 2 / 2
Group (Ref RTCM 11010) 3
Size (Length / Width / Depth) 200mm (7.8'') / 36mm (1.41'') / 22mm (0.86'')
Weight 190g (0.42lbs)

In the box

Oral Tube Bracket
Belt/Strap Bracket
Activation Tape
Lanyard Cord
Antenna Winder
Slider Cover

Technical characteristics

Battery replacement life (years) : 5
Brand : OCEAN SIGNAL
Frequency : 406.040/121.5 MHz
Function : PLB + MOB
Identification System (AIS) functionality : YES
Integrated GPS : YES
Type : Personal beacon

Videos

OceanSignal PLB3 360

Parts and accessories

Option

OS-733S-04213	Floatation Jacket for rescueME PLB3	NC
OS-733S-03670	LB13P BATTERIE RECHANGE PLB3 KIT	NC

Downloads

OSL - RescueMe PLB3 - A4 Final Spec Sheet - FCC 4 PAGE Web EN (2.8 Mo)

PLB3 (4.1 Mo)
