Description
Solid State Technology
FURUNO Solid State Radars emphasize quality and reliability, while also meeting the rigorous demands of the marine environment.
-
Clear images
FURUNO Solid State Radar technology generates clear echo images, which allows users to obtain a clear picture of the area around thier vessel, including weaker echoes from small craft. -
Reduced maintenance and running costs
Fan-less Solid State antenna dramatically reduces maintenance costs for the magnetron and CPU fan. -
Almost same power ability as conventional magnetron radar
Refined antenna with high signal accuracy
The FAR-22x8/23x8 series is designed to provide clearer and more accurate radar images of the surroundings while increasing reliability and decreasing overall cost of ownership with easy maintenance.
High image quality is achieved by the signal processor inside the antenna unit directly converting analog to digital signals before sending them to the main processor unit. Signals are safely transported though the Ethernet network between the antenna and below deck processing unit.
The new antenna shape suppresses aerodynamic drag and lightens the burden on the gear box. The gear box itself has also been redesigned. Decreased aerodynamic drag and DC brushless motor result in a very durable gear box that can be used for prolonged period of time.
Installation and maintenance are now easier than ever. All components of the gear box are integrated into one block that can easily be removed from the gear box when maintenance is required. The cable to the gear box can be connected from the side of the gear box.
Automatic Clutter Elimination (ACE)
Quickly adjusts the radar image with of a single button press. When the ACE function is activated, the system automatically adjusts clutter reduction filters and gain control according to the sea and weather conditions.

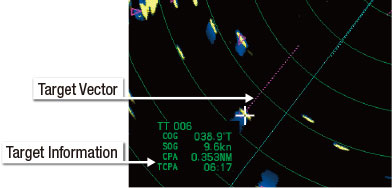

Fast Target Tracking (TT)
With Fast Target Tracking™ (TT), the FAR-22x8/23x8 series provides accurate tracking information; speed and course vectors are displayed in mere seconds allowing operators to take action and avoid incidents at a very early stage.

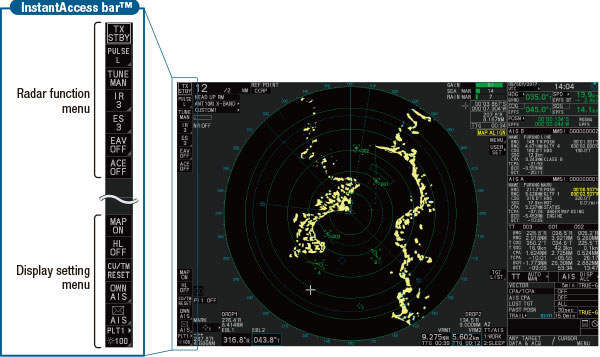

InstantAccess bar
InstantAccess bar contains shortcut menus of tasks (functions/actions) which operators frequently use, so users can quickly access necessary tasks.

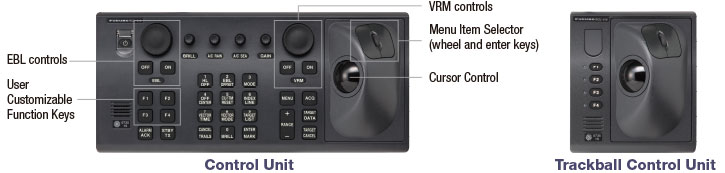

Well-designed controllers
Comfortable usability is very important on long voyages. With that in mind, these control units are designed based on ergonomics to fit the operator’s hand. All operations can be controlled with the trackball.
Expandability - Ice/Oil detection Radar
FAR-22x8/23x8 series X-band radar can be used as an ice/oil detection radar by connecting a dedicated processor unit.
Technical characteristics
Antenna Rotation Speed : 24/42 RPM
DVI OUTPUT : 2
Power : 250 W
Power input : 100-230 V
Range : 96 NM
Resolution : 1280 x 1024/1600 x 1200/1920 x 1200 Pixels
Size : 12 ft
Solid-State : 1
