DFF1-UHD

Sounder Black box Ref : IMD03356002

Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch

PRICE : 2 427,80 € With VAT (22%)


Description

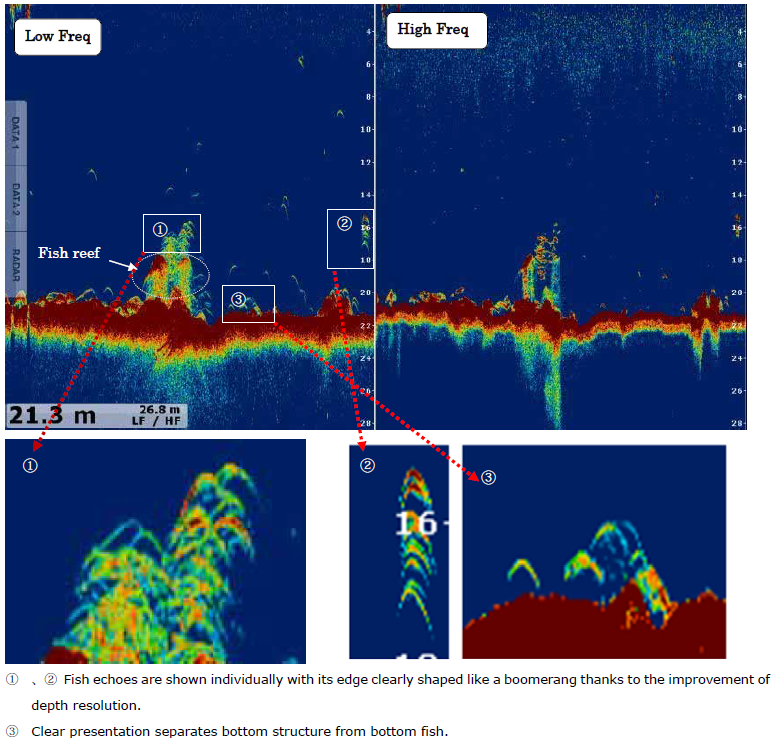

Clear Echo presentation

The TruEcho CHIRP™ technology delivers significant advancements in signal clarity and target definition. In general, the depth resolution of conventional fish finder is better with the shallower range than the deeper range. The depth resolution of the DFF1-UHD is stable at any depth range and the resolution performance is equivalent to that of the 5m range of the conventional models (DFF1/DFF3/BBDS1). Furthermore, the TruEcho CHIRP™ technology gives clear presentation by reducing unwanted noise, which enhances detection performance of small target.

Improved ACCU-FISH function

1) Stable depth resolution gives better peformance of the ACCU-FISH? to separate individual fish at any depth range.
2) Measurement range of the ACCU-FISH? is extended up to 200m, which is twice that of the conventional models (DFF1/DFF3/BBDS1). This will contribute to analyze size of fish close to sea bed.

Improved Bottom Discrimination function

Measurement range of the Bottom Discrimination is extended up to 200m, which is twice that of the BBDS1.
In combination with the ACCU-FISH?, you may be able to find a suitable point of target fish, guess a type of fish down below and anchor at an appropriate place.


Product advantages

  • Clear Echo presentation
  • Improved ACCU-FISH function
  • Improved Bottom Discrimination function


Features

An advanced technology for professional or enthusiastic fisherman. Designed to operate over a broadband range of frequencies utilizing a broadband transducer, the TruEcho CHIRP? network sounder DFF1-UHD delivers significant advancements in signal clarity and target definition. The clear presentation of the sounder marks individual game fish and bait fish, even when tightly schooled together.


In the box

1 x Processor Unit DFF1-UHD
1 x Power Cable Assembly 3.5 m
1 x LAN Cable Assembly 5 m
1 x Installation Materials

Technical characteristics

Bracket : Fixed Mount
Frequency : 50 ± 20 & 200 ± 25 kHz
Function : CHIRP + BD + AF
LAN : 1
Power : 1k W
Power input : 12/24 V
Type : Network sounder
universe : Fishing
Waterproof : 55 IP


Videos

Furuno TruEcho CHIRP Fish Finder

Parts and accessories

OP02-86 OP02-86 KIT CONNECTEUR POUR SYNC TX DFF1-UHD / DFF3D 225,97 € With VAT (22%)
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 151,72 € With VAT (22%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 83,94 € With VAT (22%)
ST-02PSB ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN 229,36 € With VAT (22%)
ST-02MSB ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN 352,58 € With VAT (22%)
00004002700 T-03MSB T-03MSB - 1 420,37 € With VAT (22%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 161,04 € With VAT (22%)
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 479,46 € With VAT (22%)
00001348600 PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT 750,30 € With VAT (22%)
B265LH BroadBand Trasducer CHIRP P&T XID 42-65/130-210 kHz 1kW 2 671,80 € With VAT (22%)
CM265LH Transducer CHIRP, P & T, XID 42-65/130-210 kHz 1kW 2 427,80 € With VAT (22%)
B275LH-W B275LHW Wide-Beam Chirp 3 525,80 € With VAT (22%)
TM275LH-W CHIRP Transducer TM275LH-W EXT (TA) Plastic 1KW XID CABLE 12M 2 989,00 € With VAT (22%)
00001348400 PR-62 (CHINA) AC100V ALIMENTATION AC/DC 991,43 € With VAT (22%)
B265LH B265LH SONDE CHIRP - Replaced by AI-41-433-2-06 NC
CM265LHG CM265LHG TRASDUTTORE CHIRP 1kW 42-65/130-210kHz BROADBAND URETANO CAVO 12M CON TEMPERAT NC
00002253200 TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE 1 024,80 € With VAT (22%)
00004002600 T-02MTB TEMPERATURE SENSOR - Replaced by 00002689400 833,26 € With VAT (22%)
00004004000 T-02MSB CAPTEUR DE TEMPERATURE - Replaced by 00002689300 1 101,60 € With VAT (22%)
00002683300 DFF1-UHD-E SONDEUR CHIRP BLACKBOX NC
00104444000 02P6360(LF) CON PRINTED CIRCUIT BOARD DFF3/DFF1-UHD 455,71 € With VAT (22%)
00134338000 02P6385(LF) PWRTX PRINTED CIRCUIT BOARD DFF1-UHD IP55 1 256,28 € With VAT (22%)
00123414000 02P6384(LF) MAIN PLATINE DFF1-UHD - Replaced by 00155829000 1 412,31 € With VAT (22%)
00120594000 02-1091(5-5P) XH CONNECTOR ASSEMBLY 28,24 € With VAT (22%)
00120595000 02-1092(7-7P) XH CONNECTOR ASSEMBLY 32,95 € With VAT (22%)
00120596000 02-1093(3-3P) VH CONNECTOR ASSEMBLY 48,42 € With VAT (22%)
00120597000 02-1094(12-12P) PH CONNECTOR ASSEMBLY 42,37 € With VAT (22%)
00120598000 02-1095(11-11P) PH CONNECTOR ASSEMBLY 42,37 € With VAT (22%)
00120599000 02-1096(10-10P) XH CONNECTOR ASSEMBLY 40,36 € With VAT (22%)
00123418000 DFF1-UHD COVER XL COVER XL ASSEMBLY 254,48 € With VAT (22%)
00123420000 DFF1-UHD P-COVER PROTECTION COVER ASSEMBLY 230,81 € With VAT (22%)
00155829000 02P6384(LF) MAIN PRINTED CIRCUIT BOARD DFF1-UHD 1 412,31 € With VAT (22%)
