CV7-WINDYPLUG

Wind and weather sensors Ref : LC-CV7-WINDYPLUG

Ultrasound anemometer + WINDYPLUG interface (NMEA2000) for sailboats.

PRICE : NC


Description

The CV7-WINDYPLUG is an ultrasound anemometer weather vane CV7 with WINDYPLUG NMEA2000 interface :

• Robust
• No ageing
• Insensible to the gyroscopic effect
• Sensibility stability to light winds
• Minimum of resistance
• Compensation of inclination due to wind

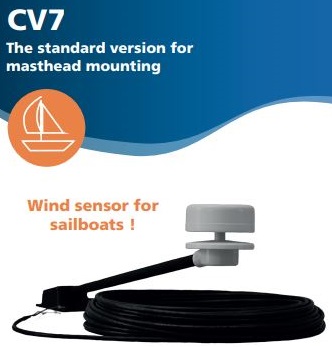

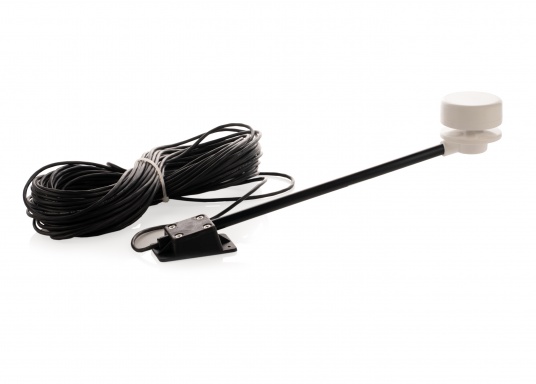

CV7 : Wind sensor for sailboats !

The slanted arm of this ultrasonic wind sensor fits perfectly on a masthead that already carries antennas and navigation lights.

WINDYPLUG : Plug and Play interface wind + barometer !

WindyPlug is an extension of BaroPlug with an interface to connect any of our ultrasonic wind sensors to a NMEA2000®. All the data is transmitted to the NMEA2000® network ! WindyPlug features a MICRO C male plug to connect directly to the NMEA2000® bus.


Product advantages

The CV7 is an ultrasonic anemometer weather vane with WindyPlug NMEA2000 interface, its an evolution of the well known CV3F ultrasonic wind sensor. Lighter, more compact and less energy consumption, this model is configurable and particularly well suited to sailboats. This sensor can be used connected to a PC and any system featuring an NMEA® input port and specific pieces of equipment using conventional formats. In PC mode, this bidirectional sensor can be set up for angle correction, damping, units of measure and interface formats. All product are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.


Features

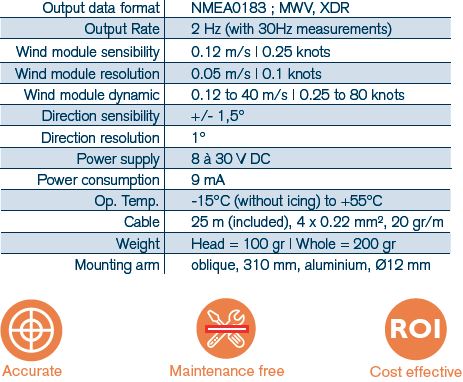

CV7 :

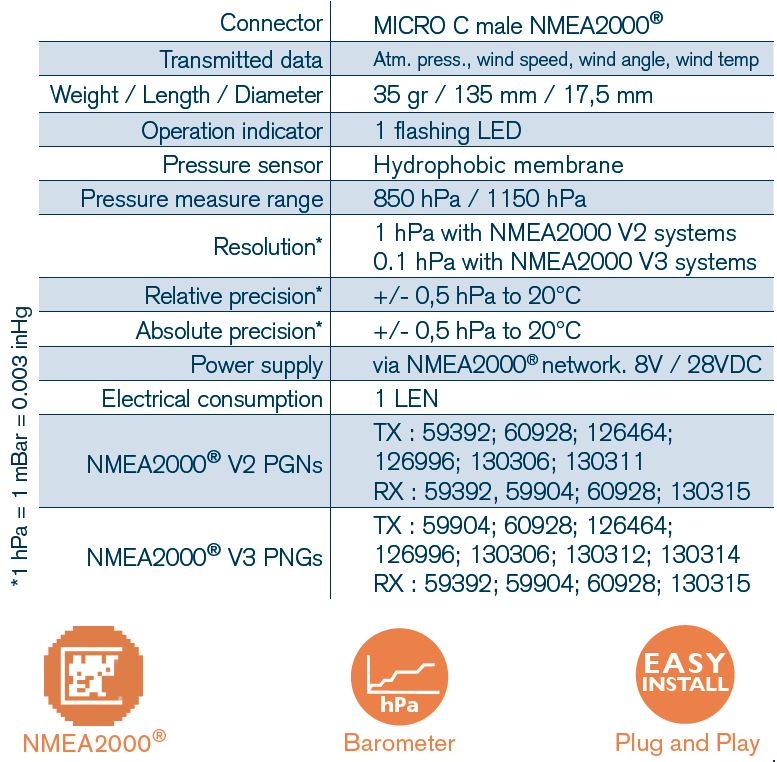

WINDYPLUG :


In the box

1 X CV7 sensor with WindyPlug NMEA2000 interface with oblic mast
1 X Mounting bracket
1 X 25 m cable 4X 0,22mm²
1 X Installation and operation manual
2 years guaranty parts and labour at our premises

Technical characteristics

Applications : Sailboats
Barometer : YES
Bracket : Oblique
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA2000 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 12 V
Wind module sensitivity : 0.25 Nd
