I5P

TV antennas Ref : IT-B4-519Q

Satellite TV antenna 53cm - 4 output

PRICE : 10 004,00 € With VAT (22%)


Description

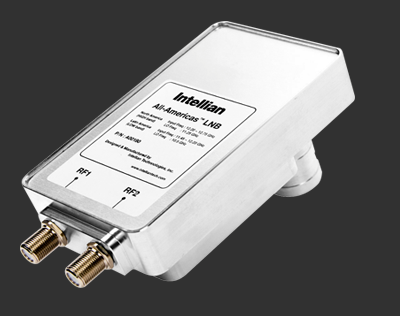

Standard All Americas LNB on I5P

The i5P model arrives standard equipped with own All Americas LNB. This convenient feature prevents cruisers from having to climb the mast and swap out components as they sail from one coverage zone to another. That it is included in the standard model is also a tremendous value over alternative solutions.

A New Size Category

Cruising vessels in the 40-60ft size class have always faced a dilemma between function and form. Standard 45cm (18") antennas fit the aesthetic of the vessel well, but are not powerful enough to provide coverage that matches the vessel's own cruising range. Until now the only alternative has been to step up in size significantly to the 60cm (24") option. While this certainly provides the coverage needed to receive signal in offshore destinations, such as the Bahamas and Caribbean, a system that large is simply not an option for most vessels.

The i5P fills this gap, providing the performance needed for offshore cruisers in a form factor that matches the lines of the vessel.


Product advantages

A New Size Category, the i5P 53.5cm (21 inch) Satellite TV system is the world's first marine satellite antenna system purpose built for offshore cruising vessels 12m (35ft) to 18m (60ft) in length. With performance similar to most 60cm (24 inch) systems, the i5P delivers quality signal reception throughout many of the world's popular cruising destinations in a small, efficient form factor that matches the aesthetic of vessels in this size class.


Features

The I5P is an antenna characterized by :

  • I5P is standard equipped with All Americas LNB for extended cruising without swapping components along the way
  • Smaller form factor with stronger performance
  • Built in GPS enables faster signal acquisition
  • Fast and easy installation, no external compass or rate sensors required
  • Auto satellite switching function from your remote control
  • Compatible with leading satellite TV service providers around the world
  • 50° per second turn rate ensures signal tracking at high speeds and in rough seas
  • HD compatible for all Ku-band services

 One of a Kind

  • Only 20" system on the market today
  • performs like most 24" systems currently offered

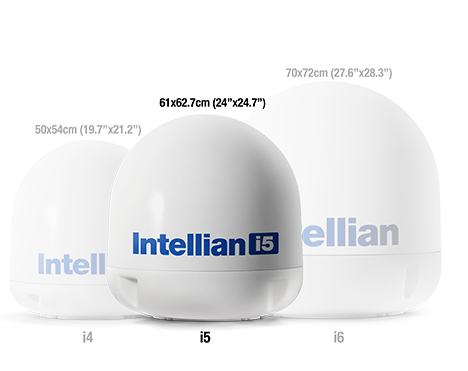

 Smaller form factor

  • 61cm (24 inch) antenna radome diameter
  • Antenna weighs less than 17.3 kg (38 pounds)

 Standard All Americas Package

  • Outstanding performance throughout the Americas
  • No need to swap out antenna components while cruising between service regions
  • No upcharge for improved functionality

 Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

 iQ²: Quick&QuietTechnology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm locks onto the satellite signal 4-5 times faster than conventional approaches
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while reducing overall motor motion by up to 80%, eliminating intrusive background noise

 Fast & Easy Installation

  • Built in GPS means no need to integrate shipboard sensors
  • Preloaded Global Satellite Library ensures setup is merely a few button taps. Average activation time is 25 minutes

 Antenna Control Unit

  • Intuitive controls and digital information display on the ACU front
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

 Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
  • The new warranty policy (3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017


In the box

1 X Antenna i5P
1 X Wifi Control Unit (ACU)
1 X RF Cable, 3m (ACU <-> Decoder)
1 X RF Cable, 15m (<-> ACU Antenna)
1 X Power cable, 10m (ACU <-> 12 / 24Vdc power supply)
1 X PC series cord, 1,80m
1 X Lot of screws
1 X NMEA connector
1 X Power connector
1 X Installation CD
1 X User Manual

Technical characteristics

Decoder output : 4
Parabola diameter : 53 cm
PIRE : 47 dBw
Type : 2 axes
LNB : 4


Videos

Intellian APTUS Mobile App
TUTO - Comment changer la fréquence de tracking d'un satellite ? INTELLIAN SERIE I

Parts and accessories

IT-S2-5111 DOME VIDE I5/I5P INTELLIAN 1 207,80 € With VAT (22%)
RO-00050 CONNECTEUR F ETANCHE A SERTIR POUR CABLE RG6 D:6.8MM NC
RO-00056 CONVERTISSEUR CC 24V 4.2A POUR ANTENNE TV (I3/I4/I6) NC
SMS5608 MULTISWITCH SMS5608 6 SORTIES SERIE 8 NC
SMS5808 MULTISWITCH SMS5808 8 SORTIES SERIE 8 - Replaced by RO-00130 NC
SW-ADA-S2 ADA-S2 PLATINE MODULAIRE POUR ANTENNES TV INTELLIAN I4/I5/I6 NC
SW-AM5-M1 AM5-M1 SUPPORT MODULAIRE " DROIT 5'' BASE RONDE 8"" " "127 MM, BASE RONDE DE 8""" NC
SW-AMA-24 AMA-24 REDUCTEUR ANTENNES COMPATIBLE CALE AMA-W I5 ET I6 NC
SW-PMA-107-M1 PMA-107-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 254 mm "BASE 7""""X 7""" NC
SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" NC
SW-PMA-DM1-M2 PMA-DM1-M2 SUPPORT DOUBLE TOUT RADOME ET SATDOME "HAUTEUR TOTALE DE 12,5""" NC
SW-SM-24-A SM-24-A PLATEFORME DE MAT POUR INTELLIAN I5 ET I6 NC
RO-00019025 CABLE COAX. AU MT RG6 D:6.8MM NC
RO-00019050 CABLE COAX. AU MT RG6 D:6.8MM 50m NC
RO-00019100 CABLE COAX. AU MT RG6 D:6.8MM 100m NC
RO-00049 Straight Cable Mount F Connector Twist On Term. 0 to 1 GHz RG6 L NC
