CH500

Fishing sonars

12.1" COLOR LCD DISPLAY OR BLACK BOX SEARCHLIGHT SONAR (Single Frequency 60/88/150/180/240 kHz)

Power input

Description

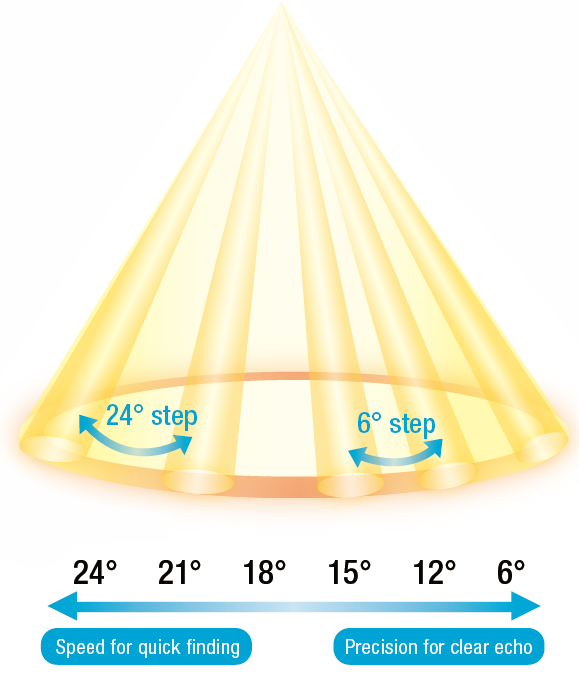

Incredibly fast training speed

Faster motor delivering quicker training speeds
Faster training speed can aid in earlier detection regarding fish targets or obstruction avoidance.

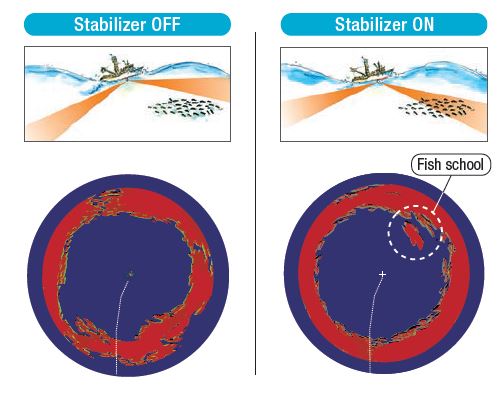

Built-in motion sensors provide a stabilized target presentation in rough sea conditions - Standard equipment

The CH500 searchlight sonar is the first of its class to have integrated motion sensors.
In rough seas, vessels tend to move in every direction. This movement can cause inaccurate target information to be displayed. The role of the integrated motion sensors is to precisely compensate for those negative effects and provide accurate data to the user.

In the right hand picture above, you can see that once the stabilizer is activated, the bottom echo recovers its circular shape. The sonar is then able to provide accurate data in different sea conditions. Thanks to its integrated motion sensors, the CH500 is able to detect fish that didn't appear with the non-stabilized echo.

Reverberation reduction function

The reverberation reduction offers both better understanding and better appreciation of
the nature of detected echoes. Below is an example of how the Reverberation reduction function highlights the wreck from the surrounding seabed. .

*The echo may be subject to interferences from other Fish Finders
*Schools with excessivly high density may appear with a weaker echo color

Full-circle A-Scope mode and audible target detection

The A-Scope mode shows the last detected echoes with one single color. The nature of the target can be quickly understood as the size of the echo is greatly amplified and even the smallest echoes are shown.
*The more opaque the color, the latest the echo.

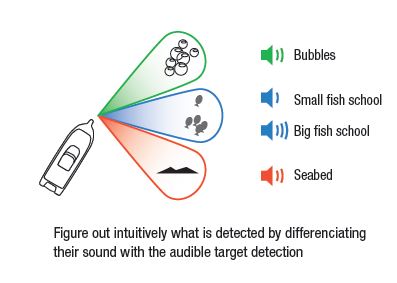

The CH500 also features fish and obstacle audio signals depending on the nature and the size of the detected object. Whether there are air bubbles, big or small fish schools, and seabed, the emitted sound is different. This feature shows its usefulness when used with the Full-circle A-scope mode, our recommanded combination to know the nature of the target with precision, and during long sea trips, as it frees the user from continuously watching the screen.

*Optional Loudspeaker part number 00146620000 is required

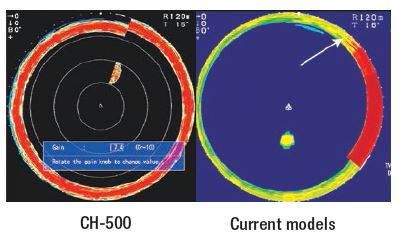

Quick Gain Control & Various display modes

11 display modes for various situations.

  • Horizontal
  • Horizontal (zoomed)
  • Vertical
  • Echo sounder
  • Full-circle A-Scope
  • Horizontal/History
  • Horizontal/ Full-circle A-scope
  • Horizontal/ vertical (split)
  • Horizontal/ Vertical (side window)
  • Horizontal/ A-Scope
  • Echo Sounder/ A-Scope

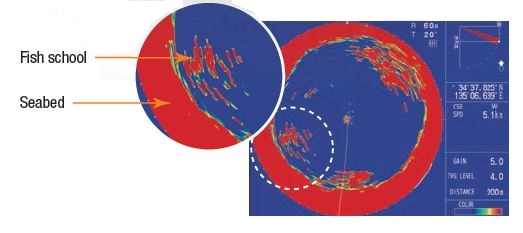

Higher resolution due to advanced signal processing

A powerful signal and image processing techniques, based on a unique interpolation technology, provides images in high resolution. Even if the fish are located near the seabed, the different echoes are clearly shown and easy to understand. The higher resolution display yields a presentation that is crisp and clear.


Product advantages

  • Incredibly fast training speed
  • Built-in motion sensors provide a stabilized target presentation in rough sea conditions
  • Reverberation reduction function
  • Full-circle A-Scope mode and audible target detection
  • Quick Gain Control
  • Various display modes
  • Higher resolution due to advanced signal processing
  • 12 languages available


Features

The CH-500 has faster motor than the current models in order to deliver quicker training speeds and they provide 6 step angles for speed adjustment according to user's need.
The model also has a wide range of useful functions which make the difference, such as Higher resolution, Reverberation reduction, built-in motion sensors for stabilized target presentation, Quick Gain control and more.


In the box

1 x Display Unit MU-121C or Black Box type
1 x Control Unit CH-502
1 x Transceiver Unit CH-503
1 x Hull Unit CH-504 (400 mm transducer travel) or CH-505 (250 mm transducer travel)
1 x Installation Materials and Spare Parts

Technical characteristics

Power input : 12/24 V
Frequency : 60/88/150/180/240 kHz
HDMI OUTPUT : 1
Resolution : 1024 x 768 Pixels


Videos


Parts and accessories

00001928300 OP10-5 ALUMINUM TANK *1M* NC
00003043900 RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP NC
00003782000 PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM NC
CH-256-E REMOTE CONTROLLER CH-256-E W/HANGER - 550,79 € With VAT (22%)
00015403710 MJ-A6SPF0012-100C CABLE EQUIPE DATA 6PF<->6PF PLASTIC 10M - Replaced by 00159607000 138,81 € With VAT (22%)
00015405310 MJ-A6SPF0012-050C MJ-A6SPF0012-050C 64S4071-2 125,89 € With VAT (22%)
00015969010 MJ-A6SPF0011-050C MJ-A6SPF0011-050C 03S9202-2 - Replaced by 00159610000 122,40 € With VAT (22%)
00015969110 MJ-A6SPF0011-100C CABLE EQUIPE DATA 4PF<->6PF PLASTIC 10M - Replaced by 00159611000 142,03 € With VAT (22%)
00016151310 MJ-A6SPF0012-150C SIGNAL CABLE ASSEMBLY 64S4071-2 NC
00110575010 CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Replaced by 00153306000 66,44 € With VAT (22%)
00110576010 M12-05BM+05BF-020 M12-05BM+05BF-020 19S1162 - Replaced by 00153307000 76,93 € With VAT (22%)
00110577010 CABLE ASSEMBLY M12-05BM+05BF-0 19S1162 NMEA2000 MICRO5C STRGHT M/F 6M - Replaced by 00153308000 115,40 € With VAT (22%)
00110578010 M12-05BFFM-010 M12-05BFFM-010 19S1163 64,56 € With VAT (22%)
00110579010 M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000 72,64 € With VAT (22%)
00110580010 M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000 94,43 € With VAT (22%)
00112261010 MJ-A10SPF0002-015+ CABLE ASSEMBLY 00S0302 NC
00112263010 MJ-A10SPF0002-050+ MJ-A10SPF0002-050+ 00S0302 213,06 € With VAT (22%)
00115979010 06-021-4502 FAIRING NC
00124051000 FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124052000 FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124053000 FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124054000 FR-FTPC-CY CAVO LAN 50M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124055000 LAN CABLE (4 PAIR) FR-FTPC-CY *100M* 19S1029-0 NC
00124127000 06-007-1571-2 ROHS RETRACTION TANK NC
00124412000 CABLE ASSEMBLY MJ-A6SPF0011-200C 03S9202-2 203,37 € With VAT (22%)
00124413000 MJ-A6SPF0012-200C CABLE ASSEMBLY 64S4071-2 NC
00135228000 06-021-4024-0 ROHS RETRACTION TANK(STRAIGHT) FRP 1.0M NC
00142812000 06-007-1570-2 ROHS RETRACTION TANK 1M STEEL NC
00142815000 RETRACT TANK 1.8M CH-500/600 SHJ-0001-2*1.8M* ACCIAIO - 2 627,88 € With VAT (22%)
00142826000 06-007-1573-0 ROHS 06-007-1573-0 SCAFO FRP CH600 3 050,00 € With VAT (22%)
00145803000 OP06-24 BRACKET ASSEMBLY WITH KNOBS CH500 381,73 € With VAT (22%)
00145804000 OP06-25 FLUSH MOUNT KIT (DISP) CH-500 NC
00145805000 OP06-26 FLUSH MOUNT KIT(CTRL) CH-500 NC
00145806000 OP06-27 WATERPROOF ATTACHMENT KIT CH-500 NC
00145810000 FP06-01601 TABLETOP MOUNT KIT(CTRL) NC
00134329000 CA-151S-ASSY LOUDSPEAKER 514,08 € With VAT (22%)
00147144000 HDMI-TO-DVI-A-L10.3M CABLE POUR ECRAN DEPORTE CH-500/600 - Replaced by 00159466000 NC
00147145000 HDMI-TO-DVI CAVO HDMI/DVI 5M PER DISPLAY ESTERNO SONAR CH-500/600 - Replaced by 00159467000 NC
00147147000 FRU-CCCAF18-05M-B CABLE ASSENBLY CH500 NC
00147148000 FRU-CCCAF18-10M-B CABLE ASSENBLY 06S100340 NC
00147149000 FRU-HDMI-5M-AS CABLE ASSEMBLY CH500 NC
00147150000 FRU-HDMI-10M-AS CABLE ASSEMBLY 06S100350 NC
00147154000 MJ-A10SPF0022-050+ CBL B/W TRX AND CTRL 06S100390 NC
00147155000 MJ-A10SPF0022-100+ CBL B/W TRX AND CTRL 06S100390 NC
00147156000 FRU-NMEA-PMM-01 CABLE ASSEMBLY 06S100360 NC
00147157000 FRU-WH-B-05M CBL FOR EXTERNAL(KP) 06S100370 NC
00147158000 FRU-WH-B-10M CBL FOR EXTERNAL(KP) 06S100370 NC
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 80,43 € With VAT (22%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 72,64 € With VAT (22%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 101,42 € With VAT (22%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI NC
00159466000 HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540 NC
00159467000 HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540 NC
00159607000 MJ-A6SPF0012-100C CABLE ASSEMBLY 64S4071-2 NC
00159610000 MJ-A6SPF0011-050C CABLE ASSEMBLY 03S9202-2 NC
00159611000 MJ-A6SPF0011-100C CABLE ASSEMBLY 03S9202-2 NC
00655627000 S06-9-5 SPEAKER EXTENSION CABLE CH-250 NC
00699004000 OP10-9 FIXING MATERIALS NC
00854246000 CP03-28901 CONNECTEUR 60,52 € With VAT (22%)
00123721000 06-007-1572 SOUNDOME SHAFT(L) (3.8) 1 737,80 € With VAT (22%)
00123722000 06-008-1021 SOUNDOME SHAFT 1.17M CH500 NC
00123723000 SHJ-0006 SHAFT 2.2M CH-500/600 SOUNDOME SHAFT 2.20M SONAR NC
00126103000 06-007-1591 SOUNDOME SHAFT(3M) NC
00147151000 CAVO 15M TRANSC/HULL CH500/600 CABLE B/W TRX AND HULL TRA TRANSCEIVER-HULL UNIT NC
00147152000 CAVO 30M TRANSC/HULL CH500/600 FRU-WH-A-30M CAVO 30M SONAR TRA TRANSCEIVER-HULL UNIT NC
00147153000 CAVO 50M TRANSC/HULL CH500/600 FRU-WH-A-50M CAVO 50M SONAR TRA TRANSCEIVER-HULL UNIT 439,20 € With VAT (22%)
00138139000 06P0253B(LF) PNL PRINTED CIRCUIT BOARD CH-302 717,45 € With VAT (22%)
00145645000 06-382(7-7P) PA CONNECTOR ASSEMBLY CH-5041/5051 44,38 € With VAT (22%)
00145647000 06-384(5-5P) VH CONNECTOR ASSEMBLY CH-5041/5051 32,95 € With VAT (22%)
00145648000 06-385(6-6P) VH CONNECTOR ASSEMBLY CH-5041/5051 40,36 € With VAT (22%)
00147216000 06-391(12-12P) PA CONNECTOR ASSEMBLY CH-5041/5051 68,60 € With VAT (22%)
00147217000 06-392(8-8P) ZH CONNECTOR ASSEMBLY CH-5041/5051 40,36 € With VAT (22%)
00148703000 06P0287(LF) DISP PRINTED CIRCUIT BOARD MU-121C 663,78 € With VAT (22%)
00148712000 MU-121C LCD/PANEL LCD/PANEL ASSEMBLY 1 320,85 € With VAT (22%)
00148718000 06P0288(LF) DIGI PRINTED CIRCUIT BOARD CH-503 1 966,47 € With VAT (22%)
00148719000 06P0289(LF) ANLG PRINTED CIRCUIT BOARD CH-503 - Replaced by 00149678000 1 692,08 € With VAT (22%)
00148726000 CH-5041-1-60 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148727000 CH-5041-1-88 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148728000 CH-5041-1-150 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148729000 CH-5041-1-180 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148730000 CH-5041-1-240 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148731000 CH-5041-2-60 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148732000 CH-5041-2-88 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148733000 CH-5041-2-150 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148734000 CH-5041-2-180 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148735000 CH-5041-2-240 RAISE/LOWER DRIVE CH-504 7 815,28 € With VAT (22%)
00148736000 CH-5051-1-60 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148737000 CH-5051-1-88 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148738000 CH-5051-1-150 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148739000 CH-5051-1-180 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148740000 CH-5051-1-240 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148741000 CH-5051-2-60 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148742000 CH-5051-2-88 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148743000 CH-5051-2-150 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148744000 CH-5051-2-180 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148745000 CH-5051-2-240 RAISE/LOWER DRIVE CH-505 7 815,28 € With VAT (22%)
00148746000 CH-5041/5051-1-60 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148747000 CH-5041/5051-1-88 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148748000 CH-5041/5051-1-150 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148749000 CH-5041/5051-1-180 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148750000 CH-5041/5051-1-240 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148751000 CH-5041/5051-2-60 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148752000 CH-5041/5051-2-88 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148753000 CH-5041/5051-2-150 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148754000 CH-5041/5051-2-180 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148755000 CH-5041/5051-2-240 RAISE/LOWER CONTROL BOX 5 672,61 € With VAT (22%)
00148766000 80-0692 UPPER LIMIT SWITCH ASSEMBLY CH-5041 378,76 € With VAT (22%)
00148768000 80-0693 UPPER LIMIT SWITCH ASSEMBLY CH-5051 - Replaced by 00164243000 378,76 € With VAT (22%)
00148770000 80-0694 LOWER LIMIT SWITCH ASSEMBLY CH-5041/5051 378,76 € With VAT (22%)
00148778000 06P0291A(LF) PRA PRINTED CIRCUIT BOARD CH-5041-60KHZ 1 234,35 € With VAT (22%)
00148779000 06P0291B(LF) PRA PRINTED CIRCUIT BOARD CH-5041-88KHZ - Replaced by 00162326000 1 234,35 € With VAT (22%)
00148780000 06P0291C(LF) PRA PRINTED CIRCUIT BOARD CH-5041-150KHZ - Replaced by 00162327000 1 234,35 € With VAT (22%)
00148781000 06P0291D(LF) PRA PRINTED CIRCUIT BOARD CH-5041-180KHZ - Replaced by 00162328000 1 234,35 € With VAT (22%)
00148782000 06P0291E(LF) PRA PRINTED CIRCUIT BOARD CH-5041-240KHZ - Replaced by 00162329000 1 234,35 € With VAT (22%)
00148783000 06P0290A(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 12V - Replaced by 00154838000 1 740,50 € With VAT (22%)
00148784000 06P0290(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 24V - Replaced by 00154839000 1 740,50 € With VAT (22%)
00148786000 06P0292(LF) FIL PRINTED CIRCUIT BOARD CH-5041/5051 1 124,19 € With VAT (22%)
00148787000 06P0298(LF) FLT2 PRINTED CIRCUIT BOARD CH-5041/5051 1 104,42 € With VAT (22%)
00148788000 06-383(SW-4P) SW-VH CONNECTOR ASSEMBLY CH-5041/5051 488,26 € With VAT (22%)
00148792000 CH-5048 SOUNDOME ASSEMBLY CH-500 - Replaced by 00154840000 2 987,49 € With VAT (22%)
00148800000 06P0293(LF) DOM_8 PRINTED CIRCUIT BOARD CH-5048 1 008,38 € With VAT (22%)
00148801000 06P0294(LF) DOM_8 PRINTED CIRCUIT BOARD CH-5046 847,39 € With VAT (22%)
00148804000 CH5048-35/UPPER DOME UPPER DOME 2 841,82 € With VAT (22%)
00148805000 CH5048-52/UPPER DOME UPPER DOME 2 841,82 € With VAT (22%)
00148806000 CH5046-35/UPPER DOME UPPER DOME 2 512,15 € With VAT (22%)
00148807000 CH5046-52/UPPER DOME UPPER DOME 2 512,15 € With VAT (22%)
00148808000 CH-5048/WITH FLANGE UNDER DOME 1 856,17 € With VAT (22%)
00148813000 CH-5048/LESS FLANGE UNDER DOME 455,71 € With VAT (22%)
00148817000 CH-5081/82TANK GUIDE TANK GUIDE-8 762,65 € With VAT (22%)
00148826000 CH-5048 BRUSH ASSY BRUSH ASSEMBLY 988,61 € With VAT (22%)
00148829000 CH-5046 BRUSH ASSY BRUSH ASSEMBLY 988,61 € With VAT (22%)
00148830000 CH-5046/5048 AXIS AXIS ASSEMBLY 1 307,39 € With VAT (22%)
00148833000 CH-5046 M-CHAS/AXIS M-CHASSIS/AXIS 2 374,14 € With VAT (22%)
00148836000 CH-5048 M-CHAS/AXIS M-CHASSIS/AXIS 2 374,14 € With VAT (22%)
00148837000 CH-5046/UNDER DOME UNDER DOME 522,55 € With VAT (22%)
00148963000 CH-5046 SOUNDOME ASSEMBLY CH-500 4 515,33 € With VAT (22%)
00149678000 06P0289A(LF) ANLG PRINTED CIRCUIT BOARD CH-503-A 1 743,18 € With VAT (22%)
00149823000 CH-1812 LESS ARM TRANSDUCER ASSEMBLY CH-18/28 2 760,04 € With VAT (22%)
00150899000 06P0253C(LF) PNL PRINTED CIRCUIT BOARD CH-302 717,45 € With VAT (22%)
00154838000 06P0290A(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 12V 1 740,50 € With VAT (22%)
00154839000 06P0290(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 24V 1 740,50 € With VAT (22%)
00154840000 CH-5048 SOUNDOME ASSEMBLY CH-500 2 987,49 € With VAT (22%)
00155351000 CH-5048*12V MOD KIT DRV/MOTOR MODIFICATION KIT 2 119,80 € With VAT (22%)
00155352000 DRV KIT DE MODIFICATION MOTEUR CH-5048*24V 2 119,80 € With VAT (22%)
00162326000 06P0291B(LF) PRA PRINTED CIRCUIT BOARD CH-5041-88KHZ 1 172,21 € With VAT (22%)
00162327000 06P0291C(LF) PRA PRINTED CIRCUIT BOARD CH-5041-150KHZ 1 172,21 € With VAT (22%)
00162328000 06P0291D(LF) PRA PRINTED CIRCUIT BOARD CH-5041-180KHZ 1 172,21 € With VAT (22%)
00162329000 06P0291E(LF) PRA PRINTED CIRCUIT BOARD CH-5041-240KHZ 1 234,35 € With VAT (22%)
00164243000 80-0693 UPPER LIMIT SWITCH ASSEMBLY CH5051 06E11302 378,76 € With VAT (22%)
00655322000 06P0212(LF)TRAIN PRINTED CIRCUIT BOARD CH-34/36 115,40 € With VAT (22%)
00655854000 CH-2542-60 TRANSDUCER ASSEMBLY 3 409,17 € With VAT (22%)
00655855000 CH-2542-88 TRANSDUCER ASSEMBLY - 3 409,17 € With VAT (22%)
00655856000 CH-2542-150 TRANSDUCER ASSEMBLY - 3 409,17 € With VAT (22%)
00655857000 CH-2542S-180 TRANSDUCER ASSEMBLY 3 020,71 € With VAT (22%)
00655858000 CH-2542S-240 TRANSDUCER ASSEMBLY 3 020,71 € With VAT (22%)
