I4P

TV antennas Ref : IT-B4-419Q

Satellite TV antenna 45cm - 4 output

PRICE : 7 917,80 € With VAT (22%)


Description

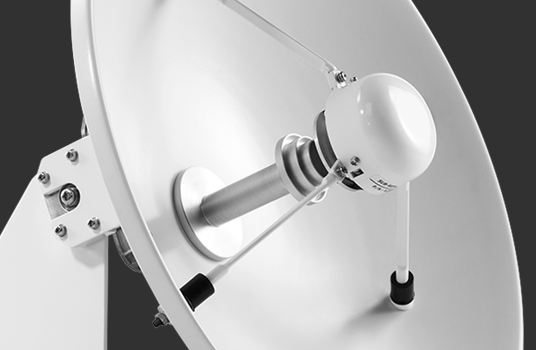

Go further with I4P

The i4P offers the highest signal strength available with a 45cm (17.7?) reflector, significantly increasing the coverage area.

With iQ² technology, the i4P offers the most precise tracking capabilities and superior satellite signal reception while the vessel is cruising at high speed or in rough sea conditions.

Long Distance Cruising with I4P

The i4P model is ideal for vessels cruising between different locations within a global region where the polarization angle of the satellite signal changes (For Example: Europe, South America, Asia Pacific).

Starting with the i4, all P models are equipped with an integrated Auto Skew Angle Adjustment assembly, which eliminates the need to manually adjust the skew angle of the LNB.


Product advantages

Power and efficiency make the i4P the most popular 45 cm (18 inch) Satellite TV system for pleasure boats, fishing boats, workboats, and commercial vessels approximately 12m (35ft) to 20 (60ft) in length. This TV antennas I4P is :

  • The available i4P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances
  • Compatible with leading satellite TV service providers around the world
  • Travel further North or South with an extended elevation range of 0° to 90°
  • Auto satellite switching function from your remote control
  • 50° per second turn rate ensures signal tracking at high speeds and in rough seas
  • Simplicity of design, no external compass or rate sensors required


Features

The TV antenna I4P is:

Fully Automated System

  • Automatic Satellite Search and Identification function
  • 2-axis high speed tracking system

 High Performance Antenna

  • 45 cm (17.7 in) diameter parabolic antenna for receiving Ku-band satellite signals
  • Circular or linear polarization depending on the region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

 iQ²: Quick&Quiet Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

 Antenna Control Unit

  • Intuitive controls and digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the MIM or the Shaw Decoder Module

 Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

 Built-in GPS and NMEA 0183 Interface

  • The i4 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

 Stylish Radome Profile

  • 50cm (19.7 inch) antenna radome diameter
  • Antenna weighs less than 11.6 kg (25.5 pounds)

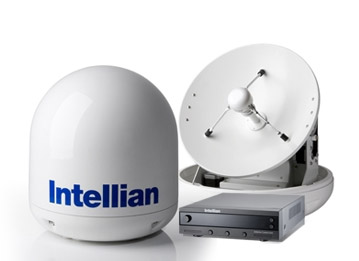

In the box

1 X Antenna I4P
1 X Control Unit
1 X Caliper for control unit
1 X RG6 antenna cable 15 m
1 X RG6 antenna cable 3 m
1 X Power cable 10 m
1 X 1m80 Series Cable
1 X NMEA connector
1 X Power connector
1 X Lot of screws
1 X CD installation (English)
1 X Manual (English)

Technical characteristics

Decoder output : 4
Parabola diameter : 45 cm
PIRE : 49 dBw
Type : 2 axes
LNB : 4
