V80G

VSAT Ref : IT-V2-81

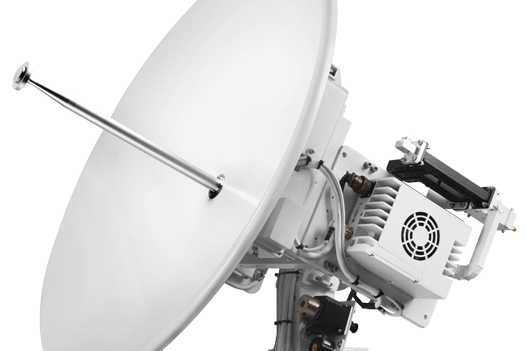

VSAT 83cm 3 axes X POL + BUC 8W + LNB PLL

PRICE : NC


Description

Superior RF Performance

The higher-gain RF performance design, that is nearly equal to a 1 meter grade VSAT antenna system, enables the antenna to operate on the fringes of the signal footprint, increasing dependability when the signal matters most.
With 3-axis stabilization, the v80G provides superior tracking performance, ideal for offshore vessels, commercial ships and the oil and gas industry, as well as mission-critical operations, such as surveillance or vessel monitoring, where uninterrupted connectivity is required.

Patented RF Technology



The v80G incorporates Intellian’s patented Global PLL LNBs supporting an unlimited number of LO frequencies, both x-pol and co-pol feeds and offers BUC options from 4W to 16W. This is an ideal system for vessels that require 1m antenna performance in a more compact size, as well as simple installation, ease of operation and reliable remote maintenance accessibility.
The v80G supplies BUC power using the TX signal cable directly from the ACU, reducing the number of antenna cables to run, while maintaining superior signal linearity and avoiding common problems associated with signal stacking into one cable.


Product advantages

The v80G is the smallest antenna that works without the need for a spread spectrum satellite network. This provides a compact system capable of operating in either TDMA or SCPC networks


Features

The antenna VSAT IV80G is characterized by :

  • Proprietary global Ku-band PLL LNB
  • Similar RF performance to most conventional 1m antennas in an 80cm size
  • Remote Management using Aptus Web. Wi-Fi enabled ACU for local control using Aptus Mobile or PC
  • Combined BUC Power and TX Signal to reduce system cabling
  • Gyro-Free Satellite Search Capability without input from a ships compass
  • Dual VSAT Mediator integrates two VSAT antennas to combat onboard blockage zones
  • Shorten installation time and reduce maintenance visits with automated diagnostics
  • Open platform system architecture works with all leading Ku-band service providers
  • 3-Year Global Warranty backed by over 300 Intellian Service and Support centers around the world

Remote Access via Aptus Web

  • Built-in web interface: Remote Upgrades, Automatic Diagnostics
  • Access all onboard antennas (including TVRO) through the onboard network

 Global Operation, One Antenna

  • Standard equipped with Intellian's patented Global PLL LNB, capable of receiving a full range of operating frequencies from any VSAT satellite around the globe
  • All VSAT antennas are Co-pol and X-pol compatible

 Gyro-free Operation

  • No required input from ship's heading device
  • Quick setup to reduce installation time. Automated Bow offset function in Aptus

 Global Satellite Library

  • Preinstalled database of detailed satellite data with one-touch remote updating feature through Aptus
  • Customizable satellite library for a specific network

 Auto Beam Switching (ABS)

  • Supports ABS via the OpenAMIP protocol from iDirect and Comtech's ROSS Open Antenna Management (ROAM) protocol

 Open Platform Compatibility

  • Fully compatible with all major service providers
  • Preconfigured modem settings provided in a simple drop down menu using Aptus

 Optional Dual VSAT Mediator

  • Ensures uninterrupted broadband communications by seamlessly switching between two antennas
  • Communicates simultaneously with two Antenna Control Units (ACU). Ideal for redundant antenna environments
 Anatel Approved
  • Approved for sale and operation in Brazil

EN OPTION :
Seaview : AMA-32
Modem IDIRECTX7

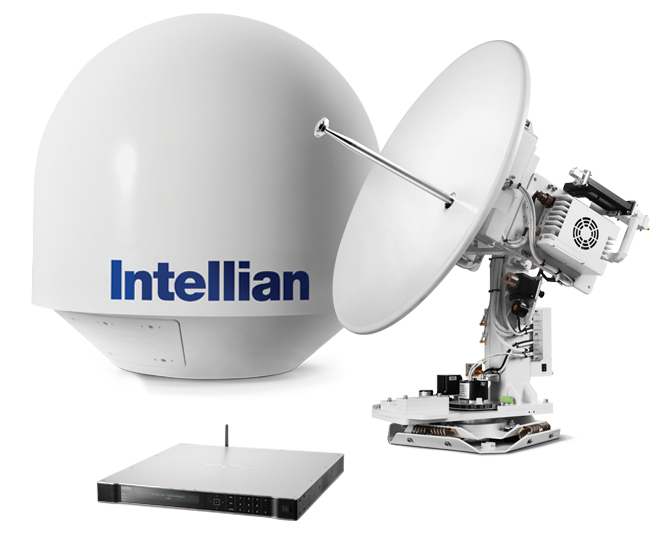

In the box

1 X 113 cm satellite antenna (outdoor) IV80G
1 X Antenna Controller (ACU)
2 X RG6 cables, 3m (ACU <-> Modem)
2 X RG6 Cables, 15m (ACU <-> Antenna)
1 X ACU power cable, 1,50m
1 X PC serial cable, 1.80m (ACU <-> PC)
1 X USB cable, 1.80m (ACU <-> PC)
1 X Interface Cable, 1.50m (ACU <-> iDirect Modem)
1 X DB9 plug - 2 N / F adapters
1 X USB stick for updates and information backup
1 X installation CD
1 X User Manual
1 X Installation Template
1 X Installation material

Technical characteristics

Band : Ku
BUC : 4W or 8W or 16W
LNB : 2
Parabola diameter : 83cm
Type : 3 axes


Parts and accessories

IT-V1-8199 DOME IV80G VIDE AVEC EMBASE - NC
RO-00020 CABLE COAXIAL CNT400 (VSAT) - NC
