CI88/10M/LESS TXD/B

Doppler Speed Log & Current Indicator Ref : IMD02677018

10.4" COLOR LCD CURRENT INDICATOR 288 kHz

PRICE : NC

Description

FISHING AND SURVEY VESSELS

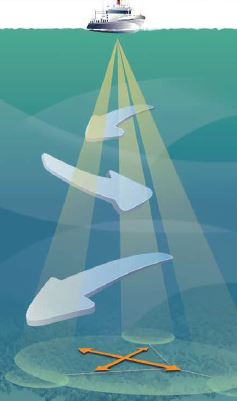

CI88 is able to identify direction and speed of the current on three different points of sea depth called strata or layers. Thanks to this information it is possible to predict the positioning of the fishing net and its movement. The CI88 is equipped with a triple beam transducer capable of providing highly accurate measurement of current and speed through the water. Thanks to this device it is possible to contrast the effects of rolling, pitching and rising caused by the waves thanks to a precise and reliable datum. If you are in deep waters where it is not possible to detect the depth of the seabed, the data is calculated through the position and speed provided by the on-board GPS, while the direction data comes from the satellite compass or gyrocompass.

VECTORS

The speed and direction of the current for each of the three different layers is displayed graphically as a vector. The depth of each layer can be set manually with one meter interval between one and the other

SPEED AND DIRECTION

CI88 is able to provide sensitive data such as speed and leeway in order to make the best evaluations for tacking operations. Speed is selectable between ground speed and water speed


Product advantages

  • Compact 3-unit design for ease of installation and maintenance
  • 10.4" high-definition color LCD
  • The Black Box system configuration allows the use of optional CRT or LCD monitors
  • Continuous display of tide speed and direction at three different depth levels
  • Triple beam system for less errors in tidal current detection
  • Current tide presentation with external GPS navigator and satellite compass


Features

FURUNO CI-88 is a doppler sonar current indicator designed for various types of uses in the professional fishing and hydrographic surveys.
The CI-88 ensures extremely accurate water flow measurements using reliable FURUNO acoustic technology. The CI-88 displays the speed and direction of the currents at various depth levels and the vessel's speed on a high definition 10.4 color LCD.


In the box

1 x Transceiver Unit CI-6810
1 x Control Unit CI-6888
1 x Junction Box CI-630
1 x Cable Assembly 10 m
1 x Installation Materials

Technical characteristics

Frequency : 288 kHz
Power input : 24 V
Resolution : 640 x 480 Pixels
Screan size : 10.4
Type : CURRENT INDICATOR


Parts and accessories

00006904800 TFB-5000CI TUBO PASSA-SCAFO PER SCAFO IN ACCIAIO PER CI-68/88 NC
00144150000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159680000 NC
00003374200 MU-100C-CI MONITOR UNIT NC
00144151000 4P CABLE Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159681000 940,60 € With VAT (22%)
00144152000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159682000 NC
00144153000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159683000 NC
00144154000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159684000 NC
00150992000 CP66-02201 INSTALLATION MATERIALS FOR J-BOX NC
00159680000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 NC
00159681000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 NC
00159682000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 NC
00159683000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 NC
00159684000 Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 NC
00655626000 KIT MONTAGGI CNTR UNIT CI68/88 CONTROL UNIT MOUNTING KIT FP06-01120 PER CI-68/88 NC
00655632000 KIT MONTAGGIO INCASSO CI68/88 OP06-18 CONTROL UNIT FLUSH MOUNT KIT NC
00690055000 OP66-5 TRANSDUCER FLANGE CI-80/88 NC
00691668000 FP66-00601 BRACKET ASSEMBLY V TYPE NC
00692733000 CP66-00703 INSTALLATION MATERIALS FOR J-BOX NC
00014608800 Z-6FVNV-SX-C *15M* CABLE 3P+1P - Replaced by 00159682000 NC
00006904000 CI-821 TRANSDUCER TANK (SIDE HULL) CI-80/88 NC
00006904200 CI-822 TRANSDUCER TANK FRP HULL CI-80/88 NC
00006904300 TRB-1500(1) TUBO PASSA-SCAFO PER UN CAVO FRP HULL NC
00006904400 CI-820 TANK TRASDUTTORE CI-88 PER SCAFO IN FRP PER CI-80/88 NC
00006904700 CI-823 TANK TRASDUTTORE CI-88 PER SCAFO IN ACCIAIO PER CI-80/88 NC
00006848300 MU-100C MONITOR UNIT CH-250 - Replaced by 00003374200 NC
00002914600 CI-630-CS JUNCTION BOX 10M CBL COLLEGAMENTO TRASDUTTORE CI-68/88 DS-80/85 NC
00014608600 Z-6FVNV-SX-C *5M* CABLE 3P+1P - Replaced by 00159680000 NC
00014608700 Z-6FVNV-SX-C *10M* CABLE 3P+1P - Replaced by 00159681000 NC
00014608900 Z-6FVNV-SX-C *20M* CABLE 3P+1P - Replaced by 00159683000 NC
00014609000 Z-6FVNV-SX-C *30M* CABLE 3P+1P - Replaced by 00159684000 NC
00007001300 CI-8840-1 TRASDUTTORE 10M CI88 CAVO DA 10M PER CI-88 CI88 NC
CI-8840-2 CI-8840-2 TRASDUTTORE 20M CI88 CAVO DA 20M PER CI-88 CI-88 NC
00124057000 66S1238 *20M* CABLE EQUIPE 1 002,73 € With VAT (22%)
00124058000 66S1238 *30M* CABLE ASSEMBLY 66S1238-0 1 280,49 € With VAT (22%)
00124059000 CABLE ASSEMBLY 66S1238 *50M* 66S1238-0 1 987,99 € With VAT (22%)
00130867000 66S1239-2 *10M* CABLE ASSEMBLY 66S1239-2 432,03 € With VAT (22%)
00130868000 66S1239-2 *5M* CABLE ASSEMBLY 66S1239-2 346,21 € With VAT (22%)
00014849300 66S1239-0 *5M* CABLE ASSEMBLY CI-6888/MU-100C - Replaced by 00130868000 NC
00014849800 66S1239-0 *10M* CABLE ASSEMBLY CI-6888/MU-100C - Replaced by 00130867000 NC
00124056000 66S1238 *10M* CABLE EQUIPE NC
00002730200 CI-6888/MU-100C-E ECRAN DE CONTR� NC
00007001100 CI-8810-E TRANSCEIVER NC
00655793000 MU-100C/101C PNL/FIL FRONT BEZEL WITH FILTER PANEL/FILTER 934,95 € With VAT (22%)
00701308000 66P3924(LF) PCN PRINTED CIRCUIT BOARD CI-6810/8810 1 581,78 € With VAT (22%)
