CH600
Fishing sonars12.1" COLOR LCD DISPLAY OR BLACK BOX SEARCHLIGHT SONAR (Dual Frequencies 60/153 or 85/215 kHz)
Description

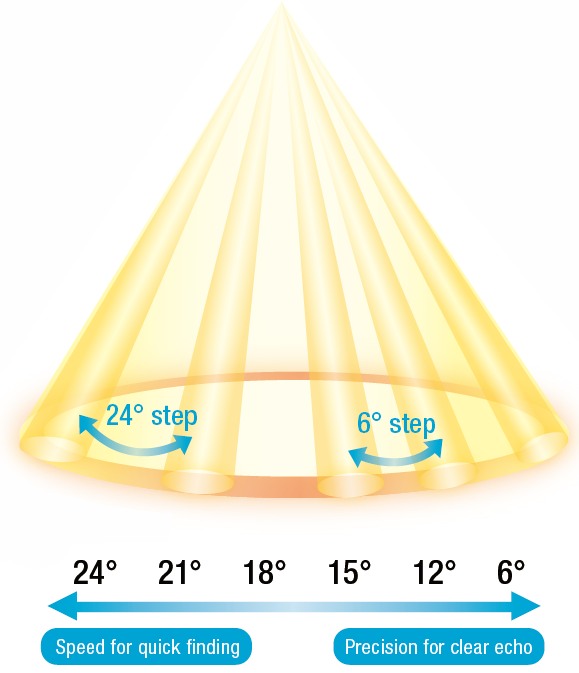

Incredibily fast training speed
Faster motor delivering quicker training speeds
Faster training speed can aid in earlier detection regarding fish targets or obstruction avoidance.

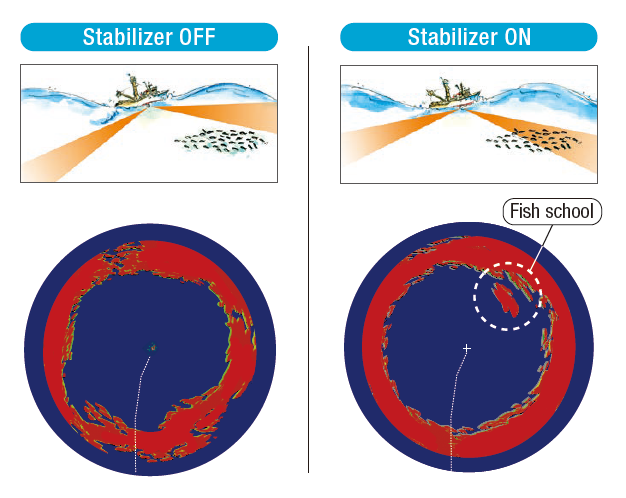

Built-in motion sensor
The CH600 searchlight sonar is the first of its class to have integrated motion sensors.
In rough seas, vessels tend to move in every direction. This movement can cause inaccurate target information to be displayed. The role of the integrated motion sensors is to precisely compensate for those negative effects and provide accurate data to the user.
In the right hand picture above, you can see that once the stabilizer is activated, the bottom echo recovers its circular shape. The sonar is then able to provide accurate data in different sea conditions. Thanks to its integrated motion sensors, the CH600 is able to detect fish that didn't appear with the non-stabilized echo.
Reverberation reduction function
The reverberation reduction offers both better understanding and better appreciation of
the nature of detected echoes. Below is an example of how the Reverberation reduction function highlights the wreck from the surrounding seabed. .
*The echo may be subject to interferences from other Fish Finders
*Schools with excessivly high density may appear with a weaker echo color

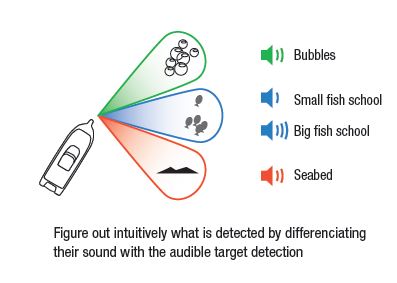

Full-circle A-Scope mode and audible target detection
The A-Scope mode shows the last detected echoes with one single color. The nature of the target can be quickly understood as the size of the echo is greatly amplified and even the smallest echoes are shown.
*The more opaque the color, the latest the echo.
The CH600 also features fish and obstacle audio signals depending on the nature and the size of the detected object. Whether there are air bubbles, big or small fish schools, and seabed, the emitted sound is different. This feature shows its usefulness when used with the Full-circle A-scope mode, our recommanded combination to know the nature of the target with precision, and during long sea trips, as it frees the user from continuously watching the screen.
*Optional Loudspeaker part number 00146620000 is required
Quick Gain Control & Various display modes
11 display modes for various situations.
- Horizontal
- Horizontal (zoomed)
- Vertical
- Echo sounder
- Full-circle A-Scope
- Horizontal/History
- Horizontal/ Full-circle A-scope
- Horizontal/ vertical (split)
- Horizontal/ Vertical (side window)
- Horizontal/ A-Scope
- Echo Sounder/ A-Scope

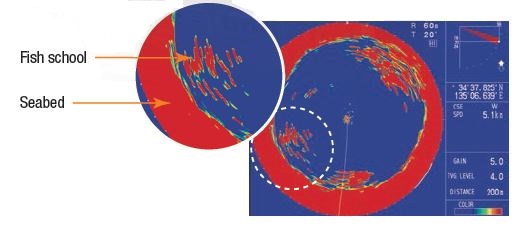

Higher resolution
A powerful signal and image processing techniques, based on a unique interpolation technology, provides images in high resolution. Even if the fish are located near the seabed, the different echoes are clearly shown and easy to understand. The higher resolution display yields a presentation that is crisp and clear.
Product advantages
- Incredibly fast training speed
- Built-in motion sensors provide a stabilized target presentation in rough sea conditions
- Reverberation reduction function
- Full-circle A-Scope mode and audible target detection
- Quick Gain Control
- Various display modes
- Higher resolution due to advanced signal processing
- 12 languages available
Features
The CH-600 has faster motor than the current models in order to deliver quicker training speeds and they provide 6 step angles for speed adjustment according to user's need.
The model also has a wide range of useful functions which make the difference, such as Higher resolution, Reverberation reduction, built-in motion sensors for stabilized target presentation, Quick Gain control and more.
Technical characteristics
Power input : 12/24 V
Frequency : 60/153 kHz or 85/215 kHz
HDMI OUTPUT : 1
Resolution : 1024 x 768 Pixels
Videos
Parts and accessories
| 00001928300 | OP10-5 ALUMINUM TANK *1M* | NC |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| CH-256-E | REMOTE CONTROLLER CH-256-E W/HANGER - | 550,79 € With VAT (22%) |
| 00015403710 | MJ-A6SPF0012-100C CABLE EQUIPE DATA 6PF<->6PF PLASTIC 10M - Replaced by 00159607000 | 138,81 € With VAT (22%) |
| 00015405310 | MJ-A6SPF0012-050C MJ-A6SPF0012-050C 64S4071-2 | 125,89 € With VAT (22%) |
| 00015969010 | MJ-A6SPF0011-050C MJ-A6SPF0011-050C 03S9202-2 - Replaced by 00159610000 | 122,40 € With VAT (22%) |
| 00015969110 | MJ-A6SPF0011-100C CABLE EQUIPE DATA 4PF<->6PF PLASTIC 10M - Replaced by 00159611000 | 142,03 € With VAT (22%) |
| 00016151310 | MJ-A6SPF0012-150C SIGNAL CABLE ASSEMBLY 64S4071-2 | NC |
| 00110575010 | CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Replaced by 00153306000 | 66,44 € With VAT (22%) |
| 00110576010 | M12-05BM+05BF-020 M12-05BM+05BF-020 19S1162 - Replaced by 00153307000 | 76,93 € With VAT (22%) |
| 00110577010 | CABLE ASSEMBLY M12-05BM+05BF-0 19S1162 NMEA2000 MICRO5C STRGHT M/F 6M - Replaced by 00153308000 | 115,40 € With VAT (22%) |
| 00110578010 | M12-05BFFM-010 M12-05BFFM-010 19S1163 | 64,56 € With VAT (22%) |
| 00110579010 | M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000 | 72,64 € With VAT (22%) |
| 00110580010 | M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000 | 94,43 € With VAT (22%) |
| 00112261010 | MJ-A10SPF0002-015+ CABLE ASSEMBLY 00S0302 | NC |
| 00112263010 | MJ-A10SPF0002-050+ MJ-A10SPF0002-050+ 00S0302 | 213,06 € With VAT (22%) |
| 00115979010 | 06-021-4502 FAIRING | NC |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124054000 | FR-FTPC-CY CAVO LAN 50M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124055000 | LAN CABLE (4 PAIR) FR-FTPC-CY *100M* 19S1029-0 | NC |
| 00124127000 | 06-007-1571-2 ROHS RETRACTION TANK | NC |
| 00124412000 | CABLE ASSEMBLY MJ-A6SPF0011-200C 03S9202-2 | 203,37 € With VAT (22%) |
| 00124413000 | MJ-A6SPF0012-200C CABLE ASSEMBLY 64S4071-2 | NC |
| 00135228000 | 06-021-4024-0 ROHS RETRACTION TANK(STRAIGHT) FRP 1.0M | NC |
| 00142812000 | 06-007-1570-2 ROHS RETRACTION TANK 1M STEEL | NC |
| 00142815000 | RETRACT TANK 1.8M CH-500/600 SHJ-0001-2*1.8M* ACCIAIO - | 2 627,88 € With VAT (22%) |
| 00142826000 | 06-007-1573-0 ROHS 06-007-1573-0 SCAFO FRP CH600 | 3 050,00 € With VAT (22%) |
| 00145803000 | OP06-24 BRACKET ASSEMBLY WITH KNOBS CH500 | 381,73 € With VAT (22%) |
| 00145804000 | OP06-25 FLUSH MOUNT KIT (DISP) CH-500 | NC |
| 00145805000 | OP06-26 FLUSH MOUNT KIT(CTRL) CH-500 | NC |
| 00145806000 | OP06-27 WATERPROOF ATTACHMENT KIT CH-500 | NC |
| 00145810000 | FP06-01601 TABLETOP MOUNT KIT(CTRL) | NC |
| 00134329000 | CA-151S-ASSY LOUDSPEAKER | 514,08 € With VAT (22%) |
| 00147144000 | HDMI-TO-DVI-A-L10.3M CABLE POUR ECRAN DEPORTE CH-500/600 - Replaced by 00159466000 | NC |
| 00147145000 | HDMI-TO-DVI CAVO HDMI/DVI 5M PER DISPLAY ESTERNO SONAR CH-500/600 - Replaced by 00159467000 | NC |
| 00147147000 | FRU-CCCAF18-05M-B CABLE ASSENBLY CH500 | NC |
| 00147148000 | FRU-CCCAF18-10M-B CABLE ASSENBLY 06S100340 | NC |
| 00147149000 | FRU-HDMI-5M-AS CABLE ASSEMBLY CH500 | NC |
| 00147150000 | FRU-HDMI-10M-AS CABLE ASSEMBLY 06S100350 | NC |
| 00147154000 | MJ-A10SPF0022-050+ CBL B/W TRX AND CTRL 06S100390 | NC |
| 00147155000 | MJ-A10SPF0022-100+ CBL B/W TRX AND CTRL 06S100390 | NC |
| 00147156000 | FRU-NMEA-PMM-01 CABLE ASSEMBLY 06S100360 | NC |
| 00147157000 | FRU-WH-B-05M CBL FOR EXTERNAL(KP) 06S100370 | NC |
| 00147158000 | FRU-WH-B-10M CBL FOR EXTERNAL(KP) 06S100370 | NC |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € With VAT (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € With VAT (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € With VAT (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00159466000 | HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540 | NC |
| 00159467000 | HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540 | NC |
| 00159607000 | MJ-A6SPF0012-100C CABLE ASSEMBLY 64S4071-2 | NC |
| 00159610000 | MJ-A6SPF0011-050C CABLE ASSEMBLY 03S9202-2 | NC |
| 00159611000 | MJ-A6SPF0011-100C CABLE ASSEMBLY 03S9202-2 | NC |
| 00655627000 | S06-9-5 SPEAKER EXTENSION CABLE CH-250 | NC |
| 00699004000 | OP10-9 FIXING MATERIALS | NC |
| 00854246000 | CP03-28901 CONNECTEUR | 60,52 € With VAT (22%) |
| 00123721000 | 06-007-1572 SOUNDOME SHAFT(L) (3.8) | 1 737,80 € With VAT (22%) |
| 00123722000 | 06-008-1021 SOUNDOME SHAFT 1.17M CH500 | NC |
| 00123723000 | SHJ-0006 SHAFT 2.2M CH-500/600 SOUNDOME SHAFT 2.20M SONAR | NC |
| 00126103000 | 06-007-1591 SOUNDOME SHAFT(3M) | NC |
| 00147151000 | CAVO 15M TRANSC/HULL CH500/600 CABLE B/W TRX AND HULL TRA TRANSCEIVER-HULL UNIT | NC |
| 00147152000 | CAVO 30M TRANSC/HULL CH500/600 FRU-WH-A-30M CAVO 30M SONAR TRA TRANSCEIVER-HULL UNIT | NC |
| 00147153000 | CAVO 50M TRANSC/HULL CH500/600 FRU-WH-A-50M CAVO 50M SONAR TRA TRANSCEIVER-HULL UNIT | 439,20 € With VAT (22%) |
| 00138139000 | 06P0253B(LF) PNL PRINTED CIRCUIT BOARD CH-302 | 717,45 € With VAT (22%) |
| 00145645000 | 06-382(7-7P) PA CONNECTOR ASSEMBLY CH-5041/5051 | 44,38 € With VAT (22%) |
| 00145647000 | 06-384(5-5P) VH CONNECTOR ASSEMBLY CH-5041/5051 | 32,95 € With VAT (22%) |
| 00145648000 | 06-385(6-6P) VH CONNECTOR ASSEMBLY CH-5041/5051 | 40,36 € With VAT (22%) |
| 00147216000 | 06-391(12-12P) PA CONNECTOR ASSEMBLY CH-5041/5051 | 68,60 € With VAT (22%) |
| 00147217000 | 06-392(8-8P) ZH CONNECTOR ASSEMBLY CH-5041/5051 | 40,36 € With VAT (22%) |
| 00148703000 | 06P0287(LF) DISP PRINTED CIRCUIT BOARD MU-121C | 663,78 € With VAT (22%) |
| 00148712000 | MU-121C LCD/PANEL LCD/PANEL ASSEMBLY | 1 320,85 € With VAT (22%) |
| 00148718000 | 06P0288(LF) DIGI PRINTED CIRCUIT BOARD CH-503 | 1 966,47 € With VAT (22%) |
| 00148766000 | 80-0692 UPPER LIMIT SWITCH ASSEMBLY CH-5041 | 378,76 € With VAT (22%) |
| 00148768000 | 80-0693 UPPER LIMIT SWITCH ASSEMBLY CH-5051 - Replaced by 00164243000 | 378,76 € With VAT (22%) |
| 00148770000 | 80-0694 LOWER LIMIT SWITCH ASSEMBLY CH-5041/5051 | 378,76 € With VAT (22%) |
| 00148783000 | 06P0290A(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 12V - Replaced by 00154838000 | 1 740,50 € With VAT (22%) |
| 00148784000 | 06P0290(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 24V - Replaced by 00154839000 | 1 740,50 € With VAT (22%) |
| 00148787000 | 06P0298(LF) FLT2 PRINTED CIRCUIT BOARD CH-5041/5051 | 1 104,42 € With VAT (22%) |
| 00148788000 | 06-383(SW-4P) SW-VH CONNECTOR ASSEMBLY CH-5041/5051 | 488,26 € With VAT (22%) |
| 00148792000 | CH-5048 SOUNDOME ASSEMBLY CH-500 - Replaced by 00154840000 | 2 987,49 € With VAT (22%) |
| 00148800000 | 06P0293(LF) DOM_8 PRINTED CIRCUIT BOARD CH-5048 | 1 008,38 € With VAT (22%) |
| 00148804000 | CH5048-35/UPPER DOME UPPER DOME | 2 841,82 € With VAT (22%) |
| 00148805000 | CH5048-52/UPPER DOME UPPER DOME | 2 841,82 € With VAT (22%) |
| 00148808000 | CH-5048/WITH FLANGE UNDER DOME | 1 856,17 € With VAT (22%) |
| 00148813000 | CH-5048/LESS FLANGE UNDER DOME | 455,71 € With VAT (22%) |
| 00148817000 | CH-5081/82TANK GUIDE TANK GUIDE-8 | 762,65 € With VAT (22%) |
| 00148826000 | CH-5048 BRUSH ASSY BRUSH ASSEMBLY | 988,61 € With VAT (22%) |
| 00148830000 | CH-5046/5048 AXIS AXIS ASSEMBLY | 1 307,39 € With VAT (22%) |
| 00148836000 | CH-5048 M-CHAS/AXIS M-CHASSIS/AXIS | 2 374,14 € With VAT (22%) |
| 00149678000 | 06P0289A(LF) ANLG PRINTED CIRCUIT BOARD CH-503-A | 1 743,18 € With VAT (22%) |
| 00149704000 | CH-5048/WITH FLANGE UNDER DOME 85/215 | 1 587,16 € With VAT (22%) |
| 00149707000 | CH-5048/LESS FLANGE UNDER DOME 85/215 | 455,71 € With VAT (22%) |
| 00150633000 | CH-5041/51-2-60/153 RAISE/LOWER CONTROL BOX | 6 231,88 € With VAT (22%) |
| 00150634000 | CH-5041/51-2-85/215 RAISE/LOWER CONTROL BOX | 6 231,88 € With VAT (22%) |
| 00150643000 | 06P0291F(LF) PRA PRINTED CIRCUIT BOARD CH-5041-60/153 - Replaced by 00162330000 | 1 234,35 € With VAT (22%) |
| 00150644000 | 06P0291G(LF) PRA PRINTED CIRCUIT BOARD CH-5041-88/215 - Replaced by 00162331000 | 1 234,35 € With VAT (22%) |
| 00150899000 | 06P0253C(LF) PNL PRINTED CIRCUIT BOARD CH-302 | 717,45 € With VAT (22%) |
| 00154838000 | 06P0290A(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 12V | 1 740,50 € With VAT (22%) |
| 00154839000 | 06P0290(LF) DRV PRINTED CIRCUIT BOARD CH-5041/51 24V | 1 740,50 € With VAT (22%) |
| 00154840000 | CH-5048 SOUNDOME ASSEMBLY CH-500 | 2 987,49 € With VAT (22%) |
| 00155351000 | CH-5048*12V MOD KIT DRV/MOTOR MODIFICATION KIT | 2 119,80 € With VAT (22%) |
| 00155352000 | DRV KIT DE MODIFICATION MOTEUR CH-5048*24V | 2 119,80 € With VAT (22%) |
| 00162330000 | 06P0291F(LF) PRA PRINTED CIRCUIT BOARD CH-5041-60/153 | 1 234,35 € With VAT (22%) |
| 00162331000 | 06P0291G(LF) PRA PRINTED CIRCUIT BOARD CH-5041-88/215 | 1 234,35 € With VAT (22%) |
| 00164243000 | 80-0693 UPPER LIMIT SWITCH ASSEMBLY CH5051 06E11302 | 378,76 € With VAT (22%) |
| 00656147000 | CH-3042-60/153 TRANSDUCER ASSEMBLY | 6 345,67 € With VAT (22%) |
| 00656149000 | CH-3042-85/215 TRANSDUCER ASSEMBLY | 6 345,67 € With VAT (22%) |
