Radar FR10 et FR12

FR12

Radars FR & FAR series Ref : IMD040250BA

12.1” Radar displays with key panels used for DRS series Radar sensors.

PRICE : 3 159,80 € With VAT (22%)


Description

NAVIGATE SAFELY BY IDENTIFYING RISKS

The FR-10 and the FR-12 10.4"/12.1" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™ and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.

Compatible with Furuno’s powerful DRS series antennas

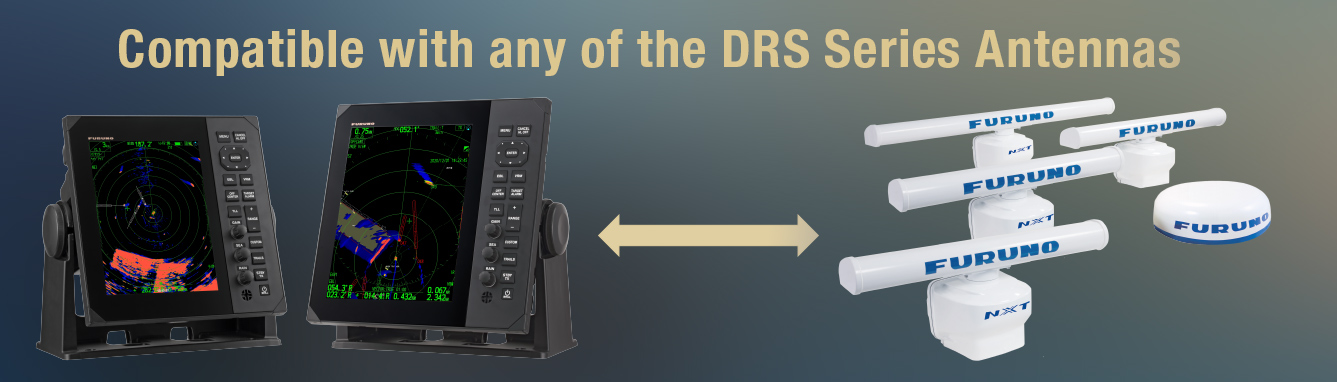

The FR-10 and FR-12 are compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size and antenna type & size based on what you want to accomplish, you can build the Radar that best meets your needs.
Compatible DRS antennas:
Radome type:
Model DRS2D-NXT
Model DRS4D-NXT
Model DRS4DL+
Open Array type:
Model DRS6A-NXT
Model DRS12A-NXT
Model DRS25A-NXT
Model DRS6A X-Class
Model DRS12A X-Class
Model DRS25A X-Class

RISK VISUALIZERTM

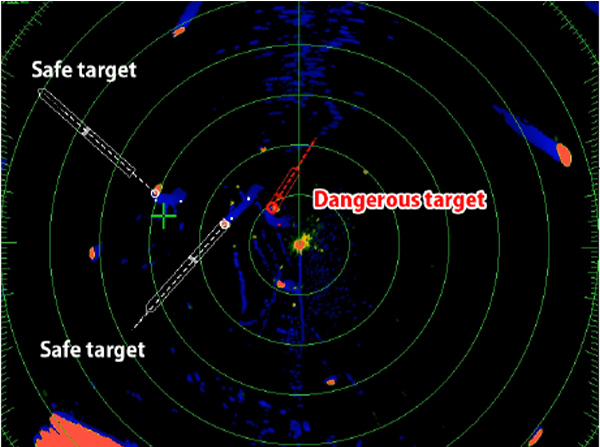

Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Aditionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.

FAST TARGET TRACKINGTM

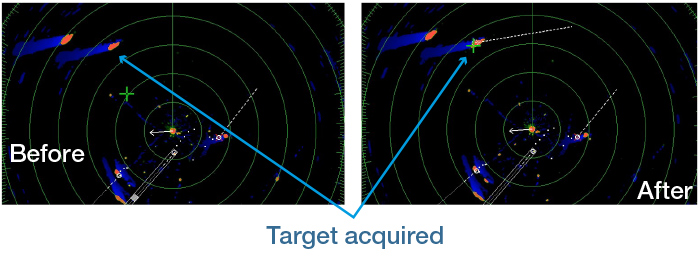

Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector.
The maximum number of TT (Target Tracking) is 100 targets when connected to DRS-NXT or DRS-X_CLASS series.

TARGET ANALYZERTM

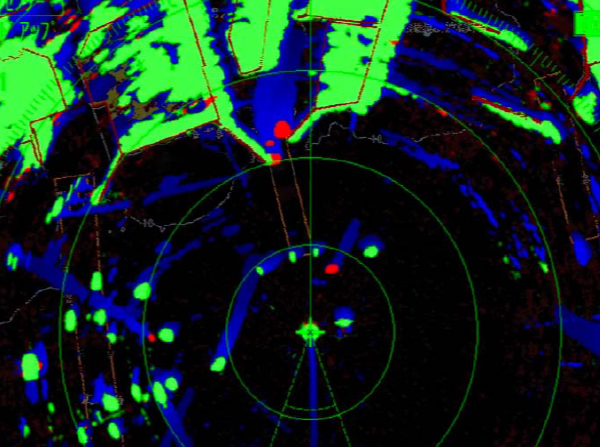

Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.

ECHO AVERAGE

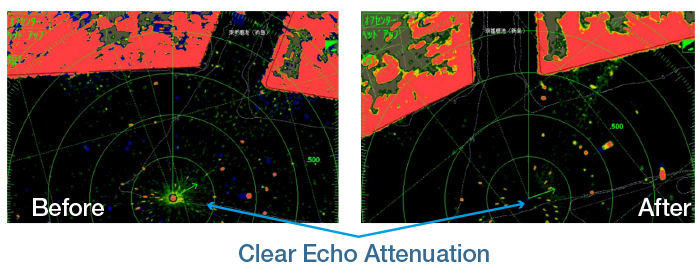

Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation or dense fog.

CUSTOM AIS

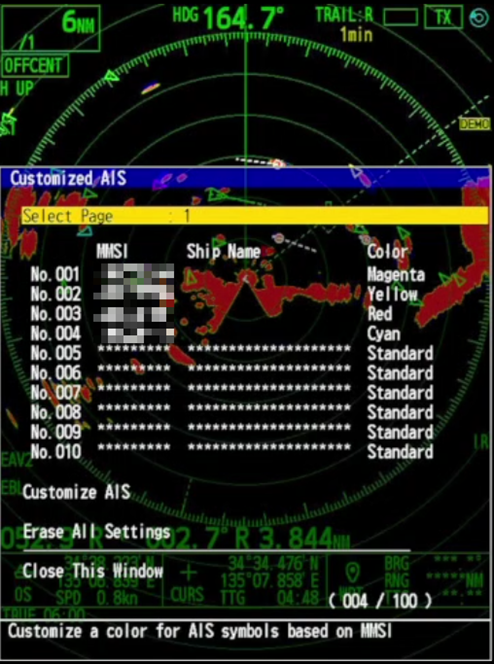

The color of AIS symbols (maximum: 100 sets) can be customized with 9 different colours: 4 extra color options of Red, Yellow, Cyan and Magenta, in addition to the Standard color options of Green, Red, Blue, White, and Black. The color option is saved on the FR-10/12, so when AIS targets with the same MMSI are received again, they will be shown in the registered colors. This is useful when tracking the position of important vessels such as consorts, competitors, patrol boats.

Product advantages

FR-10 and FR-12 offers various amazing features like:

  • Risk Visualizer™
  • Target Analyzer™
  • Target Tracking™
  • True Echo Trail
  • Echo Average
  • Sub Display Unit
  • AIS Display
  • Radar overlay on charts (FR-12 only, option kit OP03-266 is required)

Features

FR-10 and FR-12 are new 10.4 inch and 12.1 inch Radar displays with key panels used for DRS series Radar sensors. They are the replacement for the MODEL1835, MODEL1935, MODEL1945, MODEL1937, FR-8065, FR-8125, and FR-8225. The new configuration of Radar display with Radar sensors offers superior performance and new features, as well as fitting on wider ranges of vessels in various markets. Thanks to an expanded selection of radar antenna types, from compact domes to a variety of open arrays and Solid-State to magnetron, there are a total of 20 possible combinations. The most inexpensive combination is the FR-10 + DRS4DL+ while the FR-12 + DRS25A-NXT is most luxury one.

In the box

-1x DISPLAY UNIT RDP-161-E
-1x POWER CABLE MJ-A3SPF0024-035C (3.5 M)
-1x INSTALLATION MATERIALS
-1x ACCESSORIES
-1x SPARE PARTS

Technical characteristics

Antenna Rotation Speed : 24/48 RPM
Power : 25W-25k W
Power input : 12-24 V
Range : 96 NM
Resolution : 1024 x 768 Pixels
Size : 3.5/4/6 ft
Solid-State : Yes (depending on the antenna type)

Videos

Technology - Risk Visualizer™

Parts and accessories

00161319000 OP03-266-E POUR RADAR FR12 OVERLAY SUR MM3D FR12 ONLY 2 033,72 € With VAT (22%)
00116789010 MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB 89,06 € With VAT (22%)
00003009700 OP03-21 BUZZER ALLARME RADAR CICALINO ALLARME ESTERNO OP03-21 NC
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 151,72 € With VAT (22%)
00118467000 OP03-221 CONNECTOR ASSEMBLY 6P 80,43 € With VAT (22%)
00118469000 OP03-222 CONNECTOR ASSEMBLY 7P 80,43 € With VAT (22%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 80,43 € With VAT (22%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 72,64 € With VAT (22%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 101,42 € With VAT (22%)
00150705000 CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA 79,30 € With VAT (22%)
00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 36,60 € With VAT (22%)
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 36,60 € With VAT (22%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI NC
00159607000 MJ-A6SPF0012-100C CABLE ASSEMBLY 64S4071-2 NC
00159608000 MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 138,81 € With VAT (22%)
00163045000 OP03-270 FRONT FIXING PANEL KIT FR-12 292,95 € With VAT (22%)
00107783010 FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - 36,60 € With VAT (22%)
00015402910 MJ-A6SPF0003-020C CABLE EQUIPE 66,44 € With VAT (22%)
00001176200 HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) 963,80 € With VAT (22%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 83,94 € With VAT (22%)
00015405310 MJ-A6SPF0012-050C MJ-A6SPF0012-050C 64S4071-2 125,89 € With VAT (22%)
00015405410 Data cable (6PF<->Nu) 5m 48,80 € With VAT (22%)
00015968811 MJ-A7SPF0003-050C CAVO NMEA183 DA 5M CONNETTORE 7-PIN 20S0241-3 103,70 € With VAT (22%)
00016050710 NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 135,58 € With VAT (22%)
00016050810 LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 60,52 € With VAT (22%)
00016050910 LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 44,38 € With VAT (22%)
00016796811 CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 122,40 € With VAT (22%)
00016796911 CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 135,58 € With VAT (22%)
00016797011 CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 225,97 € With VAT (22%)
00016797111 CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 83,94 € With VAT (22%)
00016797211 CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 111,91 € With VAT (22%)
00016797311 CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 193,69 € With VAT (22%)
00016892410 MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1 NC
00016151310 MJ-A6SPF0012-150C SIGNAL CABLE ASSEMBLY 64S4071-2 NC
DRS4DL+ 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. 2 379,00 € With VAT (22%)
DRS2D-NXT 19" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable. 3 233,00 € With VAT (22%)
DRS4D-NXT 24" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable. 3 647,80 € With VAT (22%)
DRS6A-NXT 25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. 7 307,80 € With VAT (22%)
DRS12A-NXT 100 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna, and cable. 8 113,00 € With VAT (22%)
DRS25A-NXT 200 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. 9 455,00 € With VAT (22%)
DRS6A-XCLASS 6kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5’, 4’ or 6’ antenna and, cable. - Replaced by IMD034550BA NC
DRS12A-XCLASS 12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4’ or 6’ antenna and, cable. 7 185,80 € With VAT (22%)
DRS25A-XCLASS 25kW, 96 n.m., UHD Digital Radar for NavNet TZtouch , TZtouch2, and TZtouch3, less 3.5', 4’ or 6’ antenna and, cable. 7 869,00 € With VAT (22%)
00151260000 FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET 167,86 € With VAT (22%)
00151262000 FRU-2P5S-FF-15M-A 232,42 € With VAT (22%)
00151264000 CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE 219,60 € With VAT (22%)
00003845900 RDP-161-E DISPLAY UNIT CHINA NC
00163065000 03-176-1002/#6601-P KNOB ASSEMBLY 40,36 € With VAT (22%)
00162963000 03P9699(LF) MAIN PRINTED CIRCUIT BOARD CHINA RDP-160/1 1 261,66 € With VAT (22%)
00162948000 03P9700(LF) PNL_ PRINTED CIRCUIT BOARD CHINA RDP-160/1 233,76 € With VAT (22%)
