CV7V

CV7-V

Wind and weather sensors Ref : LC-CV7-V

Ultrasound anemometer 12v for motorboats.

PRICE : NC


Description

A versatile model adapted to your needs !

This ultrasonic wind vane-anemometer is easy to install on any kind of boat and also on onshore infrastructures such as harbour master’s offices and semaphores. The vertical installation f the CV7-V makes it versatile for
various marine or terrestrial applications.

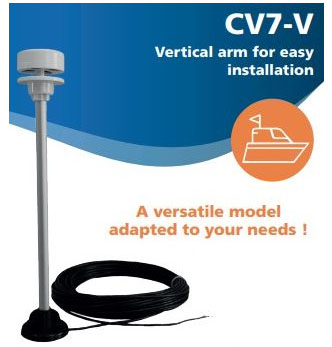

The CV7-V is an ultrasonic wind vane anemometer with vertical arm

The CV7-V is a 9 / 33Vdc vertical arm ultrasonic wind vane anemometer. This sensor has a vertical support of 30cm. In terms of functionality, they are identical to the CV7 ultrasound wind sensor with inclined arm.

Product advantages

CV7-V is the ultrasonic wind sensor for motorboats.This ultrasonic wind sensor CV7-V comes with a mounting arm specifically designed for easy installation on any horizontal surface such as the cabin roof, a radar arch or a flybridge.
The ultrasonic wind sensor CV7-V can also be installed on a sailboat where there is not enough space on the masthead. The arm can be fixed to the side of the mast.
The ultrasonic wind sensor CV7-V's bracket is compatible with Glomex© type mounting bases.
The small size of this sensor makes it very discreet.
This ultrasonic wind sensor CV7-V can be set up to match the requirements all kinds of slow or fast boats.
ICV7-V can be used connected to a PC and any systems featuring an NMEA® input port and specific pieces of equipment using conventional formats.
In PC mode, this bidirectional sensor can be set up for angle correction, damping, measure units and interface format.

Features

In the box

1 X Wind vane sensor - CV7-V ultrasonic anemometer with 31 cm vertical support
1 X Fixing bracket
1 X 25 m of cable 4X 0.22mm²
1 X Instruction of assembly and use
1 X Guarantee 2 years parts and labour

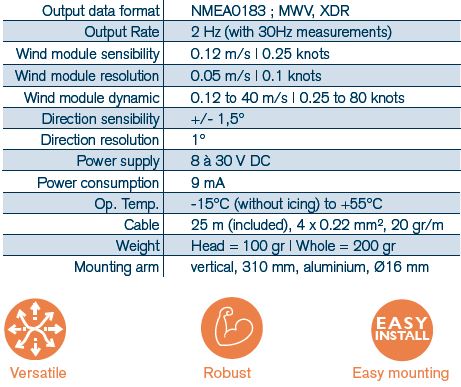

Technical characteristics

Applications : Motorboats
Barometer : NO
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 9/33 V
Wind module sensitivity : 0.25 Nd

Parts and accessories

LC-INTERFACE-CV7 INTERFACE CANBUS POUR CV7 - CV7 NC
STBG Universal interface to replace a masthead unit with a CV7 range ultrasonic solution. This interface communicates between a CV7 aerial unit and your display from different brand. NC
WINDYPLUG WindyPlug NMEA2000 interface for Wind Sensors, smaller, cheaper with embedded barometer. NC
BAROPLUG BAROMETER NMEA2000 - PLUG AND PLAY NC
LC-ADAPT-CV7V SUPPORT FIXATION DIAM16MM POUR ADAPT. CV7V SUR ROTULE NC
