FM8900S
VHF Ref : IMD03272003Full GMDSS-compliant VHF radiotelephone with Class-A DSC facility - LCD couleur 4.3
PRICE : NCDescription
Fully meets GMDSS requirements for SOLAS vessels

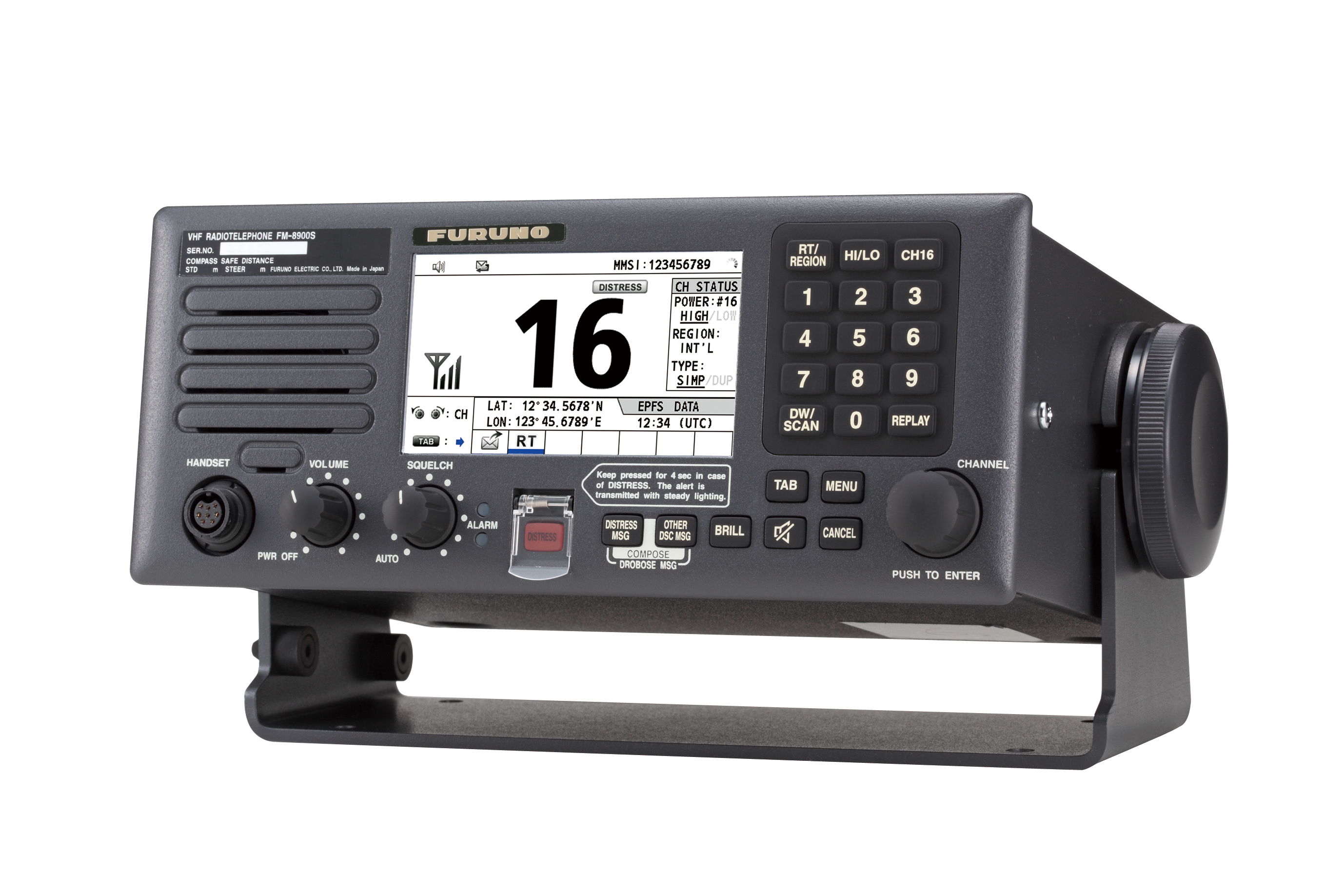

The Furuno FM8900S is a Semi-duplex 25-Watt VHF Radiotelephone with a built-in Class-A DSC and CH70 watch Receiver. It features an easy-to-read, high-contrast 4.3" bright color LCD, enhanced noise reduction and speaker for superb voice quality, and quick-access CH16 key. Channel selection is simplified with the inclusion of both a rotary control and direct keypad input. Automatic entry of own ship position and time is accomplished through interfaced GPS receiver. The FM8900S can also connect to an office or home via an existing PSTN (Public Switched Telephone Network).
The FM8900S scans all channels in the selected region as well as watches CH16 in alternate shifts.In the menu, all tasks are assigned numbers, and the operator can access each of the menu items either by turning and pressing PUSH TO ENTER knob or simply pressing the corresponding numbers on the numeric keypad for simplified operation. It features a Replay function that records the latest 120 seconds of incoming communication on the currently set channel. By simply pressing the “REPLAY” button on the numeric keypad, the last-received message will be played back on the spot.
The FM8900S fully meets GMDSS carriage requirements for SOLAS ships, as well as new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13. ATIS signal transmission is available for inland waterways.
Product advantages
Semi-duplex 25-Watt VHF radiotelephone with a built-in Class-A DSC and CH70 watch Receiver
Fully meets GMDSS carriage requirements for SOLAS ships
Easy to read, high-contrast 4.3" bright color LCD
Enhanced noise reduction and speaker for superb voice quality
Quick access to CH16 key
Easy channel selection with rotary control or direct keypad input
Automatic entry of own ship position and time through the interfaced GPS receiver
ATIS signal transmission available for inland waterways
Connect to an office or home via an existing PSTN (Public Switched Telephone Network)
Features
Full GMDSS-compliant VHF radiotelephone with Class-A DSC facility and CH70 watch receiver
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
In the box
1 X VHF Radiotelephone FM-8900S
1 X Handset HS-2003
1 X Handset Cradle FP05-05510
Technical characteristics
Brand : FURUNO
Functions : GMDSS
NMEA0183 : 1
Power : 25 W
Power input : 24 V
Type : VHF FIXE
Waterproof : 20 IP
WheelMarked : YES
Channels : 57
Frequency : 155 à 164 MHz
Function : ASN/GMDSS
Parts and accessories
00595179000 | BRACKET FOR HANDSET FP05-05510 FS-1570/2570 | 233,76 € With VAT (22%) |
00001027200 | PP-8800A STAMPANTE IMPRIMANTE | 1 683,60 € With VAT (22%) |
00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
00002087600 | JUNCTION BOX IF-8900 | NC |
00002087800 | RB-8900-15 STATION DEPORTEE 15M CABLE | NC |
00002087900 | RB-8900-20 STAZIONE REMOTA VHF CORNETTA E STAFFA DA 55CM FM-8900S | 1 692,08 € With VAT (22%) |
00002088300 | OP05-129 KIT INCASSO FM-8900S KIT MONTAGGIO A BASSO PROFILO FLUSH MOUNT KIT FM-8900S | NC |
00002089000 | REMOTE HANDSET HS-8900-15 FM-8900S | 1 095,95 € With VAT (22%) |
00002092100 | RB-8900-W-15 STATION DEPORTEE WITH 15CM CABLE | NC |
PP520 | PP-520 IMPRIMANTE GMDSS FELCOM18/FSx575/FM8900S | NC |
00005389500 | IF-8500 IF-8500 FM-8500 - Replaced by 00003767700 | 1 276,72 € With VAT (22%) |
00005439000 | HS-2003-20 COMBINE+ CABLE 0.6M SPIRALE FS2571C- CONNECTEUR DROIT | 346,21 € With VAT (22%) |
00143036000 | ANTENNA FIXING BRACKET CP05-14001 - - Replaced by 00147435000 | NC |
00119819010 | RIBBON CASSETTE 7Q1VP80SF PP-520 | 135,58 € With VAT (22%) |
00116597010 | EXTERNAL LOUDSPEAKER SEM-21Q - - Replaced by 00120854000 | 151,72 € With VAT (22%) |
00114449010 | FAB-151D ANTENNE WHIP WITHOUT FIXING BRACKET - Replaced by | 443,87 € With VAT (22%) |
00108132010 | AP-102 (BLACK) HANDSET HANGER - | 94,43 € With VAT (22%) |
00016633310 | 4-310071 ANTENNA FIXING BRACKET SUS304 | 122,40 € With VAT (22%) |
00011262311 | HANDSET WITH CURLED CORD HS-6000FZ5 05S0426-2 - Replaced by 00454240000 | 206,59 € With VAT (22%) |
00005609400 | RBD-VHF-B-75BG BOX MICROFONO BOX PER COLLEGAMENTO MICROFONO PER VHF | 544,12 € With VAT (22%) |
00005422300 | HS-2003-15 COMBINE+CABLE 0.30M SPIRALE FS2571C - CONNECTEUR DROIT | 304,79 € With VAT (22%) |
00560565000 | HS-6000FZ11 HANDSET | 375,81 € With VAT (22%) |
00538979000 | AP05-01001 CONNECTOR | NC |
00454240000 | HS-6000FZ5 HANDSET WITH CURLED CORD | 206,59 € With VAT (22%) |
00114449010 | CX4-3/FEC VHF ANTENNA SANS ETRIER FM8900S/FA150/FA50/FA30 - Replaced by AC-CX4-3 | 423,16 € With VAT (22%) |
00120854000 | SEM-21Q ALTOPARLANTE ESTERNO CONNETTORE JACK - | 103,70 € With VAT (22%) |
00117489000 | OP05-133 WATERPROOF SEAL FM-8900S | NC |
PP510 | PP510 PRINTER FELCOM15/18/82/FS1570/FM8800S - - Replaced by 00002269400 | 2 325,59 € With VAT (22%) |
00002088400 | OP05-132 BRACKET KIT FM-8900S | NC |
00002089100 | HS-8900-20 REMOTE HANDSET | NC |
00002089000 | HG-8900 HANDSET HANGER SUPPORT DU HS-8900 | 491,21 € With VAT (22%) |
00002092500 | HG-8900-W WATERTIGHT HANDSET HANGER FM-8900S | NC |
00002136700 | HS-2003-15-L COMBINE+CABLE 0.30M SPIRALE CONNECTEUR COUDE FS2571C | NC |
00002136800 | HS-2003-20-L COMBINE+ CABLE 0.6M SPIRALE FS2571C CONNECTEUR COUDE | NC |
00013507211 | HS-6000FZ11 HANDSET 05S9105-1 - Replaced by 00560565000 | NC |
00005439100 | HS-2003-50S COMBINE+ CABLE 5M SPIRALE CONNECTEUR DROIT | NC |
00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
00003767700 | IF-8500 INTERFACCIA STAMPANTE PER COLLEGAMENTO STAMPANTE | NC |
00002225700 | FM-8900S-A-E TRANSCEIVER | NC |
00001024600 | FP05-05700 HS-2003 COMBINE HS2003 + SUPPORT FS2571C | 503,05 € With VAT (22%) |
00102645000 | KNOB(N2.5) KNOB MFDBB | 44,38 € With VAT (22%) |
00133932000 | 05P0841(LF) TRX WR PRINTED CIRCUIT BOARD FM-8900S*KOREA* | 1 138,32 € With VAT (22%) |
001375370XX | 01-163 5P FOR CN820 CONNECTEUR XN CN8 | NC |
