Description
WHAT IS A SCANNING SONAR

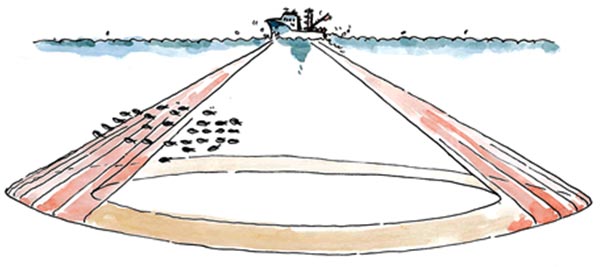

The transducer of a multibeam scanning sonar contains within it multiple elements that transmit simultaneously. This feature, which is usually present on professional equipment, guarantees a constantly updated image at each transmission on all 360°
SCANNING SPEED
The CSH-5L/8L sonar is capable of completing a circular scan with an amplitude of 360 degrees in 0.54 seconds, when a traditional search light sonar can take up to 30. This feature is extremely important for tracking and catching and of fish that move in schools.

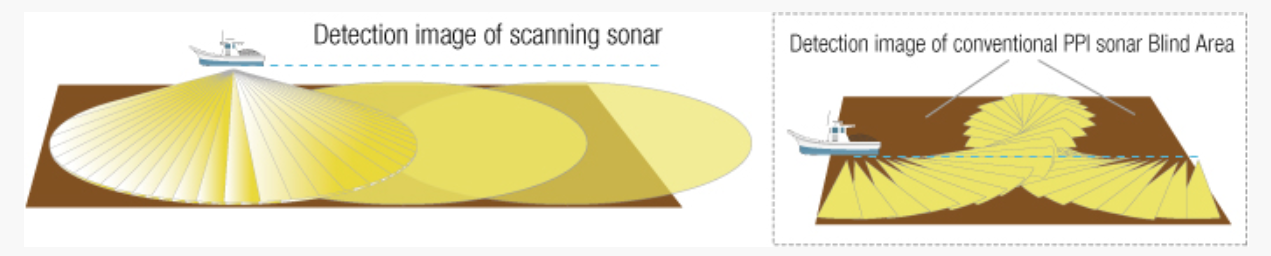

no blind sector
CSH-5L sonars show the situation at 360° around the boat and provide the necessary information exactly when needed, leaving no corner or blind sector
Product advantages
- Full-circle scanning sonar instantly detects and displays schools of fish and underwater conditions
- The vibrant 16-color display helps you recognize bottom structure, concentration and distribution of schools of fish
- Various fishing and cruising data * keep the operator aware of fishing and cruising conditions
* Requires appropriate sensors - Four user-programmable function keys for quick setup based on fishing conditions or specific functions
- The high power transmitter ensures reliable operation in any condition
- Transducer frequency: 85kHz
Features
CSH-8L is a high power multi beam furuno sonar for professional fishing. Thanks to the advanced functions and the continuous and simultaneous transmission on 360° CSH-8L is able to quickly detect schools of fish even at great distances. The operating frequency can be 55 kHz or 68 kHz depending on the model selected. This sonar is offered in the black box version for connection to an external monitor (for optimal viewing we suggest FURUNO MU-152, MU150HD or MU-190HD monitors).
In the box
1 x Processor Unit
1 x Control Unit
1 x Transceiver Unit
1 x Hull Unit
Technical characteristics
Power input : 100-240 V
Frequency : 85 kHz
Resolution : 1024 x 768 Pixels
RGB OUTPUT : 1
Parts and accessories
