FSS3BB

OVERVIEW

The FSS-3BB is a dual frequency color fish finder, comprised of a Trackball Control Unit, Processor Unit, Transceiver Unit and Transducer (optional/local supply)
The FSS-3BB shows underwater conditions on a monitor (optional/local supply)

• IDENTI-FISH™ function distinguishes swim bladder and swim bladder-less fish (required IDENTI-FISH™ compatible transducer)
• Fish-size graph allows estimation of fish distribution at a glance
• Data recording and screenshot function for easy review of past echoes (recordered data can be saved to an external data storage device)
• Geographical location of schools of fish can be output to connected navigational equipment
• InstantAccess bar™ icons list for easy access to menù along with a brief description of each items

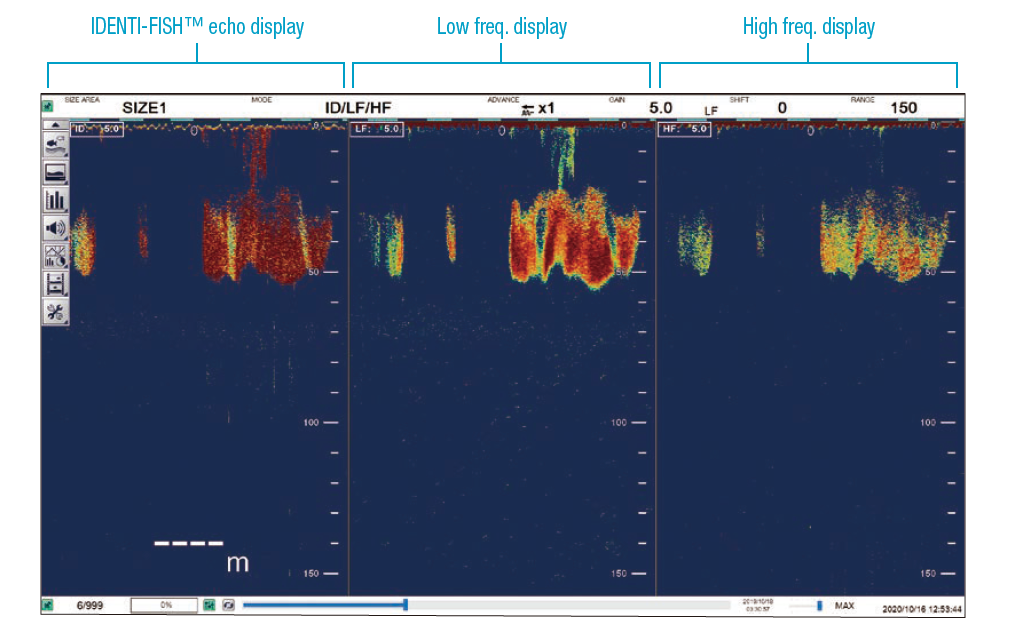

IDENTI-FISH^TM echo display

The IDENTI-FISH^TM echo display is a combined echogram of High and Low frequency echo, which enables to visualize a difference of the echo between swim bladder fish and swim-bladderless fish by the tone of a color.
When the color of echo is red-brown on the IDENTI-FISH^TM echo display, we can guess it would be a swim bladder fish.
When the color is light green, we can guess it would be a swim-bladderless fish

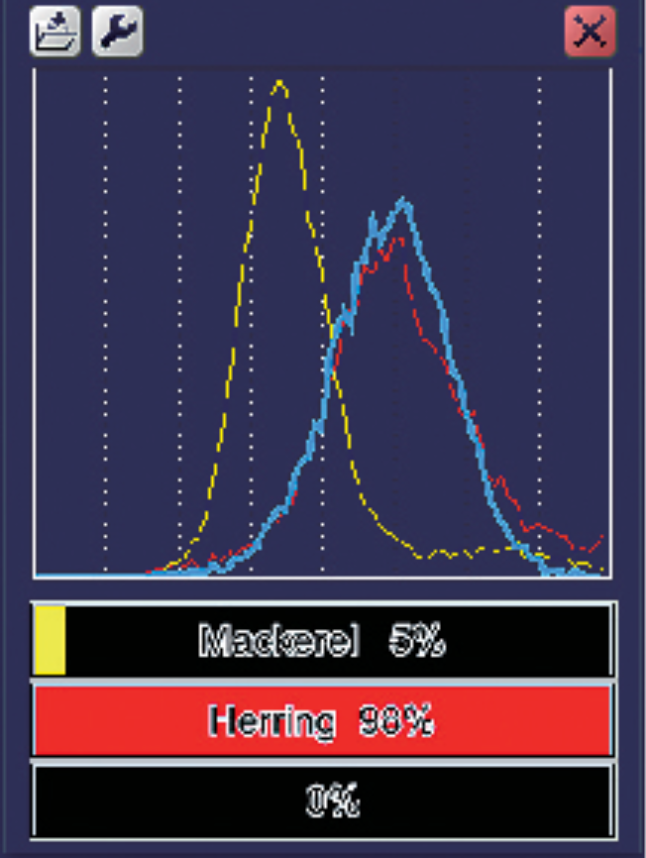

IDENTI-FISH™ - histogram

The IDENTI-FISH™ graph compares fish school histograms within the measurement range with model data and indicates similarity of fish species via numerical values and bar graphs. The default template data saved in the system is Atlantic mackerel and herring. You can add new fish species into your model data and create your own reference curves for any fish species. Two areas of the echogram can be measured and analyzed simultaneously.

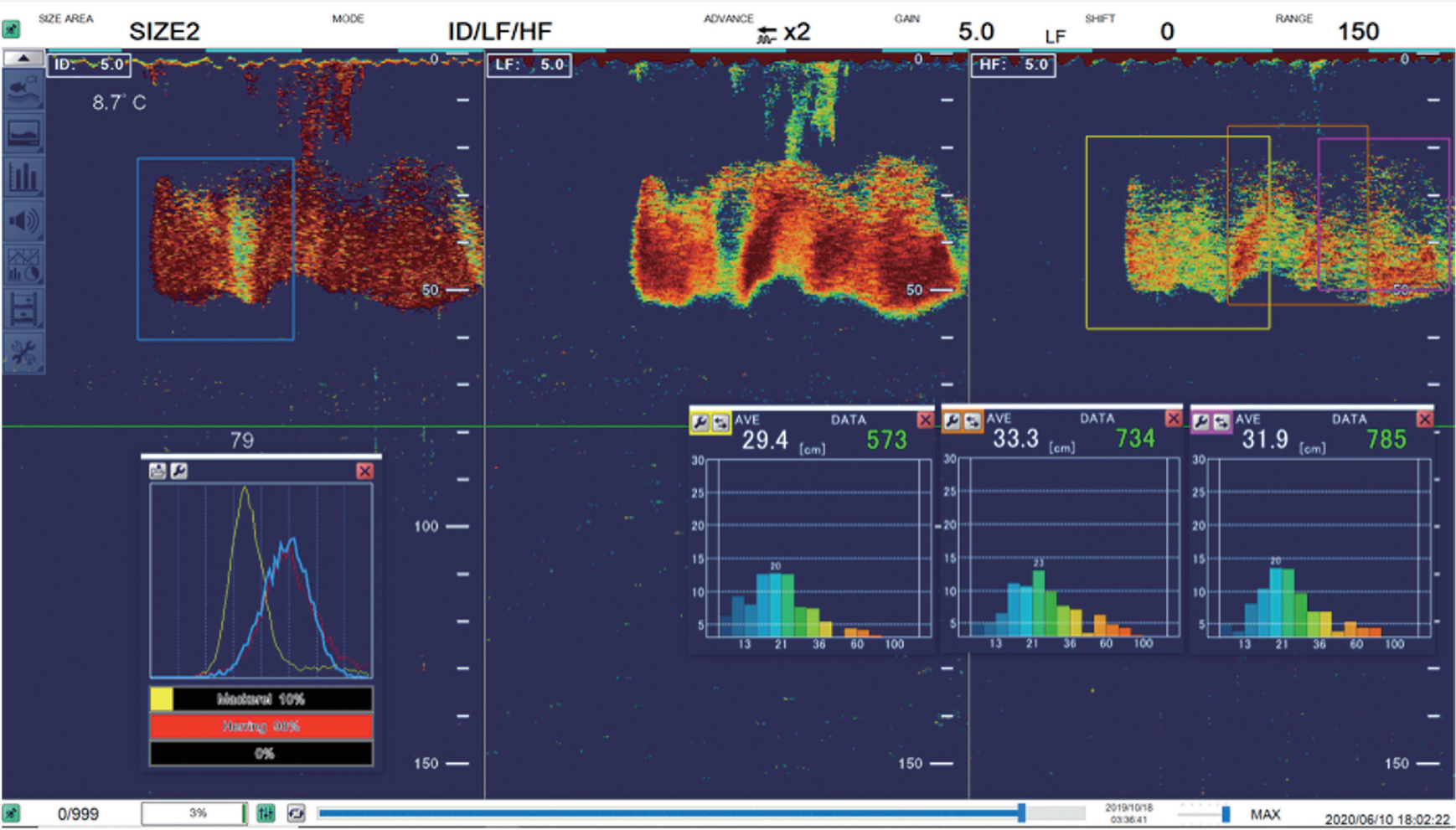

fish size measurement

The FSS-3BB measures the size and distribution of fish in the selected school and displays this information in a graph that can be understood at a glance. TruEcho CHIRP™ technology has improved the accuracy and reliability of fish size measurements and graphs.
It is possible to analyze up to 3 graphs simultaneously.
This feature allows you to compare and analyze fish size and schooling density, which are key data when targeting fish of a particular size.
User can choose 4 measurement methods:
1- Entire area : measures all detected fish
2- Specific range : measures detected fish within a selected depth
3- Backdrop : measures fish near the seabed
4- Specify area : measure fish within a selected area

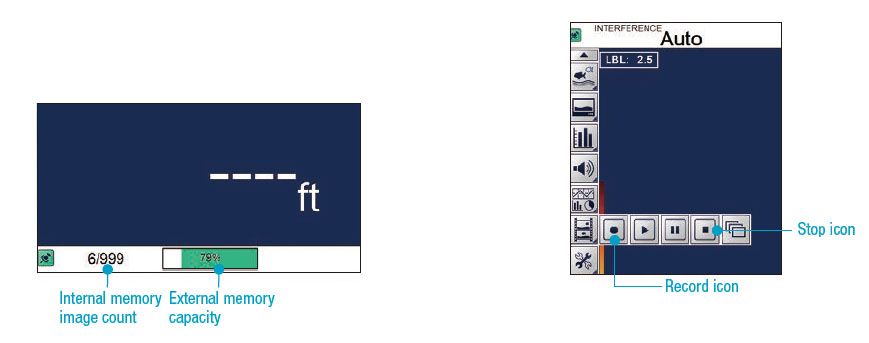

SCREENSHOT & record functions

It is possible to save up to 999 screenshots in the internal memory but it is also possible to install an external memory device to increase the capacity.
It is also possible to record the echogram to review it later.
The combination of the two functions allows the user to compare and analyze the echo image more efficiently.

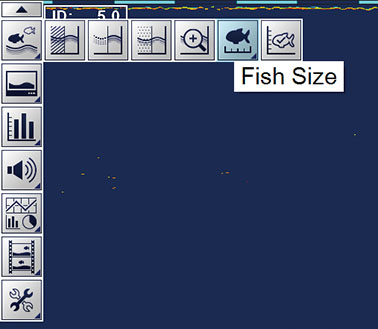

INSTANTACCESS BAR™

In the upper part of the display, the main functions are always available for immediate access and adjustment via dedicated trackball: Range, Shift, Gain, Progress, Display Mode menu.

In addition, you can add up to 10 functions to the InstantAccess bar™ for instant access

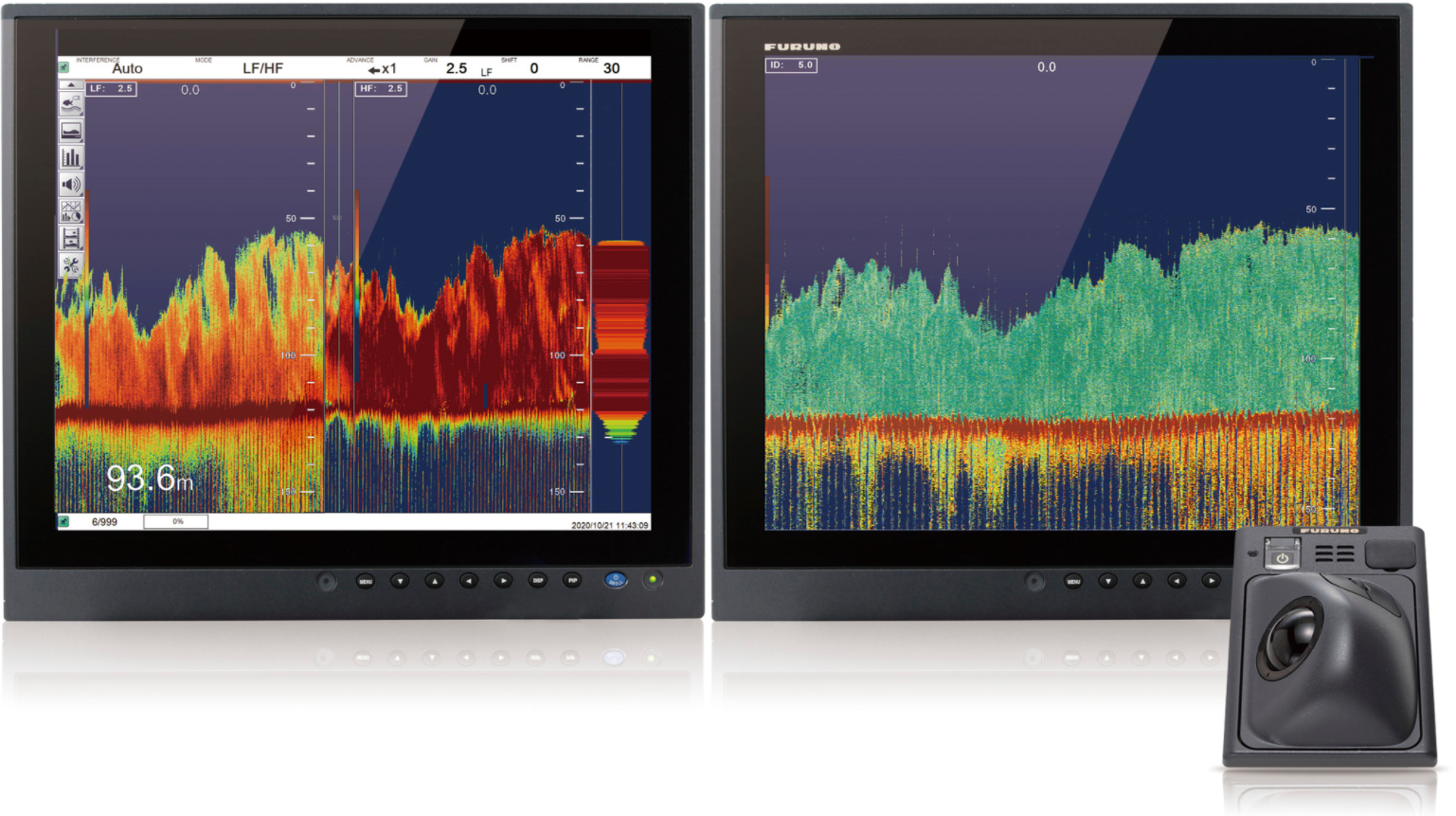

DUAL MONITOR

FSS-3BB supports a dual display configuration.
For example, in the photo you can see the high/low frequency echogram on the left, while on the right IDENTI-FISH™ eco display
