CV7V-BARO

Wind and weather sensors Ref : LC-CV7V-BARO

Vertical Ultrasound anemometer, NMEA0183, with barometer for motorboats.

PRICE : NC


Description

The CV7V-BARO is an ultrasonic wind vane anemometer CV7V with barometer sensor

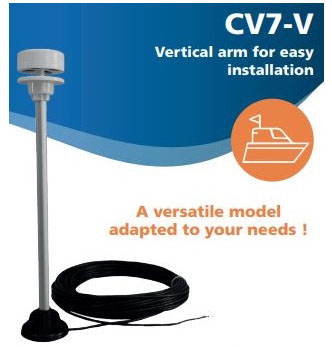

The CV7V-BARO is a 9 / 33V vertical arm ultrasonic wind vane anemometer with barometer sensor. This sensor has a vertical support of 30cm. In terms of functionality, they are identical to the CV7 ultrasound wind sensor with inclined arm.


Product advantages

CV7V-BARO is the ultrasonic wind sensor with barometer sensor  for motorboats.This ultrasonic wind sensor with barometer sensor CV7V-BARO comes with a mounting arm specifically designed for easy installation on any horizontal surface such as the cabin roof, a radar arch or a flybridge. The ultrasonic wind sensor CV7V-BARO can also be installed on a sailboat where there is not enough space on the masthead. The arm can be fixed to the side of the mast. The ultrasonic wind sensor CV7V-BARO's bracket is compatible with Glomex© type mounting bases. The small size of this sensor makes it very discreet. This ultrasonic wind sensor with barometer sensor CV7V-BARO can be set up to match the requirements all kinds of slow or fast boats.
CV7-V can be used connected to a PC and any systems featuring an NMEA® input port and specific pieces of equipment using conventional formats.
In PC mode, this bidirectional sensor can be set up for angle correction, damping, measure units and interface format.


Features

The CV7V-BARO is an ultrasonic wind vane-anemometer sensor CV7V with barometer sensor with different strengths:

CV7V :


In the box

1 X Wind vane sensor CV7V-BARO ultrasonic anemometer CV7V with barometer sensor
1 X Fixing bracket
1 X 25 m of cable 4X 0.22mm²
1 X Instruction of assembly and use
1 X Guarantee 2 years parts and labour

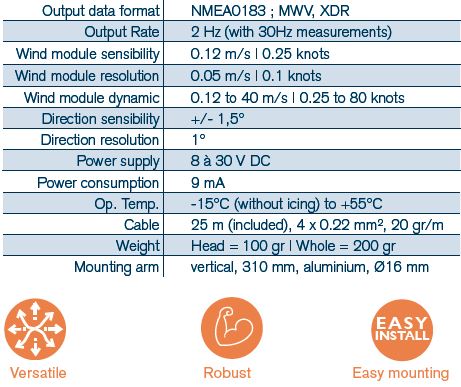

Technical characteristics

Applications : Motorboats
Barometer : YES
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 12 V
Wind module sensitivity : 0.25 Nd
