TZT19F
Multifunction displays Ref : IMD040020AANavNet TZtouch3 Chart Plotter/Fish Finder, 19" Touch Screen Display
PRICE : NCDescription
Go on a power trip with the most powerful MFD series available
Experience navigation like never before with this stunning and powerful 19'' Multi Function Display. Imagine having one or multiple units on your helm, giving you a conning station that makes it look like you're the captain of a sci-fi spaceship! Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder.
Quad-core processor for lightning-fast response

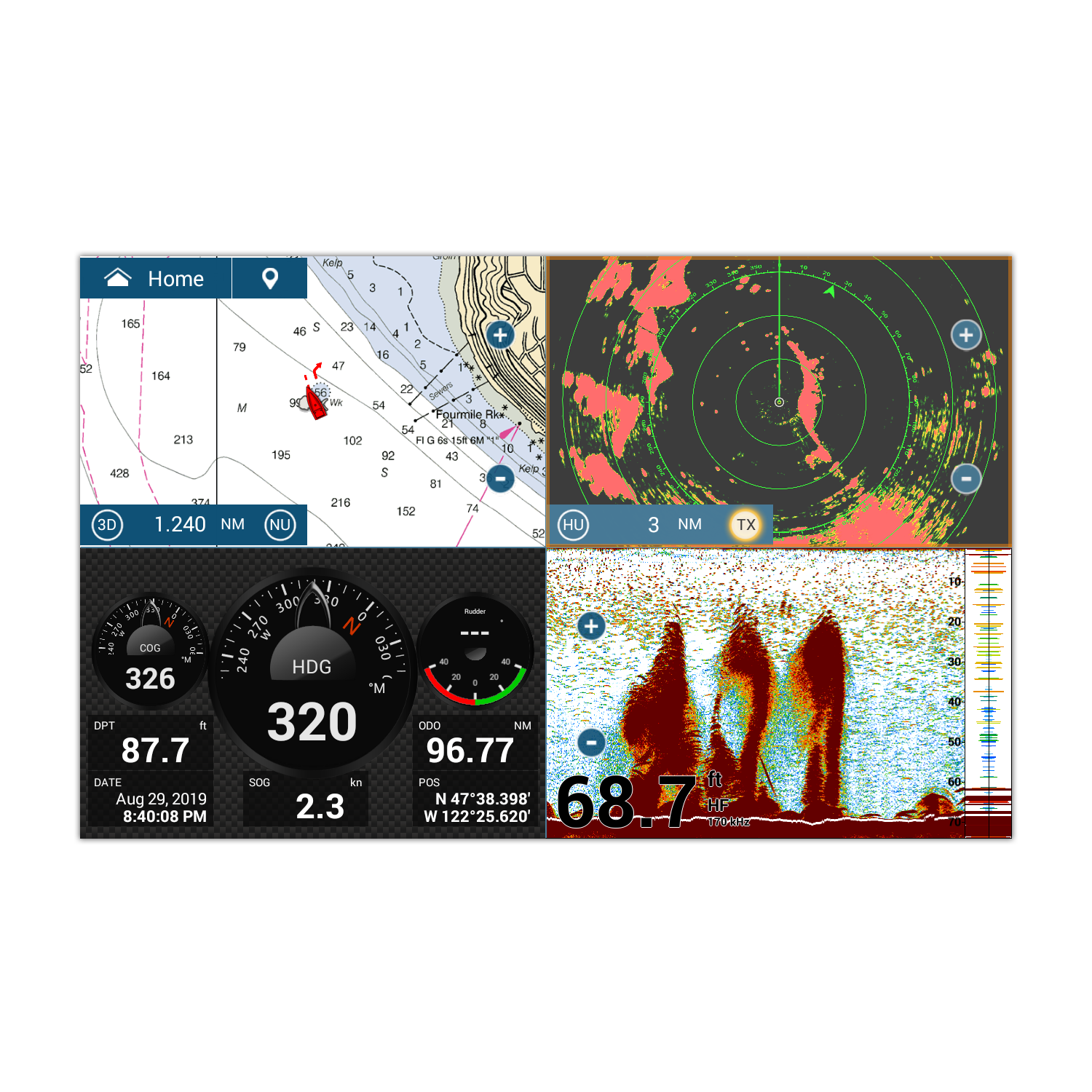

NavNet TZtouch3 offers three display options. The 12" Hybrid Control TZT12F is an IPS multi touch display with an integrated control panel, including FURUNO's intuitive RotoKey™ and dedicated physical buttons to complement NavNet TZtouch3's multi-touch controls. The 16" TZT16F and 19" TZT19F are sleek, all-glass, multi-touch IPS displays that deliver stunning presentations from virtually any angle. All models incorporate a powerful quad-core processor that takes NavNet's TimeZero technology to the next level, offering 4-way split-screen displays and lightning-fast response time.

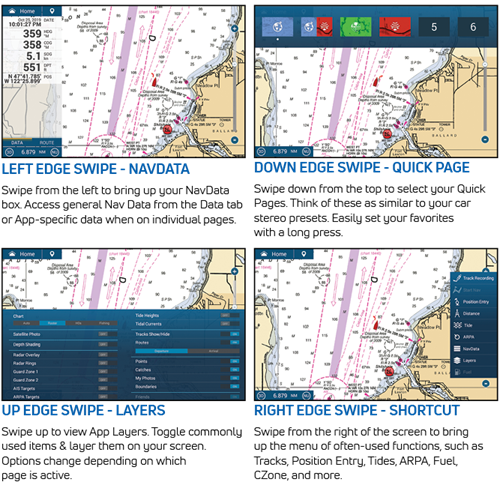

EASY to use; because finding your happy place shouldn't be difficult!
We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

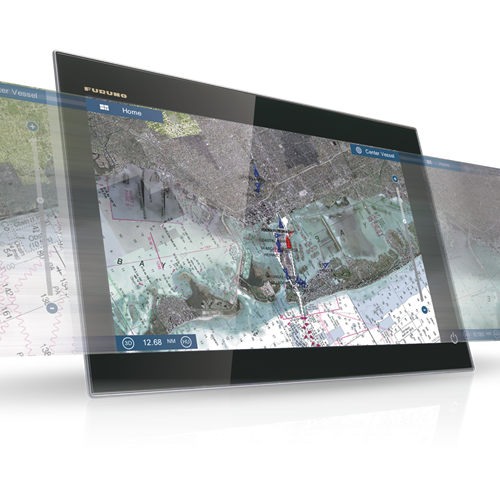

TimeZero™ Technology is faster than ever before
TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth & seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

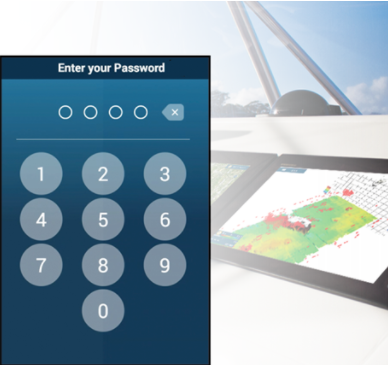

Pin Code Lock - require a password to access your TZtouch3 upon startup
The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

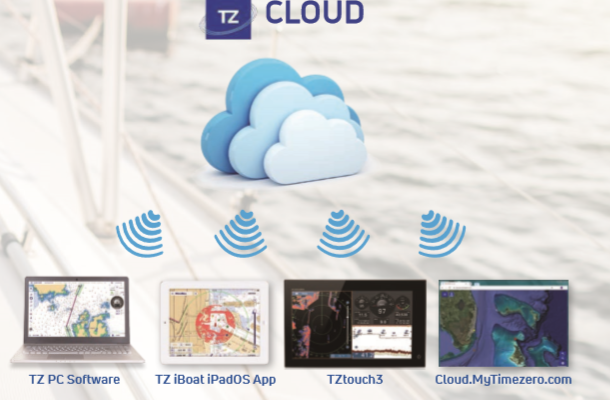

NEVER LOSE WAYPOINTS, ROUTES OR SETTINGS AGAIN WITH TZ CLOUD
Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)

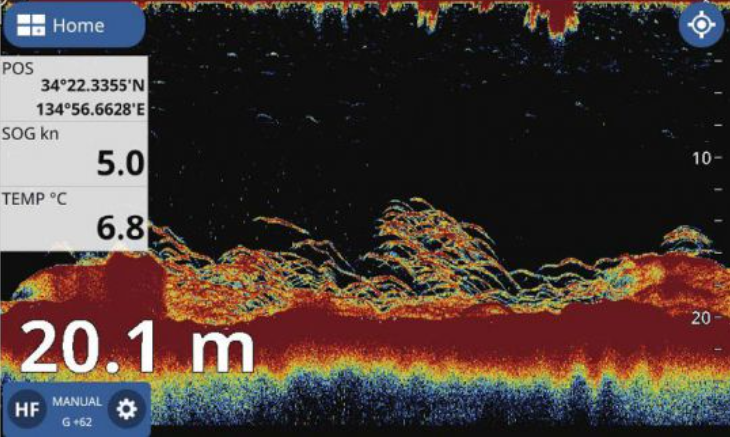

Built-in Dual Channel 1 kW TruEcho CHIRPTM & CW Fish Finder
Every TZtouch3 MFD includes a built-in 1kW, dual-channel TruEcho CHIRPTM Fish Finder. TruEcho CHIRPTM, designed to operate across a wide range of frequencies utilizing a broadband transducer, delivers significant advantages in signal clarity & target definition. Due to the constant sweeping of frequencies, TruEcho CHIRPTM is capable of gathering more & higher-quality data than traditional Fish Finders. For those looking for a higher-power CHIRP Fish Finder, FURUNO has made it possible to pump up the power of TruEcho CHIRPTM by interfacing the Deep Impact DI-FFAMP to the internal Fish Finder. Deep Impact boosts your power to a 2 kW or 3 kW CHIRP Fish Finder, ensuring that fish and bottom echoes come back sharp & clear at greater depths. Alternatively, the built-in Fish Finder is capable of outputting a traditional CW signal for those who prefer the industry-standard 50/200 kHz.
We gave you something to CHIRP about!
You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

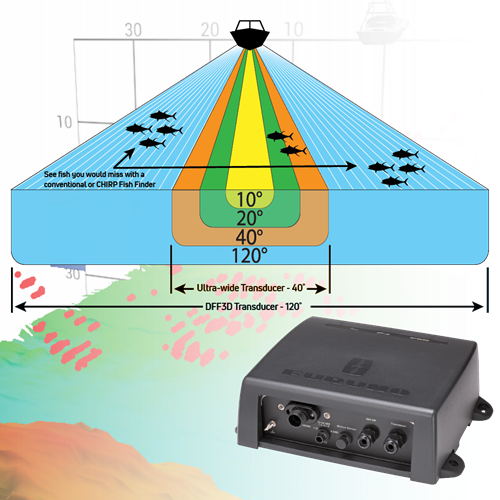

More power to see 120 degrees port-to-starboard; giving you an edge over the competition
Normal down-sounding Fish Finders have a beam angle of 40° or less. But with the DFF3D Multi Beam Sonar, you see 120° port-starboard for 200m (650+ ft). Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP™, you’ll have the ultimate fishing machine!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

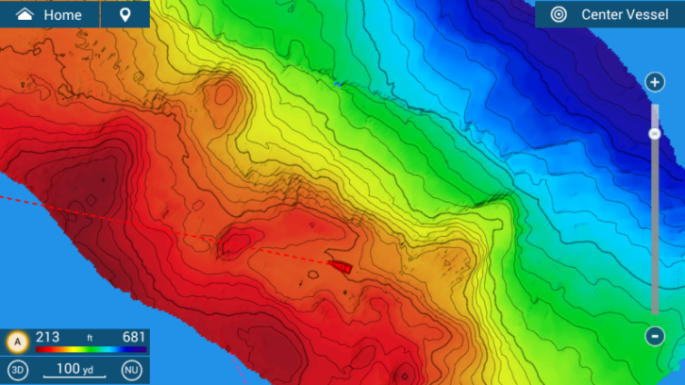

Create stunning shaded relief charts on your NavNet TZtouch3 MFD with PBG
Using the DFF3D Multi-Beam Sonar, NavNet TZtouch3's PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. The area each ping covers is approximately twice the depth at the time of recording, so at a depth of 100 meters, a 200 meter-wide area is displayed and recorded to your NavNet TZtouch3 MFD.

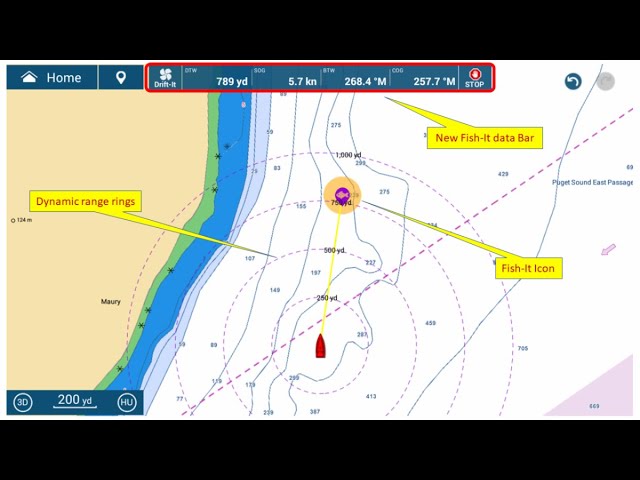

Revolutionary New Features for Fishermen - Fish-It & Drift-It!
The Fish-It & Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you'll pass right over your fishing point. Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary "fishing go-to point" with dynamic range rings, a course line between the point and the boat, and a temporary track line. Now activate Drift-It, an exciting new feature that automatically creates a starting point for the vessel to drift directly over your Fish-it spot. Select a 3-minute, 5-minute, or even a 20-minute drift, navigate to the starting point, and drift to the Fish-it location in the time selected. This is a game-changer for fishermen!

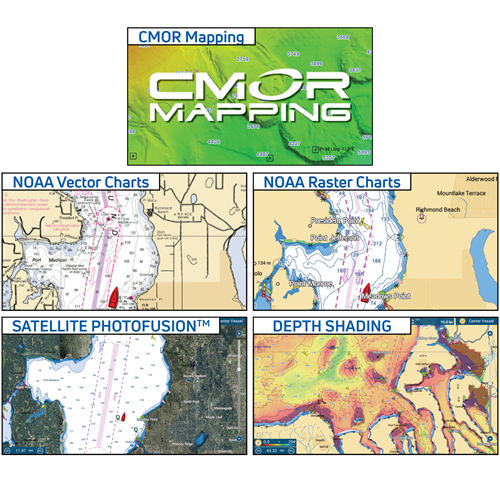

MapMedia Raster and Vector Chart Library
Freely choose the charts that fit your individual needs. Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be easily unlocked. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.
Click here to view MapMedia chart options for your MFD.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.
Click here to view MapMedia chart options for your MFD.

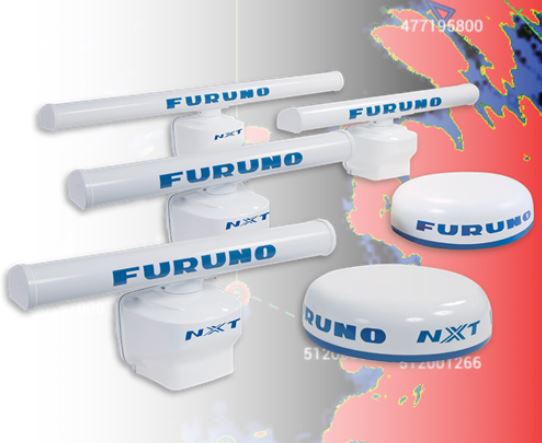

More power means better detection of all the targets around you
Are you ready to go on a Radar power trip™ Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno's NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.

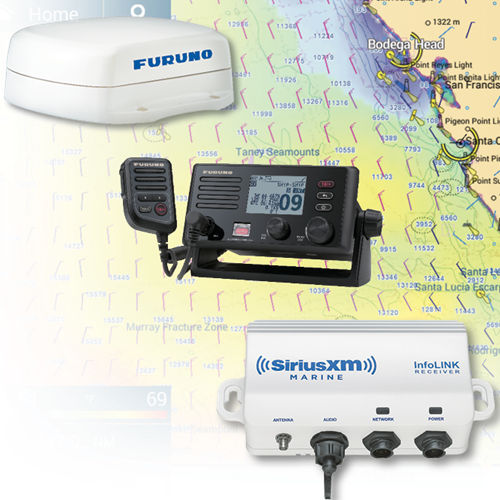

Build the ultimate Navigation Suite
The beauty of NavNet TZtouch3 is its scalability - systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.
Product advantages
It has all THE POWER you've wanted... and more.
• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRPTM & CW Fish Finder

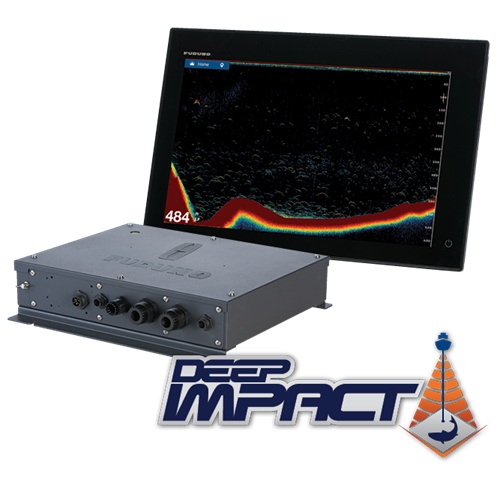

• High-power 2/3/5kW* TruEcho CHIRPTM Fish Finder network amp
• Power-packed 100W & 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan
• Large 19" and 16" multi-touch IPS display for maximum brightness
• Hybrid 12" display with RotoKeyTM and buttons for added accessibility
• Pin Code Lock - require a password to access your TZtouch3 upon startup
*Connect a 5kW or 10kW transducer using BT-5, power output is 3kW
Features
DISPLAY UNITDISPLAY UNIT
Type: Color TFT multi touch In-Plane Switching (IPS) LCDScreen Size 18.5" Wide
Screen Resolution: FHD 1920 x 1080
Screen Brightness: 900 cd/m2 (typical)
Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language : Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
RADAR
Display Modes: Head-up*, North-up* (*Heading input required).
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
FISH FINDER
Transmit Frequency: CW: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Transducer: 300/600 W or 1 kW* (*Matching box MB1100 required for some FURUNO transducers).
Display Range: 2-1, 200 m, shift: 0-1200 m
Extension Mode: ACCU-FISHTM, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM
Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option): School of fish, School of fish for bottom lock
INTERFACE
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Serial Output Port
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0) for touch monitor and control unit
Video I/O
- Input: 2 Ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)
- Output: 1 Port (HDMI 1 080p)
SD Card Slot: 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer: 1 Port
ENVIRONMENT
Temperature (IEC60945): -15°C to +55°C
Relative Humidity: 93% or less at +40° C
Waterproofing: IP56
POWER
12-24 VDC
4.7 - 2.3 A
In the box
TZT19F-E MULTI FUNCTION DISPLAY 1 SET
INCLUDING:
- POWER CABLE FRU-3P-FF-A002M-001 (2 M) 1 PC
- 12-10 PIN ADAPTER CABLE FRU-CCB12-MJ-01 (0.5 M) 1 PC
- INSTALLATION MATERIALS
- ACCESSORY
NOTE:
- FOR FLUSH MOUNT ONLY
- NO BRACKET MOUNT SUPPORTED
Technical characteristics
Brightness : 900 cd/m2
CHIRP Soundeur 1kW integrated : 1
Consuption : 56.4 W
Integrated sounder : 1
Integrated Wifi : 1
NMEA0183 : OUTPUT
NMEA2000 : 1
Resolution : 1920 x 1080 Pixels
Screan size : 18.5
Waterproof : 56 IP
Videos
Introducing the NavNet TZtouch3
Fish It & Drift It Features on TZtouch3
PBG (Personal Bathymetric Generator) on TZtouch3 - Draw your own shaded relief maps
Ultimate Fishing TV - Furuno's NavNet TZtouch3 Review
Parts and accessories
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | NC |
| 00001176200 | HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) | NC |
| 00001178300 | 525STID-MSD SONDE 600W SONDE B744 | NC |
| 00001178400 | 525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB) | NC |
| 00001252000 | BT-5-1 BOOSTER BOX 10KW/MONOFREQUENCE - | NC |
| 00001252100 | BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA - | NC |
| 00001348400 | PR-62 (CHINA) AC100V ALIMENTATION AC/DC | NC |
| 00001348500 | PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V | NC |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | NC |
| 00001348700 | PR-62 (CHINA) AC230V ALIMENTATION AC/DC AC230V | NC |
| 00001500500 | 28F-38M *15M* SONDE 5 kW ; 28 kHz | NC |
| 28F-38M | 28F-38M *30M* SONDE 5KW 28KHZ 30M 5KW 28KHz 30M | NC |
| 28F-72 | 28F-72 *15M* SONDE 10KW 28KHZ 15M 10KW 28KHz 15M | NC |
| 00001500800 | 28F-72 *30M* TRANSDUCER | NC |
| 50F-38 | 50F-38 *15M* SONDE 5KW 50KHZ 15M 5KW 50KHz 15M FCV1200+BT5 | NC |
| 00001501100 | 50F-70 15M SONDE 10 kW ; 50 kHz | NC |
| 88B-10 | Sonde 88B10 - 88kHz - Rubber - câble 15m | NC |
| 200B-5S | 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800 | NC |
| 00001503000 | 200B-8 *10M* TRANSDUCER | NC |
| 200B-8B | Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m | NC |
| 50B-6 | 50B-6 *10M* SONDE 1KW 50KHZ - Replaced by 00003835100 | NC |
| 50B-6B | 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800 | NC |
| 00001506800 | 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA | NC |
| 200B-12H | 5 kW/ 200 kHz / 4 degree Beam Angle / 11 lbs. Rubber Coated - Tank Mounted / 15-Meter Cable, no connector provided | NC |
| 00001507300 | 68F-30H TRANSDUCER | NC |
| 00001507400 | 150B-12H 15M TRANSDUCER | NC |
| 28BL-6HR | Transducer 28BL-6HR - 28kHz - Plastic - cable 15m | NC |
| 28BL-12HR | 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 38BL-9HR | 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 82B-35R | Transducer 82B35R 65 to 110kHz - Rubber - cable 15m | NC |
| 00001509200 | 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 50BL-12HR | Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug | NC |
| 00001509400 | 50BL-24HR SONDE 3KW 50KHz 15M 3KW 50 KHz | NC |
| 00001517000 | Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000 | NC |
| 00001520400 | Plastic transducer 600W 50/200kHz (520-5PSD) | NC |
| 00001520500 | TFB-4000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.4 THRU-HULL PIPE | NC |
| 00001520600 | TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE | NC |
| 00001520700 | TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - | NC |
| 00001520900 | TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE | NC |
| 00001521200 | 520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE | NC |
| 00001521500 | TRB-1000(1) THRU-HULL PIPE | NC |
| 00001521800 | TRB-1100(2) THRU-HULL PIPE | NC |
| 00002051000 | IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Replaced by 00003767000 | NC |
| 00002253200 | TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE | NC |
| 00002301900 | 525T-PWD TRANSDUCER AF/BD/ (RB) | NC |
| 00002302000 | 525T-BSD TRANSDUCER AF/BD/ (RB) | NC |
| 00002302100 | 526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB) | NC |
| 00002367600 | SS60-SLTD/12 TRANSDUCER 02H100540 | NC |
| 00002367700 | SS60-SLTD/20 TRANSDUCER 02H100550 | NC |
| 00002367800 | 525T-LTD/20 TRANSDUCER AF/BD/ (RB) | NC |
| 00002367900 | 525T-LTD/12 TRANSDUCER AF/BD/ (RB) | NC |
| 00002368000 | 520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD | NC |
| MCU-002 | Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F | NC |
| SDU-001 LETTORE CARTE 2XMICROS | 2XMICROSD reader | NC |
| 00002722600 | MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE - | NC |
| 00002740400 | PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA | NC |
| 00002740500 | PM111LM TRANSDUCER | NC |
| CM599LHG | CM599LHG TRANSDUCER URETANO CON SENS TEMP | NC |
| CM599LM | CM599LM TRANSDUCER 28-60 kHz et 80-130 kHz | NC |
| 00002740900 | TRB-1100(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE | NC |
| 00002743800 | 100B-10R TRANSDUCER | NC |
| 525-5PWD | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Replaced by 00003827700 | NC |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | NC |
| MCU-004 | Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F | NC |
| MCU-005 | Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F | NC |
| 00003550000 | TM150M CHIRP TRANSDUCER 19S113620 | NC |
| 00003550100 | B-75L CHIRP TRANSDUCER 19S113640 | NC |
| 00003550200 | B-75H CHIRP TRANSDUCER 19S113630 | NC |
| 00003550300 | B-175L CHIRP TRANSDUCER 19S113650 | NC |
| 00003550400 | B-175H CHIRP TRANSDUCER 19S113610 | NC |
| 00003553400 | Gesture Controller for NAVpilot300 | NC |
| DI-FFAMP | Fish Finder Amplifier | NC |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00003827700 | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA | NC |
| 200B-5S | 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 | NC |
| 50/200-1T (RUBBER) | Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic | NC |
| 50B-6 | Transducer 1kW 50kHZ 50B-6 *10M* 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB | NC |
| 00003835500 | 68F-30H TRANSDUCER | NC |
| 50B-6B | 50B-6B *15M* TRANSDUCER | NC |
| 00003908800 | 88F-126H TRANSDUCER 02S3024-2 | NC |
| 00008644300 | OP03-136 OP03-136 - | NC |
| 00015968911 | MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2 | NC |
| 00016714010 | JOINT BOX TL-CAT-012 - | NC |
| 00016717110 | MOD-Z073-030+ CAVO LAN 3M RJ45/RJ45 PER HUB 19S1146-0 - Replaced by 00158889000 | NC |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | NC |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | NC |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | NC |
| 00124766000 | NCS-2RNCTSB *20M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00124767000 | NCS-2RNCTSB *50M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00124768000 | NCS-2RNCTSB *100M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00014250300 | C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100 | NC |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | NC |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | NC |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | NC |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | NC |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | NC |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | NC |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00156039000 | FRU-F12F12-100C CABLE ASSEMBLY 02S101320 | NC |
| 00156040000 | FRU-F12F12-200C CABLE ASSEMBLY 02S101320 | NC |
| 00156042000 | FRU-F7F7-100C CABLE ASSEMBLY 02S101310 | NC |
| 00156043000 | FRU-F7F7-200C CABLE ASSEMBLY 02S101310 | NC |
| 00158880000 | MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2 | NC |
| 00158889000 | MOD-Z073-030+ CABLE EQUIPE RESEAU PC/HUB POE 19S1146-0 | NC |
| 00160551000 | OP19-26 CONNECTOR KIT FOR TX SYNC TZT12F/16F/19F | NC |
| 00160845000 | 12-Pin Transducer Extension Cable, 10 Meter | NC |
| OD-STARTER-KIT | KIT DE DEMARRAGE NMEA2000 CERTIFIE | NC |
| RO-00304 | CARTE SD/MICROSD 64GB CARTE 64GB PRECHARGEE | NC |
| MS-WIDE MM3D | WIDE ZONE WIDE MM3D RASTER, CMAP MM3D | NC |
| MS-MWIDE MM3D | MWIDE ZONE MEGA WIDE MM3D RASTER, JEPPESEN MM3D | NC |
| 00019709210 | FRU-3P-FF-A002M-001 CABLE ALIMENTATION TZT3 sauf TZT9F | NC |
| P319DT | Transducer 600W True Hull Plastic 50/200kHz, bi-function P & T | NC |
| B60-12 | The Transducer bronze B60-12º Traditional/CW | NC |
| SS60-0 | SS60-0 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| SS60-12 | SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| B45 | Thru Hull transducer 600W 50/200 kHz Bronze 2 functions (B45) | NC |
| B744V | Transducer True-Hull 600W Bronze 50/200kHz 3 functions | NC |
| B744VL | Tranducer True-Hull 600W Bronze 50/200kHz 3 Functions | NC |
| P66D | Transducer 600W True-Hull plastic 50/200kHz Depth - Replaced by AI-31-470-4-01 | NC |
| P66 DST | P66 TRIDUCER 600W Multisensor features our 50/200 kHz, dual-frequency, single-ceramic element | NC |
| B260 | Transducer True-hull 1kW Bronze 50/200 kHz 2 functions | NC |
| M260 | Transducer In-Hull 1000W 50/200 kHz | NC |
| TM258 | Transducer True-Hull 1000W plastic 50/200 kHz - Replaced by AI-41-404-1-03 | NC |
| TM260 | TM260 Transom, 1 kW, Broadband - Wide 19° beam at 50 kHz - Narrow 6° beam at 200 kHz - Interfaces to any 600 W or 1 kW sounder - Depth and fast-response water-temp | NC |
| B265LH | BroadBand Trasducer CHIRP P&T XID 42-65/130-210 kHz 1kW | NC |
| TM275LH-W | CHIRP Transducer TM275LH-W EXT (TA) Plastic 1KW XID CABLE 12M | NC |
| CM265LH | Transducer CHIRP, P & T, XID 42-65/130-210 kHz 1kW | NC |
| B275LH-W | B275LHW Wide-Beam Chirp | NC |
| MMC-12F-FU | CABLE M&M/12BROCHES CHIRP TZT3 CORDON D'ADAPTATION | NC |
| P79 D | Transducer 600W In-Hull Plastic 50/200kHz Depth | NC |
| B60-20 | The bronze B60-20º Traditional/CW | NC |
| B164 12 | B164 Traditional/CW 12° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor | NC |
| B164 20 | B164 Traditional/CW 20° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor | NC |
| SS164-20 | Transducer - 50/200 kHz - 1 kW RMS - 20° Tilt - Stainless Steel - Exclusive Xducer ID® technology | NC |
| AI-33-046-01 | INSERT DE REMPLA. POUR B744V POUR SONDE B744V B744V | NC |
| AI-33-479-01 | SUPPORT PLAST. POUR P66 TA POUR SONDE P66 | NC |
| AI-33-476-06 | SABOT PROFILE 0 POUR B744V | NC |
| AI-33-203-04 | CAVO 9M PROLUNGA 10PIN M/F DST PER TRASDUTTORI CONN FURUNO SONDE 10B | NC |
| AI-33-509-05 | SABOT PROFILE 0 POUR B45 | NC |
| AI-33-113 | ST650 ROUE A AUBE 4 PALES POUR B744V / ST800 | NC |
| AI-33-473-01 | ROUE A AUBE 4 PALES POUR P66 KIT 33-473-01 POUR P66 | NC |
| AI-20-073 | SUPPORT VENTOUSE SONDETRIE PORTABLE TRANSOM MOUNT BRACKET | NC |
| AI-33-073-02 | CORDON ADAPT 10PM<->8PF 1M C32 1M 8F-F 10M | NC |
| AI-33-391-01 | FAIRING BLOCK B260 HIGH PERFORMANCE - AIRMAR | NC |
| AI-33-523-02 | SABOT PROFILE POUR B258 B285 HIGH PERFORMANCE - AIRMAR - Replaced by AI-33-523-01 | NC |
| AI-33-539-02 | CAISSON POUR SONDE M260 Model M260 in hull tank kit | NC |
| AI-33-204-01 | CORDON ADAPT 8PM<->10PF 1M C332 1M 8M-F 10F | NC |
| B75L | TRANSDUCER CHIRP simple band 40-75kHz, 300W, True-hull, Bronze, Depth et temperature, Beam angle 32°/21°, cable 9m | NC |
| B75L | TRANSDUCER CHIRP simple band 40-75kHz, 300W, True-hull, Bronze, Depth et temperature, Beam angle 32°/21°, cable 9m | NC |
| TM150M | Transducer CHIRP simple band 95-155kHz, 300W, True-Hull, plastic, depth and temperature, Beam angle 26°/17°, cable 12m | NC |
| B150M | Chirp transducers operating at a frequency range of 95-155 kHz300W, THRU HULL, Bronze | NC |
| B75M | Transducer CHIRP simple band 80-130kHz, 600W, True-Hull, Bronze, depth et temperature, beam angle 26°/16°, cable 9m | NC |
| B75M | B75M 12 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75M | Transducer CHIRP simple band 80-130kHz, 600W, True-Hull, Bronze, depth et temperature, beam angle 26°/16°, cable 9m | NC |
| B785M | Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, bronze, Depth and temperature, Beam Angle 24°/16°, Cable 9m de cable | NC |
| SS75M | Transducer CHIRP simple band 80-130kHz, 600W, True-Hull, INOX, Depth and temperature, Beam Angle 24°/16°, Cable 9m de cable | NC |
| SS75M | SS75M 12DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75M | SS75M 20DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75H | Transducer CHIRP simple bande 130-210Hz, 600W, True-Hull, Bronze, depth et temperature, beam angle 26°/17, cable 9m | NC |
| B75H | B75H 12DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75H | B75H 20 DT SONDE TR BR CHIRP 130-210HZ/600W/12M/10B GP1X71F | NC |
| SS75H | Transducer CHIRP simple band 130-210kHz, 600W, True-Hull, INOX, Depth and temperature, beam angle 15°/9°, cable 9m de câble | NC |
| SS75H | SS75H 12DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75H | SS75H 20DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| TM165HW | Transducer CHIRP simple band WIDE 150-250kHz, 600W, True-Hull, plastic, depth et temperature, beam angle 30°, cable 9m | NC |
| B175L | Transducer CHIRP single band 40-60kHz, 1kW, Thru-Hull, Bronze, depth and temperature, Beam angle 32°/21°, cable 9m | NC |
| AI-41-562-2-01 | B175L DT TRANSD BR 12° CHIRP 40-60KHZ/1KW/9M/10B | NC |
| B175L | B175L 20 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE | NC |
| TM185M | Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, plastic, depth et temperature, beam angle 16 to 11°, cable 12m. | NC |
| B285M | Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, bronze, Depth and temperature, Beam Angle 24°/16°, Cable 9m de cable | NC |
| B175M | Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, Bronze, Depth and temperature, Beam Angle 16°/11°, Cable 9m de cable | NC |
| B175M | B175M 12 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 20 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM NEED AI-33-1424-01 NECESSAIRE | NC |
| B175H | CHIRP Transducer simple bande 130-210kHz, 600W, Thru Hull, Bronze, 11°/6°, cable 9m de câble for Furuno GP1X71F | NC |
| B175H | CHIRP Transducer simple bande 130-210kHz, 600W, Thru Hull, Bronze, 11°/6°, cable 9m de câble for Furuno GP1X71F | NC |
| TM185HW | Transducer CHIRP simple band WIDE 150-250kHz, 1KW, True-Hull, plastic, depth et temperature, beam angle 25°, cable 9m - Replaced by AI-41-915-1-01 | NC |
| B285HW | Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, bronze, Depth and temperature, Beam Angle 24°/16°, Cable 9m de cable | NC |
| B175HW | B175HW 0 DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW | B175HW 12DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW/20 | B175HW 20 DT SONDE TR BR CHIRP 150-250KHZ/1KW/12M/10B GP1X71F | NC |
| AI-33-1423-01 | CABLE M&M CHIRP FREQUENCE L 1 M 12MM 10F | NC |
| AI-33-1424-01 | CABLE M&M CHIRP FREQUENCE M/H 1 M 12MM 10F 1M 12M&M 10F | NC |
| RO-00525 | CARTE SD/MICROSD 256GB CARTE 256GB PRECHARGEE | NC |
| MU TZT3 | MU TZT3 Manuel d'utilisation Francais | NC |
| SS904 | Side-Scan Transducer for NavNet TZtouch3 | NC |
| TM904 | Side-Scan Transducer for NavNet TZtouch3, TZtouchXL | NC |
| PR904 | Paired Thru-Hull CHIRP Side-Scan Transducers for NavNet TZtouch3 | NC |
| RO-GS308PP | GS308PP HUB POE 8 PORTS RJ45 SWITCH ETHERNET Métal Gigabit (10/100/1000) | NC |
| RO-NGX-1-USB | INTERFACE BI-DIRECTIONNELLE NMEA2000 > PC ou NMEA 0183 non compatible SCSETTING TOOL | NC |
| 00003716000 | TZT19F-E MULTI FUNCTION DISPLAY | NC |
| DRS4DL+ | 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. | NC |
| IMD03456000 | ANTENNA RADAR DOPPLER RADOME 25 W - Replaced by IMD03456001 | NC |
| DRS6A-NXT | 25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. | NC |
| DRS6A-XCLASS | 6kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5, 4 or 6 antenna and, cable. - Replaced by IMD034550BA | NC |
| DRS12A-XCLASS | 12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4 or 6 antenna and, cable. | NC |
| DRS25A-XCLASS | 25kW, 96 n.m., UHD Digital Radar for NavNet TZtouch , TZtouch2, and TZtouch3, less 3.5', 4 or 6 antenna and, cable. | NC |
| DFF3D | Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch | NC |
| GP330B/NMEA2000 | Active GPS/SBAS receiver antenna - NMEA2000 ( NMEA0183 cable in option) A high performance NMEA2000 GPS Receiver designed for any type of vessel. | NC |
| PG-500 | The FURUNO PG-500 is an inexpensive magnetic heading sensor for pleasure craft and coastal fishing boats. - Replaced by IMD016650AB | NC |
| PG700 | NMEA2000 Rate Compensated Heading Sensor w/ 6M NMEA2000 Cable | NC |
| FAX30 | External Black Box Weatherfax & Navtex Receiver w/5M PC Crossover Cable, Less Antenna - Replaced by IMD02788001 | NC |
| 200WX | WeatherStation Instrument - Replaced by AI-44-854-1-03 | NC |
| FI70 | INSTRUMENT / DATA ORGANIZER 4,1" - 320×240 (QVGA) - 700 cd/m² - IPX6 - NMEA2000 - Cable 6m | NC |
| NAVPILOT300 | Adaptive Autopilot with 4.1" Color LCD and Gesture Controller - Replaced by IMD03230003 | NC |
| NAVPILOT711C | Autopilot CAN Bus, 4,1", FAP7011C + FAP7002 - Replaced by IMD034240BB | NC |
| SC70 | High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy - Replaced by IMD0345200D | NC |
| SC130 | 4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy) - Replaced by IMD0347000D | NC |
| 00019709410 | FRU-60V-FU-7.5A FUSE 19S113890 | NC |
| 00139088000 | 19P1089(LF) SDXC PRINTED CIRCUIT BOARD CHINA TZTL12/15 | NC |
| 00156038000 | FRU-F12F12-050C CABLE ASSEMBLY 02S101320 | NC |
| 00156041000 | FRU-F7F7-050C CABLE ASSEMBLY 02S101310 | NC |
| 00157967000 | 02P6414(LF) MAIN PRINTED CIRCUIT BOARD DI-FFAMP | NC |
| 00157968000 | 02P6415(LF) FIL PRINTED CIRCUIT BOARD DI-FFAMP | NC |
| 00158053000 | TZT9/12/16/19F COVER CARD COVER ASSEMBLY | NC |
| 00158056000 | 19P1103(LF) PWR PRINTED CIRCUIT BOARD TZT12F/16F/19F - Replaced by 00161799000 | NC |
| 00158093000 | 19P1110(LF) MAIN PRINTED CIRCUIT BOARD TZT19F | NC |
| 00158095000 | TZT19F PNL/19P1107B LCD ASSEMBLY | NC |
| 00161799000 | 19P1103(LF) PWR PRINTED CIRCUIT BOARD CHINA TZTXXF | NC |
| 00161941000 | CP19-02501 INSTALLATION MATERIALS CHINA TZT16/19F | NC |
