CV7C

CV7-C

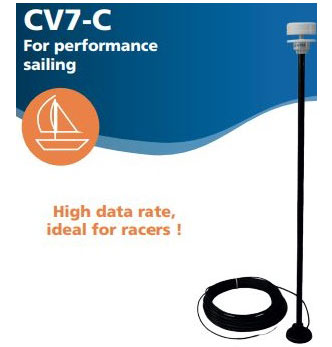

Wind and weather sensors Ref : LC-CV7-C

This sensor with 700 mm long carbon arm is an excellent model for competitors.

PRICE : NC


Description

High data rate, ideal for racers !

This sensor with 700 mm long carbon arm is an excellent model for competitors. It features high data rate and is installed on top of masthead. This keeps the sensor head out of the upwash effects that affect the accuracy of wind data measurements.

Product advantages

The result of partnerships between mini 6.50 and class 40 series skippers, the CV7-C is an ultrasonic high speed wind vane-wind speed indicator. It is designed for offshore racing and operates twice as fast as the CV7 and CV7-V models. It is mounted on a carbon pole in order to catch the wind far from interference from the mast and the sails.

Features

In the box

–  CV7-C – High speed ultrasonic wind sensor with a 700 mm vertical carbon pole
– Mounting Bracket
–  Cable (25 m) 4 X 0.22 mm²
– User and installation manual
– 2-year warranty, parts and labour, in our premises

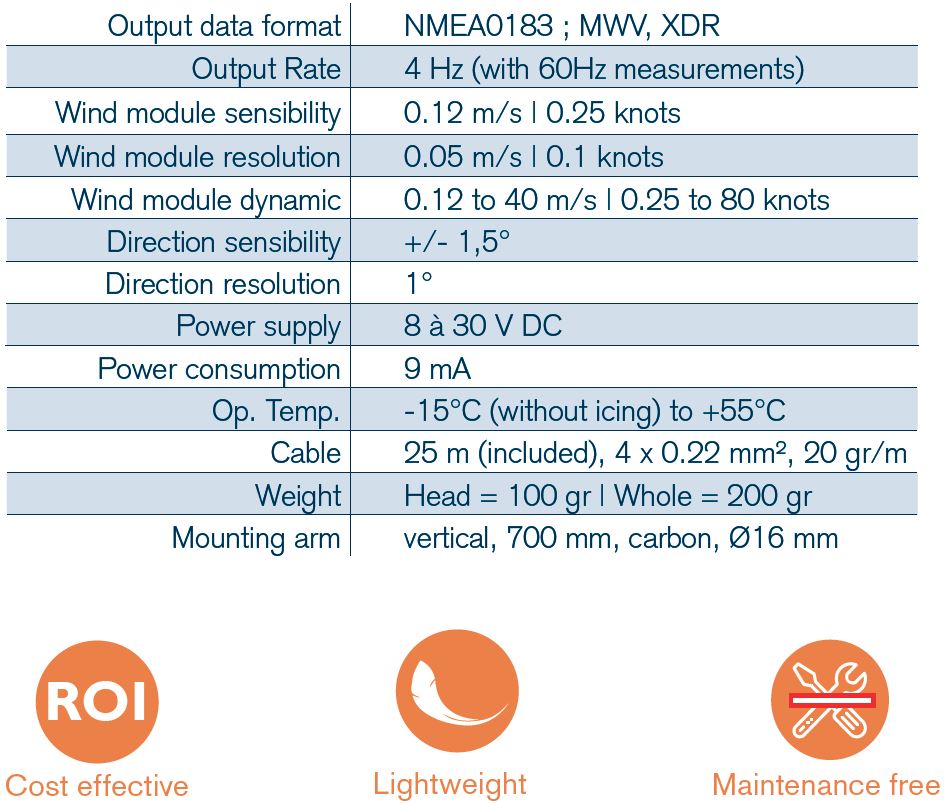

Technical characteristics

Applications : Racing
Barometer : NO
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
