TZT2BB

Multifunction displays Ref : IMD03460000

Multifunction NavNet TZtouch2 Black-Box

PRICE : NC

Find a dealer

Description

Total Control, simply refined

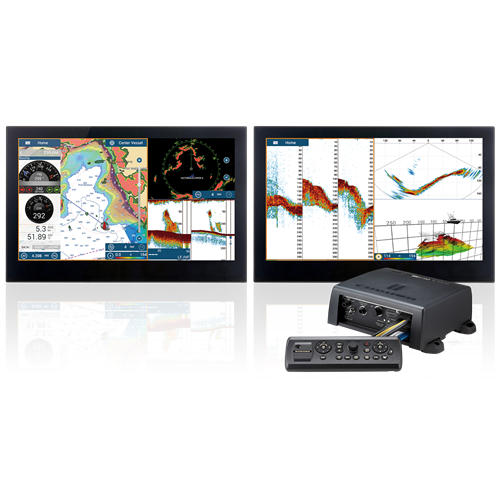

With the ability to drive multiple monitors with full HD HDMI video output in any combination of monitor aspect ratios (4:3 and 4:3, 16:9 and 4:3, or 16:9 and 16:9), a refined graphical user interface, and a built-in RezBoost Fish Finder, Furuno's NavNet TZtouch2 Black Box is a beauty to behold and use. Whether you are searching for hot fishing grounds, plotting your next route, or using your Radar to navigate through fog, NavNet TZtouch2 delivers smooth operation with familiar touch gestures.

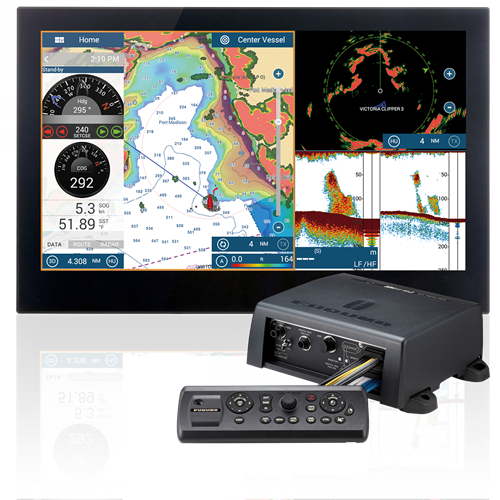

*TZT2BB shown with optional monitors and MCU005 controller

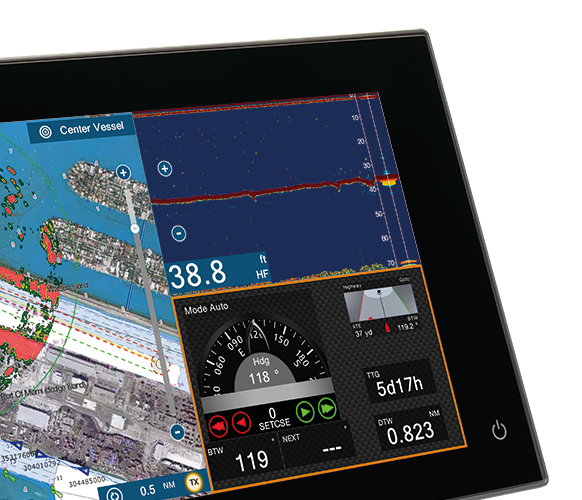

Simply refined, simply beautiful

Following in the footsteps of the original NavNet TZtouch, TZtouch2 features a refined user interface that is all about usability. Elegantly designed, NavNet TZtouch2 allows you to build a navigation suite that is not only functional but offers a luxurious look and feel. Taps, swipes, pinches, and custom multi-touch gestures are instantly transformed into action, giving you full control of every component connected to your network.

Incredibly easy-to-use controller and graphical user interface

The optional MCU005 NavNet TZtouch2 Black Box controller enhances the built-in Multi Touch graphical user interface, and sets a new benchmark for "easy to use" in the marine electronics industry. This interface is not only intuitive, but is as easy to use as the phone in your pocket. The combination of an ergonomically designed, logical controller, along with a touch-screen Graphical User Interface, make operation simple. With taps, slides and swipes, you will be up and using your TZtouch2 in no time at all. Menus and other features slide out from each of the sides of the screen, ensuring that the most important tasks are literally right at your fingertips.

The available MCU004 Remote Control option features a large rotary knob which can be utilized for zooming in/out, while the joy stick allows you to pan around the chart and move the cursor on the screen. The MCU004 remote has 8 dedicated buttons that operate different functions, such as Edge Swiping, Home, Stand By/Auto for Autopilot control, MOB, and Center on vessel.

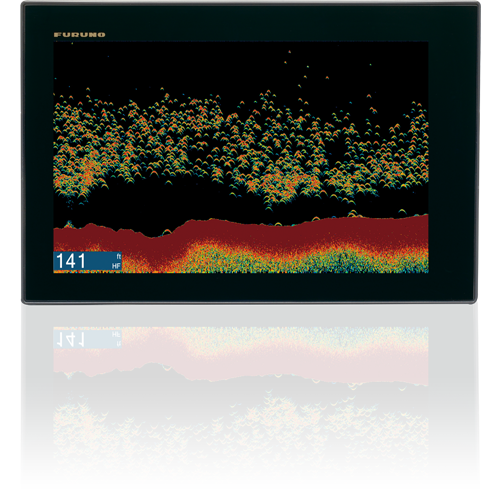

Powerful Fish Finder with built-in Furuno features

The built-in Fish Finder is a dual-frequency (50/200kHz), 600W/1kW power output sounder. It includes Furuno’s unique Bottom Discrimination and AccuFish modes, and also incorporates another new Furuno proprietary Fish Finder technology, called RezBoost. RezBoost is a revolutionary new feature that utilizes Furuno’s exclusive digital signal processing protocol to produce fantastic target resolution and separation, without the need to change out your transducer, or purchase expensive broadband transducers. With RezBoost, you can now achieve target separation and resolution that was previously limited to Furuno commercial-grade Fish Finders.

Freedom to build the helm of your dreams

NavNet TZtouch2 is a component-based system that utilizes Furuno’s award-winning network products. You can add a variety of UHD Radars, from a 4kW NXT Dome up to a 25kW X-Class Open Array. As with NavNet TZtouch, you can integrate, display, and control the NavPilot Autopilot, and Furuno’s FI70 Instrument. Both of these products have displays that match TZtouch2, giving your helm a beautiful all-glass finish. Additional sensors that can be added to the network include AIS, Weather Fax, Sirius/XM Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183 output port to send data to legacy systems.

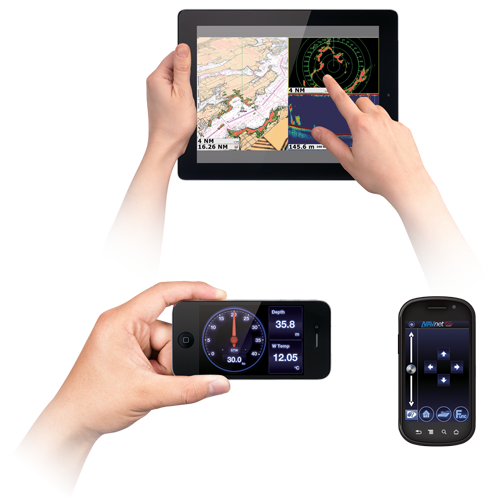

Remotely view and control your bridge with apps for your smartphone and tablet

Engineered to utilize the latest technology, NavNet TZtouch opens the door to cutting-edge WiFi features, such as tablet and smartphone apps, points of interest (POI), real-time weather data, software updates, and more. Take full control of your NavNet in a whole new way. The TZtouch Remote app allows you to operate your system remotely with your smartphone or tablet over WiFi when connected to the network.

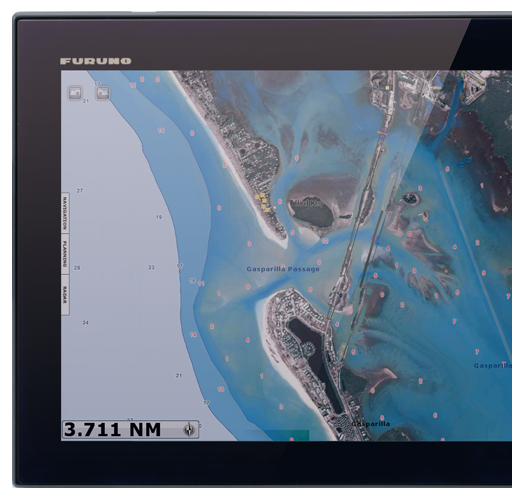

Satellite PhotoFusion™ offers a birds-eye view without obstruction of critical data

You can load any two ultra-wide high-resolution satellite photo areas at your convenience. Land areas (zero depth) are completely opaque, so these areas are displayed as high-resolution satellite photos on the chart. As the depth increases, the satellite photography becomes more transparent. This allows you to see where the shallows end and the deeper water begins, while still allowing the raster or vector chart to be visible.

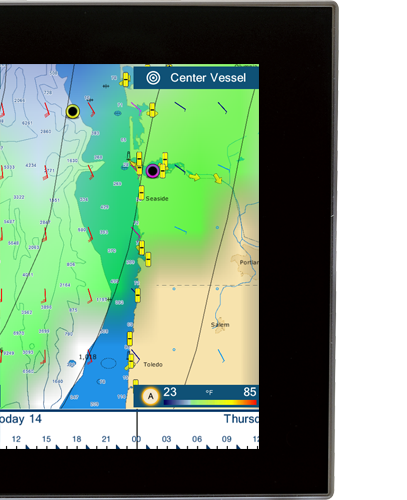

Free & easy-to-use marine weather forecasts

The weather tool is completely free and easy to use, giving you unlimited access to weather forecasts worldwide 24 hours a day provided by NavCenter. Select geographic coverage, data type, and period of time, and then choose how to receive the file. NavNet TZtouch2 provides up to 16 days of weather forecasting.

MapMedia Raster and Vector Chart Library

Freely choose the charts that fit your individual needs and preference. MapMedia's NOAA Raster and Vector charts for the U.S. Coasts, Gulf of Mexico, Alaska, and Hawaii come pre-loaded. In addition, MapMedia brings you free satellite photos and detailed fishing bathymetric charts that can be dodownloadedor to the U.S. Outside of the U.S., "C-MAP" vector cartography can be purchased and downloaded to your NavNet with ease. MapMedia cartography integrates cutting-edge algorithms with high-resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

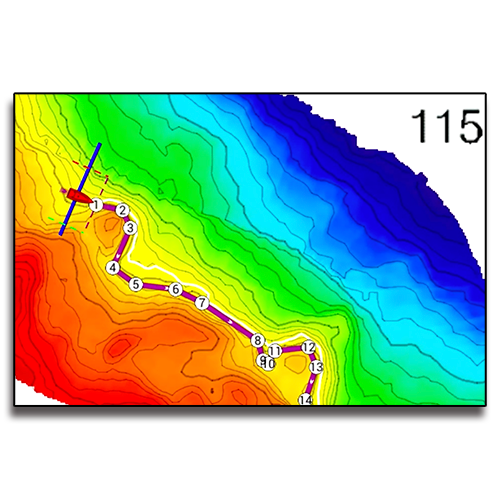

Follow-It instantly creates a constant-depth route!

The amazing Follow-It feature leverages the power of PBG (Personal Bathymetric Generator) from your DFF3D Multibeam Sonar to instantly create a constant-depth route to navigate a specific depth contour. With just a swipe and tap, Follow-It creates a white line on the PBG chart indicating the constant depth. Tapping the line instantly transforms it to an active route, sent directly to your NavPilot Autopilot. NavPilot will follow the depth route all the way around a ridge or trough. By following specific depth contours, fishermen can keep their baits at the same level as the fish while trolling without constantly adjusting the reels. Having your bait at the correct depth is critical to catching fish in areas where tide and currents flow along structure where gamefish concentrate.

Product advantages

The TZT2BB is a Black Box for the NavNet TZtouch2 series, which offers versatile operational and installation options with unique features.
The TZT2BB consists of dual processors in one box for powerful performance and the ability to support independent resolutions on dual monitors. In the TZT2BB configuration with dual monitors, each monitor shows independent images, and you can operate each monitor independently and simultaneously.
The TZT2BB supports multi-touch operation over multi-touch monitors connected via HDMI (for images) and USB (for touch) cables. The intuitive GUI on the screen is consistent with the TZTL12F/15F.
The MCU-005 (in option) is a new, full keyboard with multiple keys. When monitors are located away from the main helm or not compatible with multi-touch, the MCU-005 fully supports the operation of the TZT2BB.
The TZT2BB has built-in wireless LAN and Fish Finder compatible with RezBoost. The wireless LAN can be utilized to download weather and unlock codes and connect to iOS and Android devices for NavNet Remote, NavNet Viewer, and NavNet Controller apps.

Features

The Black Box TZT2BB :

Dual CPU with dual independent displays/resolutions
Same GUI and functions as the TZTL12F/15F
Built-in RezBoost sounder module
Built-in wireless LAN
New Switch Box PSD-003
New Control Unit MCU-005 (option)
Full HD HDMI input
USB Output

In the box

1 X TZT2BB
1 X Processor unit MPU-004
1 X Switch box PSD-003
1 X Installation materials, spare parts, and accessories

Technical characteristics

Consuption : 31.2 W
Integrated sounder : 1
Integrated Wifi : 1
NMEA0183 : OUTPUT
NMEA2000 : 1
Screan size : (Black Box)
Waterproof : 22 IP
LAN : 3
Power input : 12/24 V
Video INPUT : 3
Video OUTPUT : 2
Weight : 3,9 Kg

Videos

TZT2 presentation

Téléchargement des fichiers météo

Parts and accessories

00001076500	FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 -	NC
00001176200	HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation)	NC
00001313600	NMEA2000 NMEA183 INTERFACE	NC
00001348600	PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT	NC
00002051000	IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Replaced by 00003767000	NC
PSU-012	PSU-012 BLOC ALIMENTATION 24/48V DRS12A - PC,TZT&TZT2	NC
MCU-002	Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F	NC
00003043900	RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP	NC
00003044300	RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V	NC
00008644300	OP03-136 OP03-136 -	NC
00016050710	NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0	NC
00016050810	LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0	NC
00016714010	JOINT BOX TL-CAT-012 -	NC
00016717110	MOD-Z073-030+ CAVO LAN 3M RJ45/RJ45 PER HUB 19S1146-0 - Replaced by 00158889000	NC
00016860310	MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Replaced by 00150705000	NC
00016860410	TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Replaced by 00150707000	NC
00016860510	TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Replaced by 00150706000	NC
00107783010	FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 -	NC
00110575010	CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Replaced by 00153306000	NC
00110578010	M12-05BFFM-010 M12-05BFFM-010 19S1163	NC
00110579010	M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000	NC
00110580010	M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000	NC
00113296010	DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4	NC
00113398010	DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658	NC
00001178300	525STID-MSD SONDE 600W SONDE B744	NC
00001178400	525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB)	NC
00001348400	PR-62 (CHINA) AC100V ALIMENTATION AC/DC	NC
00001348500	PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V	NC
00001348700	PR-62 (CHINA) AC230V ALIMENTATION AC/DC AC230V	NC
200B-5S	200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800	NC
50B-6	50B-6 10M SONDE 1KW 50KHZ - Replaced by 00003835100	NC
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800	NC
00001517000	Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000	NC
00001520400	Plastic transducer 600W 50/200kHz (520-5PSD)	NC
00001521200	520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE	NC
PSU-017	POWER SUPPLY UNIT PSU-017 CHINA	NC
00002301900	525T-PWD TRANSDUCER AF/BD/ (RB)	NC
00002302000	525T-BSD TRANSDUCER AF/BD/ (RB)	NC
00002302100	526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB)	NC
00002367600	SS60-SLTD/12 TRANSDUCER 02H100540	NC
00002367700	SS60-SLTD/20 TRANSDUCER 02H100550	NC
00002367800	525T-LTD/20 TRANSDUCER AF/BD/ (RB)	NC
00002367900	525T-LTD/12 TRANSDUCER AF/BD/ (RB)	NC
00002368000	520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD	NC
00002722600	MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE -	NC
525-5PWD	525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Replaced by 00003827700	NC
00003482700	PSD-003-J SWITCH BOX SET CHINA TZT2BB	NC
00003482800	PSD-003-E SWITCH BOX SET CHINA TZT2BB	NC
00003496800	PSD-003-E-MIJ SWITCH BOX TZT2BB	NC
00003767000	IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA	NC
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC
00003827700	525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA	NC
200B-5S	200B-5S 10M SONDE 1KW 200KHz 10M 02S3110-2	NC
50/200-1T (RUBBER)	Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic	NC
50B-6	Transducer 1kW 50kHZ 50B-6 10M 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB	NC
50B-6B	50B-6B 15M TRANSDUCER	NC
00015968911	MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2	NC
00016050910	LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0	NC
00016796810	CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796811	NC
00016796811	CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1	NC
00016796910	CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-0 - Replaced by 00016796911	NC
00016796911	CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1	NC
00016797011	CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1	NC
00016797111	CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1	NC
00016797211	CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1	NC
00016797311	CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1	NC
00110576010	M12-05BM+05BF-020 M12-05BM+05BF-020 19S1162 - Replaced by 00153307000	NC
00110577010	CABLE ASSEMBLY M12-05BM+05BF-0 19S1162 NMEA2000 MICRO5C STRGHT M/F 6M - Replaced by 00153308000	NC
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	NC
00116789010	MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB	NC
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	NC
00132193000	22S0191-3 INNER HULL MOUNTING KIT 22S0191-3 - Replaced by 00159544000	NC
00014250300	C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100	NC
00150690000	KIT CONVERSIONE MCU001/MCU-005 OP19-19 MODIFICATION KIT DA MCU-001 A MCU-005	NC
00150701000	FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511	NC
00150703000	FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511	NC
00150704000	FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511	NC
00150705000	CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA	NC
00150706000	TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001	NC
00150707000	FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000	NC
00153306000	CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI	NC
00153307000	FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101	NC
00153308000	FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI	NC
00158880000	MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2	NC
00158889000	MOD-Z073-030+ CABLE EQUIPE RESEAU PC/HUB POE 19S1146-0	NC
00159544000	22S0191-4 INNER HULL MOUNTING KIT 22S0191-4	NC
OD-STARTER-KIT	KIT DE DEMARRAGE NMEA2000 CERTIFIE	NC
RO-00032	CARTE SD/MICROSD 32GB CARTE 32GB PRECHARGEE - Replaced by RO-00304	NC
MS-WIDE MM3D	WIDE ZONE WIDE MM3D RASTER, CMAP MM3D	NC
MS-MWIDE MM3D	MWIDE ZONE MEGA WIDE MM3D RASTER, JEPPESEN MM3D	NC
MU NAVNET TZT2	MU TZTL12F/TZTL15F/TZT2BB Manuel d'utilisation Francais	NC
P319DT	Transducer 600W True Hull Plastic 50/200kHz, bi-function P & T	NC
B60-12	The Transducer bronze B60-12º Traditional/CW	NC
B60-20	The bronze B60-20º Traditional/CW	NC
SS60-0	SS60-0 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M	NC
SS60-12	SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M	NC
B45	Thru Hull transducer 600W 50/200 kHz Bronze 2 functions (B45)	NC
B744V	Transducer True-Hull 600W Bronze 50/200kHz 3 functions	NC
B744VL	Tranducer True-Hull 600W Bronze 50/200kHz 3 Functions	NC
P79 D	Transducer 600W In-Hull Plastic 50/200kHz Depth	NC
P66D	Transducer 600W True-Hull plastic 50/200kHz Depth - Replaced by AI-31-470-4-01	NC
P66 DST	P66 TRIDUCER 600W Multisensor features our 50/200 kHz, dual-frequency, single-ceramic element	NC
B164 12	B164 Traditional/CW 12° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor	NC
B164 20	B164 Traditional/CW 20° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor	NC
SS164-20	Transducer - 50/200 kHz - 1 kW RMS - 20° Tilt - Stainless Steel - Exclusive Xducer ID® technology	NC
B260	Transducer True-hull 1kW Bronze 50/200 kHz 2 functions	NC
M260	Transducer In-Hull 1000W 50/200 kHz	NC
TM260	TM260 Transom, 1 kW, Broadband - Wide 19° beam at 50 kHz - Narrow 6° beam at 200 kHz - Interfaces to any 600 W or 1 kW sounder - Depth and fast-response water-temp	NC
AI-33-046-01	INSERT DE REMPLA. POUR B744V POUR SONDE B744V B744V	NC
AI-33-479-01	SUPPORT PLAST. POUR P66 TA POUR SONDE P66	NC
AI-33-476-06	SABOT PROFILE 0 POUR B744V	NC
AI-33-203-04	CAVO 9M PROLUNGA 10PIN M/F DST PER TRASDUTTORI CONN FURUNO SONDE 10B	NC
AI-33-509-05	SABOT PROFILE 0 POUR B45	NC
AI-33-113	ST650 ROUE A AUBE 4 PALES POUR B744V / ST800	NC
AI-33-473-01	ROUE A AUBE 4 PALES POUR P66 KIT 33-473-01 POUR P66	NC
AI-20-073	SUPPORT VENTOUSE SONDETRIE PORTABLE TRANSOM MOUNT BRACKET	NC
AI-33-073-02	CORDON ADAPT 10PM<->8PF 1M C32 1M 8F-F 10M	NC
AI-33-391-01	FAIRING BLOCK B260 HIGH PERFORMANCE - AIRMAR	NC
AI-33-523-02	SABOT PROFILE POUR B258 B285 HIGH PERFORMANCE - AIRMAR - Replaced by AI-33-523-01	NC
AI-33-539-02	CAISSON POUR SONDE M260 Model M260 in hull tank kit	NC
AI-33-204-01	CORDON ADAPT 8PM<->10PF 1M C332 1M 8M-F 10F	NC
RO-GS308P	GS308P HUB POE 8 PORTS RJ45 SWITCH ETHERNET Métal Gigabit (10/100/1000) - Replaced by RO-GS308PE	NC
RO-NGX-1-USB	INTERFACE BI-DIRECTIONNELLE NMEA2000 > PC ou NMEA 0183 non compatible SCSETTING TOOL	NC

RO-00304-TZT2BB	CARTE SD 64GB POUR TZT2BB CARTE 64GB PRECHARGEE	NC

00003482100	MPU-004/PSD-003-E PROCESSEUR/SWITCH BOX	NC

MCU-004	Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F	NC
MCU-005	Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F	NC
HD17STDMA1-FOGP	HD17STDMA1-FOGP ECR.TACTILE 17'' SERIE X 1280x1024 LED/ENCASTRE/AC-DC	NC
HD19T21STD-MA1-FOGP	HD19T21STD-MA1-FOGP ECR.TACTILE 19'' SERIE X AC/DC 1280x1024 LED/ENCASTRE/AC-DC	NC
HD24T21STD-MA1-FOGP	HD24T21STD-MA1-FOGP ECRAN TACTILE 24'' SERIE X AC/ 192x1080 STD LED	NC
DFF3	Black Box Sounder 1-3 kW 28-200 kHz for NNTZT and TZT2	NC
GP330B/NMEA2000	Active GPS/SBAS receiver antenna - NMEA2000 ( NMEA0183 cable in option) A high performance NMEA2000 GPS Receiver designed for any type of vessel.	NC
BBDS1	Black Box Sounder with BDS 1 kW 50/200 kHz for NNTZT and TZT2	NC
PG700	NMEA2000 Rate Compensated Heading Sensor w/ 6M NMEA2000 Cable	NC
DFF1-UHD	Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch	NC
DRS6A-NXT	25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable.	NC
DRS4DL+	4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable.	NC
IMD03456000	ANTENNA RADAR DOPPLER RADOME 25 W - Replaced by IMD03456001	NC

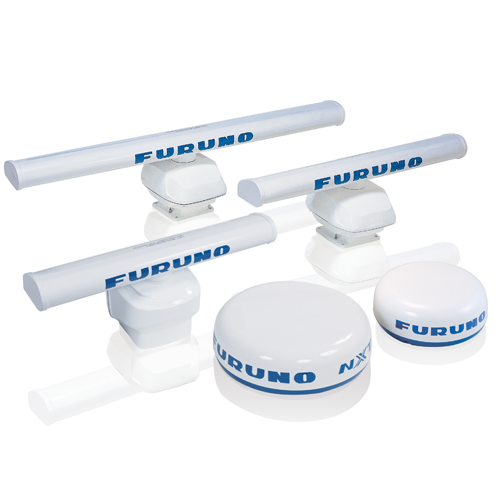

DRS6A-XCLASS	6kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5, 4 or 6 antenna and, cable. - Replaced by IMD034550BA	NC
DRS12A-XCLASS	12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4 or 6 antenna and, cable.	NC
DRS25A-XCLASS	25kW, 96 n.m., UHD Digital Radar for NavNet TZtouch , TZtouch2, and TZtouch3, less 3.5', 4 or 6 antenna and, cable.	NC

00015966211	CR-2032L/BK LI-METAL BATTERY 0.07G	NC
00017665310	B8304870 THERMAL PAD 19S112800	NC
00102645000	KNOB(N2.5) KNOB MFDBB	NC
00120045000	19P1064(LF) CON PRINTED CIRCUIT BOARD CHINA TZT9/14	NC
00120062000	19P1072(LF) HUB PRINTED CIRCUIT BOARD CHINA TZT14	NC
00120132000	TZT9/14/BBCFAST CARD CFAST CARD WITH SOFTWARE CHINA	NC
00123435000	19P1082(LF) IO PRINTED CIRCUIT BOARD MPU-002 - Replaced by 00123918000	NC
00123920000	TZTBB CPU CPU ASSEMBLY CHINA	NC
00102724000	SP19-00901 SPARE PARTS HUB-101	NC
00102725000	CP19-01101 INSTALLATION MATERIALS HUB-101	NC
00103805000	HUB-101 P-PLATE PROTECTION PLATE ASSEMBLY	NC
00103806000	HUB-101 COVER COVER S ASSEMBLY	NC
00123438000	19P1068(LF) SDXC PRINTED CIRCUIT BOARD CHINA TZT9/14	NC
00123919000	19P1083(LF) PWRSW PRINTED CIRCUIT BOARD CHINA PSD-002	NC
00123956000	19-061(8-8P) ZH CONNECTOR ASSEMBLY CHINA TZTBB	NC
00149347000	1950188- SD MEMORY CARD	NC
00288189000	19P1042(LF) HUB PRINTED CIRCUIT BOARD HUB101 19E61019	NC
00150870000	19P1093(LF) MAIN PLATINE MPU-004 - Replaced by 00165059000	NC
00150872000	19P1094(LF) PWR PLATINE MPU-004	NC
00150877000	MPU-004 COVER COVER ASSEMBLY MPU-004	NC
00150879000	MPU004 COVER CHASSIS CAPOT CHASSIS EQUIPE MPU-004	NC
00150881000	MPU-004 CHASSIS CHASSIS ASSEMBLY	NC
00150887000	MPU-004 FAN COVER FAN COVER ASSEMBLY	NC
00150890000	19P1038A(LF) PNL1 PLATINE MCU-005	NC
00150891000	19P1055A(LF) PNL2 PLATINE MCU-005	NC
00150892000	MCU-005 BEZEL FACE AVANT EQUIPE MCU-005	NC
00150894000	MCU-005 F-COVER FRONT COVER(BB)ASSEMBLY TZT2BB SP	NC
00152837000	TET-15-035B CABLE ASSEMBLY	NC

Downloads

TZT2BB ENGLISH (31.0 Ko)

TZT2BB ENGLISH (6.1 Mo)

TZT2BB ITALIAN (1.3 Mo)

TZT2BB ENGLISH (149.9 Ko)
