FELCOM251
COMMUNICATION SATELITE SYSTEM Ref : IMD03440300Fleet Broad Band FURUNO - Standard IP 284 Kbps (Less antenna cable)
PRICE : NCDescription

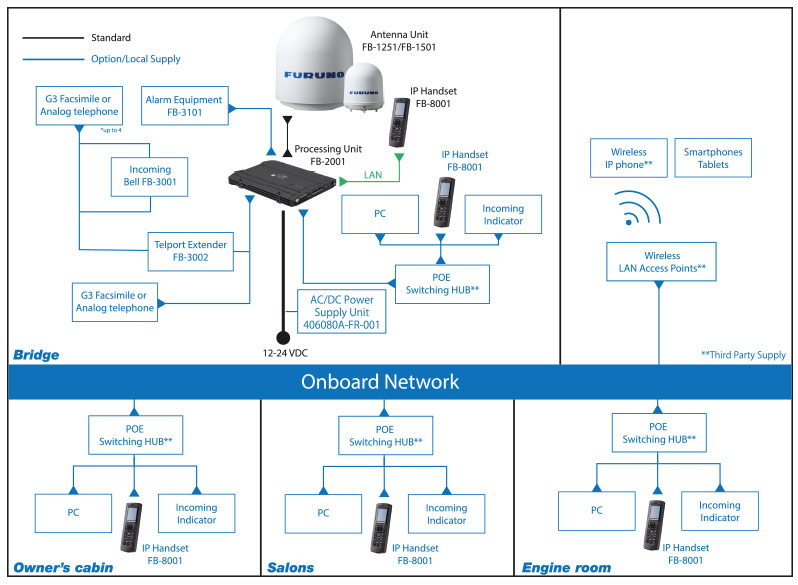

System Overview of FleetBroadband

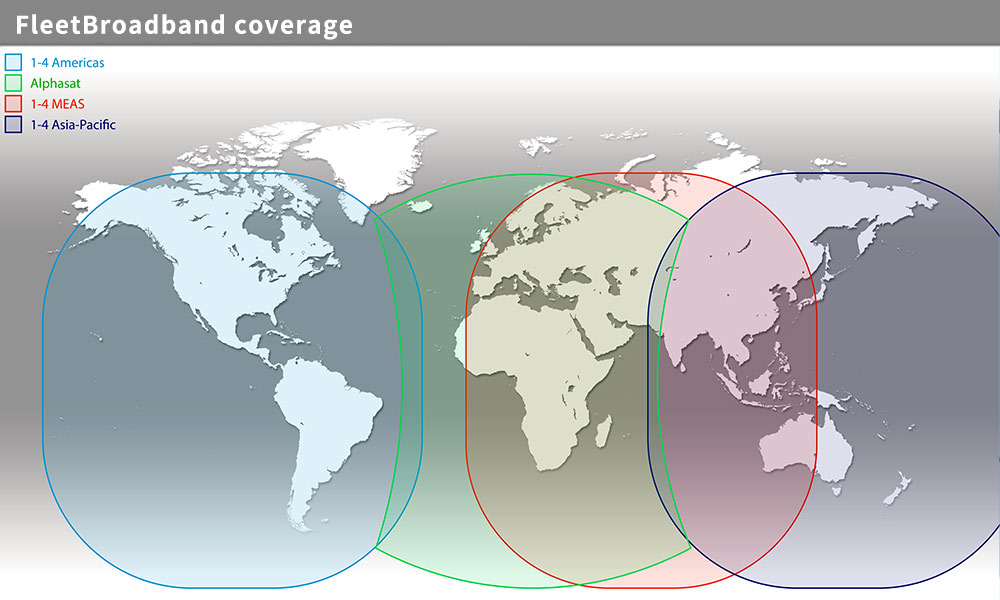

FleetBroadband coverage
- I4 satellite F1 PAC-W 143.5E: Covering Oceania, Western Pacific and South and East Asia.
- I4 satellite F2 IND-W 25E: Covering Western Asia, Africa and Eastern Atlantic.
- I4 satellite F3 PAC-E 98W: Covering Western Atlantic, Eastern Pacific and Americas.
Product advantages
FELCOM251 and FELCOM501 are FURUNO's latest Inmarsat FleetBroadband terminals, which delivers ship-to-shore/ ship-to-ship broadband communication of up to 432 kbps, anywhere at sea, by utilising the inmarsat Fleet Xpress system coverage. (coverage map below.)
In addition to data communication services (Standard IP of up to 432 kbps). FleetBroadBand allows the users to make use of ISDN data service* as well as FAX communication.
FELCOM251 and FELCOM501 will bring cost-effective broadband communication onboard the vessels for a variety of needs, for both operational and social purposes, including calling their friends and family back home while at sea.
* FELCOM501 only
Features
Inmarsat fleet broadband data coverage anywhere at sea
- Support the Inmarsat Fleet Xpress system
- Standard IP(Up to 432 kbps for FELCOM501)
- Streaming IP(Up to 256 kbps for FELCOM501)
- Satellite voice
- Enhanced voice services
- Crew calling
- GSM calls
- SMS
- Safety
- Fax
- Noise suppression function to improve the listening comfort in noisy environment
- Compact Communication Unit FB-2001 for easy installation
- High level of security settings (IP Filter, Firewall)
- Remote Maintenance Available
- Ample connection interface for retrofitting with existing systems and components
- Conforms to the following standards: Inmarsat Fleetbroadband SDM, IEC 60945 (Ed.4), IEC 60529 (Ed.2)
In the box
1 X communication unit FB-2001
1 X IP Handset FB-8001
1 X Antenna unit FB-1251
Technical characteristics
Brand : FURUNO
Connection Tel/fax : 4
Diameter : 410 mm
Function : Data/Voix/Sms
Height : 258 mm
Integrated GPS : YES
Maxi speed of transfer data : 284 kbps
NMEA0183 : 1
Power input : 12/24 V
Type : FLEET BROAD BAND
Weight : 6.5 Kg
Parts and accessories
| 00106731000 | CP16-04131 INSTALLATION MATERIALS | NC |
| 00154162000 | 403742A-920-FUR MAST MOUNT KIT | NC |
| 00154161000 | 406080A-001-FUR WALL MOUNT TRAY | NC |
| 00149332000 | 16-023-5501 SPLASH PROOF CAP | NC |
| 00125846000 | TN2210 TONER CARTRIDGE | NC |
| 00125844000 | DR2200 DRUM UNIT | NC |
| 00124055000 | LAN CABLE (4 PAIR) FR-FTPC-CY *100M* 19S1029-0 | NC |
| 00124054000 | FR-FTPC-CY CAVO LAN 50M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | NC |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | NC |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | NC |
| 00854246000 | CP03-28901 CONNECTEUR | NC |
| 00002487200 | FAX-2840 ENGLISH*CE FACSIMILE MACHINE COMPLETE SET | NC |
| 00003332500 | GEMINI 9333B4 TELEPHONE SET | NC |
| 00003420700 | GEMINI9333 PHONE FIXING BASE SET | NC |
| 00003481800 | FB-3001 INCOMING BELL | NC |
| 00003510800 | GEMINI9333 PHONE FIXING BASE SET TILTING TYPE | NC |
| 00003510900 | GEMINI 9333B4 TELEPHONE SET TILTING TYPE | NC |
| 00003587500 | FB-3101 ALARM PANEL 403771A-FUR | NC |
| 00003587600 | 406080A-FUR-001 AC/DC POWER SUPPLY 406080A-27001 | NC |
| 00003587800 | FB-3003 USB-RS232C CONVERTER 403738B-27982 | NC |
| 00016714010 | JOINT BOX TL-CAT-012 - | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00003783000 | OP16-79 MODULAR JACK SET | NC |
| 00004322800 | OP16-13 SET JACK MODULARI PER FELCOM-251/501 | NC |
| 00004327200 | OP16-8 BOX JACK MODULARI PER FELCOM-251/501 | NC |
| 00004327800 | OP16-10 MODULAR JACK BOX(EXPOSED) FELCOM80/81 | NC |
| 00004327900 | OP16-11 MODULARJACKBOX(FLUSH) FELCOM80/81 | NC |
| IT-S2-3108 | I3 EMPTY DOME ANTENNA INTELLIAN | NC |
| IT-S2-4109 | DOME VUOTO I4/I4P INTELLIAN | NC |
| 00159594000 | 8D-FB-CV 30M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| 00116317010 | 8D-FB-CV CABLE EQUIPE 30M AVEC CONNECTEUR non rohs 20S104690 - Replaced by 00159594000 | NC |
| 00116319010 | 8D-FB-CV CAVO 50M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159595000 | NC |
| 00116322010 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104690 - Replaced by 00159593000 | NC |
| 00159593000 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| 00159595000 | 8D-FB-CV 50M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| RO-00017 | CABLE ANTENNE 15 M D:5.4MM AVEC CONNECTEUR | NC |
| RO-00018 | CABLE ANTENNE 25 M D:10.8MM AVEC CONNECTEUR | NC |
| 00115811010 | 12D-SFA-LITE-CV 100M CABLE EQUIPE 16S0211 | NC |
| 00003623800 | FB-8001-E IP HANDSET FBB HANDSET W/CRADLE | NC |
| 00003586900 | FB-1251 W/O INST-MAT ANTENNA UNIT W/O INST-MAT 403050A-FUR-001 | NC |
| 00003587100 | FB-2001-251 W/O INST COMMUNICATION UNIT W/O INST 403738B-FUR-250 | NC |
| 00003624000 | CP16-06500 INSTALLATION MATERIALS FELCOM251 | NC |
| 00160095000 | S-82-152760-C ACCESSORIES KIT FB-2001/-F19 SP | NC |
| 00160075000 | S-41-204677-265 TIMING BELT FB-1251 SP | NC |
| 00160163000 | FB-8001-E HANDSET FB-8001 | NC |
| 00160161000 | FB-8001 CRADLE ASSEMBLY FB-8001 | NC |
| 00160117000 | S-34-201823-035 THERMAL PASTA FB-1251/1501 SP | NC |
| 00160098000 | S-87-146129-B WIRE LID COVER PSU SP | NC |
| 00160097000 | S-37-207267-001 CABLE ASSEMBLY RJ11 6P4C FB-3002 SP | NC |
| 00160096000 | S-60-151922 PSU PRINTED CIRCUIT BOARD FB-2001/-F19 SP | NC |
| 00160086000 | S-67-127759 RADOME BOTTOM FB-1251 SP | NC |
| 00160077000 | S-60-134200 HPA PRINTED CIRCUIT BOARD FB-1251/1501 SP | NC |
| 00160078000 | S-60-137189-S250 ACM PRINTED CIRCUIT BOARD FB-1251 SP | NC |
| 00160079000 | S-60-143908 GENERIC GNSS MODULE FB-1251/1501 SP | NC |
| 00160080000 | S-62-166040 RADOME TOP W/FURUNO MARK FB-1251 SP | NC |
| 00160081000 | S-67-166041 RADOME TOP LESS FURUNO MARK FB-1251 SP | NC |
| 00160082000 | S-62-127181 ASSEMBLED BELT TENSIONER FB-1251 SP | NC |
| 00160083000 | S-62-134236 DLNA PRINTED CIRCUIT BOARD FB-1251 SP | NC |
| 00160084000 | S-62-137388 ELECTRONIC COVER FB-1251 SP | NC |
| 00160085000 | S-67-127067 MOUNTING KIT FB-1251 SP | NC |
| 00160076000 | S-48-121639-A WARNING LABEL FB-1251 SP | NC |
| 00160087000 | S-67-127760 LITTLE SCREW KIT FB-1251 SP | NC |
| 00160088000 | S-67-127761 BIG SCREW KIT FB-1251 SP | NC |
| 00160089000 | S-67-130233 RADOME SCREW KIT FB-1251 SP | NC |
| 00160090000 | S-67-139867 MOTOR KIT FB-1251 SP | NC |
| 00160091000 | S-31-204325-108 CONN. CABLE FB-2001/-F19 SP | NC |
| 00160092000 | S-37-125066 POWER SWITCH ASSY FB-2001/-F19 SP | NC |
| 00160093000 | S-37-125999-A POWER CABLE FB-2001/-F19 SP | NC |
| 00160094000 | S-41-152759-A SIM CARD COVER FB-2001/-F19 SP | NC |
