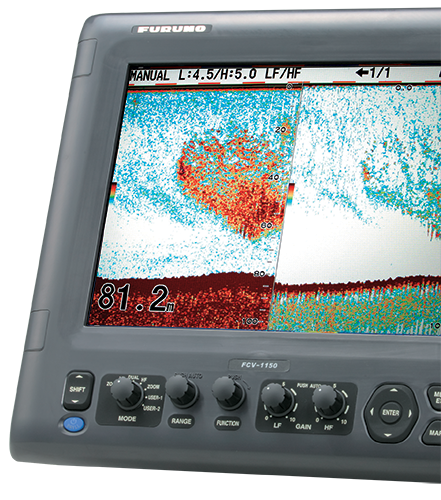

FCV1150
Sounder for fishing Ref : IMD0300700112.1" color LCD sounder - 450 cd/m² - 800x600 pixels - 1000 à 3000W
PRICE : 6 649,00 € With VAT (22%)Description
Setting the benchmark for Fish Finder performance
Easily identify bottom fish from the seabed

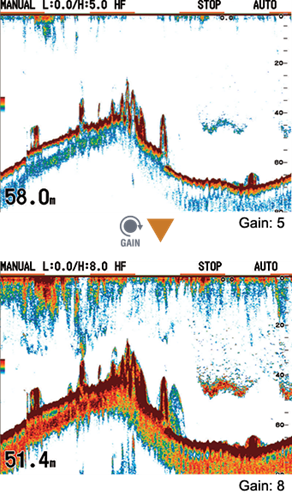

Post-processing gain control gives you quick results

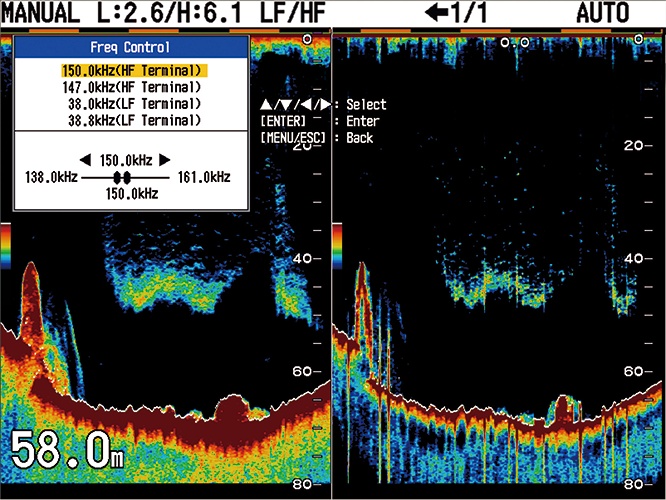

Fine tune your Fish Finder with the operating frequency adjustment

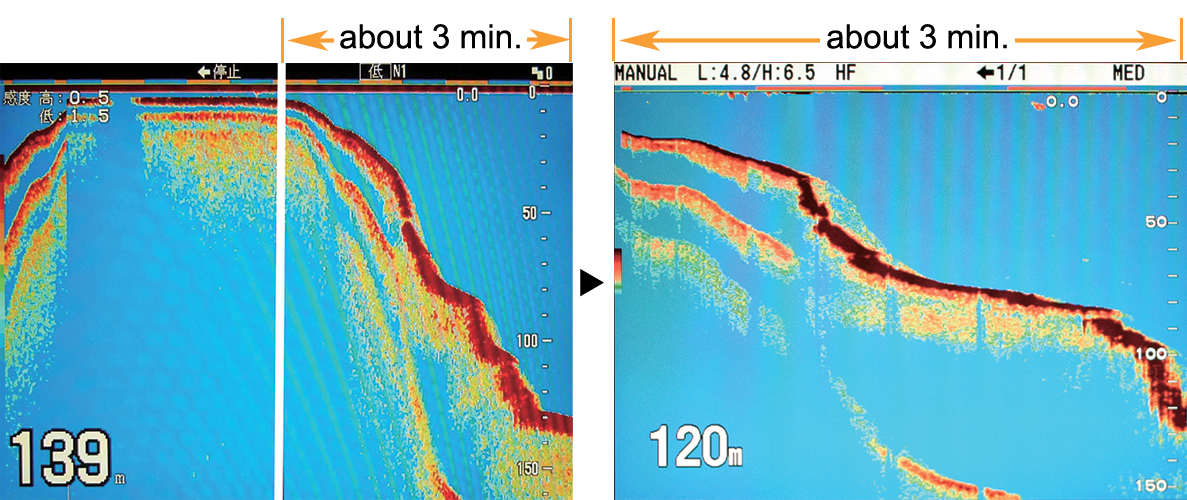

Faster transmission train for more detailed detection
The rate of transmission is increased by more than 30% compared to conventional Fish Finders. As the result, more detailed information about underwater conditions can be gained through the same sounding interval. With the AUTO transmission function, the rate is automatically raised in shallow waters and lowered in deep waters, which provides for detailed detection of seabed targets.

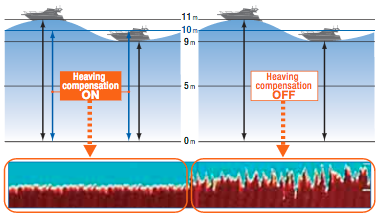

Unwavering, stable detection even in rough seas

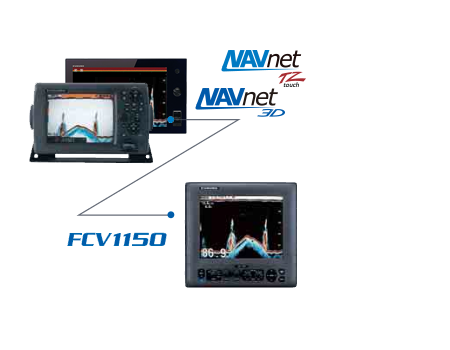

Integrate your FCV1150 with NavNet
Features
-
Screen size: 12.1 "
-
Dimensions: 345x356x199 mm
-
800 x 600 pixel screen resolution
-
Power 1000 to 300W
-
12-24Vdc power supply
-
NMEA183
-
IPX5 sealing
-
Frequency choice between 28 and 200 kHz
-
50W power consumption
-
Transmitting power 1, 2 or 3 kW
-
Weight 8.2 Kg
-
Network output to connect a Maxsea
In the box
- 1 Screen
- 1 protective cover
- 1 stirrup
- 2 knobs
- 4 Fuses
- 1 Installation joint
- 1 cutting template for embedding
- 1 installation kit
- 2 pods
- 1 cleaning cloth
- 1 Installation Manual
- 1 User Manual
- 1 Simplified User Guide Laminated (Multilingual)
Technical characteristics
Brightness : 450 cd/m2
Frequency : 25-52, 66-110, 140-170, 184-220 kHz
NMEA0183 : 2
Power : 1k-3k W
Power input : 12/24 V
Resolution : 800x600 Pixels
Screan size : 12.1"
Waterproof : X5 IP
Parts and accessories
| 50BL-12HR | Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug | 3 037,80 € With VAT (22%) |
| 28F-8 | 28F-8 *15M* SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Replaced by 00003834900 | 1 530,67 € With VAT (22%) |
| 88B-8 | Transducer 88B8 (1kW) - 88kHz - Rubber - cable 15m | 908,90 € With VAT (22%) |
| 88B-10 | Sonde 88B10 - 88kHz - Rubber - câble 15m | 1 182,18 € With VAT (22%) |
| 200B-5S | 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800 | 452,74 € With VAT (22%) |
| 200B-8B | Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m | NC |
| 50B-6 | 50B-6 *10M* SONDE 1KW 50KHZ - Replaced by 00003835100 | 411,31 € With VAT (22%) |
| 50B-6B | 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800 | 396,52 € With VAT (22%) |
| 00001506500 | Transducer 50B9B - 50kHz - Rubber - cable 15m - Replaced by 00003835400 | 646,83 € With VAT (22%) |
| 50F-8G | 50F-8G *15M SONDE 1KW 50KHz | NC |
| 200B-12H | 5 kW/ 200 kHz / 4 degree Beam Angle / 11 lbs. Rubber Coated - Tank Mounted / 15-Meter Cable, no connector provided | NC |
| 28BL-6HR | Transducer 28BL-6HR - 28kHz - Plastic - cable 15m | NC |
| 28BL-12HR | 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 38BL-9HR | 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 82B-35R | Transducer 82B35R 65 to 110kHz - Rubber - cable 15m | 4 288,29 € With VAT (22%) |
| 00001517000 | Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000 | 1 355,81 € With VAT (22%) |
| 50/200-12M | TRANSDUCER 50/200-12M (BRONZE) DUAL FREQ. non ROHS BRONZE 50/200KHz 1KW 12M | 1 355,81 € With VAT (22%) |
| 00001520600 | TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE | NC |
| 00001520700 | TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - | 1 135,49 € With VAT (22%) |
| 00001520900 | TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE | 1 024,80 € With VAT (22%) |
| 00002689300 | T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE | 479,46 € With VAT (22%) |
| 00002689400 | T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA | 161,04 € With VAT (22%) |
| 00004002700 | T-03MSB T-03MSB - | 1 420,37 € With VAT (22%) |
| 00015403610 | MJ-A6SPF0009-100C MJ-A6SPF0009-100C 22S0269-1 | 129,12 € With VAT (22%) |
| 00015405410 | Data cable (6PF<->Nu) 5m | 48,80 € With VAT (22%) |
| ST-02MSB | ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN | 352,58 € With VAT (22%) |
| ST-02PSB | ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN | 229,36 € With VAT (22%) |
| R399 | R399 SONDE INT FIBRE 2-3KW MOD. FREQ./P/XID 15M R399 | NC |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 750,30 € With VAT (22%) |
| B260 | B260 DT TRANSDUCER 50/200Khz 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT | NC |
| 00124047000 | COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *15M* 14S4231-0 | 298,88 € With VAT (22%) |
| 00124046000 | COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *10M* 14S4231-0 | 222,74 € With VAT (22%) |
| 00124044000 | COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *5M* 14S4231-0 | 122,40 € With VAT (22%) |
| 00004004000 | T-02MSB CAPTEUR DE TEMPERATURE - Replaced by 00002689300 | 1 101,60 € With VAT (22%) |
| 00001504800 | T-696 TANK FOR STEEL HULL | 6 684,62 € With VAT (22%) |
| 00001509200 | 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | 4 623,80 € With VAT (22%) |
| 00001507300 | 68F-30H TRANSDUCER | 2 785,60 € With VAT (22%) |
| 00001506800 | 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA | 3 750,28 € With VAT (22%) |
| 00004002600 | T-02MTB TEMPERATURE SENSOR - Replaced by 00002689400 | 833,26 € With VAT (22%) |
| 00001503000 | 200B-8 *10M* TRANSDUCER | 635,53 € With VAT (22%) |
| 00001348400 | PR-62 (CHINA) AC100V ALIMENTATION AC/DC | 991,43 € With VAT (22%) |
| 00003908800 | 88F-126H TRANSDUCER 02S3024-2 | 4 221,85 € With VAT (22%) |
| 50B-6B | 50B-6B *15M* TRANSDUCER | NC |
| 00003835500 | 68F-30H TRANSDUCER | 2 785,60 € With VAT (22%) |
| 50B-9B | Transducer 50B9B - 50kHz - Rubber - cable 15m | 561,20 € With VAT (22%) |
| 50B-6 | Transducer 1kW 50kHZ 50B-6 *10M* 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB | 411,31 € With VAT (22%) |
| 50/200-1T (RUBBER) | Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic | 1 232,20 € With VAT (22%) |
| 28F-8 | 28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc | NC |
| 200B-5S | 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 | 348,92 € With VAT (22%) |
| 00001520500 | TFB-4000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.4 THRU-HULL PIPE | 180,56 € With VAT (22%) |
| 00001521800 | TRB-1100(2) THRU-HULL PIPE | 2 378,05 € With VAT (22%) |
| 00001170700 | FCV-1150-E LCD SONDEUR COULEUR | NC |
| 00104723000 | 02P6351 PNL PRINTED CIRCUIT BOARD FCV-1150 SP | 470,49 € With VAT (22%) |
| 10034200110 | 02-157-1301-1 CAPOT DE PROTECTION - - Replaced by 10034200210 | 66,44 € With VAT (22%) |
| 10034171110 | 02-157-1002-1 PANEL LID - | 23,53 € With VAT (22%) |
| 00013798601 | ST-02MSB SPEED/TEMPERATURE SENSOR 02S3113-1 - Replaced by 00116415010 | 432,03 € With VAT (22%) |
| 00111884000 | 02-157-1008/#6601-P KNOB C CV-1150 | 48,42 € With VAT (22%) |
| 00111881000 | 02P6351A PNL PRINTED CIRCUIT BOARD FCV-1150 SP | 470,49 € With VAT (22%) |
| 00104724000 | 02P6350 PWR PRINTED CIRCUIT BOARD FCV-1150 SP - Replaced by 00148196000 | 1 923,43 € With VAT (22%) |
| 00014888412 | 231-303/026-FUR CONNECTOR 20S0380-2 | 23,53 € With VAT (22%) |
| 00103346000 | 02-157-1004/#6601-P KNOB A CV-1150 | 37,66 € With VAT (22%) |
| 00103344000 | FCV-1150 R-COVER REAR COVER ASSEMBLY - | 545,14 € With VAT (22%) |
| 00103343000 | FCV-1150 BEZEL BEZEL ASSEMBLY - | 129,12 € With VAT (22%) |
| 00102645000 | KNOB(N2.5) KNOB MFDBB | 44,38 € With VAT (22%) |
| 00016727410 | 734206-1JP-#18-L50 CONNECTOR ASSY 02S6044-0 | 66,44 € With VAT (22%) |
| 00016572710 | MMF-06G12DM-RN1 FAN MOTOR ASSEMBLY 02S5200-0 | 101,42 € With VAT (22%) |
| 00016496710 | 734-210 CONNECTOR - | 42,37 € With VAT (22%) |
| 00015773610 | FS50UM-3 B00 MOS FET - | 37,66 € With VAT (22%) |
| 00014051310 | RK117111400X POTENTIOMETER 02S4978-0 | 37,66 € With VAT (22%) |
